◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#95125) — 22 parça

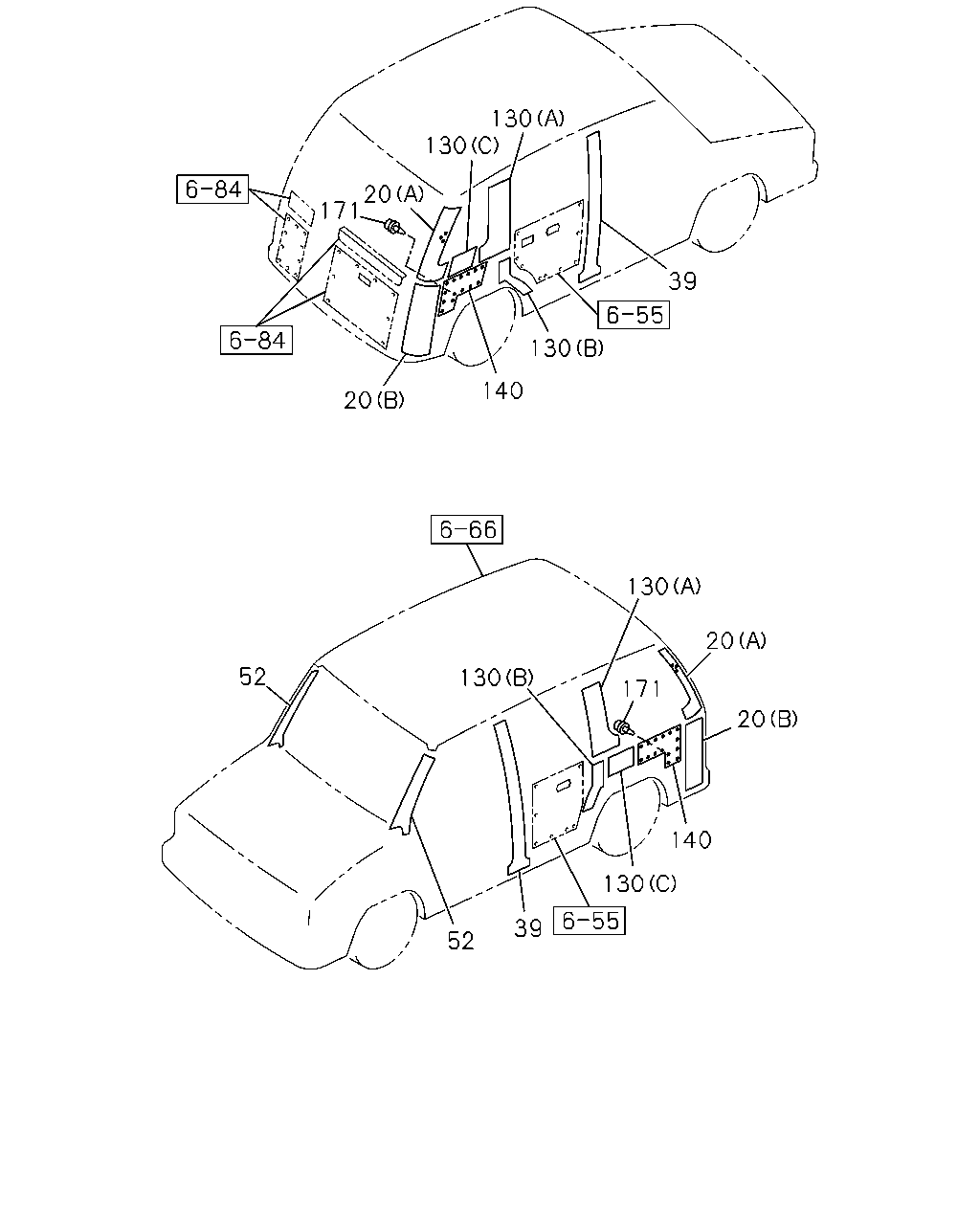

çizim 289145
171 20 130 130 39 130 140 20 52 130 130 20 20 140 130 171 39 52
BalonParca AdiParca NoAdetTipApplied Date A B
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) (A) DELETION GRAY IDN 		8-97002-600-0 01 1 9009-9302 ●
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) (A)(B) DELETION GRAY IDN 		8-97097-063-0 01 1 9303- ●
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) (B) DELETION GRAY IDN 		8-97002-602-0 01 1 9009-9302 ●
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) (A) DELETION GRAY IDN 		8-97002-599-0 01 1 9009-9302 ●
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) (A)(B) DELETION GRAY IDN 		8-97097-062-0 01 1 9303- ●
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) (B) DELETION GRAY IDN 		8-97002-601-0 01 1 9009-9302 ●
39 COVER; TRIM,CENTER PILLAR
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-598-1 01 1 9009- ●
39 COVER; TRIM,CENTER PILLAR
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-597-1 01 1 9009- ●
52 COVER; TRIM,FRT PILLAR
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-596-1 01 1 9009- ●
52 COVER; TRIM,FRT PILLAR
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-595-1 01 1 9009- ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) (C) DELETION GRAY IDN 		8-97002-607-0 02 1 9009-9302 ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) (A) DELETION GRAY IDN 		8-97002-604-0 01 1 9009-9302 ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) (A),(B) DELETION GRAY IDN 		8-97097-065-0 01 1 9303- ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) (B) DELETION GRAY IDN 		8-97002-606-0 01 1 9009-9302 ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) (A) DELETION GRAY IDN 		8-97002-603-0 01 1 9009-9302 ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) (A),(B) DELETION GRAY IDN 		8-97097-064-0 01 1 9303- ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) (B) DELETION GRAY IDN 		8-97002-605-0 01 1 9009-9302 ●
140 PAD; TRIM,QTR
WAGON(TB**V*) DELETION IDN 		8-97002-633-0 01 1 9009- ●
140 PAD; TRIM,QTR
WAGON(TB**V*) DELETION IDN 		8-97002-632-0 01 1 9009- ●
140 PAD; TRIM,QTR
WAGON(TB**V*) DELETION IDN 		8-97002-635-0 01 1 9009- ●
140 PAD; TRIM,QTR
WAGON(TB**V*) DELETION IDN 		8-97002-634-0 01 1 9009- ●
171 CLIP; TRIM PAD
WAGON(TB**V*) H=16.7 IDN 		8-94133-935-2 34 1 9602- ● ●
