6-32 — FRONT DOOR LOCK AND HANDLE (#95122) — 49 parça

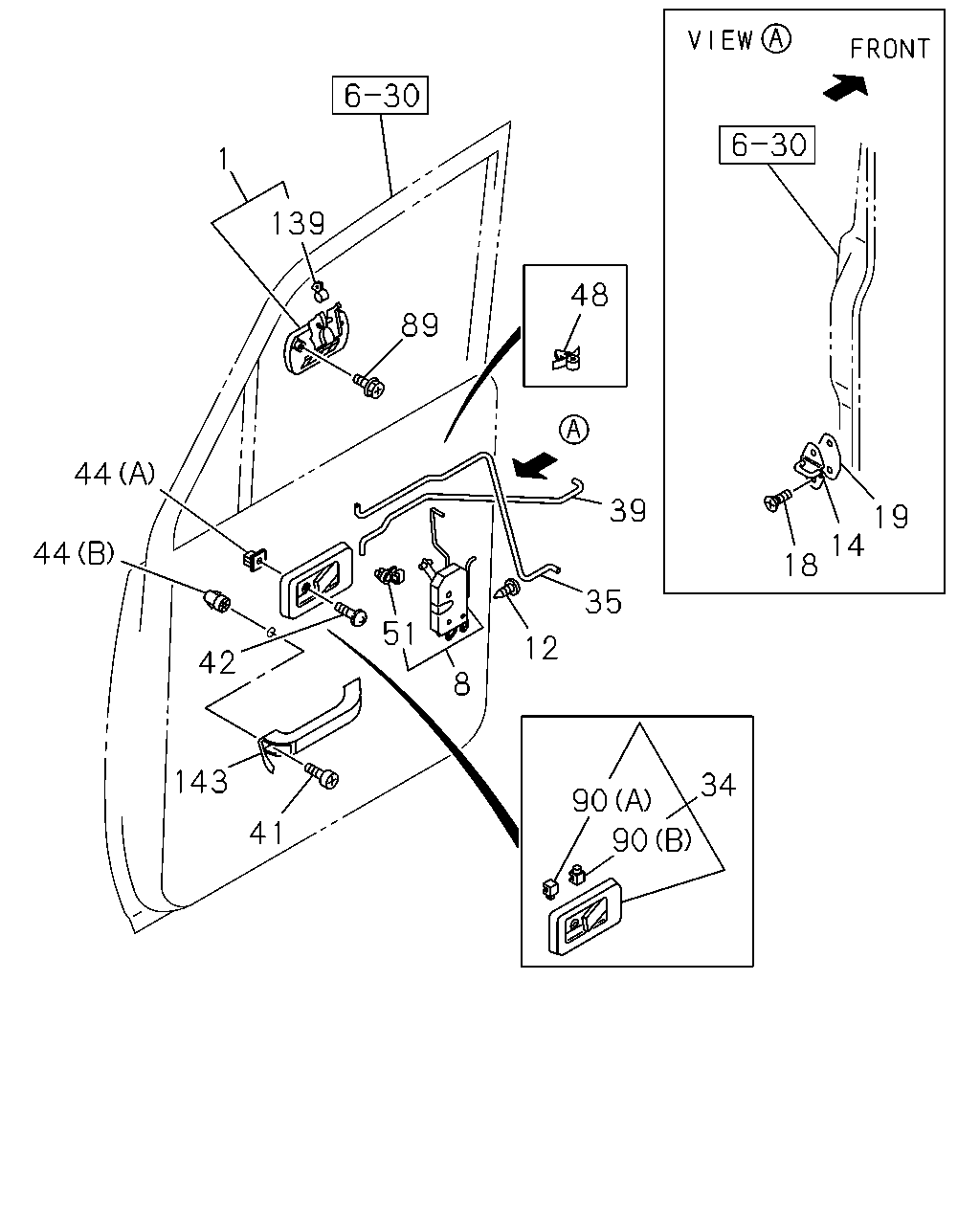

çizim 289001
1 139 89 44 44 42 143 41 51 8 12 35 39 48 18 14 19 34 90 90
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; OUTSIDE,FRT DOOR 8-94367-987-1 01 1 9009-9111 ● ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-485-1 01 1 9112- ● ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-94367-986-1 01 1 9009-9111 ● ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-484-1 01 1 9112- ● ● ● ●
8 LOCK; DOOR,FRT DOOR 8-94366-400-2 01 1 9009- ● ● ● ●
8 LOCK; DOOR,FRT DOOR 8-94366-399-2 01 1 9009- ● ● ● ●
12 SCREW; DOOR LK
M6X16 OVAL-HD IDN 		8-94172-523-0 06 1 9009- ● ● ● ●
14 STRIKER; FRT DOOR 8-94115-959-0 02 1 9009- ● ● ● ●
18 SCREW; DOOR STRIKER
M8X20 IDN 		8-94327-388-0 04 1 9009- ● ● ● ●
19 SHEET; ADJ,DOOR STRIKER
IDN 		8-94239-378-0 AR 1 9009- ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
DELETION GRAY IDN 		8-97000-866-0 01 1 9009-9408 ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97000-866-0 01 1 9409-0305 ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY IDN 		8-97398-372-0 01 1 0306- ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
DELETION GRAY IDN 		8-97000-865-0 01 1 9009-9408 ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97000-865-0 01 1 9409-0305 ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY IDN 		8-97398-371-0 01 1 0306- ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97151-753-0 01 1 9409-9601 ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97151-753-0 01 1 9602-0305 ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-97398-366-0 01 1 0306- ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97151-752-0 01 1 9409-9601 ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97151-752-0 01 1 9602-0305 ● ● ● ●
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-97398-365-0 01 1 0306- ● ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-94367-326-3 01 1 9009-9704 ● ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97178-606-0 01 1 9705- ● ● ● ●
35 LINK; DOOR LOCK,INSIDE
IDN 		8-94367-325-3 01 1 9009-9704 ● ● ● ●
35 LINK; DOOR LOCK,INSIDE
IDN 		8-97178-605-0 01 1 9705- ● ● ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 8-94367-324-3 01 1 9009- ● ● ● ●
39 LINK; INSIDE HANDLE,FRT DOOR
IDN 		8-94367-323-3 01 1 9009- ● ● ● ●
41 SCREW; INSIDE HANDLE
M6X25 TAPPING 		9-07077-625-0 04 1 9009- ● ● ● ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 IDN 		8-94152-495-0 02 1 9009- ● ● ● ●
44 GROMMET; SCREW,INSIDE HANDLE
(A) IDN 		8-94152-494-0 02 1 9009- ● ● ● ●
44 GROMMET; SCREW,INSIDE HANDLE
(B) IDN 		8-94481-286-2 04 1 9009- ● ● ● ●
48 ANTIRATTLER; DOOR LINK
IDN 		8-94342-940-0 04 1 9009- ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97041-588-0 02 1 9009- ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97041-587-0 02 1 9009- ● ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 IDN 		8-94155-893-0 04 1 9009- ● ● ● ●
90 CLIP; DOOR LK LINK
(A) DELETION IDN 		8-97079-979-0 01 1 9009- ● ● ● ●
90 CLIP; DOOR LK LINK
(B) DELETION IDN 		8-97080-106-0 01 1 9009- ● ● ● ●
90 CLIP; DOOR LK LINK
(A) DELETION IDN 		8-97079-978-0 01 1 9009- ● ● ● ●
90 CLIP; DOOR LK LINK
(B) DELETION IDN 		8-97080-105-0 01 1 9009- ● ● ● ●
139 HOLDER; ROD,DOOR HANDLE
DELETION BROWN IDN 		8-97037-509-0 01 1 9009- ● ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97044-833-0 01 1 9009-9111 ● ● ● ●
139 HOLDER; ROD,DOOR HANDLE
DELETION IDN 		8-97037-508-0 01 1 9112- ● ● ● ●
143 GRIP; ASSIST,FRT DOOR
DELETION GRAY IDN 		8-94448-488-2 02 1 9009-9408 ● ● ● ●
143 GRIP; ASSIST,FRT DOOR
INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-94448-488-2 02 1 9409-9612 ● ● ● ●
143 GRIP; ASSIST,FRT DOOR
INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97159-000-0 02 1 9701- ● ● ● ●
143 GRIP; ASSIST,FRT DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-94484-616-2 02 1 9409-9601 ● ●
143 GRIP; ASSIST,FRT DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-94484-616-2 02 1 9602-9612 ● ● ● ●
143 GRIP; ASSIST,FRT DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97159-031-0 02 1 9701- ● ● ● ●
