6-31 — FRONT DOOR GLASS AND REGULATOR (#95121) — 26 parça

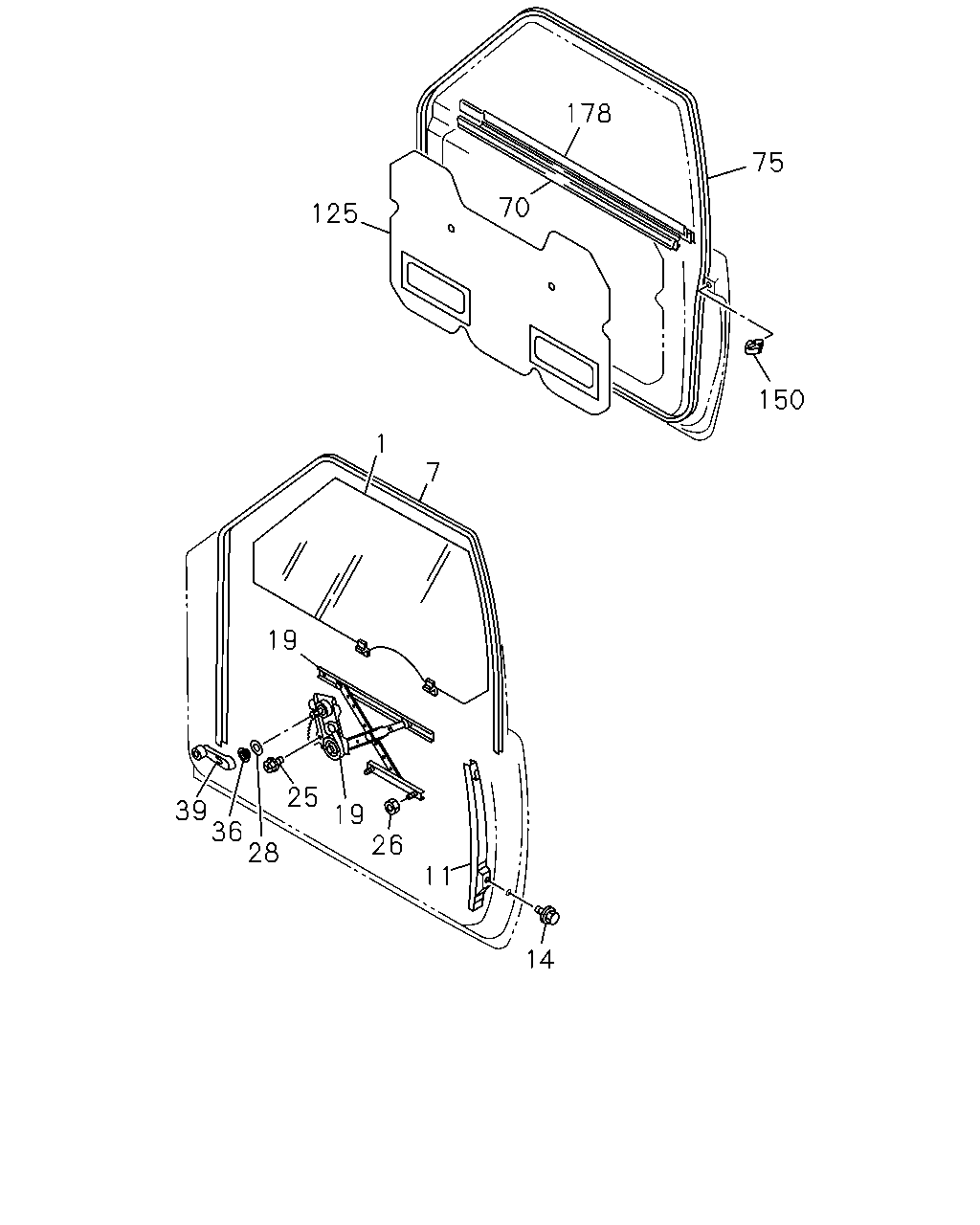

çizim 288929
75 150 7 1 125 70 178 19 25 19 26 11 14 28 36 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GLASS; FRT DOOR
DELETION IDN 		8-94366-392-0 01 1 9009- ● ● ● ●
1 GLASS; FRT DOOR
DELETION IDN 		8-94366-391-0 01 1 9009- ● ● ● ●
7 GLASS RUN; FRT DOOR
DELETION IDN 		8-94366-397-0 02 1 9009- ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR 8-94367-329-1 01 1 9009- ● ● ● ●
11 RAIL; RR GUIDE,FRT DOOR 8-94367-328-1 01 1 9009- ● ● ● ●
14 BOLT; RR GUIDE RAIL
M6X12 W/PL WASHER 		8-94232-078-0 02 1 9009- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
IDN 		8-94385-217-1 01 1 9009- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
IDN 		8-94385-216-1 01 1 9009- ● ● ● ●
25 BOLT; WINDOW REG
M6X8 IDN 		8-94155-893-0 24 1 9009- ● ● ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91150-106-0 08 1 9009-0602 ● ● ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ● ●
28 GASKET; DUST SEAL,WINDOW REG
IDN 		8-94106-830-1 02 1 9009- ● ● ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG
IDN 		8-94220-668-1 02 1 9009- ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
GRAY IDN 		8-94436-757-0 02 1 9009-9408 ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MUSHROOM(150) GRAY IDN 		8-94436-757-0 02 1 9409- ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-94403-144-0 02 1 9409-9601 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-94403-144-0 02 1 9602- ● ● ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-94366-404-0 01 1 9009- ● ● ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-94366-403-0 01 1 9009- ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
DELETION IDN 		8-94366-396-2 01 1 9009- ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
DELETION IDN 		8-94366-395-2 01 1 9009- ● ● ● ●
125 SHEET; WATER PROOF,FRT DOOR
DELETION IDN 		8-94366-398-0 02 1 9009- ● ● ● ●
150 BUFFER; FRT DOOR
DELETION IDN 		8-03468-771-1 02 1 9009-9610 ● ● ● ●
150 BUFFER; FRT DOOR
IDN 		8-97955-217-0 02 1 9611- ● ● ● ●
178 SEAL; WAIST OUTER,FRT DOOR 8-94366-402-0 01 1 9009- ● ● ● ●
178 SEAL; WAIST OUTER,FRT DOOR 8-94366-401-0 01 1 9009- ● ● ● ●
