6-20 — SIDE PANEL AND STEP (#95119) — 67 parça

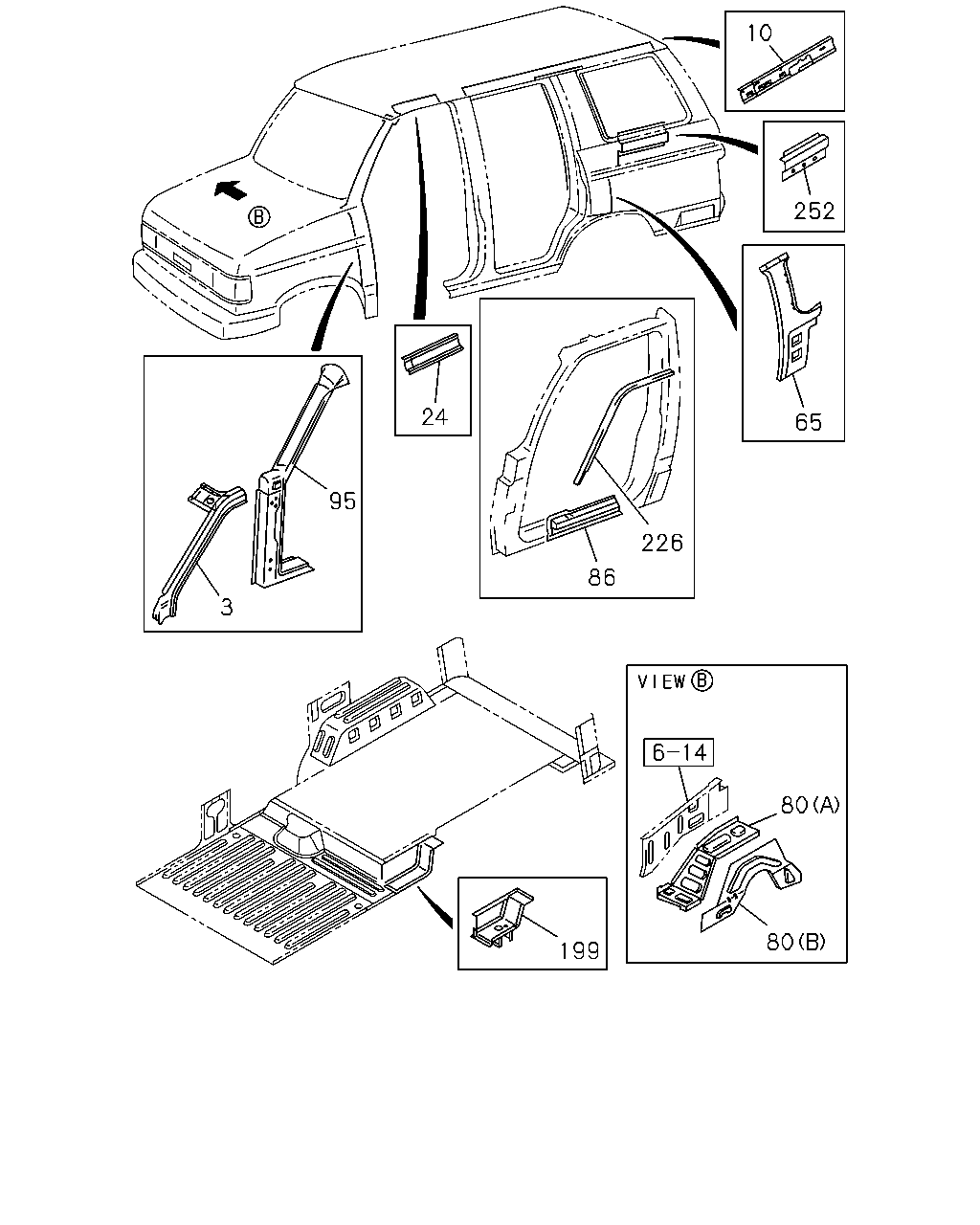

çizim 289241
10 252 65 226 86 24 95 3 80 80 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 PANEL; CLOSING,FRT PILLAR
DELETION IDN 		8-94366-437-1 01 1 9009- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
DELETION IDN 		8-94366-436-1 01 1 9009- ● ● ● ●
10 CLOSING; ROOF SIDE
DELETION IDN 		8-94385-321-2 01 1 9009- ●
10 CLOSING; ROOF SIDE
DELETION IDN 		8-94385-320-2 01 1 9009- ●
10 CLOSING; ROOF SIDE
DELETION IDN 		8-94385-323-2 01 1 9009- ●
10 CLOSING; ROOF SIDE
DELETION IDN 		8-94385-322-2 01 1 9009- ●
24 CLOSING; ROOF RAIL SIDE
DELETION IDN 		8-94366-441-2 01 1 9009- ● ● ● ●
24 CLOSING; ROOF RAIL SIDE
DELETION IDN 		8-94366-442-1 01 1 9009- ● ● ● ●
65 PANEL; QUARTER,INNER
DELETION IDN 		8-94384-953-0 01 1 9009- ● ●
65 PANEL; QUARTER,INNER
DELETION IDN 		8-94384-952-0 01 1 9009- ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) DELETION IDN 		8-94366-738-1 01 1 9009-9601 ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) DELETION IDN 		8-97123-488-2 01 1 9602- ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) DELETION IDN 		8-94366-742-0 01 1 9009-9601 ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) DELETION IDN 		8-97123-493-1 01 1 9602- ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) DELETION IDN 		8-94366-737-1 01 1 9009-9601 ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) DELETION IDN 		8-97132-002-1 01 1 9602- ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) DELETION IDN 		8-94366-741-1 01 1 9009- ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(C) DELETION IDN 		8-94384-921-6 01 1 9009- ● ●
80 PANEL; WHEEL HOUSE,INNER
(C) DELETION IDN 		8-94384-920-6 01 1 9009- ● ●
86 PANEL; ROCKER OUTER
FRONT DELETION IDN 		8-94388-196-1 01 1 9009-9910 ● ● ● ●
86 PANEL; ROCKER OUTER
FRONT IDN 		8-97956-570-0 01 1 9911- ● ● ● ●
86 PANEL; ROCKER OUTER
FRONT DELETION IDN 		8-94388-195-1 01 1 9009-9910 ● ● ● ●
86 PANEL; ROCKER OUTER
FRONT IDN 		8-97956-569-0 01 1 9911- ● ● ● ●
86 PANEL; ROCKER OUTER
REAR DELETION IDN 		8-94384-927-0 02 1 9009- ●
86 PANEL; ROCKER OUTER
REAR DELETION IDN 		8-94384-928-0 02 1 9009- ●
95 PILLAR; FRT
DELETION IDN 		8-94381-081-0 01 1 9009- ● ● ● ●
95 PILLAR; FRT
DELETION IDN 		8-94381-080-0 01 1 9009- ● ● ● ●
199 PANEL; RR SIDE
FRONT DELETION IDN 		8-94384-809-2 01 1 9009-9610 ● ●
199 PANEL; RR SIDE
FRONT DELETION IDN 		8-97955-212-0 01 1 9611- ● ●
199 PANEL; RR SIDE
REAR DELETION IDN 		8-94384-833-0 01 1 9009- ● ●
199 PANEL; RR SIDE
FRONT DELETION IDN 		8-94384-808-2 01 1 9009-9610 ● ●
199 PANEL; RR SIDE
FRONT DELETION IDN 		8-97955-210-0 01 1 9611- ● ●
199 PANEL; RR SIDE
REAR DELETION IDN 		8-94384-832-0 01 1 9009- ● ●
226 RAIL; DRIP,FRT PILLAR 8-94366-429-2 01 1 9009- ● ● ● ●
226 RAIL; DRIP,FRT PILLAR 8-94366-428-2 01 1 9009- ● ● ● ●
252 RAIL; SIDE PANEL WAIST
DELETION IDN 		8-94384-969-1 02 1 9009- ● ●

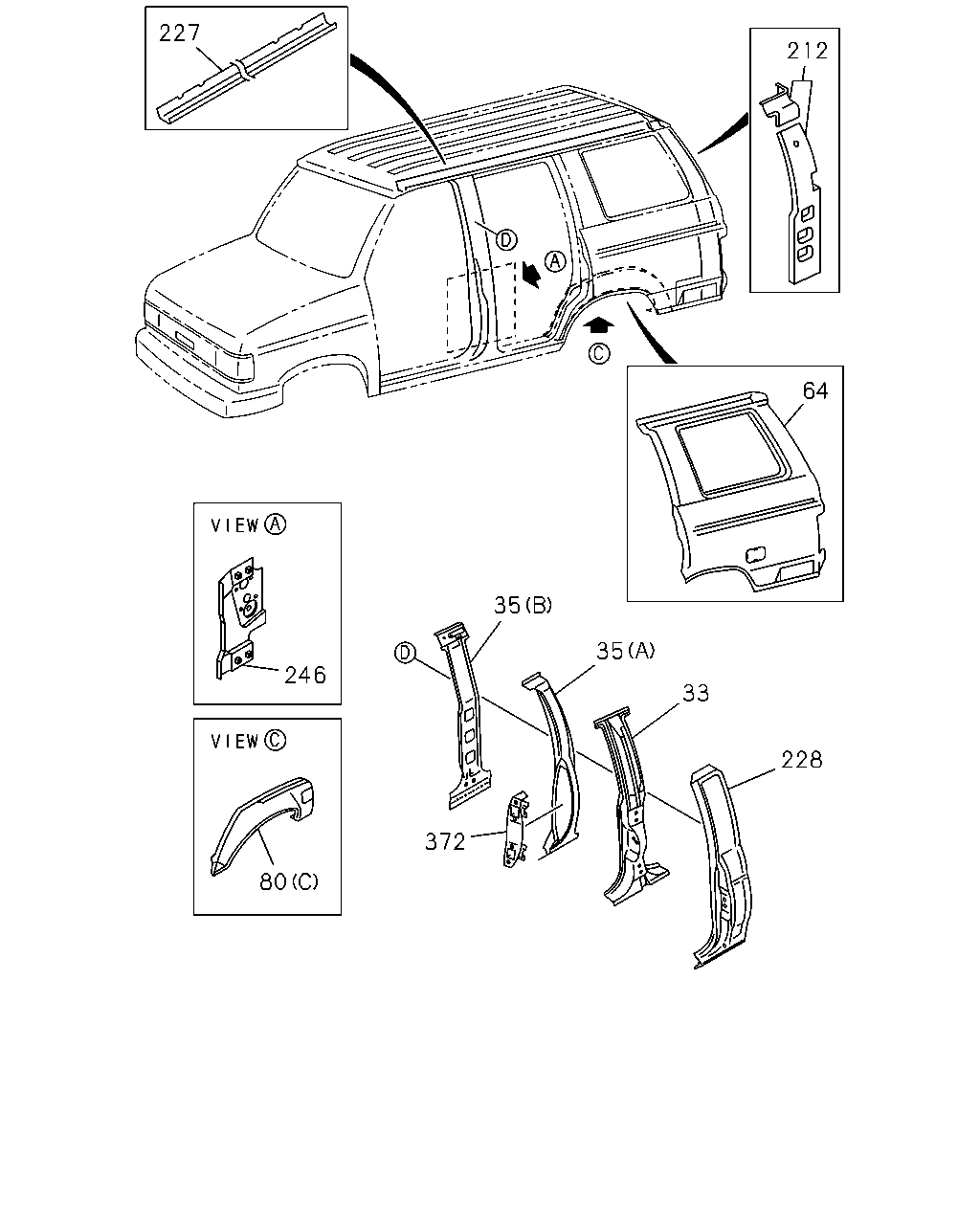

çizim 289243
212 227 64 228 33 35 35 372 246 80
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 PANEL; CENTER PILLAR,OUTER
IDN 		8-94384-877-0 01 1 9009- ● ●
33 PANEL; CENTER PILLAR,OUTER
IDN 		8-94384-876-0 01 1 9009- ● ●
35 PANEL; CENTER PILLAR,INNER
(A) DELETION IDN 		8-94384-885-2 01 1 9009- ● ●
35 PANEL; CENTER PILLAR,INNER
(B) DELETION IDN 		8-97021-273-1 01 1 9009- ● ●
35 PANEL; CENTER PILLAR,INNER
(A) DELETION IDN 		8-94384-884-2 01 1 9009- ● ●
35 PANEL; CENTER PILLAR,INNER
(B) DELETION IDN 		8-97021-272-1 01 1 9009- ● ●
64 PANEL; QUARTER OUTER
DELETION IDN 		8-97030-788-0 01 1 9009- ●
64 PANEL; QUARTER OUTER
DELETION IDN 		8-97030-787-0 01 1 9009- ●
64 PANEL; QUARTER OUTER
DELETION IDN 		8-97030-788-0 01 1 9009- ●
64 PANEL; QUARTER OUTER
DELETION IDN 		8-97030-787-0 01 1 9009- ●
80 PANEL; WHEEL HOUSE,INNER
(A) DELETION IDN 		8-94366-738-1 01 1 9009-9601 ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) DELETION IDN 		8-97123-488-2 01 1 9602- ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) DELETION IDN 		8-94366-742-0 01 1 9009-9601 ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) DELETION IDN 		8-97123-493-1 01 1 9602- ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) DELETION IDN 		8-94366-737-1 01 1 9009-9601 ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) DELETION IDN 		8-97132-002-1 01 1 9602- ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) DELETION IDN 		8-94366-741-1 01 1 9009- ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(C) DELETION IDN 		8-94384-921-6 01 1 9009- ● ●
80 PANEL; WHEEL HOUSE,INNER
(C) DELETION IDN 		8-94384-920-6 01 1 9009- ● ●
212 CLOSING; PILLAR
DELETION IDN 		8-94367-699-0 01 1 9009- ● ●
212 CLOSING; PILLAR
DELETION IDN 		8-94367-698-0 01 1 9009- ● ●
212 CLOSING; PILLAR
DELETION IDN 		8-94384-961-0 01 1 9009- ● ●
212 CLOSING; PILLAR
DELETION IDN 		8-94384-960-0 01 1 9009- ● ●
227 RAIL; DRIP,ROOF SIDE FRT
DELETION IDN 		8-97020-015-1 02 1 9009- ●
227 RAIL; DRIP,ROOF SIDE FRT
DELETION IDN 		8-97020-016-1 02 1 9009- ●
228 PANEL; RR PILLAR OUTER
DELETION IDN 		8-94385-525-0 01 1 9009- ● ●
228 PANEL; RR PILLAR OUTER
DELETION IDN 		8-94385-524-0 01 1 9009- ● ●
228 PANEL; RR PILLAR OUTER
DELETION IDN 		8-97026-033-0 01 1 9009- ● ●
246 PANEL; RR PILLAR,INNER
DELETION IDN 		8-94384-977-0 01 1 9009- ● ●
372 REINFORCEMENT; CENTER PILLAR
IDN 		8-97029-019-2 01 1 9009- ● ●
372 REINFORCEMENT; CENTER PILLAR
IDN 		8-97029-018-2 01 1 9009- ● ●
