6-10 — ENGINE HOOD AND LOCK (#95117) — 22 parça

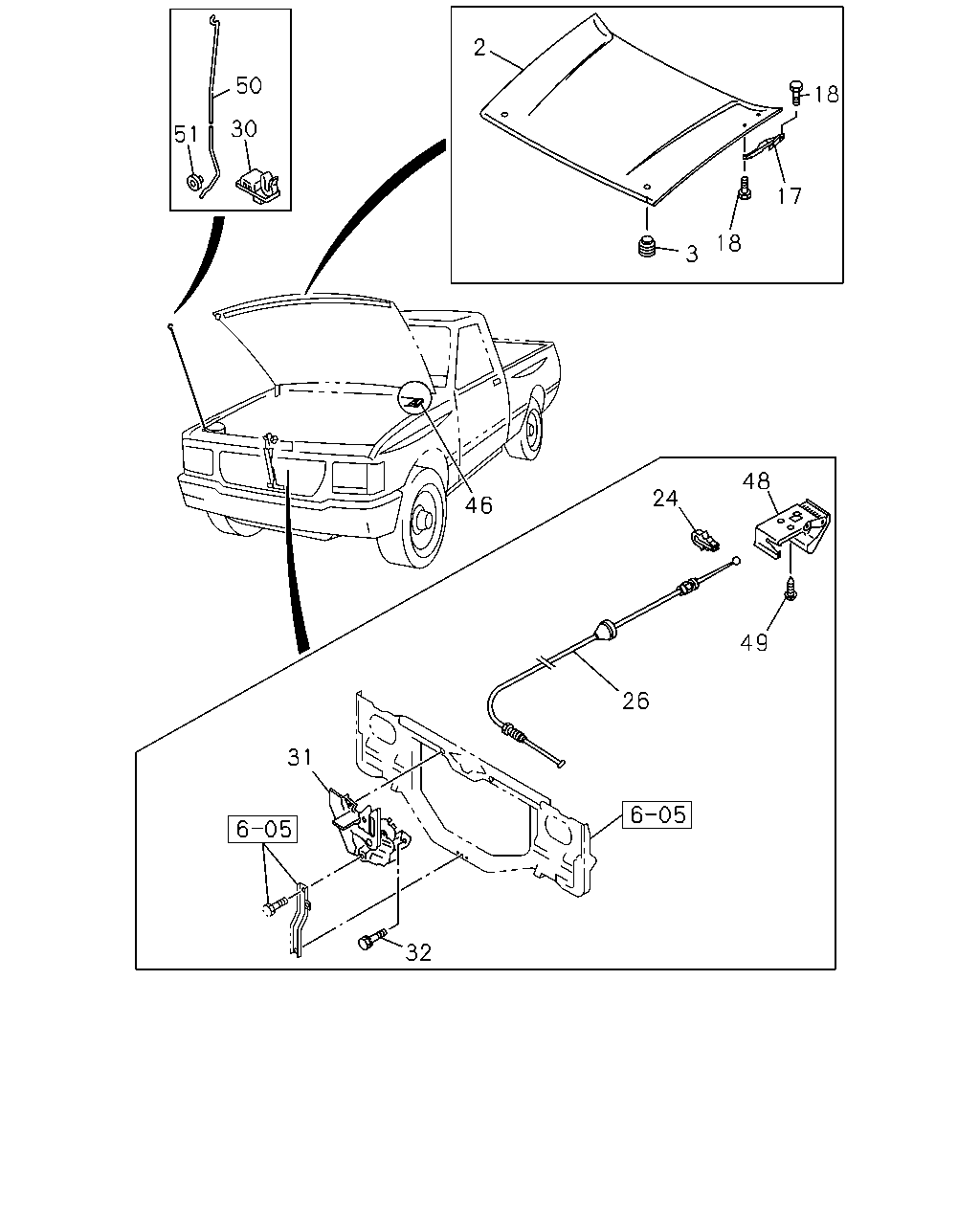

çizim 289178
18 2 17 18 3 50 30 51 46 48 24 49 26 31 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 PANEL; ENG HOOD
DELETION IDN 		8-94366-489-1 01 1 9009-9601 ● ● ● ●
2 PANEL; ENG HOOD
IDN 		8-97136-489-2 01 1 9602- ● ● ● ●
3 BUFFER; ENG HOOD,FRT
DELETION IDN 		8-94237-385-0 02 1 9009- ● ● ● ●
17 HINGE; ENG HOOD
DELETION IDN 		8-94367-252-0 01 1 9009- ● ● ● ●
17 HINGE; ENG HOOD
DELETION IDN 		8-94367-251-0 01 1 9009- ● ● ● ●
18 BOLT; HINGE
M8X16 		8-94139-492-0 08 1 9009- ● ● ● ●
24 CLIP; CONT CABLE 8-94225-098-0 03 1 9009- ● ● ● ●
26 CABLE; ENG HOOD CONT
DELETION IDN 		8-94366-979-0 01 1 9009- ● ● ● ●
30 CLIP; SUPPORT ROD,HOOD 8-94441-538-0 02 1 9009- ● ● ● ●
31 LOCK; ENG HOOD 8-94366-977-0 01 1 9009- ● ● ● ●
32 BOLT; HOOD LK
M6X18 		8-94408-386-1 02 1 9009- ● ● ● ●
46 SEAL; ENG HOOD
DELETION IDN 		8-94366-925-0 01 1 9009- ● ● ● ●
48 LEVER; ENG HOOD
GRAY 		8-94474-735-0 01 1 9009-9308 ● ● ● ●
48 LEVER; ENG HOOD
GRAY 		8-97098-100-0 01 1 9309-9408 ● ● ● ●
48 LEVER; ENG HOOD
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97098-100-0 01 1 9409- ● ● ● ●
48 LEVER; ENG HOOD
INTERIOR COLOR BLACK(101) BLACK 		8-97150-583-0 01 1 9409-9601 ● ●
48 LEVER; ENG HOOD
INTERIOR COLOR BLACK(101) BLACK 		8-97150-583-0 01 1 9602- ● ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X10 		9-09829-185-0 02 1 9009- ● ● ● ●
50 ROD; SUPPORT,ENG HOOD
DELETION 		8-94366-978-1 01 1 9009-9507 ● ● ● ●
50 ROD; SUPPORT,ENG HOOD
DELETION IDN 		8-97126-915-0 01 1 9508- ● ● ● ●
51 GROMMET; SUPPORT ROD
DELETION IDN 		8-94220-508-2 01 1 9009-0210 ● ● ● ●
51 GROMMET; SUPPORT ROD
IDN 		8-97362-324-0 01 1 0211- ● ● ● ●
