6-03 — RADIATOR GRILLE (#95114) — 13 parça

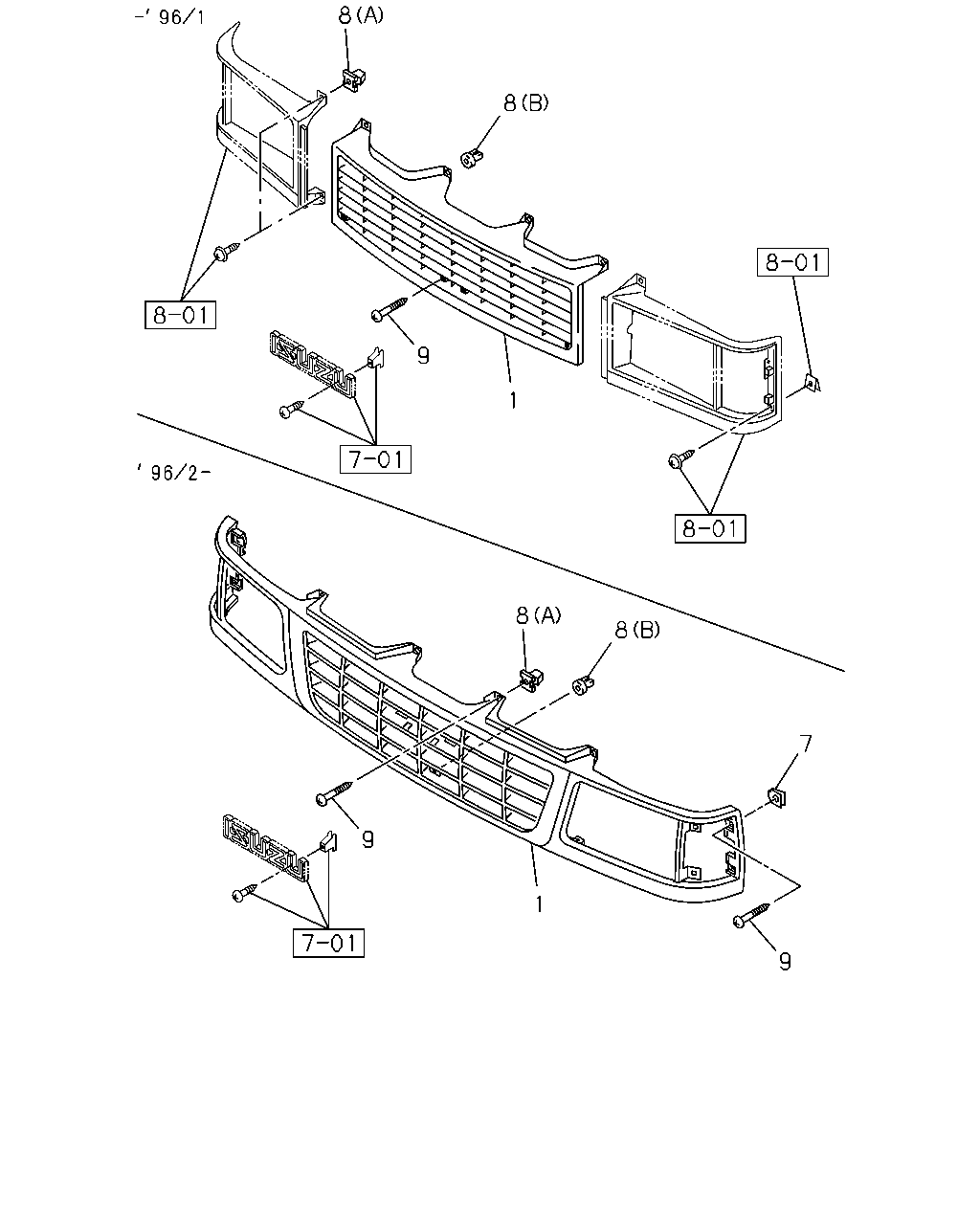

çizim 289033
9 1 9 7 8 8 1 9 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
DELETION IDN 		8-94366-980-0 01 1 9009-9601 ●
1 GRILLE; RAD
DELETION IDN 		8-97131-476-5 01 1 9602- ● ●
1 GRILLE; RAD
BODY COLOR PEWTER MET(825) DELETION SILVER IDN 		8-97000-853-0 01 1 9009-9601 ●
1 GRILLE; RAD
BODY COLOR PURE WHITE(811) DELETION WHITE IDN 		8-97000-850-0 01 1 9009-9601 ●
1 GRILLE; RAD
BODY COLOR RED MAHOGANY 1 COAT(852) DELETION DARK RED IDN 		8-97000-852-0 01 1 9009-9601 ●
1 GRILLE; RAD
BODY COLOR SEASIDE BEIGE MET(827) DELETION LIGHT BEIGE IDN 		8-97000-854-0 01 1 9009-9601 ●
1 GRILLE; RAD
BODY COLOR TROOPER BLUE 1 COAT(842) DELETION DARK BLUE IDN 		8-97000-851-0 01 1 9009-9601 ●
7 NUT; SPIRE,RAD GRILLE 8-94158-038-0 04 1 9602- ● ●
8 GROMMET; SCREW,RAD GRILLE
(A) 		8-94141-978-1 06 1 9009- ● ●
8 GROMMET; SCREW,RAD GRILLE
(B) IDN 		8-94203-326-0 01 1 9009- ● ●
9 SCREW; RAD GRILLE
M4X16 W/PL WASHER 		8-94407-488-0 07 1 9009-9109 ● ●
9 SCREW; RAD GRILLE
M5X16 IDN 		8-94380-268-0 07 1 9110-9601 ● ●
9 SCREW; RAD GRILLE
M5X16 IDN 		8-94380-268-0 11 1 9602- ● ●
