◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#95113) — 37 parça

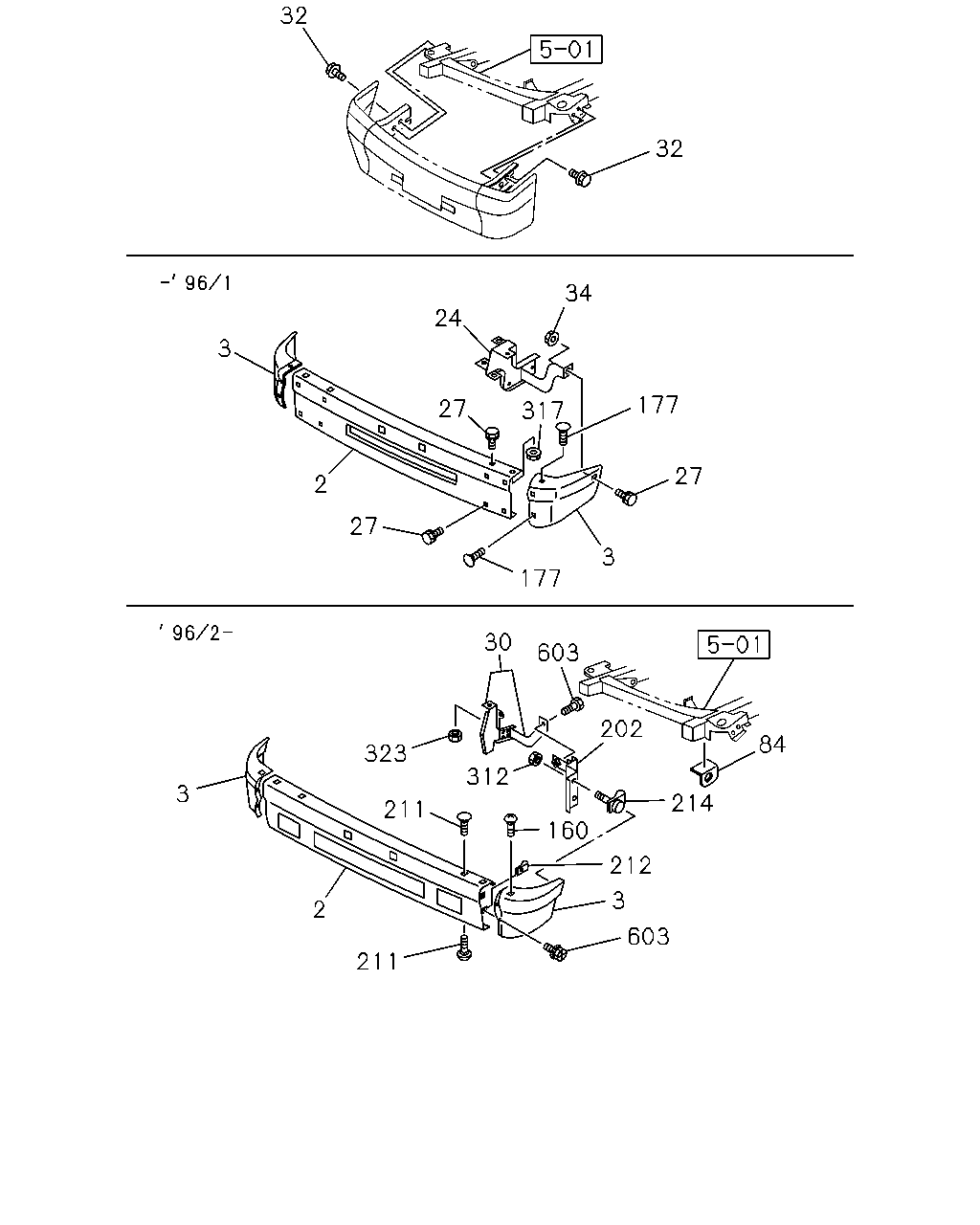

çizim 288961
32 32 34 24 3 27 317 177 2 27 177 3 27 30 603 84 202 214 312 323 3 211 2 211 603 3 212 160
BalonParca AdiParca NoAdetTipApplied Date A B
2 BUMPER; FRT,CENTER
DELETION 		8-94367-048-0 01 1 9009-9601 ●
2 BUMPER; FRT,CENTER
DELETION IDN 		8-97127-491-3 01 1 9602-9607 ● ●
2 BUMPER; FRT,CENTER
DELETION IDN 		8-97955-031-0 01 1 9608- ● ●
2 BUMPER; FRT,CENTER
DELETION 		8-94386-768-0 01 1 9009-9601 ●
3 BUMPER; FRT,SIDE
DELETION IDN 		8-94367-054-0 01 1 9009-9601 ●
3 BUMPER; FRT,SIDE
DELETION IDN 		8-97127-296-0 01 1 9602- ● ●
3 BUMPER; FRT,SIDE
DELETION IDN 		8-94367-051-0 01 1 9009-9601 ●
3 BUMPER; FRT,SIDE
DELETION IDN 		8-97127-295-0 01 1 9602- ● ●
3 BUMPER; FRT,SIDE
DELETION IDN 		8-94386-770-0 01 1 9009-9601 ●
3 BUMPER; FRT,SIDE
DELETION IDN 		8-94386-769-0 01 1 9009-9601 ●
24 BAR; FRT BUMPER
DELETION IDN 		8-94367-058-0 01 1 9009-9601 ● ●
24 BAR; FRT BUMPER
DELETION IDN 		8-94367-057-0 01 1 9009-9601 ● ●
27 BOLT; BUMPER TO BACK BAR 8-94367-443-0 08 1 9009-9601 ●
27 BOLT; BUMPER TO BACK BAR
M8X20 		8-94357-652-0 08 1 9009-9601 ●
30 BRACKET; FRT BUMPER
IDN 		8-97127-209-5 01 1 9602-9607 ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-046-0 01 1 9608- ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97127-212-5 01 1 9602-9607 ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-047-0 01 1 9608- ● ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		8-94475-424-0 04 1 9009- ● ●
34 NUT; BRKT,BUMPER
M8 FLANGE 		5-09440-005-0 08 1 9009-9601 ● ●
84 HOOK
IDN 		8-97015-038-0 01 1 9602- ● ●
160 SCREW
M6X16 IDN 		8-97020-619-0 04 1 9602-9706 ● ●
160 SCREW
M6X10 		8-97179-642-0 04 1 9707- ● ●
177 BOLT 8-94367-443-0 08 1 9009-9601 ●
177 BOLT
M8X20 		8-94357-652-0 08 1 9009-9601 ●
202 BRACKET; BUMPER SIDE
IDN 		8-97127-208-1 01 1 9602- ● ●
202 BRACKET; BUMPER SIDE
IDN 		8-97127-207-1 01 1 9602- ● ●
211 BOLT; NECK
M8X20 		8-97110-408-0 04 1 9602- ● ●
212 CLIP; BUMPER SUPPORT 8-94111-243-0 04 1 9602-9604 ● ●
212 CLIP; BUMPER SUPPORT
IDN 		8-94471-330-2 04 1 9605- ● ●
214 CLIP; SUPPORT TO BUMPER 8-97806-845-2 04 1 9602- ● ●
312 NUT; BRKT
M6 FLANGE 		0-91150-106-0 04 1 9602-0602 ● ●
312 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
317 NUT; CENTER TO SIDE
M8 FLANGE 		5-09440-005-0 06 1 9009-9601 ● ●
323 NUT; FLANGE
M8 FLANGE 		5-09440-005-0 04 1 9602-0805 ● ●
323 NUT; FLANGE
M8 FLANGE 		8-97581-233-0 04 1 0806- ● ●
603 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9602- ● ●
