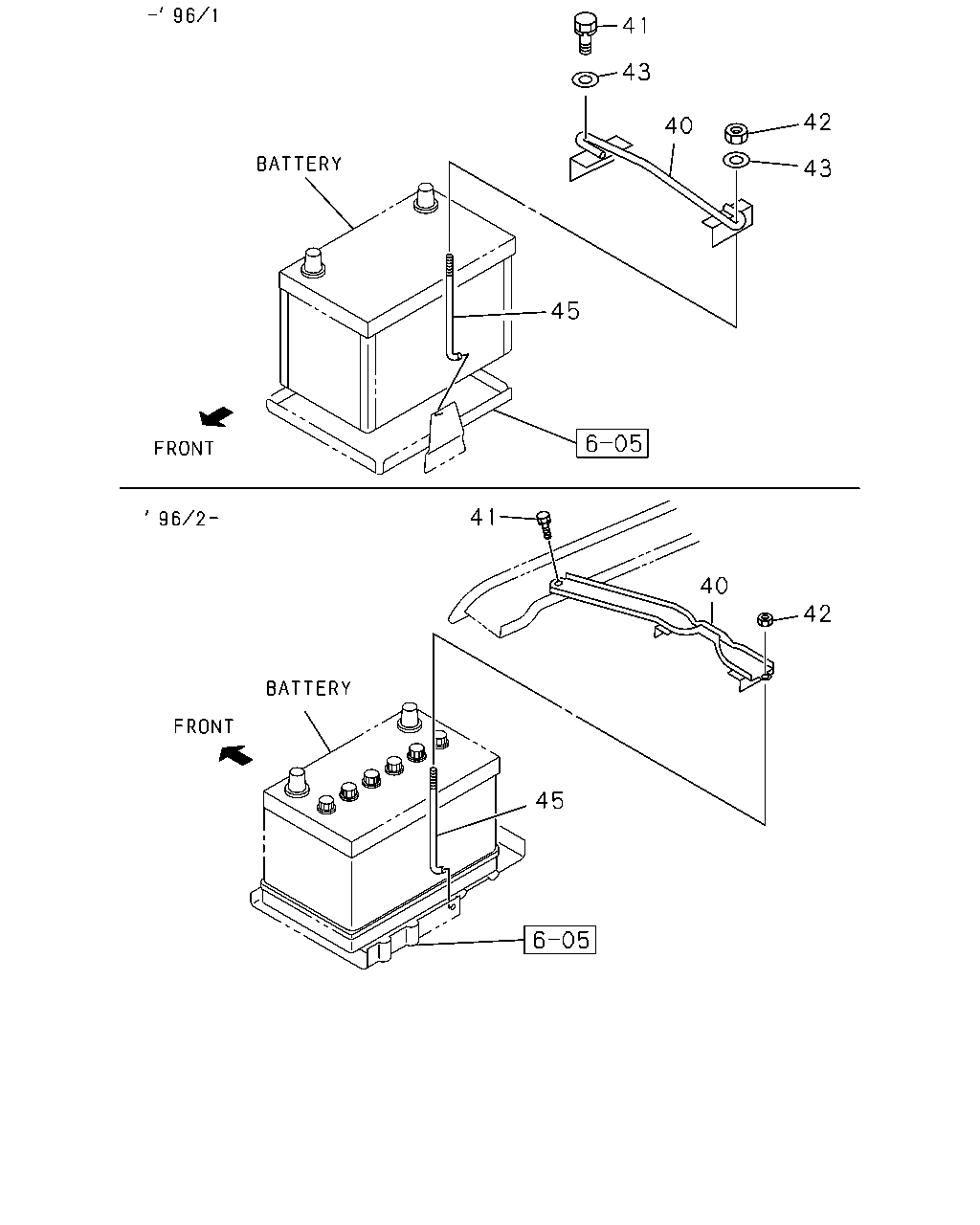

5-20 — BATTERY CARRIER (#95110) — 13 parça

41 43 40 42 43 45 41 40 42 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	CLAMP; BATTERY DELETION	8-94385-423-0	01	1	9009-9601	●	●	●	●
40	CLAMP; BATTERY DELETION IDN	8-97123-640-0	01	1	9602-	●	●	●	●
41	BOLT; CLAMP,BATTERY M6X20	9-02040-620-0	01	1	9009-9102	●	●	●	●
41	BOLT; CLAMP,BATTERY M6X25	9-02040-625-0	01	1	9103-9204	●	●	●	●
41	BOLT; CLAMP,BATTERY M6X25	0-20800-625-0	01	1	9205-9601	●	●	●	●
41	BOLT; CLAMP,BATTERY M6X20 FLANGE	0-28680-620-0	01	1	9602-0512	●	●	●	●
41	BOLT; CLAMP,BATTERY M6X20 FLANGE IDN	0-28650-620-0	01	1	0601-	●	●	●	●
42	NUT; CLAMP	8-94238-948-0	01	1	9009-9405	●	●	●	●
42	NUT; CLAMP M6	9-09110-406-0	01	1	9406-9601	●	●	●	●
42	NUT; CLAMP M6 FLANGE	0-91150-106-0	01	1	9602-0602	●	●	●	●
42	NUT; CLAMP M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
43	WASHER; PL,CLAMP	8-94411-099-0	02	1	9009-9601	●	●	●	●
45	ROD; TENSION,BATTERY DELETION L=190 IDN	8-94238-991-0	01	1	9009-	●	●	●	●
