5-10 — CAB MOUNTING; FRAME SIDE (#95109) — 33 parça

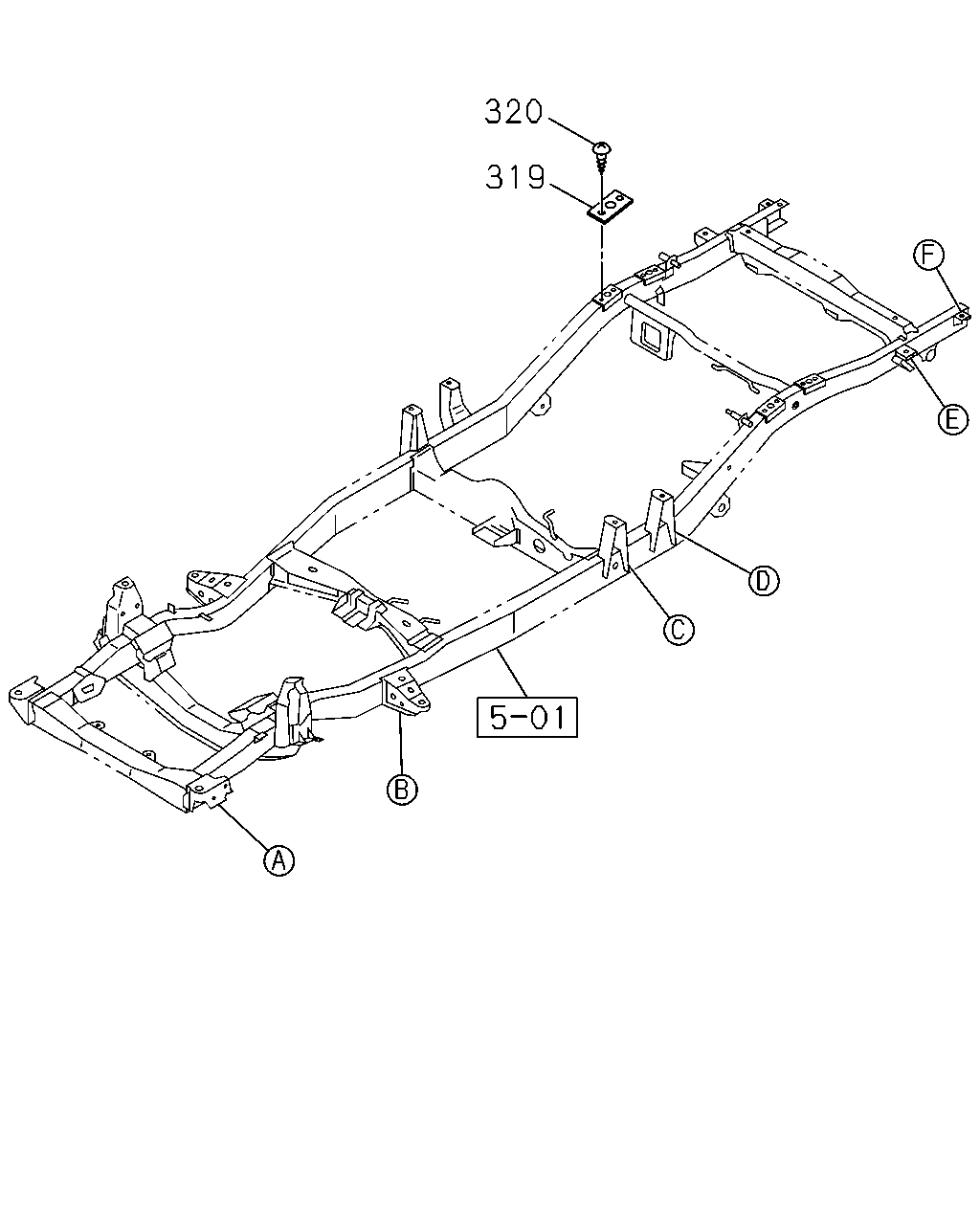

320 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
319	GASKET; BODY MTG BOLT DELETION IDN	8-94180-225-0	04	1	9009-	●	●
320	SCREW; BODY MTG GASKET M6X14 TAPPING W/PL WASHER	0-74100-614-0	08	1	9009-9610	●	●
320	SCREW; BODY MTG GASKET M6X12 TAPPING W/PL WASHER	0-74100-612-0	08	1	9611-	●	●

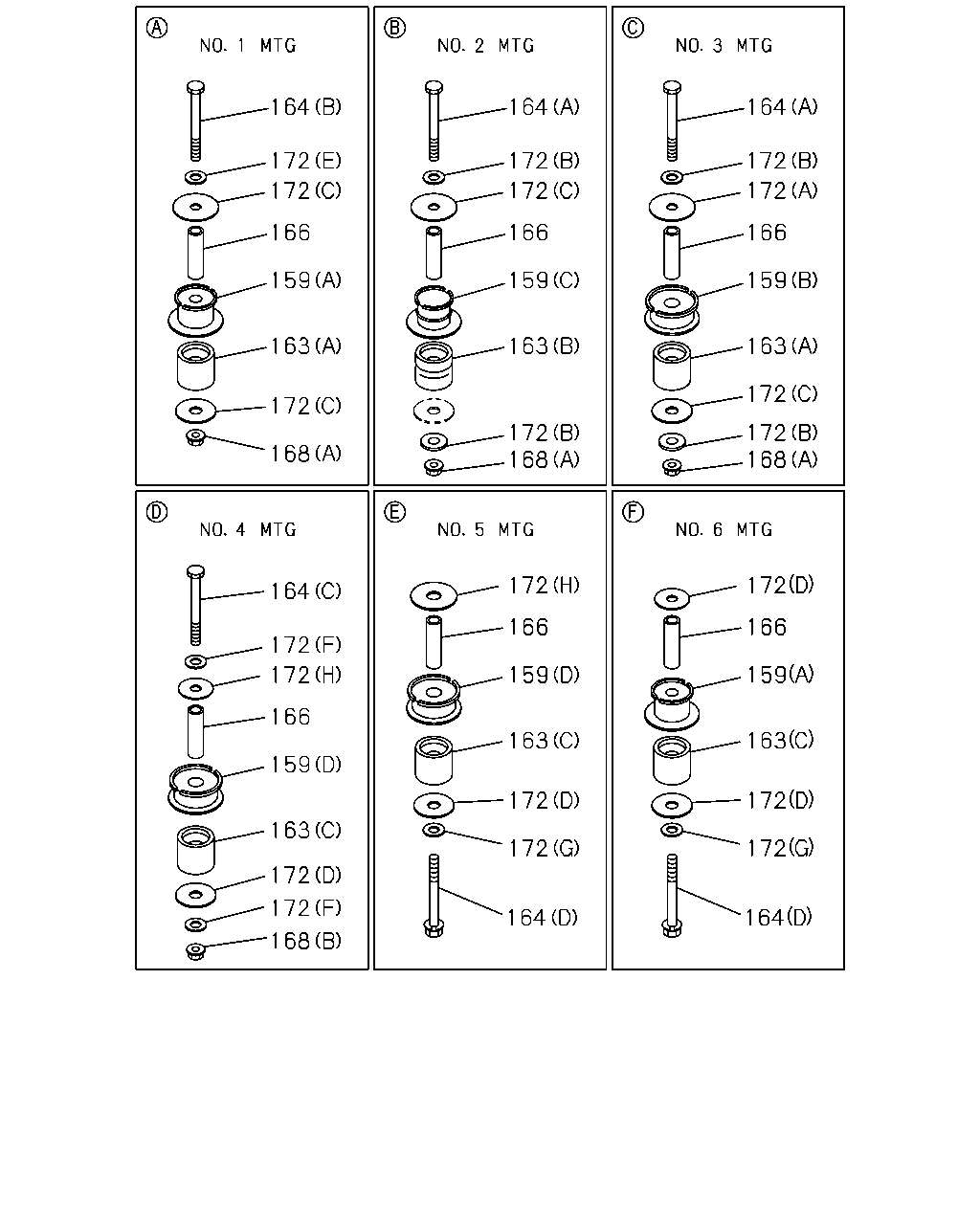

164 172 172 166 159 163 172 168 164 172 172 166 159 163 172 172 168 164 172 172 166 159 163 172 168 172 166 159 163 172 172 164 164 172 172 166 159 163 172 172 168 172 166 159 163 172 172 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
159	RUBBER; CUSHION,CAB MTG (A) DELETION IDN	8-94368-398-0	02	1	9009-	●	●	●	●
159	RUBBER; CUSHION,CAB MTG (B) DELETION IDN	8-94368-400-0	02	1	9009-	●	●	●	●
159	RUBBER; CUSHION,CAB MTG (C) DELETION IDN	8-97027-925-0	02	1	9009-	●	●	●	●
159	RUBBER; CUSHION,CAB MTG (D) DELETION IDN	8-94368-400-0	04	1	9009-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) DELETION IDN	8-94368-399-0	04	1	9009-	●	●	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) DELETION IDN	8-97027-926-0	02	1	9009-	●	●	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) DELETION IDN	8-94368-399-0	06	1	9009-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) DELETION M10X115	8-94121-025-2	04	1	9009-	●	●	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) DELETION M10X110	8-94223-169-0	02	1	9009-	●	●	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (C) DELETION M10X115	8-94121-025-2	02	1	9009-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (D) DELETION M10X110	8-94223-169-0	04	1	9009-	●	●
166	PIECE; DIST,BODY MTG RUBBER L=70 IDN	8-94223-171-0	06	1	9009-0112	●	●	●	●
166	PIECE; DIST,BODY MTG RUBBER L=70	8-97148-478-0	06	1	0201-0306	●	●	●	●
166	PIECE; DIST,BODY MTG RUBBER L=70 IDN	8-97562-253-0	06	1	0307-	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) DELETION M10 FLANGE	0-91150-210-0	06	1	9009-0602	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) DELETION M10 FLANGE	0-91150-210-0	02	1	9009-0602	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
172	WASHER; BODY MTG RUBBER (C) DELETION ID=11 OD=48 T=2.9 IDN	8-94223-170-0	08	1	9009-	●	●	●	●
172	WASHER; BODY MTG RUBBER (A) DELETION ID=11 OD=62 T=2.9	8-94223-176-0	02	1	9009-9408	●	●	●	●
172	WASHER; BODY MTG RUBBER (A) DELETION ID=11 OD=62 T=2.9 IDN	8-97037-993-0	02	1	9409-	●	●	●	●
172	WASHER; BODY MTG RUBBER (B) DELETION OD=32 T=6.0 IDN	8-94416-693-0	08	1	9009-	●	●	●	●
172	WASHER; BODY MTG RUBBER (E) DELETION ID=10.5 OD=32	9-09164-810-0	02	1	9009-0605	●	●	●	●
172	WASHER; BODY MTG RUBBER (E) ID=10.5 OD=32	0-91614-810-0	02	1	0606-	●	●	●	●
172	WASHER; BODY MTG RUBBER (D) DELETION ID=11 OD=48 T=2.9 IDN	8-94223-170-0	08	1	9009-	●	●
172	WASHER; BODY MTG RUBBER (H) DELETION ID=11 OD=62 T=2.9	8-94223-176-0	04	1	9009-9408	●	●
172	WASHER; BODY MTG RUBBER (H) DELETION ID=11 OD=62 T=2.9 IDN	8-97037-993-0	04	1	9409-	●	●
172	WASHER; BODY MTG RUBBER (F) DELETION OD=32 T=6.0 IDN	8-94416-693-0	04	1	9009-	●	●
172	WASHER; BODY MTG RUBBER (G) DELETION ID=10.5 OD=32	9-09164-810-0	04	1	9009-0605	●	●
172	WASHER; BODY MTG RUBBER (G) ID=10.5 OD=32	0-91614-810-0	04	1	0606-	●	●
