5-01 — FRAME AND OTHER PARTS (#95108) — 111 parça

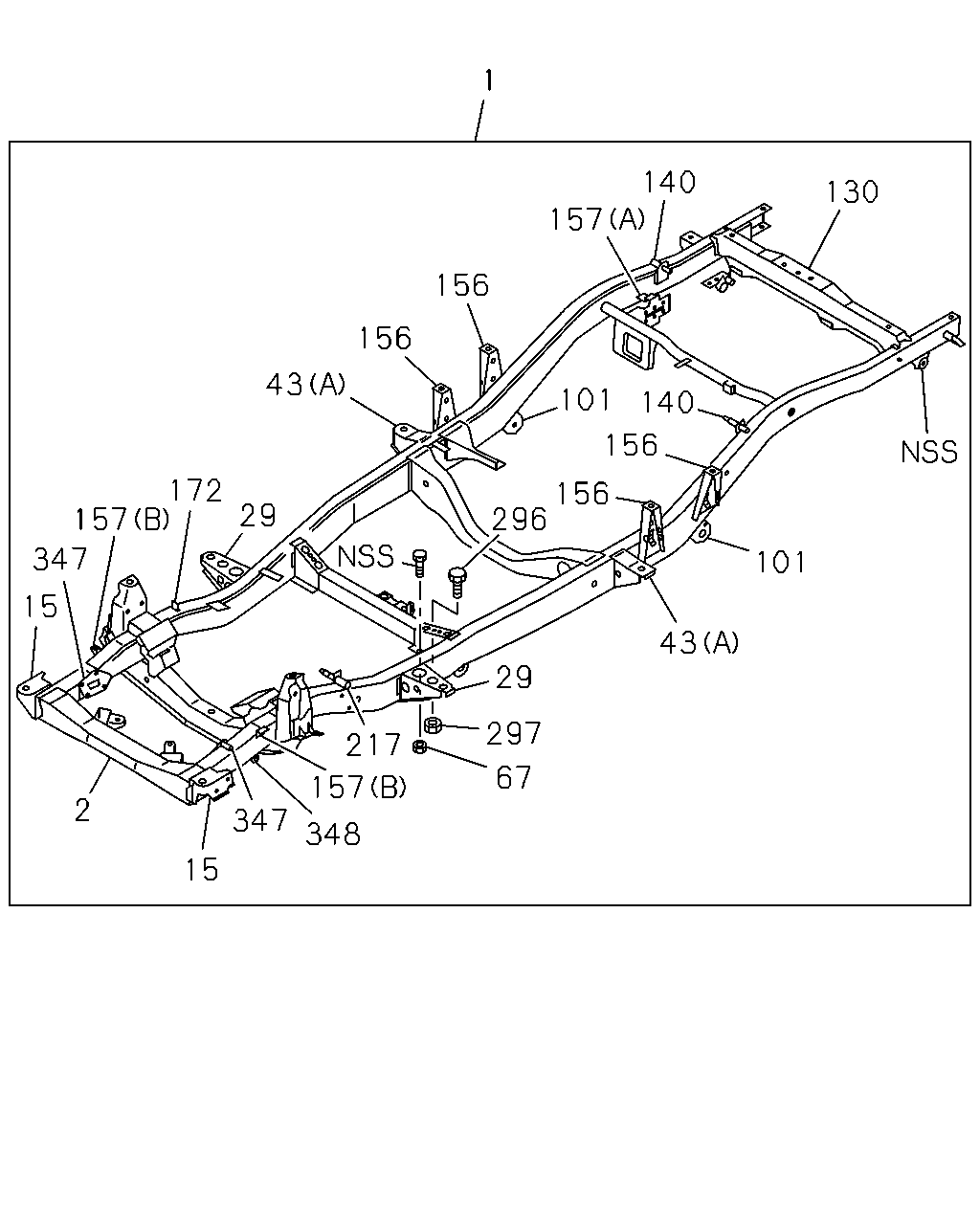

1 140 130 157 156 156 43 101 140 156 156 296 101 43 29 297 67 172 157 347 15 2 15 347 348 217 157 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM DELETION IDN	8-94366-552-4	01	1	9009-9101	●
1	FRAME ASM DELETION IDN	8-97047-880-1	01	1	9102-9601	●
1	FRAME ASM DELETION IDN	8-97123-470-8	01	1	9602-	●
1	FRAME ASM DELETION IDN	8-94366-553-4	01	1	9009-9101		●
1	FRAME ASM DELETION IDN	8-97047-882-1	01	1	9102-9601		●
1	FRAME ASM DELETION IDN	8-97123-473-8	01	1	9602-		●
1	FRAME ASM DELETION IDN	8-94385-238-2	01	1	9009-9101			●
1	FRAME ASM DELETION IDN	8-97047-881-1	01	1	9102-9601			●
1	FRAME ASM DELETION IDN	8-97123-472-8	01	1	9602-			●
1	FRAME ASM DELETION IDN	8-94385-239-2	01	1	9009-9101				●
1	FRAME ASM DELETION IDN	8-97047-883-1	01	1	9102-9601				●
1	FRAME ASM DELETION IDN	8-97123-475-8	01	1	9602-				●
2	MEMBER; CROSS,1ST DELETION	8-94366-614-1	01	1	9009-9601	●	●	●	●
2	MEMBER; CROSS,1ST DELETION IDN	8-97133-840-3	01	1	9602-	●	●	●	●
15	BRACKET; BODY MTG,FRT DELETION IDN	8-94366-652-1	01	1	9009-	●	●	●	●
15	BRACKET; BODY MTG,FRT DELETION IDN	8-94366-651-1	01	1	9009-	●	●	●	●
29	BRACKET; CAB MTG DELETION IDN	8-94366-653-0	02	1	9009-9601	●	●	●	●
43	BRACKET; CAB MTG,RR (A) DELETION	8-94366-656-0	02	1	9009-9601	●	●	●	●
43	BRACKET; CAB MTG,RR (D) DELETION IDN	8-97010-843-0	02	1	9009-9601			●	●
43	BRACKET; CAB MTG,RR (E) DELETION IDN	8-97010-848-0	01	1	9009-9601			●	●
43	BRACKET; CAB MTG,RR (B) DELETION IDN	8-97010-844-0	02	1	9009-9601			●	●
43	BRACKET; CAB MTG,RR (C) DELETION IDN	8-97010-847-0	01	1	9009-9601			●	●
67	NUT; C/MBR DELETION M6	9-09114-086-0	04	1	9009-	●	●	●	●
101	BRACKET; RR SPR,FRT DELETION IDN	8-94370-496-0	02	1	9009-	●	●	●	●
130	MEMBER; CROSS,END DELETION IDN	8-94366-636-1	01	1	9009-9608	●	●	●	●
130	MEMBER; CROSS,END IDN	8-97955-168-0	01	1	9609-	●	●	●	●
140	BRACKET; S/ABS,RR DELETION	8-94366-649-0	01	1	9009-9601	●	●	●	●
140	BRACKET; S/ABS,RR DELETION	8-94366-650-0	01	1	9009-9601	●	●	●	●
156	BRACKET; RR BODY MTG DELETION IDN	8-94370-517-0	02	1	9009-	●	●
156	BRACKET; RR BODY MTG DELETION IDN	8-94370-516-0	02	1	9009-	●	●
157	BRACKET; FLEX HOSE (A) DELETION IDN	8-94370-700-0	01	1	9009-9601	●	●	●	●
157	BRACKET; FLEX HOSE (B) DELETION IDN	8-97031-737-0	01	1	9009-9601	●	●	●	●
157	BRACKET; FLEX HOSE (B) DELETION IDN	8-97031-736-0	01	1	9009-9601	●	●	●	●
172	BRACKET; 2 WAY CONNECTOR DELETION	8-94158-644-0	01	1	9009-9601	●	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING DELETION	8-94370-494-0	02	1	9009-9601	●	●	●	●
296	BOLT; 3RD C/MBR DELETION M10X25 FLANGE	0-28281-025-0	08	1	9009-0512	●	●	●	●
296	BOLT; 3RD C/MBR M10X25 FLANGE	0-28251-025-0	08	1	0601-	●	●	●	●
297	NUT; 3RD C/MBR DELETION M10 FLANGE	0-91150-110-0	08	1	9009-0602	●	●	●	●
297	NUT; 3RD C/MBR M10 FLANGE	0-91180-110-0	08	1	0603-	●	●	●	●
347	BRACKET; STRG GEAR BOX DELETION	8-97011-269-0	01	1	9009-9601	●	●	●	●
347	BRACKET; STRG GEAR BOX DELETION	8-97011-268-0	01	1	9009-9601	●	●	●	●
348	BRACKET; STRG STOPPER DELETION IDN	8-94366-645-0	02	1	9009-9601	●	●	●	●

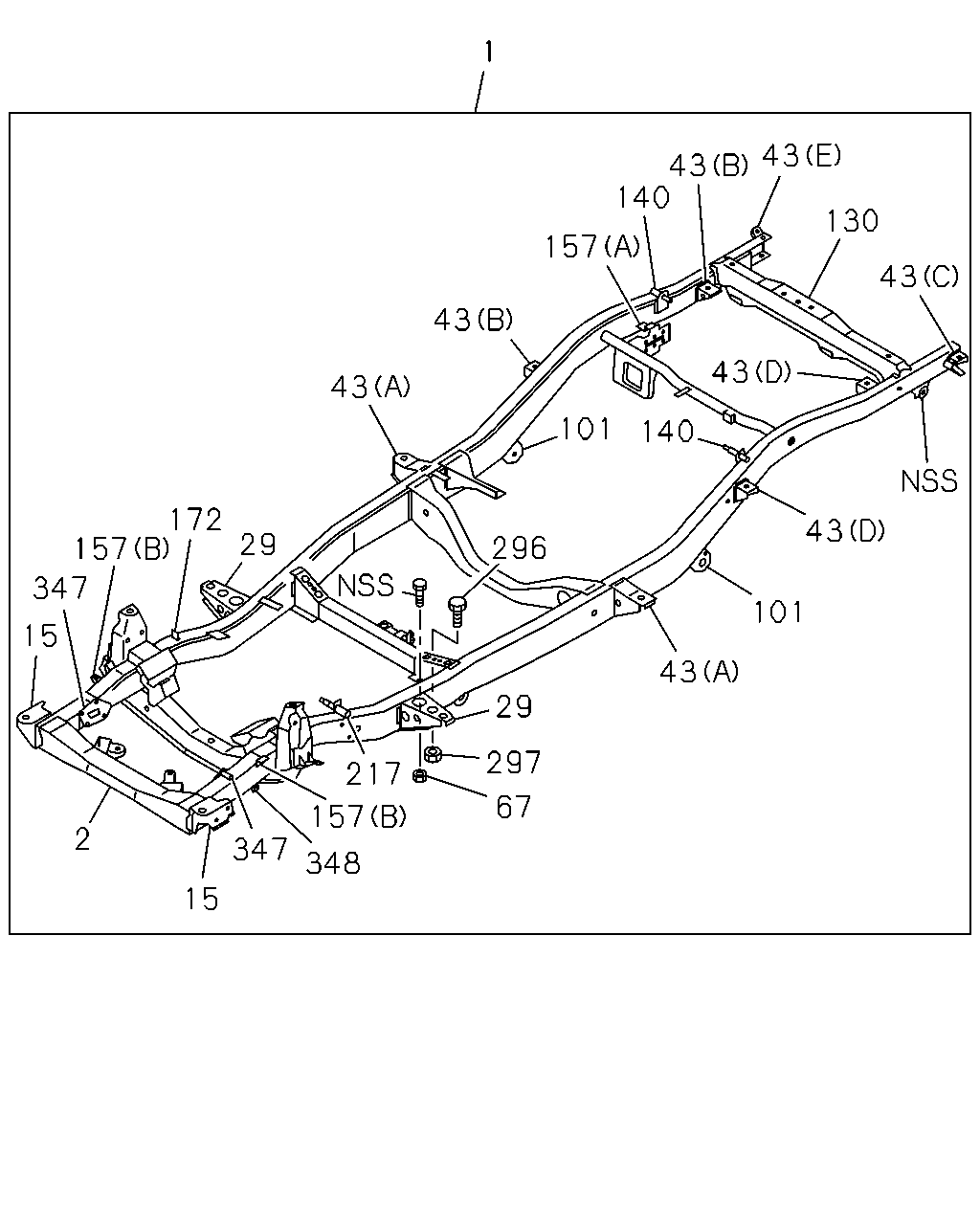

1 43 43 140 157 43 43 130 43 43 140 101 296 101 43 43 29 297 67 217 157 348 15 347 2 15 347 157 172 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM DELETION IDN	8-94366-552-4	01	1	9009-9101	●
1	FRAME ASM DELETION IDN	8-97047-880-1	01	1	9102-9601	●
1	FRAME ASM DELETION IDN	8-97123-470-8	01	1	9602-	●
1	FRAME ASM DELETION IDN	8-94366-553-4	01	1	9009-9101		●
1	FRAME ASM DELETION IDN	8-97047-882-1	01	1	9102-9601		●
1	FRAME ASM DELETION IDN	8-97123-473-8	01	1	9602-		●
1	FRAME ASM DELETION IDN	8-94385-238-2	01	1	9009-9101			●
1	FRAME ASM DELETION IDN	8-97047-881-1	01	1	9102-9601			●
1	FRAME ASM DELETION IDN	8-97123-472-8	01	1	9602-			●
1	FRAME ASM DELETION IDN	8-94385-239-2	01	1	9009-9101				●
1	FRAME ASM DELETION IDN	8-97047-883-1	01	1	9102-9601				●
1	FRAME ASM DELETION IDN	8-97123-475-8	01	1	9602-				●
2	MEMBER; CROSS,1ST DELETION	8-94366-614-1	01	1	9009-9601	●	●	●	●
2	MEMBER; CROSS,1ST DELETION IDN	8-97133-840-3	01	1	9602-	●	●	●	●
15	BRACKET; BODY MTG,FRT DELETION IDN	8-94366-652-1	01	1	9009-	●	●	●	●
15	BRACKET; BODY MTG,FRT DELETION IDN	8-94366-651-1	01	1	9009-	●	●	●	●
29	BRACKET; CAB MTG DELETION IDN	8-94366-653-0	02	1	9009-9601	●	●	●	●
43	BRACKET; CAB MTG,RR (A) DELETION	8-94366-656-0	02	1	9009-9601	●	●	●	●
43	BRACKET; CAB MTG,RR (D) DELETION IDN	8-97010-843-0	02	1	9009-9601			●	●
43	BRACKET; CAB MTG,RR (E) DELETION IDN	8-97010-848-0	01	1	9009-9601			●	●
43	BRACKET; CAB MTG,RR (B) DELETION IDN	8-97010-844-0	02	1	9009-9601			●	●
43	BRACKET; CAB MTG,RR (C) DELETION IDN	8-97010-847-0	01	1	9009-9601			●	●
67	NUT; C/MBR DELETION M6	9-09114-086-0	04	1	9009-	●	●	●	●
101	BRACKET; RR SPR,FRT DELETION IDN	8-94370-496-0	02	1	9009-	●	●	●	●
130	MEMBER; CROSS,END DELETION IDN	8-94366-636-1	01	1	9009-9608	●	●	●	●
130	MEMBER; CROSS,END IDN	8-97955-168-0	01	1	9609-	●	●	●	●
140	BRACKET; S/ABS,RR DELETION	8-94366-649-0	01	1	9009-9601	●	●	●	●
140	BRACKET; S/ABS,RR DELETION	8-94366-650-0	01	1	9009-9601	●	●	●	●
157	BRACKET; FLEX HOSE (A) DELETION IDN	8-94370-700-0	01	1	9009-9601	●	●	●	●
157	BRACKET; FLEX HOSE (B) DELETION IDN	8-97031-737-0	01	1	9009-9601	●	●	●	●
157	BRACKET; FLEX HOSE (B) DELETION IDN	8-97031-736-0	01	1	9009-9601	●	●	●	●
172	BRACKET; 2 WAY CONNECTOR DELETION	8-94158-644-0	01	1	9009-9601	●	●	●	●
217	BRACKET; HELPER RUBBER,RR SPRING DELETION	8-94370-494-0	02	1	9009-9601	●	●	●	●
296	BOLT; 3RD C/MBR DELETION M10X25 FLANGE	0-28281-025-0	08	1	9009-0512	●	●	●	●
296	BOLT; 3RD C/MBR M10X25 FLANGE	0-28251-025-0	08	1	0601-	●	●	●	●
297	NUT; 3RD C/MBR DELETION M10 FLANGE	0-91150-110-0	08	1	9009-0602	●	●	●	●
297	NUT; 3RD C/MBR M10 FLANGE	0-91180-110-0	08	1	0603-	●	●	●	●
347	BRACKET; STRG GEAR BOX DELETION	8-97011-269-0	01	1	9009-9601	●	●	●	●
347	BRACKET; STRG GEAR BOX DELETION	8-97011-268-0	01	1	9009-9601	●	●	●	●
348	BRACKET; STRG STOPPER DELETION IDN	8-94366-645-0	02	1	9009-9601	●	●	●	●

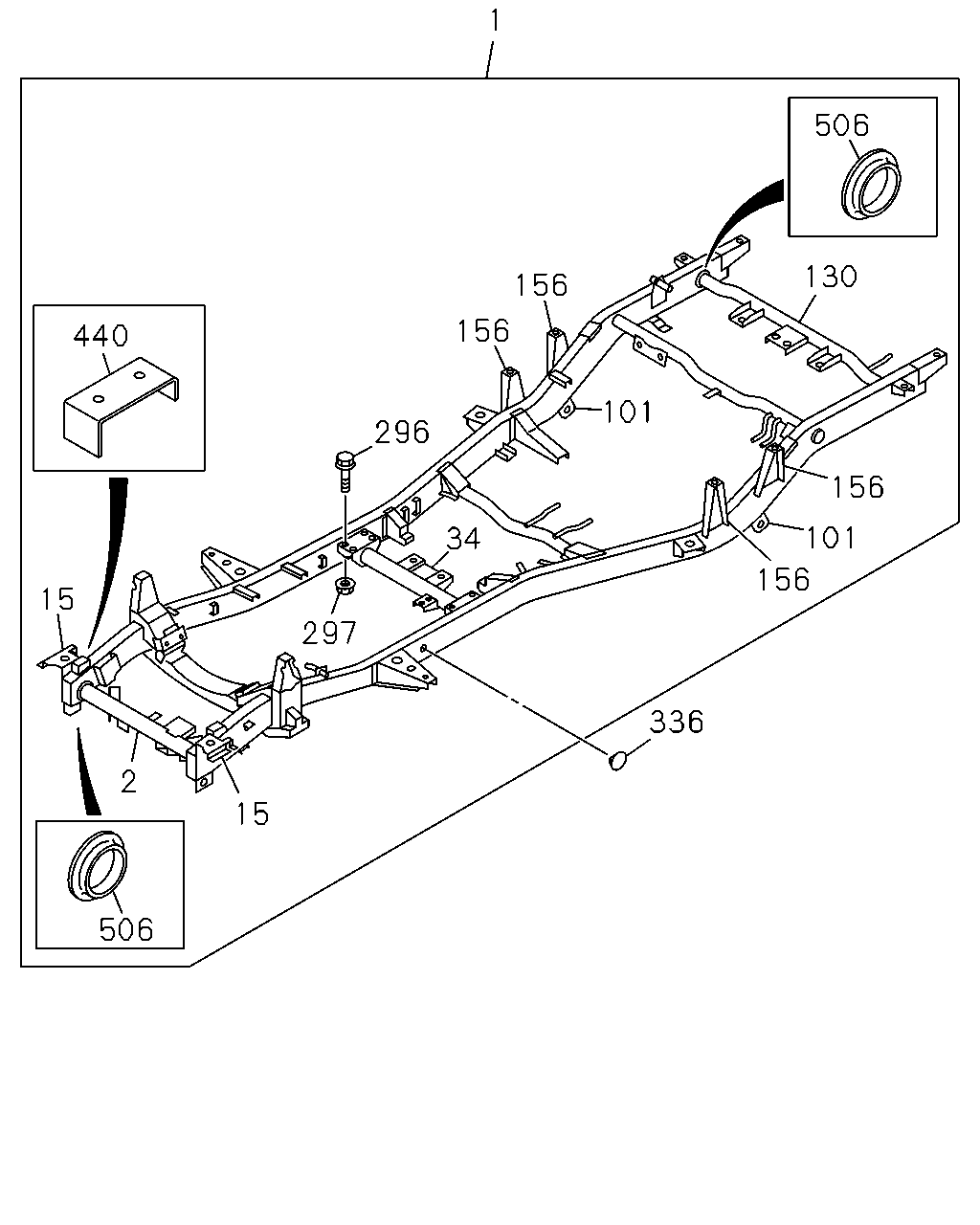

1 440 15 297 34 296 156 156 506 130 101 156 101 156 336 15 506 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FRAME ASM DELETION IDN	8-94366-552-4	01	1	9009-9101	●
1	FRAME ASM DELETION IDN	8-97047-880-1	01	1	9102-9601	●
1	FRAME ASM DELETION IDN	8-97123-470-8	01	1	9602-	●
1	FRAME ASM DELETION IDN	8-94366-553-4	01	1	9009-9101		●
1	FRAME ASM DELETION IDN	8-97047-882-1	01	1	9102-9601		●
1	FRAME ASM DELETION IDN	8-97123-473-8	01	1	9602-		●
1	FRAME ASM DELETION IDN	8-94385-238-2	01	1	9009-9101			●
1	FRAME ASM DELETION IDN	8-97047-881-1	01	1	9102-9601			●
1	FRAME ASM DELETION IDN	8-97123-472-8	01	1	9602-			●
1	FRAME ASM DELETION IDN	8-94385-239-2	01	1	9009-9101				●
1	FRAME ASM DELETION IDN	8-97047-883-1	01	1	9102-9601				●
1	FRAME ASM DELETION IDN	8-97123-475-8	01	1	9602-				●
2	MEMBER; CROSS,1ST DELETION	8-94366-614-1	01	1	9009-9601	●	●	●	●
2	MEMBER; CROSS,1ST DELETION IDN	8-97133-840-3	01	1	9602-	●	●	●	●
15	BRACKET; BODY MTG,FRT DELETION IDN	8-94366-652-1	01	1	9009-	●	●	●	●
15	BRACKET; BODY MTG,FRT DELETION IDN	8-94366-651-1	01	1	9009-	●	●	●	●
34	MEMBER; CROSS,3RD IDN	8-97133-841-3	01	1	9602-	●	●	●	●
101	BRACKET; RR SPR,FRT DELETION IDN	8-94370-496-0	02	1	9009-	●	●	●	●
130	MEMBER; CROSS,END DELETION IDN	8-94366-636-1	01	1	9009-9608	●	●	●	●
130	MEMBER; CROSS,END IDN	8-97955-168-0	01	1	9609-	●	●	●	●
156	BRACKET; RR BODY MTG DELETION IDN	8-94370-517-0	02	1	9009-	●	●
156	BRACKET; RR BODY MTG DELETION IDN	8-94370-516-0	02	1	9009-	●	●
296	BOLT; 3RD C/MBR DELETION M10X25 FLANGE	0-28281-025-0	08	1	9009-0512	●	●	●	●
296	BOLT; 3RD C/MBR M10X25 FLANGE	0-28251-025-0	08	1	0601-	●	●	●	●
297	NUT; 3RD C/MBR DELETION M10 FLANGE	0-91150-110-0	08	1	9009-0602	●	●	●	●
297	NUT; 3RD C/MBR M10 FLANGE	0-91180-110-0	08	1	0603-	●	●	●	●
336	PLUG; HOLE OD=40 BLACK	8-97806-918-0	02	1	9602-	●	●	●	●
440	BRACKET; HOSE IDN	8-94370-697-0	02	1	9602-	●	●	●	●
506	REINFORCEMENT; C/MBR IDN	8-94372-034-0	04	1	9602-	●	●	●	●
