4-60 — REAR SUSPENSION (#95104) — 32 parça

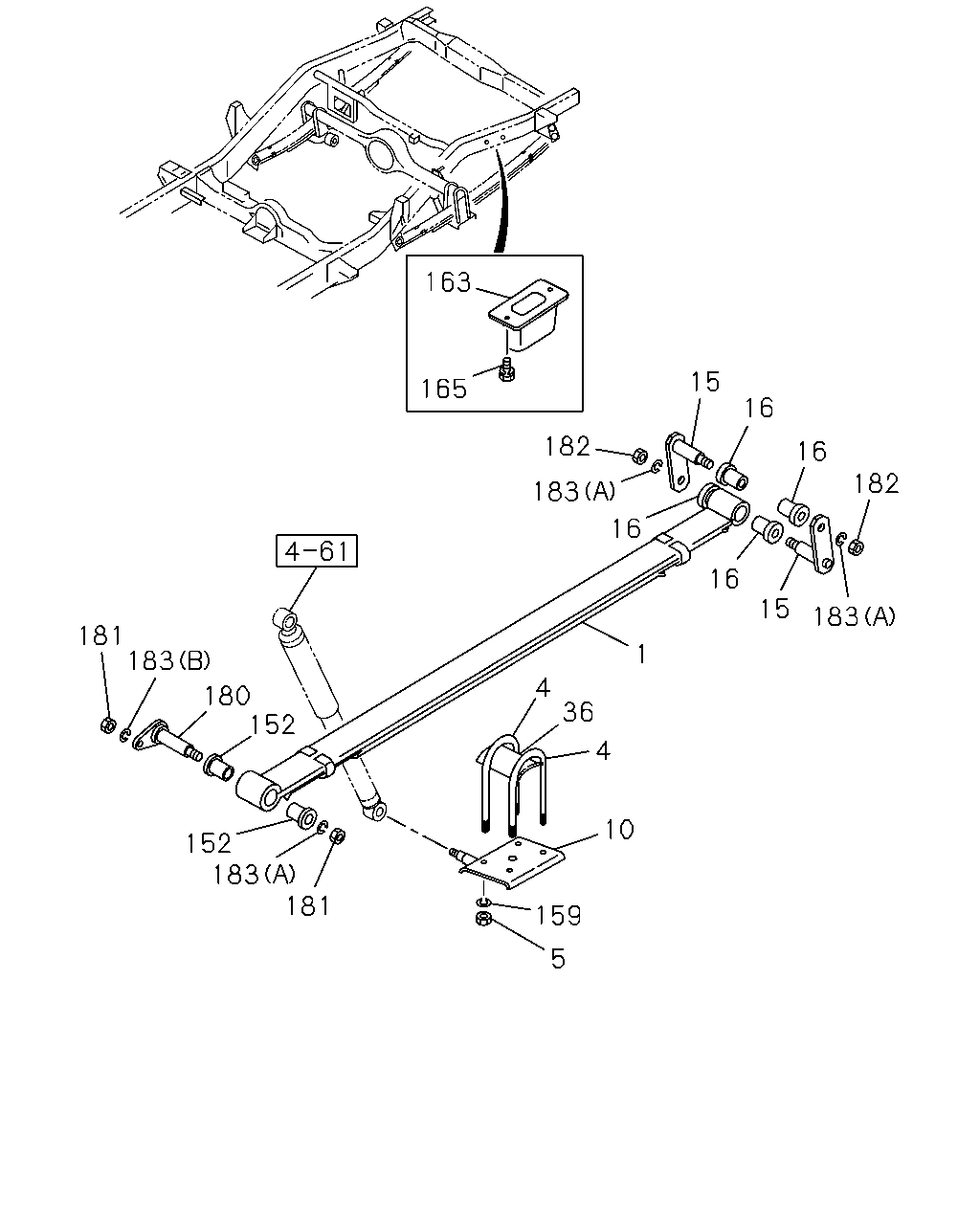

çizim 289032
163 165 182 183 16 15 16 16 182 183 15 16 1 4 36 4 10 159 5 181 183 152 152 180 183 181
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY<G50> DELETION IDN 		8-94368-268-1 02 1 9009- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> DELETION IDN 		8-94366-613-2 02 1 9009- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY<G50> DELETION 		8-94386-537-1 02 1 9009-9408 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DELETION IDN 		8-97109-632-0 02 1 9409-9608 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN 		8-97955-172-0 02 1 9609- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> DELETION 		8-94386-536-1 02 1 9009-9408 ● ●
4 U-BOLT; RR SPR
DELETION IDN 		8-94223-188-2 04 1 9009- ● ● ● ●
5 NUT; U-BOLT,RR SPR
M12 IDN 		9-99110-512-0 08 1 9009-0512 ● ● ● ●
5 NUT; U-BOLT,RR SPR
M12 		0-91110-512-0 08 1 0601- ● ● ● ●
10 CLAMP; LWR,RR SPR 8-94155-451-1 02 1 9009- ● ● ● ●
15 SHACKLE; RR SPR 8-94223-167-2 04 1 9009-0505 ● ● ● ●
15 SHACKLE; RR SPR
IDN 		8-97562-633-0 04 1 0506- ● ● ● ●
16 BUSHING; SHACKLE,RR SPR 8-94234-319-0 08 1 9009- ● ● ● ●
36 SEAT; HELPER RUBBER,RR SPR 5-51376-001-0 02 1 9009- ● ● ● ●
152 BUSHING; FRT EYE,RR SPRING 8-94223-168-0 04 1 9009- ● ● ● ●
159 WASHER; LK,RR SPR
ID=12.2 		9-09150-612-0 08 1 9009-0603 ● ● ● ●
159 WASHER; LK,RR SPR
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ● ●
163 RUBBER; HELPER,RR SPR 8-97167-104-0 02 1 9609- ● ●
163 RUBBER; HELPER,RR SPR 8-94223-166-2 02 1 9009-9608 ● ● ● ●
163 RUBBER; HELPER,RR SPR 8-94223-166-2 02 1 9609- ● ●
165 BOLT; HELPER RUBBER
M10X20 W/LK WASHER IDN 		0-50041-020-0 04 1 9009-0512 ● ● ● ●
165 BOLT; HELPER RUBBER
M10X20 W/LK WASHER IDN 		0-50541-020-0 04 1 0601- ● ● ● ●
180 PIN; RR SPR 8-94223-350-2 02 1 9009- ● ● ● ●
181 BOLT; SPR & SHACKLE
M8X20 		9-02040-820-0 02 1 9009-9204 ● ● ● ●
181 BOLT; SPR & SHACKLE
M8X20 		0-20800-820-0 02 1 9205-0512 ● ● ● ●
181 BOLT; SPR & SHACKLE
M8X20 		0-20850-820-0 02 1 0601- ● ● ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 06 1 9009-0512 ● ● ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 06 1 0601- ● ● ● ●
183 WASHER; LK,PIN,RR SPR
(B) ID=8.2 		9-09150-508-0 02 1 9009-0603 ● ● ● ●
183 WASHER; LK,PIN,RR SPR
(B) ID=8.2 		0-91510-508-0 02 1 0604- ● ● ● ●
183 WASHER; LK,PIN,RR SPR
(A) ID=14.2 		9-09150-614-0 06 1 9009-0603 ● ● ● ●
183 WASHER; LK,PIN,RR SPR
(A) ID=14.2 		0-91510-614-0 06 1 0604- ● ● ● ●
