4-50 — FRONT SUSPENSION (#95103) — 94 parça

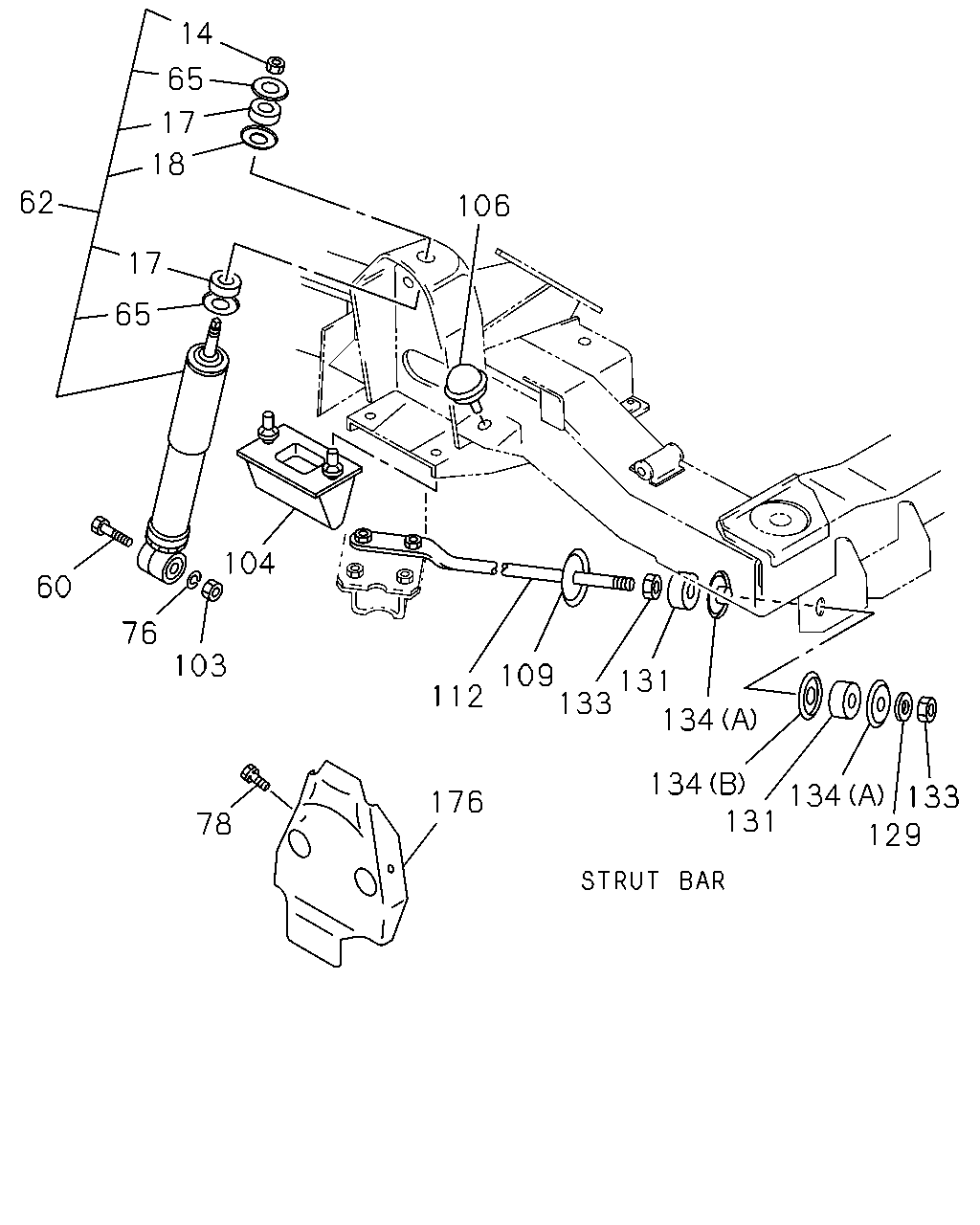

14 65 17 18 62 17 65 106 104 60 76 103 112 78 176 133 109 131 134 134 134 131 129 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	NUT; S/ABS,UPR DELETION M10	9-09110-410-0	02	1	9009-	●	●	●	●
17	BUSHING; RUBBER,S/ABS IDN	8-97955-205-0	04	1	9609-			●	●
17	BUSHING; RUBBER,S/ABS DELETION KAYABA IDN	9-51631-055-0	04	1	9009-9608	●	●	●	●
17	BUSHING; RUBBER,S/ABS DELETION KAYABA IDN	9-51631-055-0	04	1	9609-	●	●
18	WASHER; CENTERING,S/ABS IDN	8-97955-203-0	02	1	9609-			●	●
18	WASHER; CENTERING,S/ABS DELETION KAYABA IDN	8-94467-498-0	02	1	9009-9608	●	●	●	●
18	WASHER; CENTERING,S/ABS KAYABA IDN	8-94467-498-0	02	1	9609-	●	●
60	BOLT; S/ABS TO LWR LINK	9-91041-250-0	02	1	9009-9204	●	●	●	●
60	BOLT; S/ABS TO LWR LINK M12X50	0-10811-250-0	02	1	9205-0512	●	●	●	●
60	BOLT; S/ABS TO LWR LINK M12X50	0-10861-250-0	02	1	0601-	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT DELETION IDN	8-97955-175-0	02	1	9609-			●	●
62	ABSORBER ASM; SHOCK,FRT REAR SPRING HEAVY DUTY<G50> DELETION IDN	8-97020-817-0	02	1	9009-9408	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT REAR SPRING HEAVY DUTY<G50> DELETION IDN	8-97020-817-0	02	1	9409-	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. REAR SPRING HEAVY DUTY<G50> DELETION IDN	8-97014-042-0	02	1	9009-9408	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. REAR SPRING HEAVY DUTY<G50> DELETION IDN	8-97014-042-0	02	1	9409-9608	●	●
62	ABSORBER ASM; SHOCK,FRT DELETION IDN	8-97014-042-0	02	1	9409-9608			●	●
62	ABSORBER ASM; SHOCK,FRT EXC. REAR SPRING HEAVY DUTY<G50> DELETION IDN	8-97014-042-0	02	1	9609-	●	●
65	WASHER; S/ABS IDN	8-97955-204-0	04	1	9609-			●	●
65	WASHER; S/ABS DELETION ID=10.5 OD=38 IDN	9-51631-062-0	04	1	9009-9608	●	●	●	●
65	WASHER; S/ABS ID=10.5 OD=38 IDN	9-51631-062-0	04	1	9609-	●	●
76	WASHER; LK,S/ABS TO LWR LINK ID=12.2	9-09150-512-0	02	1	9009-0603	●	●	●	●
76	WASHER; LK,S/ABS TO LWR LINK ID=12.2	0-91510-512-0	02	1	0604-	●	●	●	●
78	BOLT; DUST COVER,S/ABS M6X14 W/LK WASHER	9-01900-614-0	04	1	9009-9204	●	●	●	●
78	BOLT; DUST COVER,S/ABS M6X14 W/LK WASHER	0-50040-614-0	04	1	9205-0909	●	●	●	●
78	BOLT; DUST COVER,S/ABS M6X14 W/LK WASHER	0-50540-614-0	04	1	0910-	●	●	●	●
103	NUT; S/ABS TO LWR LINK M12	9-99111-412-0	02	1	9009-0512	●	●	●	●
103	NUT; S/ABS TO LWR LINK M12	0-91111-512-0	02	1	0601-	●	●	●	●
104	RUBBER; BUMPER,STRUT DELETION IDN	8-94366-120-0	02	1	9009-	●	●	●	●
106	RUBBER; REBOUND,STRUT DELETION IDN	8-94259-086-0	02	1	9009-0301	●	●	●	●
106	RUBBER; REBOUND,STRUT IDN	8-97362-961-0	02	1	0302-	●	●	●	●
109	TUBE; DIST,STRUT BAR	8-94103-247-0	02	1	9009-	●	●	●	●
112	BAR; STRUT	8-94223-672-2	02	1	9009-	●	●	●	●
129	WASHER; LK,STRUT BAR ID=14.2	9-09150-614-0	02	1	9009-0603	●	●	●	●
129	WASHER; LK,STRUT BAR ID=14.2	0-91510-614-0	02	1	0604-	●	●	●	●
131	RUBBER; CUSHION,STRUT BAR	8-94223-699-0	04	1	9009-	●	●	●	●
133	NUT; STRUT BAR M14 IDN	9-99110-514-0	04	1	9009-0512	●	●	●	●
133	NUT; STRUT BAR M14	0-91110-514-0	04	1	0601-	●	●	●	●
134	WASHER; STRUT BAR (A)	8-94103-248-0	04	1	9009-0704	●	●	●	●
134	WASHER; STRUT BAR (A)	8-98079-312-0	04	1	0705-	●	●	●	●
134	WASHER; STRUT BAR (B)	8-94223-697-1	02	1	9009-	●	●	●	●
176	COVER; DUST,S/ABS DELETION IDN	8-94230-350-1	02	1	9009-	●	●	●	●

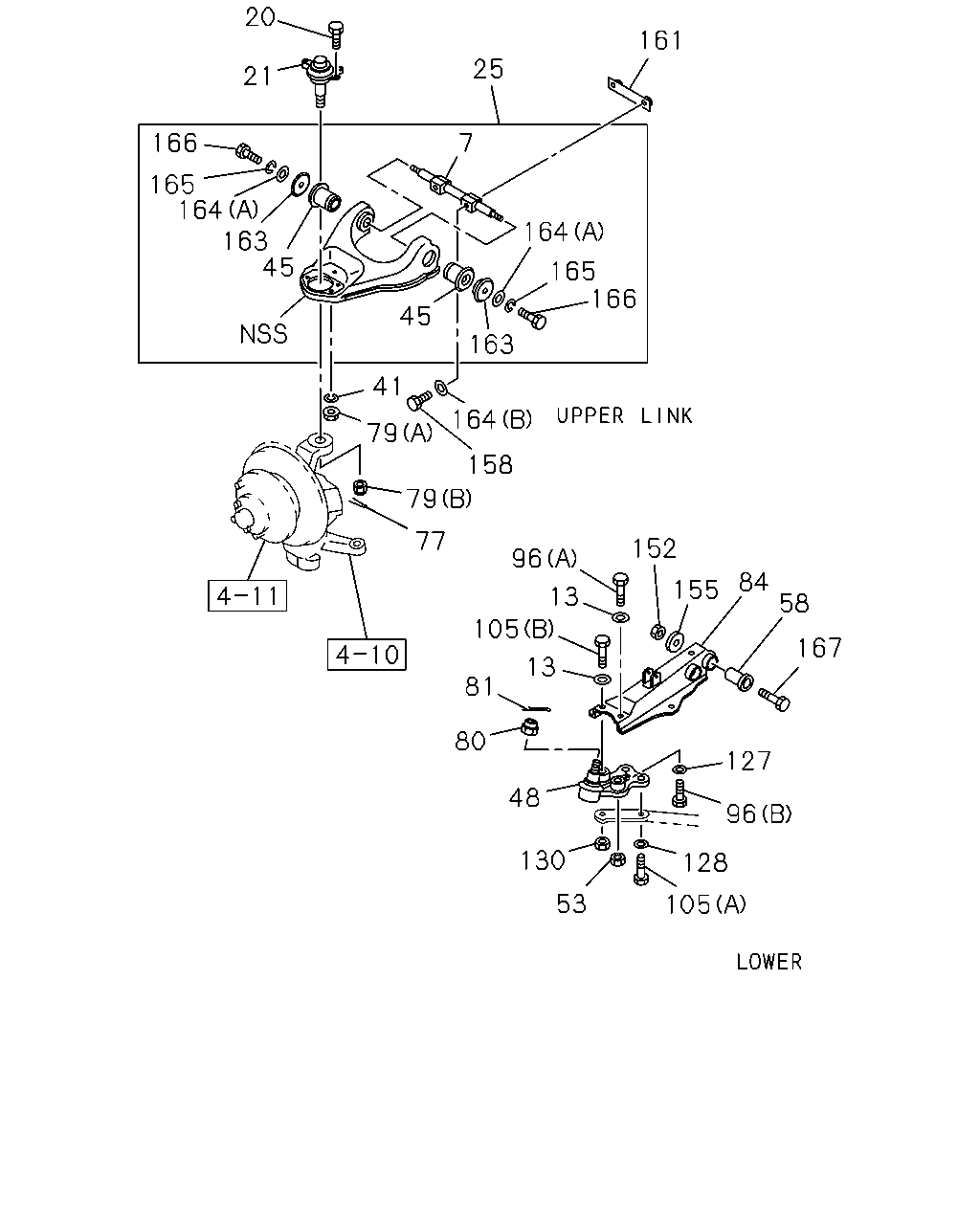

20 21 25 161 7 166 165 164 163 45 45 163 165 166 164 41 79 79 164 158 77 96 152 155 84 58 13 105 13 81 80 48 130 53 128 105 96 127 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	PIN; FULCRUM,UPR LINK	8-94225-581-3	02	1	9009-	●	●	●	●
13	WASHER; LK,LWR LINK ID=10.2	9-09150-610-0	02	1	9009-0603	●	●	●	●
13	WASHER; LK,LWR LINK ID=10.2 IDN	0-91510-610-0	02	1	0604-	●	●	●	●
20	BOLT; UPR LINK END TO UPR LINK	8-94478-727-0	08	1	9009-	●	●	●	●
21	JOINT ASM; BALL,UPR CONT ARM	8-94459-453-3	02	1	9009-	●	●	●	●
25	ARM; UPR CONT	8-94366-609-2	01	1	9009-	●	●	●	●
25	ARM; UPR CONT	8-94366-608-2	01	1	9009-	●	●	●	●
41	WASHER; LK,UPR LINK END TO UPR LINK ID=8.2	9-09150-808-0	08	1	9009-0603	●	●	●	●
41	WASHER; LK,UPR LINK END TO UPR LINK ID=8.2	0-91510-808-0	08	1	0604-	●	●	●	●
45	BUSHING; UPR LINK,FRT	8-94408-840-3	04	1	9009-	●	●	●	●
48	JOINT ASM; BALL,LWR CONT ARM	8-94365-165-2	01	1	9009-	●	●	●	●
48	JOINT ASM; BALL,LWR CONT ARM	8-94365-164-2	01	1	9009-	●	●	●	●
53	NUT; LWR LINK M10 FLANGE	8-94242-425-0	02	1	9009-	●	●	●	●
58	BUSHING; LWR LINK	8-94223-366-1	02	1	9009-	●	●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	9-08113-028-0	02	1	9009-0204	●	●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=25	9-08113-025-0	02	1	0205-0606	●	●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=25	0-81123-025-0	02	1	0607-	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (A) M8 FLANGE	5-09440-010-0	08	1	9009-	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (B) M14 SLOTTED	8-94124-556-0	02	1	9009-0805	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (B) M14 SLOTTED	8-97245-624-0	02	1	0806-	●	●	●	●
80	NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	9009-0605	●	●	●	●
80	NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	0-91116-518-0	02	1	0606-	●	●	●	●
81	PIN; SPLIT,LWR LINK TO KNUCKLE OD=3.7 L=30	9-08114-030-0	02	1	9009-0606	●	●	●	●
81	PIN; SPLIT,LWR LINK TO KNUCKLE OD=3.7 L=30	0-81124-030-0	02	1	0607-	●	●	●	●
84	ARM; LWR CONT	8-94223-222-3	01	1	9009-	●	●	●	●
84	ARM; LWR CONT	8-94223-221-3	01	1	9009-	●	●	●	●
96	BOLT; LWR LINK (A) M10X50	9-01066-050-0	02	1	9009-0512	●	●	●	●
96	BOLT; LWR LINK (A) M10X50	0-10956-050-0	02	1	0601-	●	●	●	●
96	BOLT; LWR LINK (B) M10X20	9-02061-020-0	02	1	9009-0512	●	●	●	●
96	BOLT; LWR LINK (B) M10X20	0-20951-020-0	02	1	0601-	●	●	●	●
105	BOLT; STRUT BAR TO LWR LINK (A) M10X35	8-94237-412-0	02	1	9009-	●	●	●	●
105	BOLT; STRUT BAR TO LWR LINK (B) M10X65	9-01066-065-0	02	1	9009-	●	●	●	●
127	WASHER; LK,STRUT BAR TO LWR LINK ID=10.2	9-09150-610-0	02	1	9009-0603	●	●	●	●
127	WASHER; LK,STRUT BAR TO LWR LINK ID=10.2 IDN	0-91510-610-0	02	1	0604-	●	●	●	●
128	WASHER; PL,STRUT ID=10.5 OD=26	9-09164-710-0	02	1	9009-0605	●	●	●	●
128	WASHER; PL,STRUT ID=10.5 OD=26	0-91614-710-0	02	1	0606-	●	●	●	●
130	NUT; STRUT BAR TO LWR LINK M10 FLANGE	8-94242-425-0	02	1	9009-	●	●	●	●
152	NUT; LWR LINK TO FRT C/MBR M14 IDN	9-99110-514-0	02	1	9009-0512	●	●	●	●
152	NUT; LWR LINK TO FRT C/MBR M14	0-91110-514-0	02	1	0601-	●	●	●	●
155	WASHER; LK,UPR LINK TO FRT C/MBR ID=14.2	9-09150-514-0	02	1	9009-0603	●	●	●	●
155	WASHER; LK,UPR LINK TO FRT C/MBR ID=14.2	0-91510-514-0	02	1	0604-	●	●	●	●
158	BOLT; UPR LINK TO FRAME	5-09000-226-1	04	1	9009-	●	●	●	●
161	NUT ASM; UPR LINK TO FRAME	5-51249-005-1	02	1	9009-0510	●	●	●	●
161	NUT ASM; UPR LINK TO FRAME	8-98020-304-0	02	1	0511-	●	●	●	●
163	PLATE; FULCRUM PIN,UPR LINK	8-94223-217-1	04	1	9009-	●	●	●	●
164	WASHER; PL,FULCRUM PIN (B) ID=12.5	8-94224-842-0	04	1	9009-	●	●	●	●
164	WASHER; PL,FULCRUM PIN (A) ID=12.5 OD=32	9-09164-712-0	04	1	9009-0605	●	●	●	●
164	WASHER; PL,FULCRUM PIN (A) ID=12.5 OD=32 IDN	0-91614-712-0	04	1	0606-	●	●	●	●
165	WASHER; LK,FULCRUM PIN ID=12.2	9-09150-612-0	04	1	9009-0603	●	●	●	●
165	WASHER; LK,FULCRUM PIN ID=12.2	0-91510-612-0	04	1	0604-	●	●	●	●
166	BOLT; FULCRUM PIN TO UPR LINK M12X28	9-92061-228-0	04	1	9009-	●	●	●	●
167	BOLT; LWR LINK TO FRT C/MBR M14X90	0-10806-490-0	02	1	9009-0512	●	●	●	●
167	BOLT; LWR LINK TO FRT C/MBR M14X90	0-10856-490-0	02	1	0601-	●	●	●	●
