4-40 — STEERING UNIT (#95101) — 41 parça

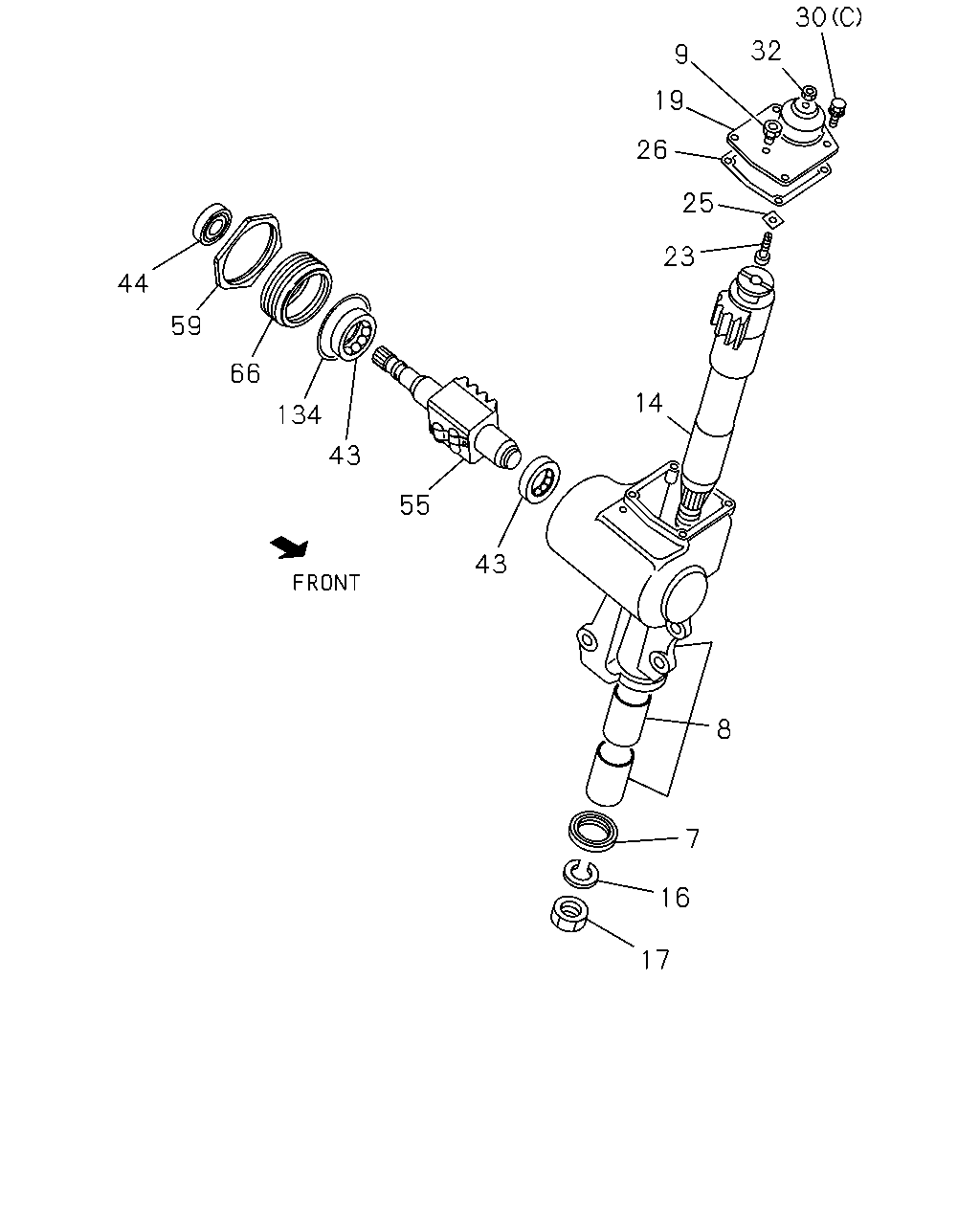

çizim 289239
30 32 9 19 26 25 23 14 43 55 43 134 66 59 44 8 7 16 17
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97012-625-1 		9-09924-261-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94230-879-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94466-392-1 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97012-625-1 		5-09605-010-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97012-625-1 		8-97017-921-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-94369-445-7 		8-97023-692-0 01 1 -
16 WASHER; LK,SECTOR SHAFT
ID=22.5 ASM PART: B = 8-97012-625-1 		9-09150-522-0 01 1 -
17 NUT; SECTOR SHAFT,STRG UNIT
M22 ASM PART: B = 8-97012-625-1 		9-09111-522-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94235-372-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94240-922-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97012-625-1 		9-44277-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535 ASM PART: B = 8-97012-625-1 		9-44279-008-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565 ASM PART: B = 8-97012-625-1 		9-44279-009-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595 ASM PART: B = 8-97012-625-1 		9-44279-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625 ASM PART: B = 8-97012-625-1 		9-44279-011-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655 ASM PART: B = 8-97012-625-1 		9-44279-012-0 01 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94235-374-0 01 1 -
30 BOLT; COVER STRG UNIT
(B), M10X14 M10X22 ASM PART: A = 8-94369-445-7 		8-94173-741-0 02 1 -
30 BOLT; COVER STRG UNIT
(C), M8X20 W/LK WASHER ASM PART: B = 8-97012-625-1 		9-01910-820-0 04 1 -
30 BOLT; COVER STRG UNIT
(A), M10X22 ASM PART: A = 8-94369-445-7 		9-01911-022-0 02 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97012-625-1 		9-09111-410-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: B = 8-97012-625-1 		9-00090-208-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 8-97012-625-1 		5-09625-034-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94118-065-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94222-816-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94235-373-0 01 1 -
134 GASKET; COVER,STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94222-815-0 01 1 -

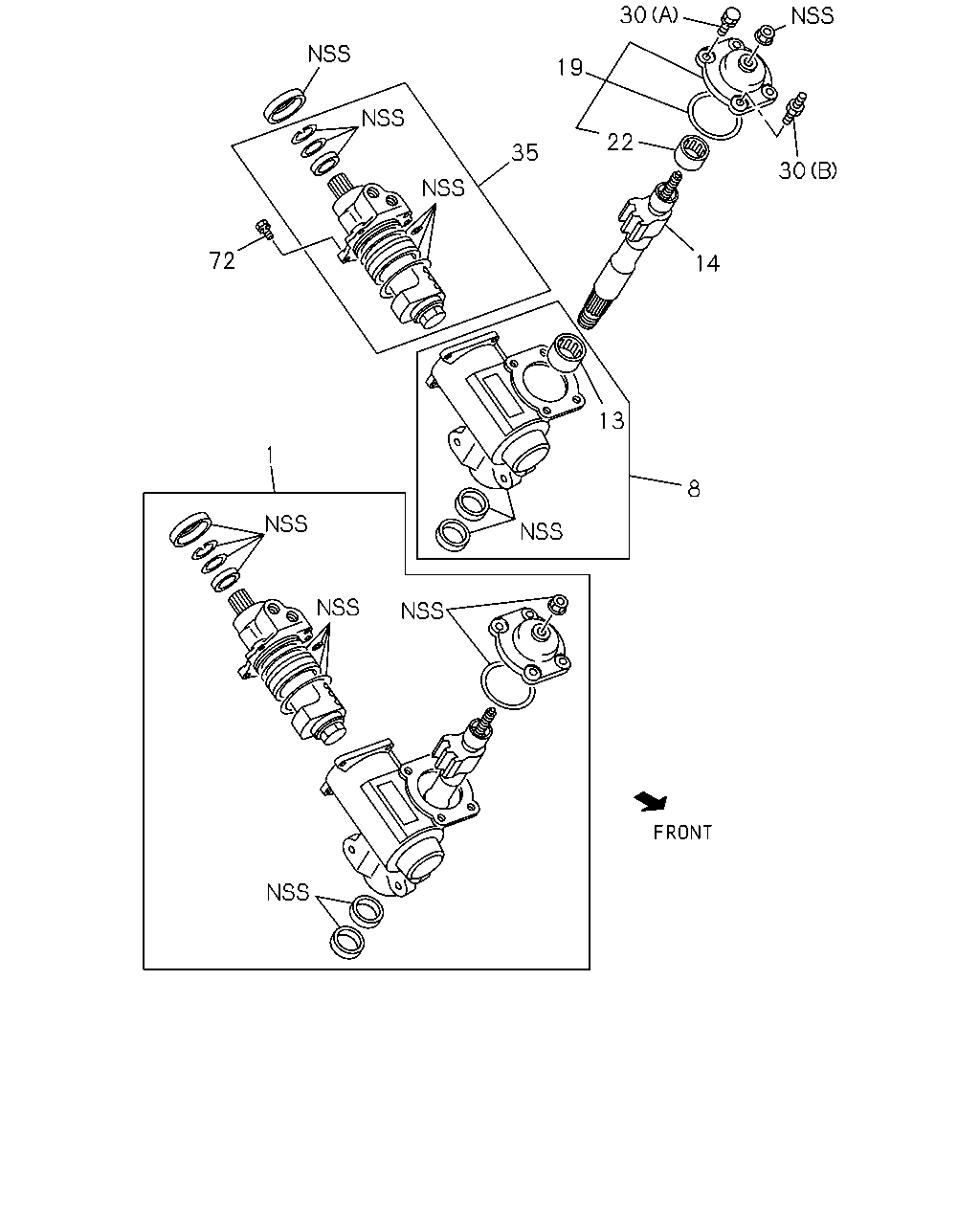

çizim 289802
8 13 1 72 35 22 14 30 19 30
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-94369-445-7 		8-97023-690-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94230-879-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94466-392-1 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94240-933-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97012-625-1 		8-97017-921-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-94369-445-7 		8-97023-692-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97012-625-1 		8-94235-372-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94240-922-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94240-939-0 01 1 -
30 BOLT; COVER STRG UNIT
(B), M10X14 M10X22 ASM PART: A = 8-94369-445-7 		8-94173-741-0 02 1 -
30 BOLT; COVER STRG UNIT
(C), M8X20 W/LK WASHER ASM PART: B = 8-97012-625-1 		9-01910-820-0 04 1 -
30 BOLT; COVER STRG UNIT
(A), M10X22 ASM PART: A = 8-94369-445-7 		9-01911-022-0 02 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-94369-445-7 		8-94116-283-4 01 1 -
72 BOLT; HSG FIX STRG UNIT
M10X22 ASM PART: A = 8-94369-445-7 		9-01911-022-0 04 1 -
