Sayfa 4-36 - Isuzu EPC

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#95100) — 189 parça

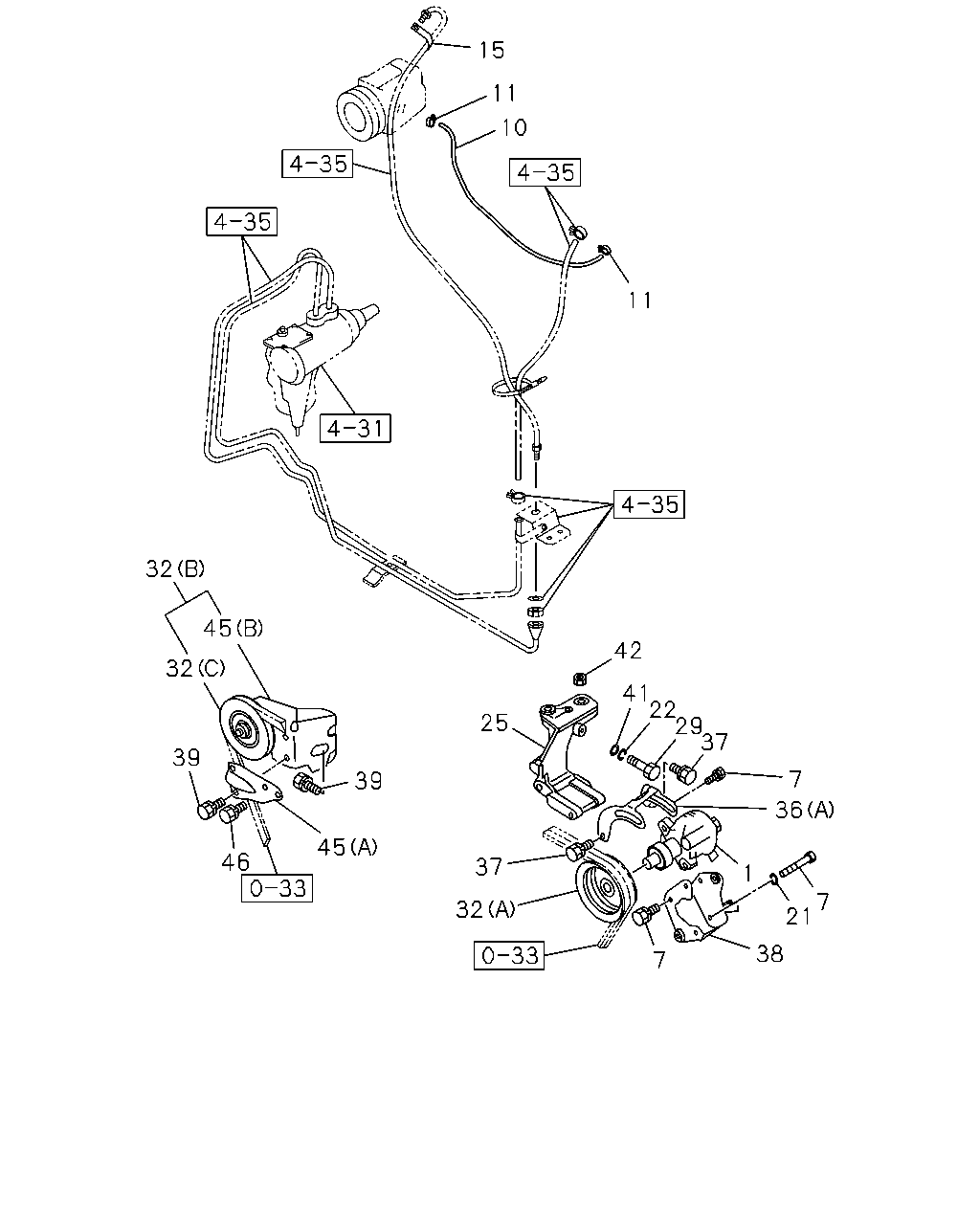

11 10 11 15 42 41 22 29 37 7 36 7 21 38 1 7 32 37 25 39 45 32 45 32 39 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-94160-669-0	01	1	9009-9601	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97129-593-5	01	1	9602-0206	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97331-940-0	01	1	0207-0302	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97942-188-0	01	1	0303-0610	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> IMA	8-97944-828-0	01	1	0611-0709	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> IMA	8-97946-697-0	01	1	0710-	●	●	●	●
7	BOLT; OIL PUMP,P/S POWER STEERING<N40> M10X25 W/LK WASHER	0-50041-025-0	02	1	9009-9601	●	●	●	●
7	BOLT; OIL PUMP,P/S POWER STEERING<N40> M10X20 W/LK WASHER	8-97033-053-1	03	1	9602-	●	●	●	●
7	BOLT; OIL PUMP,P/S POWER STEERING<N40> M10X20 W/LK WASHER	0-50051-020-0	03	1	9009-9601	●	●	●	●
7	BOLT; OIL PUMP,P/S POWER STEERING<N40> M10X95	8-94165-519-1	01	1	9009-9601	●	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL POWER STEERING<N40> L=400	0-09864-300-1	01	1	9009-9604	●	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL POWER STEERING<N40> L=260	0-09814-400-0	01	1	9605-	●	●	●	●
11	CLIP; FLEX HOSE POWER STEERING<N40> ID=21	8-94242-034-0	02	1	9009-	●	●	●	●
15	CLIP; OIL PIPE SUCTION POWER STEERING<N40> DELETION ID=22	8-94120-262-0	01	1	9009-9601	●	●	●	●
21	WASHER; PL,P/S OIL PUMP POWER STEERING<N40> ID=10.5 OD=26	9-09164-710-0	02	1	9009-9601	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	9-09150-510-0	02	1	9009-9601	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	9-09150-510-0	01	1	9602-0603	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	0-91510-510-0	01	1	0604-	●	●	●	●
25	BRACKET; P/S PUMP POWER STEERING<N40>	8-94254-645-1	01	1	9009-9107	●	●	●	●
25	BRACKET; P/S PUMP POWER STEERING<N40>	8-97065-216-0	01	1	9108-9601	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X55	5-09030-038-1	01	1	9009-9601	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X18 W/LK WASHER	0-50040-818-0	01	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X18 W/LK WASHER	0-50540-818-0	01	1	0910-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X30 W/LK WASHER	0-50040-830-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X30 W/LK WASHER	0-50540-830-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X60 W/LK WASHER	0-50040-860-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X60 W/LK WASHER	0-50540-860-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X28 W/LK WASHER	0-50041-028-0	02	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X28 W/LK WASHER	0-50541-028-0	02	1	0910-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X35 W/LK WASHER	0-50041-035-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X35 W/LK WASHER	0-50541-035-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X60 W/LK WASHER	0-50041-060-0	01	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X60 W/LK WASHER	0-50541-060-0	01	1	0910-	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-94104-758-1	01	1	9009-9408	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-97113-181-0	01	1	9409-9601	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A)	8-94470-718-0	01	1	9009-9601	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A)	8-97042-266-1	01	1	9602-0302	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (D)	8-97942-187-0	01	1	0303-	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (C)	8-97112-740-1	01	1	9409-	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (C)	8-97066-759-1	01	1	9602-0302	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (C) IDN	8-97562-169-0	01	1	0303-	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (A)	8-94254-647-2	01	1	9009-9601	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (B)	8-94478-880-1	01	1	9602-	●	●	●	●
37	BOLT; P/S PUMP POWER STEERING<N40> M10X25 W/LK WASHER	0-50041-025-0	01	1	9009-9601	●	●	●	●
37	BOLT; P/S PUMP POWER STEERING<N40> M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	9009-9601	●	●	●	●
38	BRACKET; POWER STRG,ENG FOOT POWER STEERING<N40>	8-94104-660-2	01	1	9009-9601	●	●	●	●
39	BOLT; P/S BRKT TO HD POWER STEERING<N40> M8X20 W/LK WASHER	0-50040-820-0	02	1	9009-9601	●	●	●	●
39	BOLT; P/S BRKT TO HD POWER STEERING<N40> M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9009-9601	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=10.5 OD=22	9-09164-610-0	01	1	9009-9601	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9602-0302	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=8.5 OD=22 T=4	9-09851-649-0	01	1	0303-	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M10	9-09110-510-0	02	1	9009-9601	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M8 FLANGE IDN	0-91150-208-0	01	1	9602-0602	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M8 FLANGE IDN	0-91180-208-0	01	1	0603-	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (A)	5-19587-028-0	01	1	9009-9601	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (C)	8-94449-652-0	01	1	9602-	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (B)	8-97113-180-0	01	1	9409-9601	●	●	●	●
46	BOLT; IDLER TO ADJ SCREW POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	02	1	9009-9601	●	●	●	●

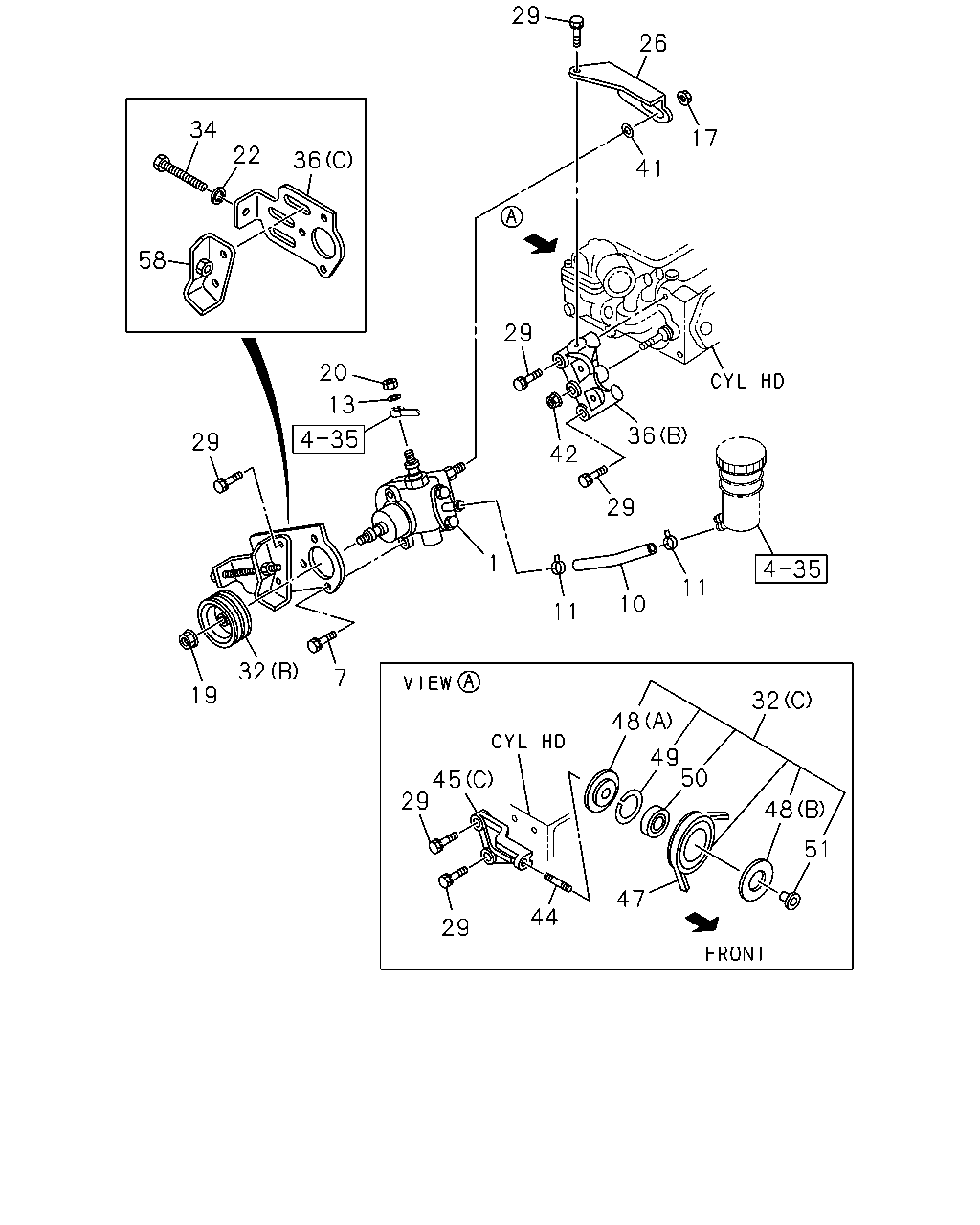

41 17 26 29 29 36 29 42 11 10 11 1 13 20 58 34 22 36 29 7 32 19 45 29 48 49 50 32 48 51 47 44 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-94160-669-0	01	1	9009-9601	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97129-593-5	01	1	9602-0206	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97331-940-0	01	1	0207-0302	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97942-188-0	01	1	0303-0610	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> IMA	8-97944-828-0	01	1	0611-0709	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> IMA	8-97946-697-0	01	1	0710-	●	●	●	●
7	BOLT; OIL PUMP,P/S POWER STEERING<N40> M10X25 W/LK WASHER	0-50041-025-0	02	1	9009-9601	●	●	●	●
7	BOLT; OIL PUMP,P/S POWER STEERING<N40> M10X20 W/LK WASHER	8-97033-053-1	03	1	9602-	●	●	●	●
7	BOLT; OIL PUMP,P/S POWER STEERING<N40> M10X20 W/LK WASHER	0-50051-020-0	03	1	9009-9601	●	●	●	●
7	BOLT; OIL PUMP,P/S POWER STEERING<N40> M10X95	8-94165-519-1	01	1	9009-9601	●	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL POWER STEERING<N40> L=400	0-09864-300-1	01	1	9009-9604	●	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL POWER STEERING<N40> L=260	0-09814-400-0	01	1	9605-	●	●	●	●
11	CLIP; FLEX HOSE POWER STEERING<N40> ID=21	8-94242-034-0	02	1	9009-	●	●	●	●
13	WASHER; LK,FLEX HOSE,P/S POWER STEERING<N40> ID=12.2	9-09150-512-0	01	1	9602-0603	●	●	●	●
13	WASHER; LK,FLEX HOSE,P/S POWER STEERING<N40> ID=12.2	0-91510-512-0	01	1	0604-	●	●	●	●
17	NUT; POWER STRG PUMP POWER STEERING<N40> M10 FLANGE	0-91150-210-0	01	1	9602-0302	●	●	●	●
17	NUT; POWER STRG PUMP POWER STEERING<N40> M8 FLANGE IDN	0-91150-208-0	01	1	0303-0602	●	●	●	●
17	NUT; POWER STRG PUMP POWER STEERING<N40> M8 FLANGE IDN	0-91180-208-0	01	1	0603-	●	●	●	●
19	NUT; PULLEY,OIL PUMP POWER STEERING<N40> M12	8-94139-015-0	01	1	9602-0302	●	●	●	●
20	NUT; HOSE TO PUMP POWER STEERING<N40> M12	9-99111-412-0	01	1	9602-0512	●	●	●	●
20	NUT; HOSE TO PUMP POWER STEERING<N40> M12	0-91111-512-0	01	1	0601-	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	9-09150-510-0	02	1	9009-9601	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	9-09150-510-0	01	1	9602-0603	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	0-91510-510-0	01	1	0604-	●	●	●	●
26	BRACKET; P/S PUMP,RR POWER STEERING<N40>	8-97134-259-0	01	1	9602-0302	●	●	●	●
26	BRACKET; P/S PUMP,RR POWER STEERING<N40> IDN	8-97562-168-0	01	1	0303-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X55	5-09030-038-1	01	1	9009-9601	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X18 W/LK WASHER	0-50040-818-0	01	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X18 W/LK WASHER	0-50540-818-0	01	1	0910-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X30 W/LK WASHER	0-50040-830-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X30 W/LK WASHER	0-50540-830-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X60 W/LK WASHER	0-50040-860-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X60 W/LK WASHER	0-50540-860-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X28 W/LK WASHER	0-50041-028-0	02	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X28 W/LK WASHER	0-50541-028-0	02	1	0910-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X35 W/LK WASHER	0-50041-035-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X35 W/LK WASHER	0-50541-035-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X60 W/LK WASHER	0-50041-060-0	01	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X60 W/LK WASHER	0-50541-060-0	01	1	0910-	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-94104-758-1	01	1	9009-9408	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-97113-181-0	01	1	9409-9601	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A)	8-94470-718-0	01	1	9009-9601	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A)	8-97042-266-1	01	1	9602-0302	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (D)	8-97942-187-0	01	1	0303-	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (C)	8-97112-740-1	01	1	9409-	●	●	●	●
34	BOLT; ADJ PLATE POWER STEERING<N40> M10X70	0-20801-070-0	01	1	9602-	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (C)	8-97066-759-1	01	1	9602-0302	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (C) IDN	8-97562-169-0	01	1	0303-	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (A)	8-94254-647-2	01	1	9009-9601	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (B)	8-94478-880-1	01	1	9602-	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=10.5 OD=22	9-09164-610-0	01	1	9009-9601	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9602-0302	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=8.5 OD=22 T=4	9-09851-649-0	01	1	0303-	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M10	9-09110-510-0	02	1	9009-9601	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M8 FLANGE IDN	0-91150-208-0	01	1	9602-0602	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M8 FLANGE IDN	0-91180-208-0	01	1	0603-	●	●	●	●
44	STUD; IDLER PULLEY POWER STEERING<N40> M10X25 L=40	9-04411-025-0	01	1	9602-	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (A)	5-19587-028-0	01	1	9009-9601	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (C)	8-94449-652-0	01	1	9602-	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (B)	8-97113-180-0	01	1	9409-9601	●	●	●	●
47	BELT; P/S PUMP POWER STEERING<N40> L=1399 IDN	5-13671-111-0	01	1	9602-	●	●	●	●
48	COVER; IDLER POWER STEERING<N40> (A)	8-97092-819-0	01	1	9602-	●	●	●	●
48	COVER; IDLER POWER STEERING<N40> (B)	9-13669-603-0	01	1	9602-	●	●	●	●
49	RING; SNAP,IDLER POWER STEERING<N40>	8-94175-036-0	01	1	9602-	●	●	●	●
50	BEARING; IDLER POWER STEERING<N40>	8-94251-052-0	01	1	9602-	●	●	●	●
51	NUT; IDLER POWER STEERING<N40>	8-97092-813-0	01	1	9602-	●	●	●	●
58	SLIDER; BELT ADJ,P/S OIL PUMP POWER STEERING<N40>	8-94479-122-0	01	1	9602-	●	●	●	●

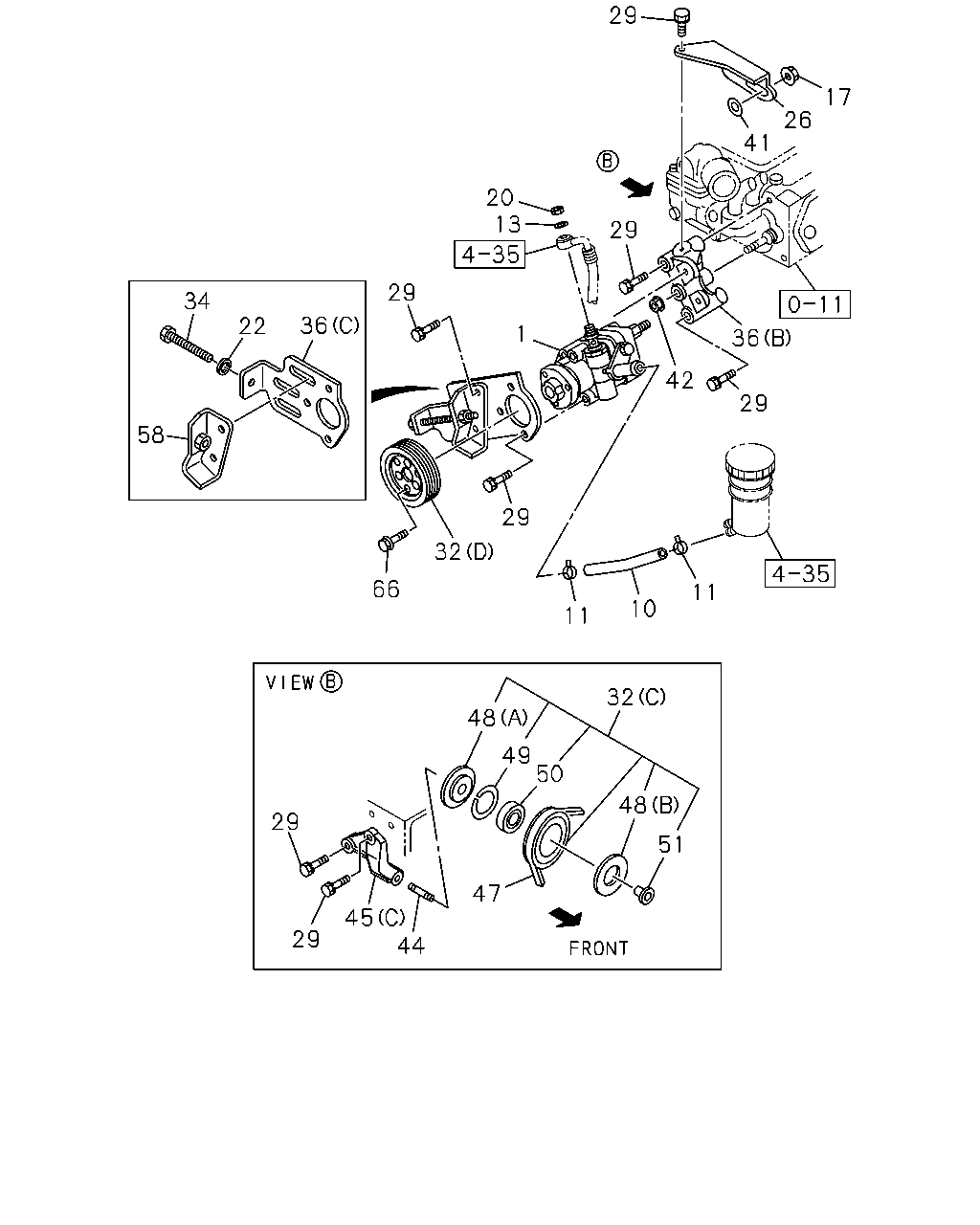

20 13 29 41 26 17 29 36 22 34 58 32 29 66 11 10 29 1 11 29 42 36 32 48 49 29 29 48 51 50 47 44 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-94160-669-0	01	1	9009-9601	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97129-593-5	01	1	9602-0206	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97331-940-0	01	1	0207-0302	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40>	8-97942-188-0	01	1	0303-0610	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> IMA	8-97944-828-0	01	1	0611-0709	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> IMA	8-97946-697-0	01	1	0710-	●	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL POWER STEERING<N40> L=400	0-09864-300-1	01	1	9009-9604	●	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL POWER STEERING<N40> L=260	0-09814-400-0	01	1	9605-	●	●	●	●
11	CLIP; FLEX HOSE POWER STEERING<N40> ID=21	8-94242-034-0	02	1	9009-	●	●	●	●
13	WASHER; LK,FLEX HOSE,P/S POWER STEERING<N40> ID=12.2	9-09150-512-0	01	1	9602-0603	●	●	●	●
13	WASHER; LK,FLEX HOSE,P/S POWER STEERING<N40> ID=12.2	0-91510-512-0	01	1	0604-	●	●	●	●
17	NUT; POWER STRG PUMP POWER STEERING<N40> M10 FLANGE	0-91150-210-0	01	1	9602-0302	●	●	●	●
17	NUT; POWER STRG PUMP POWER STEERING<N40> M8 FLANGE IDN	0-91150-208-0	01	1	0303-0602	●	●	●	●
17	NUT; POWER STRG PUMP POWER STEERING<N40> M8 FLANGE IDN	0-91180-208-0	01	1	0603-	●	●	●	●
20	NUT; HOSE TO PUMP POWER STEERING<N40> M12	9-99111-412-0	01	1	9602-0512	●	●	●	●
20	NUT; HOSE TO PUMP POWER STEERING<N40> M12	0-91111-512-0	01	1	0601-	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	9-09150-510-0	02	1	9009-9601	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	9-09150-510-0	01	1	9602-0603	●	●	●	●
22	WASHER; LK,OIL PUMP,P/S POWER STEERING<N40> ID=10.2	0-91510-510-0	01	1	0604-	●	●	●	●
26	BRACKET; P/S PUMP,RR POWER STEERING<N40>	8-97134-259-0	01	1	9602-0302	●	●	●	●
26	BRACKET; P/S PUMP,RR POWER STEERING<N40> IDN	8-97562-168-0	01	1	0303-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X55	5-09030-038-1	01	1	9009-9601	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X18 W/LK WASHER	0-50040-818-0	01	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X18 W/LK WASHER	0-50540-818-0	01	1	0910-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X30 W/LK WASHER	0-50040-830-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X30 W/LK WASHER	0-50540-830-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X60 W/LK WASHER	0-50040-860-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M8X60 W/LK WASHER	0-50540-860-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X28 W/LK WASHER	0-50041-028-0	02	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X28 W/LK WASHER	0-50541-028-0	02	1	0910-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X35 W/LK WASHER	0-50041-035-0	01	1	9602-0512	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X35 W/LK WASHER	0-50541-035-0	01	1	0601-	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X60 W/LK WASHER	0-50041-060-0	01	1	9602-0909	●	●	●	●
29	BOLT; BRKT,POWER STRG POWER STEERING<N40> M10X60 W/LK WASHER	0-50541-060-0	01	1	0910-	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-94104-758-1	01	1	9009-9408	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (B)	8-97113-181-0	01	1	9409-9601	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A)	8-94470-718-0	01	1	9009-9601	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (A)	8-97042-266-1	01	1	9602-0302	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (D)	8-97942-187-0	01	1	0303-	●	●	●	●
32	PULLEY; IDLER,P/S POWER STEERING<N40> (C)	8-97112-740-1	01	1	9409-	●	●	●	●
34	BOLT; ADJ PLATE POWER STEERING<N40> M10X70	0-20801-070-0	01	1	9602-	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (C)	8-97066-759-1	01	1	9602-0302	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (C) IDN	8-97562-169-0	01	1	0303-	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (A)	8-94254-647-2	01	1	9009-9601	●	●	●	●
36	BRACKET; PLATE,P/S PUMP POWER STEERING<N40> (B)	8-94478-880-1	01	1	9602-	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=10.5 OD=22	9-09164-610-0	01	1	9009-9601	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9602-0302	●	●	●	●
41	WASHER; PL,BRKT POWER STEERING<N40> ID=8.5 OD=22 T=4	9-09851-649-0	01	1	0303-	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M10	9-09110-510-0	02	1	9009-9601	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M8 FLANGE IDN	0-91150-208-0	01	1	9602-0602	●	●	●	●
42	NUT; ADJ PLATE POWER STEERING<N40> M8 FLANGE IDN	0-91180-208-0	01	1	0603-	●	●	●	●
44	STUD; IDLER PULLEY POWER STEERING<N40> M10X25 L=40	9-04411-025-0	01	1	9602-	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (A)	5-19587-028-0	01	1	9009-9601	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (C)	8-94449-652-0	01	1	9602-	●	●	●	●
45	BRACKET; IDLE PULLEY,P/S POWER STEERING<N40> (B)	8-97113-180-0	01	1	9409-9601	●	●	●	●
47	BELT; P/S PUMP POWER STEERING<N40> L=1399 IDN	5-13671-111-0	01	1	9602-	●	●	●	●
48	COVER; IDLER POWER STEERING<N40> (A)	8-97092-819-0	01	1	9602-	●	●	●	●
48	COVER; IDLER POWER STEERING<N40> (B)	9-13669-603-0	01	1	9602-	●	●	●	●
49	RING; SNAP,IDLER POWER STEERING<N40>	8-94175-036-0	01	1	9602-	●	●	●	●
50	BEARING; IDLER POWER STEERING<N40>	8-94251-052-0	01	1	9602-	●	●	●	●
51	NUT; IDLER POWER STEERING<N40>	8-97092-813-0	01	1	9602-	●	●	●	●
58	SLIDER; BELT ADJ,P/S OIL PUMP POWER STEERING<N40>	8-94479-122-0	01	1	9602-	●	●	●	●
66	BOLT; PULLEY POWER STEERING<N40> M8X12 FLANGE	0-28080-812-0	03	1	0303-0512	●	●	●	●
66	BOLT; PULLEY POWER STEERING<N40> M8X12 FLANGE	0-28050-812-0	03	1	0601-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
