0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#9510) — 56 parça

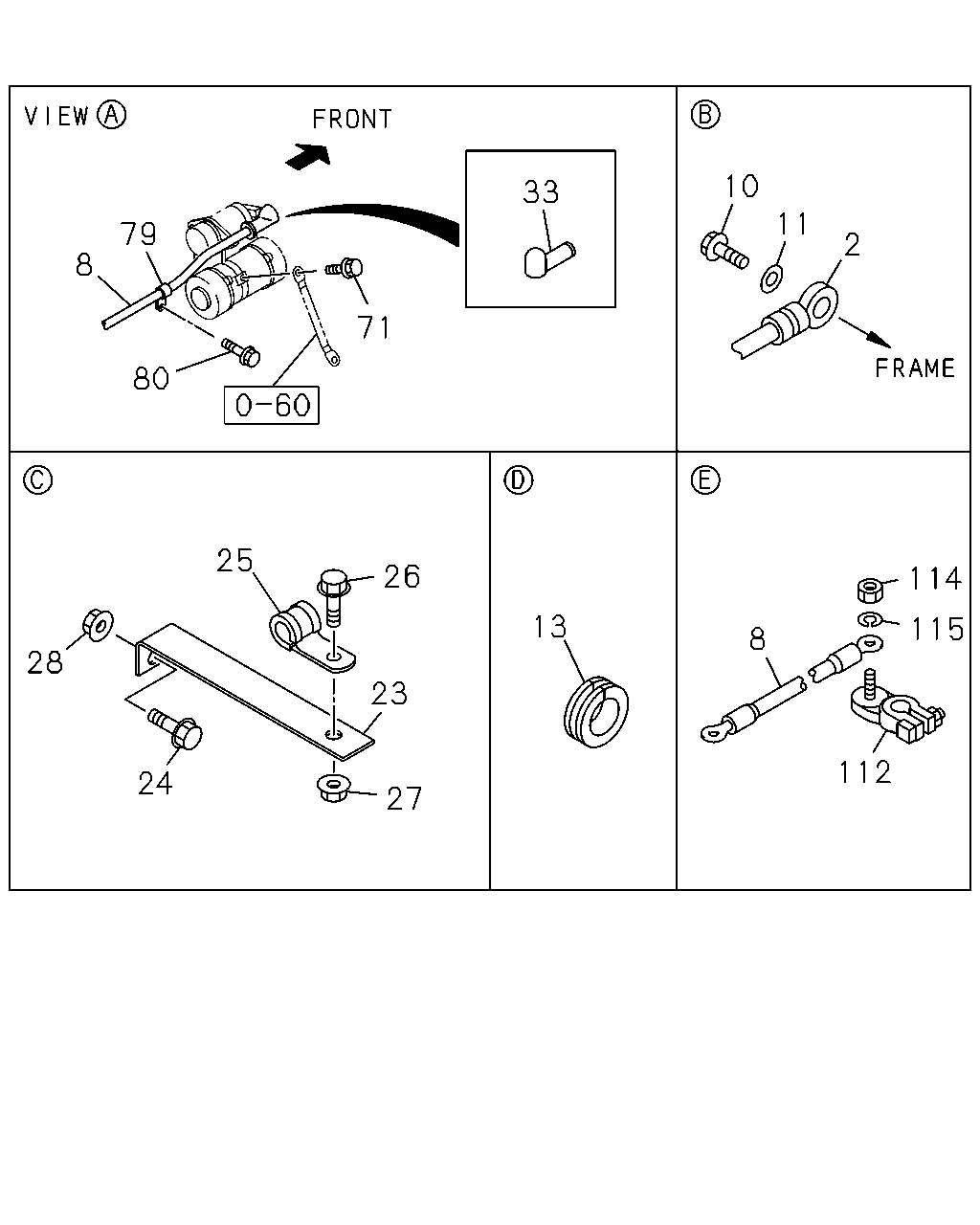

çizim 43428
10 33 11 79 2 8 71 80 25 26 114 13 115 8 28 23 112 24 27
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CABLE; BATTERY
<-> TO FRAME L=185 		1-82650-067-3 01 1 0005-0210 ● ●
2 CABLE; BATTERY
<-> TO FRAME L=185 		1-82650-067-3 01 1 0211-0711 ●
2 CABLE; BATTERY
L=185 		8-97623-075-0 01 1 0712- ●
8 CABLE; BATTERY,STARTER
<+> TO STARTER L=1350 		1-82650-367-0 01 1 0005-0210 ●
8 CABLE; BATTERY,STARTER
<+> TO STARTER L=1350 		1-82650-367-0 01 1 0211- ●
8 CABLE; BATTERY,STARTER
<+> TO STARTER L=1450 		1-82650-217-1 01 1 0005-0210 ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0005-0210 ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0211- ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0005-0210 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0211- ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 0005-0210 ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0211- ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 0005-0210 ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 0211- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 03 1 0005-0210 ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 03 1 0211- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0005-0210 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0211-0512 ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0005-0210 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0211- ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 0005-0210 ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 0211-0512 ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28051-020-0 01 1 0601- ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0005-0210 ● ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0211- ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 0005-0210 ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 0211-0403 ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0404- ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0005-0210 ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0211-0512 ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 0601- ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0005-0210 ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0211-0603 ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		0-91510-510-0 01 1 0604- ●

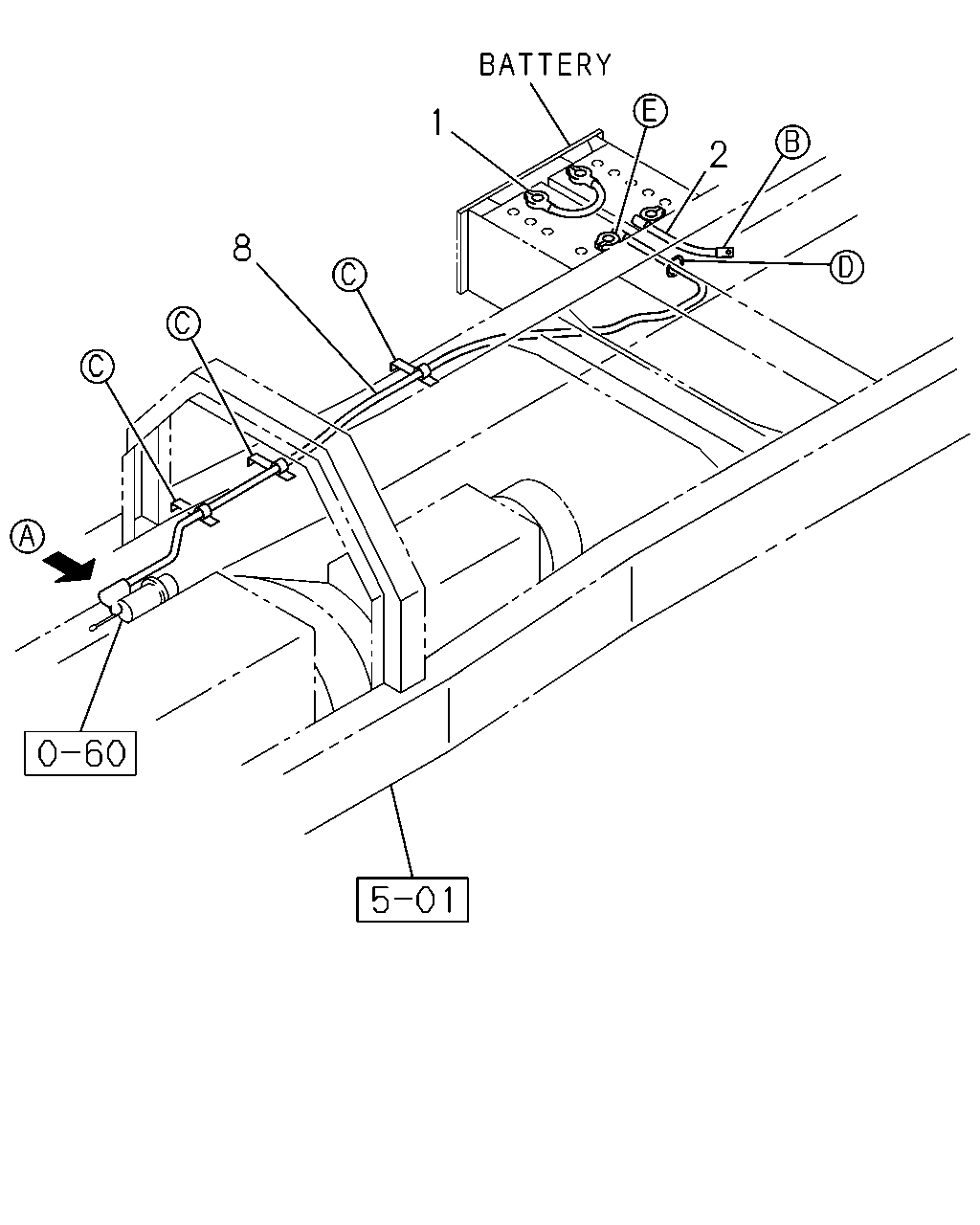

çizim 99747
1 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; BATTERY
<+> TO <-> L=180 		1-82650-265-0 01 1 0005-0210 ● ●
1 CABLE; BATTERY
<+> TO <-> L=180 		1-82650-265-0 01 1 0211-0712 ●
1 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0801- ●
2 CABLE; BATTERY
<-> TO FRAME L=185 		1-82650-067-3 01 1 0005-0210 ● ●
2 CABLE; BATTERY
<-> TO FRAME L=185 		1-82650-067-3 01 1 0211-0711 ●
2 CABLE; BATTERY
L=185 		8-97623-075-0 01 1 0712- ●
8 CABLE; BATTERY,STARTER
<+> TO STARTER L=1350 		1-82650-367-0 01 1 0005-0210 ●
8 CABLE; BATTERY,STARTER
<+> TO STARTER L=1350 		1-82650-367-0 01 1 0211- ●
8 CABLE; BATTERY,STARTER
<+> TO STARTER L=1450 		1-82650-217-1 01 1 0005-0210 ●
