4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#95099) — 101 parça

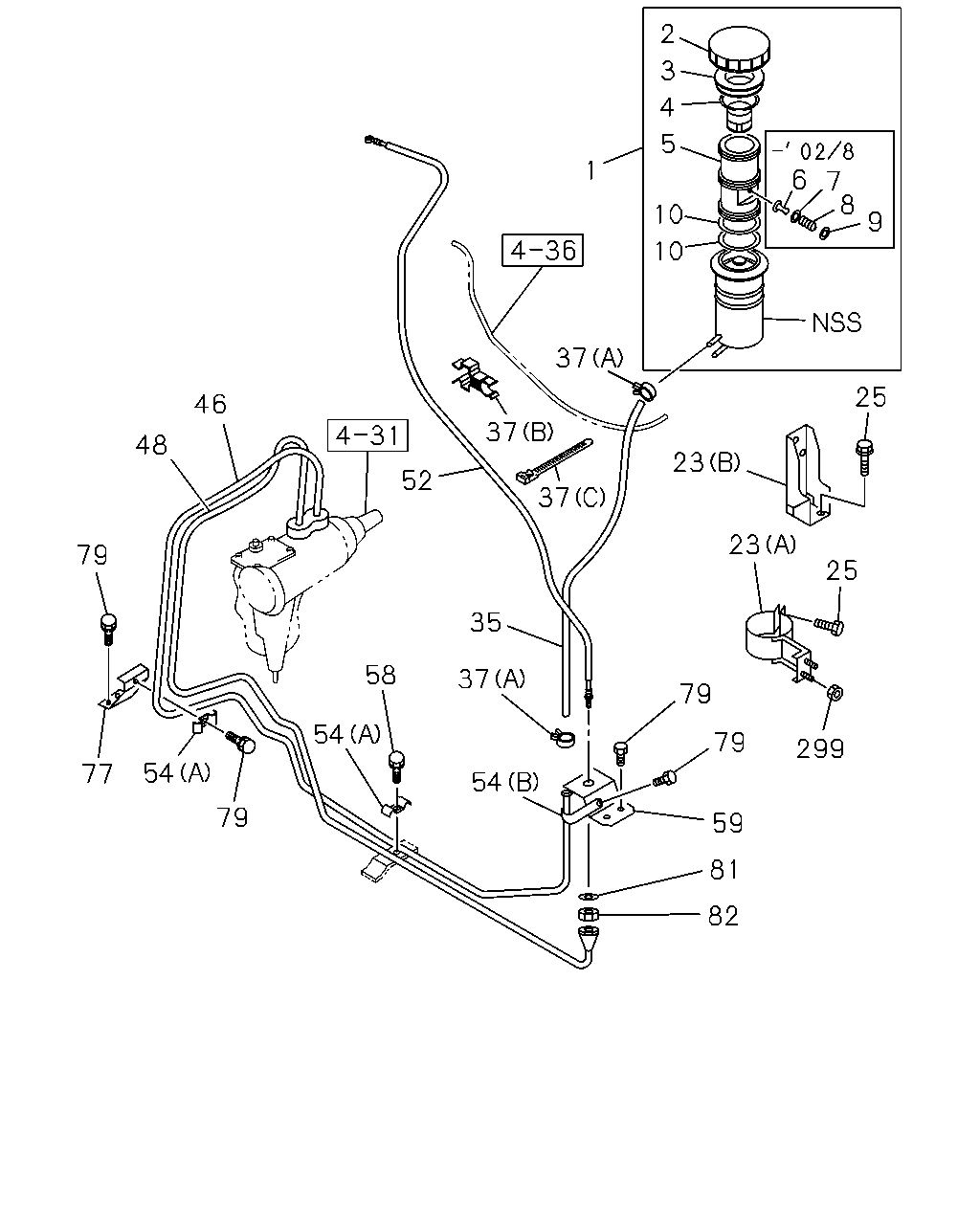

1 10 37 10 6 7 8 9 5 4 3 2 46 48 79 77 79 54 54 58 37 35 54 40 79 79 59 81 82 299 25 23 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-94105-282-8	01	1	9009-	●	●	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	5-21241-001-2	01	1	9009-	●	●	●	●
3	GASKET; OIL TANK,P/S POWER STEERING<N40>	8-94246-510-0	01	1	9009-	●	●	●	●
4	FILTER; OIL TANK,P/S POWER STEERING<N40>	8-94204-441-1	01	1	9009-	●	●	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-94405-458-1	01	1	9009-0208	●	●	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97351-631-0	01	1	0209-	●	●	●	●
6	HOLDER; GASKET,OIL TANK,P/S POWER STEERING<N40>	5-21219-005-0	01	1	9009-0208	●	●	●	●
7	RING; GASKET,OIL TANK,P/S POWER STEERING<N40>	5-21219-007-0	01	1	9009-0208	●	●	●	●
8	SPRING; OIL TANK,P/S POWER STEERING<N40>	5-09580-088-1	01	1	9009-0208	●	●	●	●
9	COVER; SPR,OIL TANK,P/S POWER STEERING<N40>	5-21219-006-0	01	1	9009-0208	●	●	●	●
10	SEAL; OIL TANK,P/S POWER STEERING<N40>	8-94405-457-0	02	1	9009-	●	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40> (A) DELETION IDN	8-94325-862-1	01	1	9009-	●	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40> (B)	8-97143-318-0	01	1	9602-9603	●	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40> (B) IDN	8-97147-639-0	01	1	9604-	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16	0-28410-616-0	01	1	9009-9204	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	01	1	9205-9601	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	03	1	9602-0512	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE	0-28450-616-0	03	1	0601-	●	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> L=550 SERVICED BY L=3000	0-19809-300-0	01	1	9009-9604	●	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-94329-684-4	01	1	9605-	●	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> (A) ID=16 IDN	8-94238-568-0	02	1	9009-	●	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> (B) D=14.5 /22	8-94317-707-0	01	1	9602-9604	●	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> (C) L=170	5-09707-054-0	01	1	9605-	●	●	●	●
40	CLIP; BAND POWER STEERING<N40> DELETION L=140	5-09707-031-0	01	1	9009-9601	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97012-058-0	01	1	9009-9603	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> IDN	8-97148-543-1	01	1	9604-	●	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97012-057-0	01	1	9009-9603	●	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> IDN	8-97149-345-1	01	1	9604-	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40>	8-94120-499-2	01	1	9009-9601	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40>	8-97038-205-0	01	1	9602-9608	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40>	8-97165-979-0	01	1	9609-9809	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40>	8-97212-691-1	01	1	9810-	●	●	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> (A) DELETION IDN	8-94222-795-1	02	1	9009-	●	●	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> (B) DELETION ID=11 L=45 IDN	8-94296-897-1	01	1	9009-	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16	0-28410-616-0	02	1	9009-9204	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	02	1	9205-9601	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	01	1	9602-0512	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28450-616-0	01	1	0601-	●	●	●	●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40> DELETION IDN	8-97012-056-0	01	1	9009-9603	●	●	●	●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40> IDN	8-97148-544-0	01	1	9604-	●	●	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> DELETION	8-94369-409-0	01	1	9009-9501	●	●	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> DELETION IDN	8-97120-709-0	01	1	9502-	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16	0-28410-616-0	06	1	9009-9204	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	06	1	9205-9501	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	05	1	9502-0512	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16 FLANGE	0-28450-616-0	05	1	0601-	●	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9009-0603	●	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-	●	●	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	9-99111-416-0	01	1	9009-0512	●	●	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16 IDN	0-91111-516-0	01	1	0601-	●	●	●	●
299	NUT; OIL TANK BRKT POWER STEERING<N40> M6 FLANGE IDN	5-09440-004-0	02	1	9009-	●	●	●	●

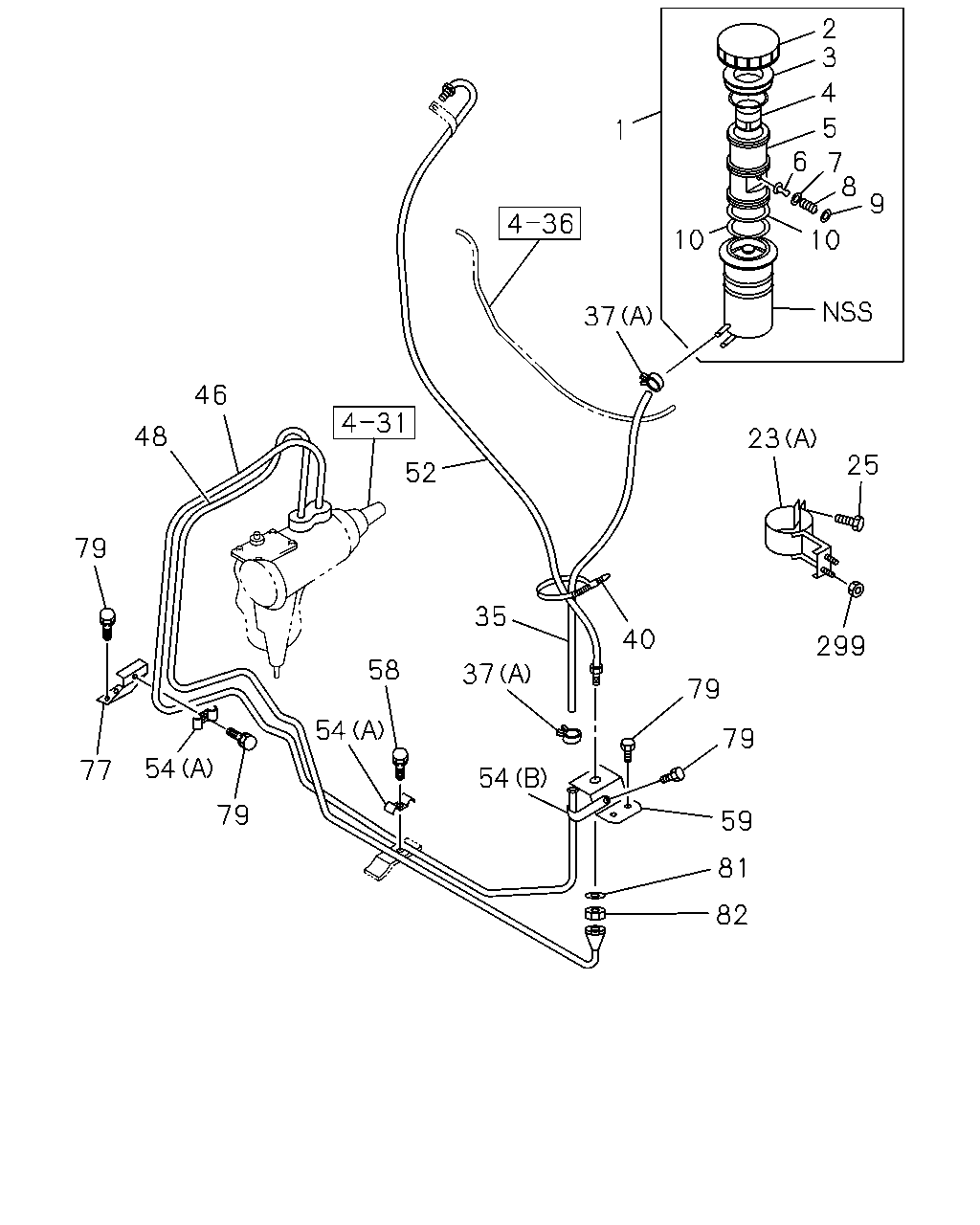

2 3 4 5 1 10 10 8 9 6 7 25 23 23 25 37 37 37 52 46 48 79 77 54 79 54 58 35 37 54 79 79 299 59 81 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-94105-282-8	01	1	9009-	●	●	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	5-21241-001-2	01	1	9009-	●	●	●	●
3	GASKET; OIL TANK,P/S POWER STEERING<N40>	8-94246-510-0	01	1	9009-	●	●	●	●
4	FILTER; OIL TANK,P/S POWER STEERING<N40>	8-94204-441-1	01	1	9009-	●	●	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-94405-458-1	01	1	9009-0208	●	●	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97351-631-0	01	1	0209-	●	●	●	●
6	HOLDER; GASKET,OIL TANK,P/S POWER STEERING<N40>	5-21219-005-0	01	1	9009-0208	●	●	●	●
7	RING; GASKET,OIL TANK,P/S POWER STEERING<N40>	5-21219-007-0	01	1	9009-0208	●	●	●	●
8	SPRING; OIL TANK,P/S POWER STEERING<N40>	5-09580-088-1	01	1	9009-0208	●	●	●	●
9	COVER; SPR,OIL TANK,P/S POWER STEERING<N40>	5-21219-006-0	01	1	9009-0208	●	●	●	●
10	SEAL; OIL TANK,P/S POWER STEERING<N40>	8-94405-457-0	02	1	9009-	●	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40> (A) DELETION IDN	8-94325-862-1	01	1	9009-	●	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40> (B)	8-97143-318-0	01	1	9602-9603	●	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40> (B) IDN	8-97147-639-0	01	1	9604-	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16	0-28410-616-0	01	1	9009-9204	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	01	1	9205-9601	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	03	1	9602-0512	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE	0-28450-616-0	03	1	0601-	●	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> L=550 SERVICED BY L=3000	0-19809-300-0	01	1	9009-9604	●	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-94329-684-4	01	1	9605-	●	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> (A) ID=16 IDN	8-94238-568-0	02	1	9009-	●	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> (B) D=14.5 /22	8-94317-707-0	01	1	9602-9604	●	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> (C) L=170	5-09707-054-0	01	1	9605-	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97012-058-0	01	1	9009-9603	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> IDN	8-97148-543-1	01	1	9604-	●	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97012-057-0	01	1	9009-9603	●	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> IDN	8-97149-345-1	01	1	9604-	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40>	8-94120-499-2	01	1	9009-9601	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40>	8-97038-205-0	01	1	9602-9608	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40>	8-97165-979-0	01	1	9609-9809	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40>	8-97212-691-1	01	1	9810-	●	●	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> (A) DELETION IDN	8-94222-795-1	02	1	9009-	●	●	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> (B) DELETION ID=11 L=45 IDN	8-94296-897-1	01	1	9009-	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16	0-28410-616-0	02	1	9009-9204	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	02	1	9205-9601	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	01	1	9602-0512	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28450-616-0	01	1	0601-	●	●	●	●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40> DELETION IDN	8-97012-056-0	01	1	9009-9603	●	●	●	●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40> IDN	8-97148-544-0	01	1	9604-	●	●	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> DELETION	8-94369-409-0	01	1	9009-9501	●	●	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> DELETION IDN	8-97120-709-0	01	1	9502-	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16	0-28410-616-0	06	1	9009-9204	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	06	1	9205-9501	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	05	1	9502-0512	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16 FLANGE	0-28450-616-0	05	1	0601-	●	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9009-0603	●	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-	●	●	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	9-99111-416-0	01	1	9009-0512	●	●	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16 IDN	0-91111-516-0	01	1	0601-	●	●	●	●
299	NUT; OIL TANK BRKT POWER STEERING<N40> M6 FLANGE IDN	5-09440-004-0	02	1	9009-	●	●	●	●
