4-33 — STEERING LINKAGE (#95098) — 46 parça

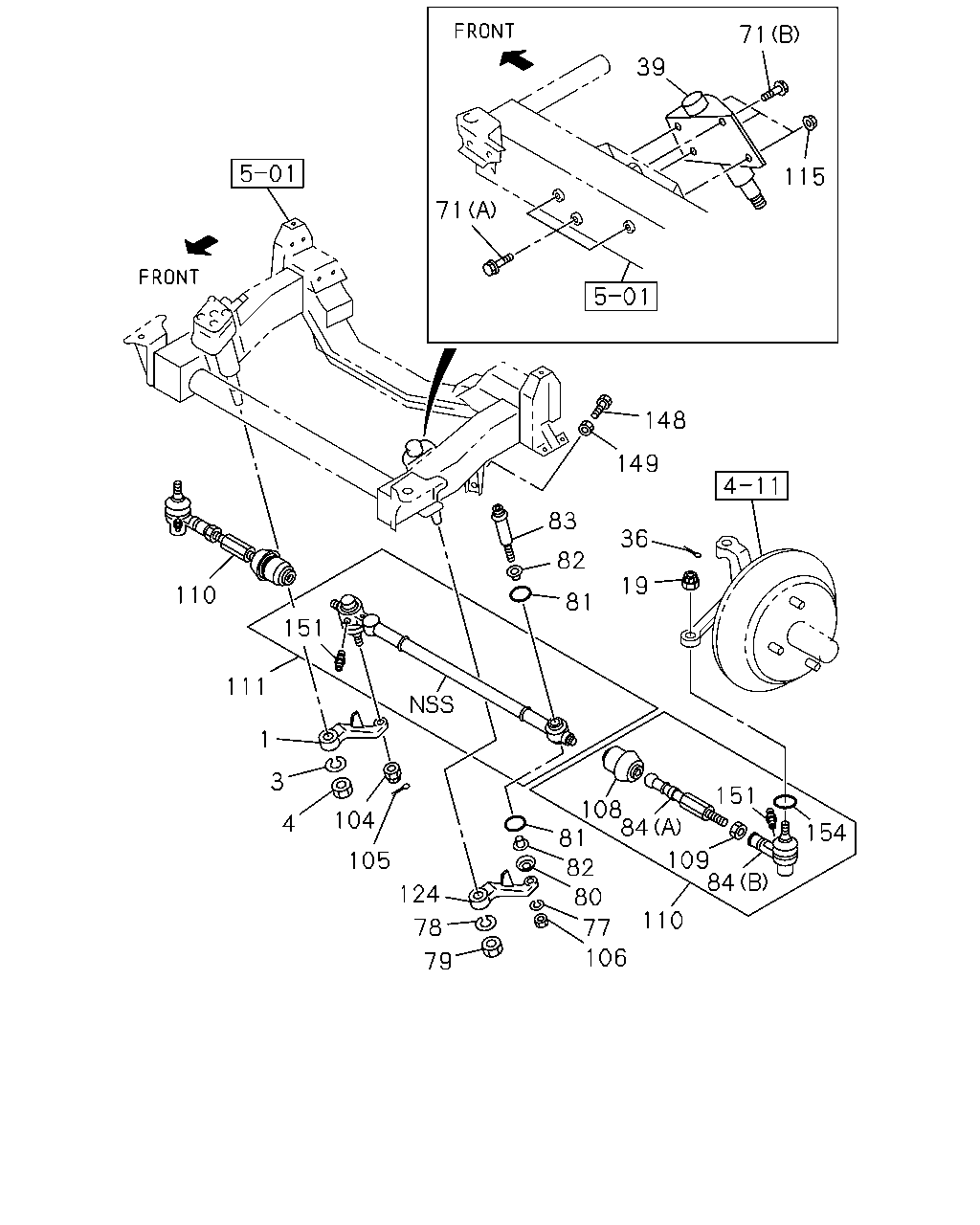

çizim 289807
71 39 71 115 148 149 36 83 82 19 81 154 151 84 109 84 108 81 82 80 77 106 110 79 78 124 105 104 4 3 1 111 151 110
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ARM; PITMAN,STRG
IDN 		8-94238-564-3 01 1 9009- ● ● ● ●
3 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 9009-0603 ● ● ● ●
3 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ● ●
4 NUT; PITMAN ARM
M22 		9-09111-522-0 01 1 9009-0512 ● ● ● ●
4 NUT; PITMAN ARM
M22 		0-91111-522-0 01 1 0601- ● ● ● ●
19 NUT; PITMAN ARM,STOPPER
M12 SLOTTED 		9-99117-512-0 02 1 9009-0605 ● ● ● ●
19 NUT; PITMAN ARM,STOPPER
M12 SLOTTED 		0-91117-512-0 02 1 0606- ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=20 		9-08113-020-0 02 1 9009-0606 ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=20 		0-81123-020-0 02 1 0607- ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE 8-94366-124-1 01 1 9009-9409 ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE 8-97116-048-0 01 1 9410- ● ● ● ●
71 BOLT; RELAY LEVER BRKT
(A) M10X92 FLANGE 		8-94313-798-1 03 1 9009- ● ● ● ●
71 BOLT; RELAY LEVER BRKT
(B) M10X20 		8-94366-554-1 01 1 9009- ● ● ● ●
77 WASHER; LK,RELAY LEVER
ID=12.2 		9-09150-512-0 01 1 9009-0603 ● ● ● ●
77 WASHER; LK,RELAY LEVER
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ● ●
78 WASHER; LINK,RELAY LEVER
ID=16.2 		9-09150-516-0 01 1 9009-0603 ● ● ● ●
78 WASHER; LINK,RELAY LEVER
ID=16.2 		0-91510-516-0 01 1 0604- ● ● ● ●
79 NUT; RELAY LEVER
M16 		9-99111-416-0 01 1 9009-9511 ● ● ● ●
79 NUT; RELAY LEVER
M16 		9-99111-516-0 01 1 9512-0512 ● ● ● ●
79 NUT; RELAY LEVER
M16 IDN 		0-91111-516-0 01 1 0601- ● ● ● ●
80 GUARD; MUD,RELAY LEVER 8-94234-815-0 01 1 9009- ● ● ● ●
81 GASKET; RELAY LEVER 9-09562-328-0 02 1 9009- ● ● ● ●
82 BUSHING; RELAY LEVER 5-44347-004-0 02 1 9009- ● ● ● ●
83 PIN ASM; RELAY LEVER 8-94237-365-1 01 1 9009- ● ● ● ●
84 ROD END; TRACK ROD
(A) 		8-94366-606-0 02 1 9009-9701 ● ● ● ●
84 ROD END; TRACK ROD
(A) 		8-97175-327-0 02 1 9702- ● ● ● ●
84 ROD END; TRACK ROD
(B) 		8-97031-993-0 02 1 9009- ● ● ● ●
104 NUT; ROD END
M12 SLOTTED 		9-99117-512-0 01 1 9009-0605 ● ● ● ●
104 NUT; ROD END
M12 SLOTTED 		0-91117-512-0 01 1 0606- ● ● ● ●
105 PIN; SPLIT,ROD END
OD=2.8 L=20 		9-08113-020-0 01 1 9009-0606 ● ● ● ●
105 PIN; SPLIT,ROD END
OD=2.8 L=20 		0-81123-020-0 01 1 0607- ● ● ● ●
106 NUT; RELAY LEVER
M12 		9-99110-412-0 01 1 9009-0512 ● ● ● ●
106 NUT; RELAY LEVER
M12 		0-91110-512-0 01 1 0601- ● ● ● ●
108 BOOT; ROD END,INNER 5-44349-007-1 02 1 9009- ● ● ● ●
109 NUT; ROD
M14 		9-99110-414-0 02 1 9009-0512 ● ● ● ●
109 NUT; ROD
M14 		0-91110-514-0 02 1 0601- ● ● ● ●
110 ROD; TRACK,OUTER 8-94366-605-1 02 1 9009- ● ● ● ●
111 ROD; TRACK,CENTER 8-94237-366-1 01 1 9009-9701 ● ● ● ●
111 ROD; TRACK,CENTER 8-97174-771-0 01 1 9702- ● ● ● ●
115 NUT; RELAY LEVER BRKT
M10 FLANGE 		8-94313-797-0 03 1 9009- ● ● ● ●
124 LEVER; RELAY,STRG LINKAGE
IDN 		8-94217-150-4 01 1 9009- ● ● ● ●
148 BOLT; STOPPER
L=35 		9-09802-280-0 02 1 9009- ● ● ● ●
149 NUT; LK,STOPPER BOLT
M10 		9-09111-410-0 02 1 9009-0512 ● ● ● ●
149 NUT; LK,STOPPER BOLT
M10 		0-91111-510-0 02 1 0601- ● ● ● ●
151 NIPPLE; GREASE,TRACK ROD 9-09928-018-0 03 1 9009- ● ● ● ●
154 RING; BOOT CLAMP,TRACK ROD
ID=18 GREEN 		8-09277-525-0 02 1 9009- ● ● ● ●
