◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#95095) — 68 parça

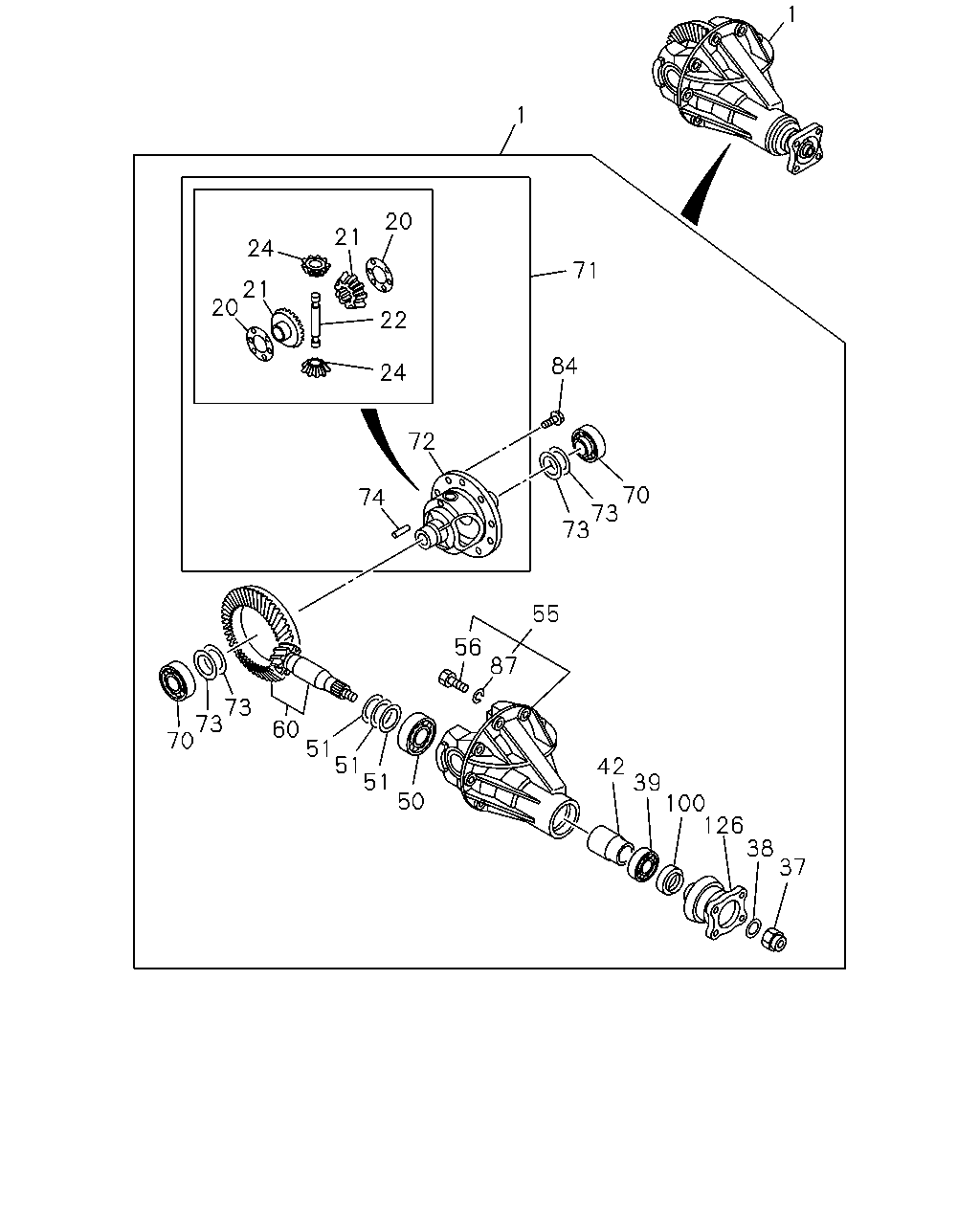

çizim 288995
1 1 71 84 70 73 73 55 56 87 42 39 100 126 38 37 50 51 51 51 60 73 73 70 74 72 24 22 20 21 24 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
43/10 		8-97012-893-3 01 1 9009-9601 ● ● ● ●
1 DRIVE ASM; FINAL,RR
41/11 IDN 		8-97122-981-0 01 1 9602-0807 ● ● ● ●
1 DRIVE ASM; FINAL,RR
41/11 IDN 		8-98074-854-0 01 1 0808- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 9009- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 9009- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 9009- ● ● ● ●
21 GEAR; SIDE,DIFF 8-94474-302-0 02 1 9009-9210 ● ● ● ●
21 GEAR; SIDE,DIFF
Z=17 		8-97079-519-1 02 1 9211- ● ● ● ●
22 SPIDER; DIFF PINION
IDN 		9-41521-044-1 01 1 9009- ● ● ● ●
24 GEAR; PINION,DIFF 8-94474-301-0 02 1 9009-9210 ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		8-97079-518-0 02 1 9211- ● ● ● ●
37 NUT; DRIVING PINION
M18 SELF LOCK 		9-09644-026-1 01 1 9009-9109 ● ● ● ●
37 NUT; DRIVING PINION
M18 LOCK NUT 		8-94376-262-0 01 1 9110- ● ● ● ●
38 WASHER; PL,DRIVING PINION
ID=20 OD=40 		9-09855-153-0 01 1 9009-9112 ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		8-94472-100-1 01 1 9602- ● ● ● ●
39 BEARING; FINAL PINION
NSK 		8-94472-099-0 01 1 9009- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-97117-080-0 01 1 9411-9411 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-94472-118-0 01 1 9411- ● ● ● ●
50 BEARING; FINAL PINION
NSK 		9-00093-621-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 01 1 9009- ● ● ● ●
51 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 01 1 9009- ● ● ● ●
55 CARRIER; DIFF 5-41110-014-3 01 1 9009- ● ● ● ●
56 BOLT; BRG CAP
M12X65 		5-09020-018-0 04 1 9009-9105 ● ● ● ●
56 BOLT; BRG CAP
M12X62 		8-94376-322-0 04 1 9106- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-94458-263-0 01 1 9009-9109 ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		8-97039-251-1 01 1 9110-9601 ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/11 		8-97065-663-0 01 1 9602-0807 ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/11 		8-97374-180-1 01 1 0808- ● ● ● ●
70 BEARING; DIFF CAGE
NSK 		9-00093-074-1 02 1 9009- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-94313-751-0 01 1 9009-9210 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
IDN 		8-97079-517-0 01 1 9211- ● ● ● ●
72 CAGE; DIFF 8-94313-589-0 01 1 9009-9310 ● ● ● ●
72 CAGE; DIFF
IDN 		8-97038-515-1 01 1 9311- ● ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.24 		9-41519-109-0 AR 1 9009- ● ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.18 		9-41519-110-0 AR 1 9009-9504 ● ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.10 		8-97130-386-0 AR 1 9505- ● ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.15 		9-41519-111-0 AR 1 9009- ● ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.12 		9-41519-112-0 AR 1 9009-9504 ● ● ● ●
73 SHIM; DIFF SIDE BRG
T=0.50 		8-97130-387-0 AR 1 9505- ● ● ● ●
74 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 9009- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M10X17 		8-94313-804-0 10 1 9009-9009 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M10X17 		8-97038-065-0 10 1 9010- ● ● ● ●
87 WASHER; LK
ID=12.2 		9-09150-512-0 04 1 9009-9105 ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		8-97207-784-0 01 1 9809- ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		8-97011-675-0 01 1 9009-9205 ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		8-97080-848-1 01 1 9206-9506 ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		8-97127-625-0 01 1 9507-9603 ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		8-97146-826-0 01 1 9604- ● ● ● ●
126 COUPLING; DRIVING PINION 8-94426-785-3 01 1 9009-9601 ● ● ● ●
126 COUPLING; DRIVING PINION
IDN 		8-94426-786-7 01 1 9602- ● ● ● ●
