4-10 — FRONT AXLE (#95092) — 50 parça

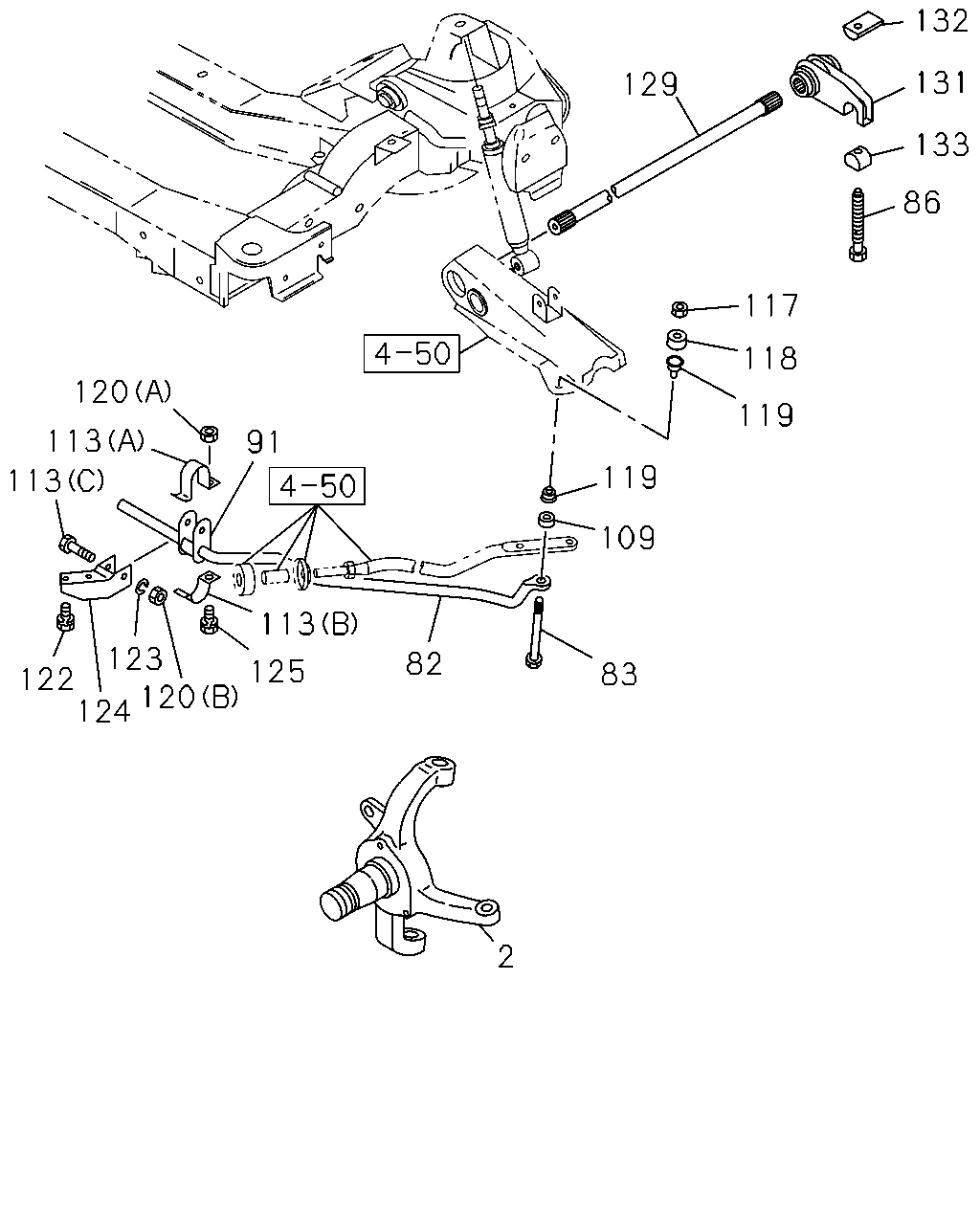

çizim 289275
120 113 113 122 124 123 120 125 113 82 83 2 91 109 119 119 118 117 86 133 131 132 129
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 KNUCKLE; FRT AXLE 8-94362-960-1 01 1 9009- ● ● ● ●
2 KNUCKLE; FRT AXLE 8-94362-959-1 01 1 9009- ● ● ● ●
82 BAR; STAB,FRT SUSP 8-97013-207-1 01 1 9009- ● ● ● ●
83 BOLT; STAB BAR TO CONT ARM
M10X63 		8-94223-156-0 02 1 9009- ● ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M14X130 		8-94101-707-0 02 1 9009- ● ● ● ●
91 BUSHING; RUBBER,STAB BAR 8-94223-157-0 02 1 9009- ● ● ● ●
109 BUFFER; STAB BAR 8-94143-210-0 04 1 9009- ● ● ● ●
113 BRACKET; STAB TO BODY,LWR
(A) LOWER 		8-94223-159-0 02 1 9009- ● ● ● ●
113 BRACKET; STAB TO BODY,LWR
(B) UPPER 		8-94223-160-0 02 1 9009- ● ● ● ●
113 BRACKET; STAB TO BODY,LWR
(C) BOLT 		8-94223-161-0 02 1 9009- ● ● ● ●
117 NUT; STAB BAR BUSHING
M10 		9-09110-410-0 02 1 9009-0512 ● ● ● ●
117 NUT; STAB BAR BUSHING
M10 		0-91110-510-0 02 1 0601- ● ● ● ●
118 WASHER; STAB BAR BUSHING
ID=10.5 OD=32 		9-51631-048-0 02 1 9009- ● ● ● ●
119 WASHER; CTR,STAB BAR
ID=15.0 OD=32 		9-51631-049-0 04 1 9009- ● ● ● ●
120 NUT; STAB BAR BRKT
(A) M8 		9-09110-408-0 02 1 9009-0512 ● ● ● ●
120 NUT; STAB BAR BRKT
(A) M8 IDN 		0-91110-508-0 02 1 0601- ● ● ● ●
120 NUT; STAB BAR BRKT
(B) M12 		9-99110-412-0 02 1 9009-0512 ● ● ● ●
120 NUT; STAB BAR BRKT
(B) M12 		0-91110-512-0 02 1 0601- ● ● ● ●
122 BOLT; BRKT
M10X20 W/LK WASHER IDN 		0-50041-020-0 04 1 9009-0512 ● ● ● ●
122 BOLT; BRKT
M10X20 W/LK WASHER IDN 		0-50541-020-0 04 1 0601- ● ● ● ●
123 WASHER; LK,STAB BAR BRKT
ID=12.2 		9-09150-512-0 02 1 9009-0603 ● ● ● ●
123 WASHER; LK,STAB BAR BRKT
ID=12.2 		0-91510-512-0 02 1 0604- ● ● ● ●
124 BRACKET; STAB TO BODY,UPR 8-94104-145-0 01 1 9009- ● ● ● ●
124 BRACKET; STAB TO BODY,UPR 8-94104-144-0 01 1 9009- ● ● ● ●
125 BOLT; STAB TO BODY
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9009-0909 ● ● ● ●
125 BOLT; STAB TO BODY
M8X20 W/LK WASHER 		0-50540-820-0 02 1 0910- ● ● ● ●
129 BAR; TORSION,FRT SUSP 8-97955-173-0 01 1 9609- ● ●
129 BAR; TORSION,FRT SUSP 8-97955-174-0 01 1 9609- ● ●
129 BAR; TORSION,FRT SUSP
REAR SPRING HEAVY DUTY<G50> 		8-97014-041-0 01 1 9009-9408 ● ● ● ●
129 BAR; TORSION,FRT SUSP
REAR SPRING HEAVY DUTY<G50> 		8-97014-041-0 01 1 9409-9506 ● ●
129 BAR; TORSION,FRT SUSP
REAR SPRING HEAVY DUTY<G50> 		8-97135-944-0 01 1 9507- ● ●
129 BAR; TORSION,FRT SUSP
REAR SPRING HEAVY DUTY<G50> 		8-97014-040-0 01 1 9009-9408 ● ● ● ●
129 BAR; TORSION,FRT SUSP
REAR SPRING HEAVY DUTY<G50> 		8-97014-040-0 01 1 9409-9506 ● ●
129 BAR; TORSION,FRT SUSP
REAR SPRING HEAVY DUTY<G50> 		8-97135-943-0 01 1 9507- ● ●
129 BAR; TORSION,FRT SUSP
EXC. REAR SPRING HEAVY DUTY<G50> 		8-94103-628-0 01 1 9009-9408 ● ● ● ●
129 BAR; TORSION,FRT SUSP
EXC. REAR SPRING HEAVY DUTY<G50> 		8-94103-628-0 01 1 9409-9506 ● ●
129 BAR; TORSION,FRT SUSP 8-94103-628-0 01 1 9409-9506 ● ●
129 BAR; TORSION,FRT SUSP
EXC. REAR SPRING HEAVY DUTY<G50> 		8-97135-942-0 01 1 9507-9608 ● ●
129 BAR; TORSION,FRT SUSP 8-97135-942-0 01 1 9507-9608 ● ●
129 BAR; TORSION,FRT SUSP
EXC. REAR SPRING HEAVY DUTY<G50> 		8-97135-942-0 01 1 9609- ● ●
129 BAR; TORSION,FRT SUSP
EXC. REAR SPRING HEAVY DUTY<G50> 		8-94103-627-0 01 1 9009-9408 ● ● ● ●
129 BAR; TORSION,FRT SUSP
EXC. REAR SPRING HEAVY DUTY<G50> 		8-94103-627-0 01 1 9409-9506 ● ●
129 BAR; TORSION,FRT SUSP 8-94103-627-0 01 1 9409-9506 ● ●
129 BAR; TORSION,FRT SUSP
EXC. REAR SPRING HEAVY DUTY<G50> 		8-97135-941-0 01 1 9507-9608 ● ●
129 BAR; TORSION,FRT SUSP 8-97135-941-0 01 1 9507-9608 ● ●
129 BAR; TORSION,FRT SUSP
EXC. REAR SPRING HEAVY DUTY<G50> 		8-97135-941-0 01 1 9609- ● ●
131 ARM; HEIGHT CONT 5-51265-011-2 02 1 9009- ● ● ● ●
132 COLLAR; TORSION BAR 8-94468-556-2 02 1 9009- ● ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-94367-950-0 02 1 9009-0410 ● ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT
IDN 		8-97562-437-0 02 1 0411- ● ● ● ●
