Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
3 - Brakes, Brake System
▶

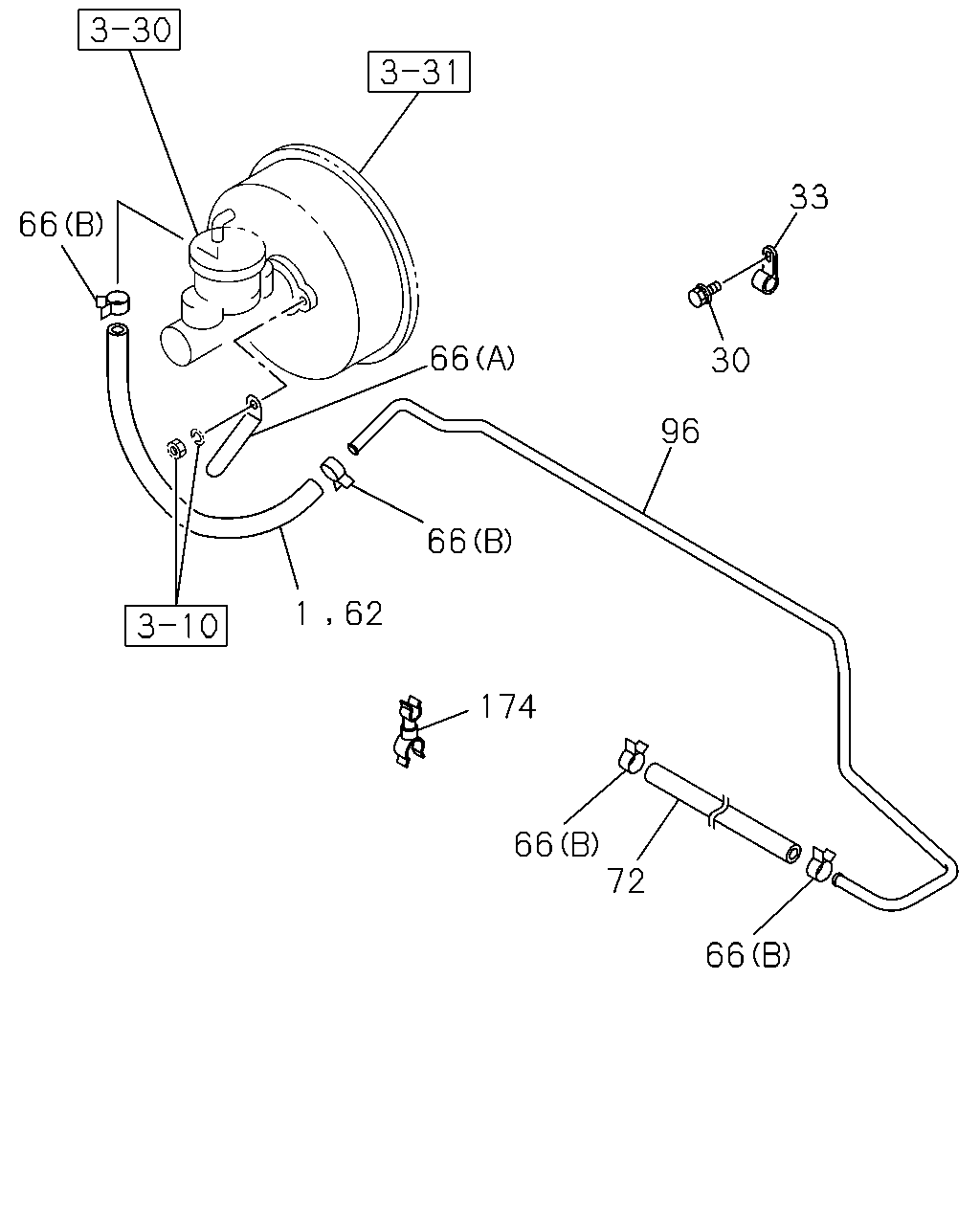

3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#95090) — 13 parça
Tümü
A - TBB5SC
B - TBB5SF
C - TBB5VC
D - TBB5VF
66
72
66
174
1
62
66
96
30
33
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
HOSE; VAC,M/VAC TO VAC PIPE
L=460 SERVICED BY L=3000
0-08358-300-0
01
1
9009-9601
●
●
●
●
30
BOLT; CLIP,VAC PIPE
M8X16 W/LK&PL WASHER
9-01960-816-0
01
1
9009-9204
●
●
●
●
30
BOLT; CLIP,VAC PIPE
M8X16 W/LK&PL WASHER
0-50140-816-0
01
1
9205-9601
●
●
●
●
33
CLIP; VAC PIPE
ID=11 L=20
9-09525-035-0
01
1
9009-9601
●
●
●
●
62
HOSE; VAC,M/VAC TO VAC PUMP
L=600 SERVICED BY L=1000
0-08358-100-0
01
1
9602-9603
●
●
●
●
62
HOSE; VAC,M/VAC TO VAC PUMP
L=580 SERVICED BY L=3000
0-08358-300-0
01
1
9604-
●
●
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16 IDN
8-94238-568-0
04
1
9009-9601
●
●
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16 IDN
8-94238-568-0
02
1
9602-9711
●
●
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16
8-97173-222-0
02
1
9712-
●
●
●
●
66
CLIP; VAC HOSE,M/VAC
(A) L=91 ID=8.5
8-94329-956-0
01
1
9009-
●
●
●
●
72
HOSE; VAC,VAC PUMP TO PIPE
L=400 SERVICED BY L=3000
0-08358-300-0
01
1
9009-9601
●
●
●
●
96
PIPE; VAC,M/VAC TO VAC PUMP
DELETION
8-94366-547-0
01
1
9009-9601
●
●
●
●
174
CLIP; VAC HOSE
ID=16.5 & 4.8
8-94415-087-0
01
1
9602-9603
●
●
●
●
