◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#9509) — 113 parça

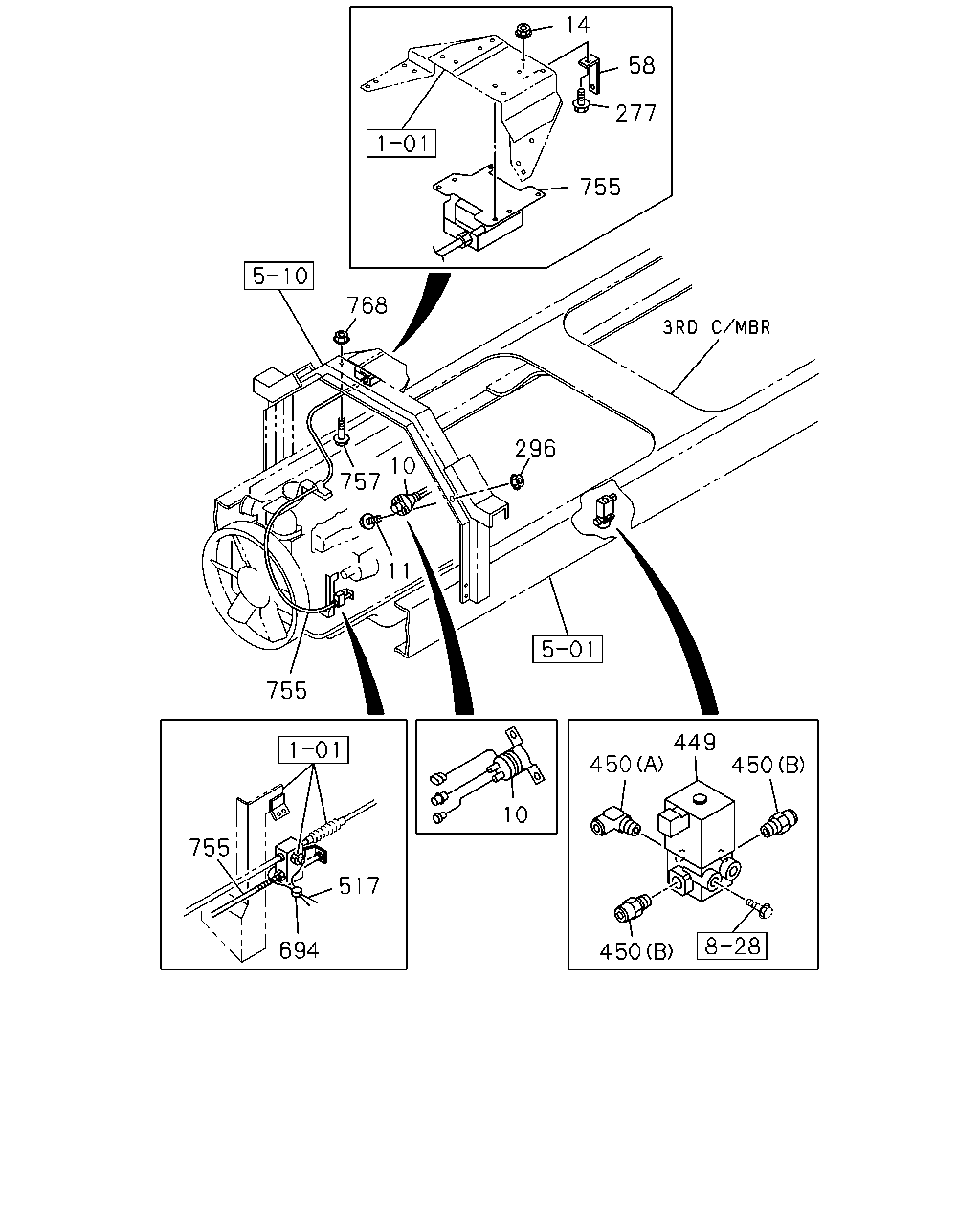

çizim 42966
14 58 277 755 768 296 10 757 11 755 449 450 450 10 755 517 694 450
BalonParca AdiParca NoAdetTipApplied Date A B C
10 RELAY; STARTER
DENSO 		1-81171-070-0 01 1 0005-0210 ●
10 RELAY; STARTER
DENSO 		1-81171-070-0 01 1 0211- ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 0005-0210 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
14 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
58 BRACKET; CLIP
L=95 		1-82699-085-0 01 1 0005-0210 ●
277 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-778-2 01 1 0005-0210 ● ●
450 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0210 ● ●
450 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005-0210 ● ●
517 WIRE 9-81325-446-0 02 1 0005-0210 ●
694 SEAL; COVER 1-15739-002-0 02 1 0005-0210 ●
755 MOTOR; SERVO 1-82840-159-1 01 1 0005-0210 ●
757 BOLT; SERVO MOTOR
M8X25 FLANGE 		0-28680-825-0 04 1 0005-0210 ●
768 NUT; SERVO MOTOR
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●

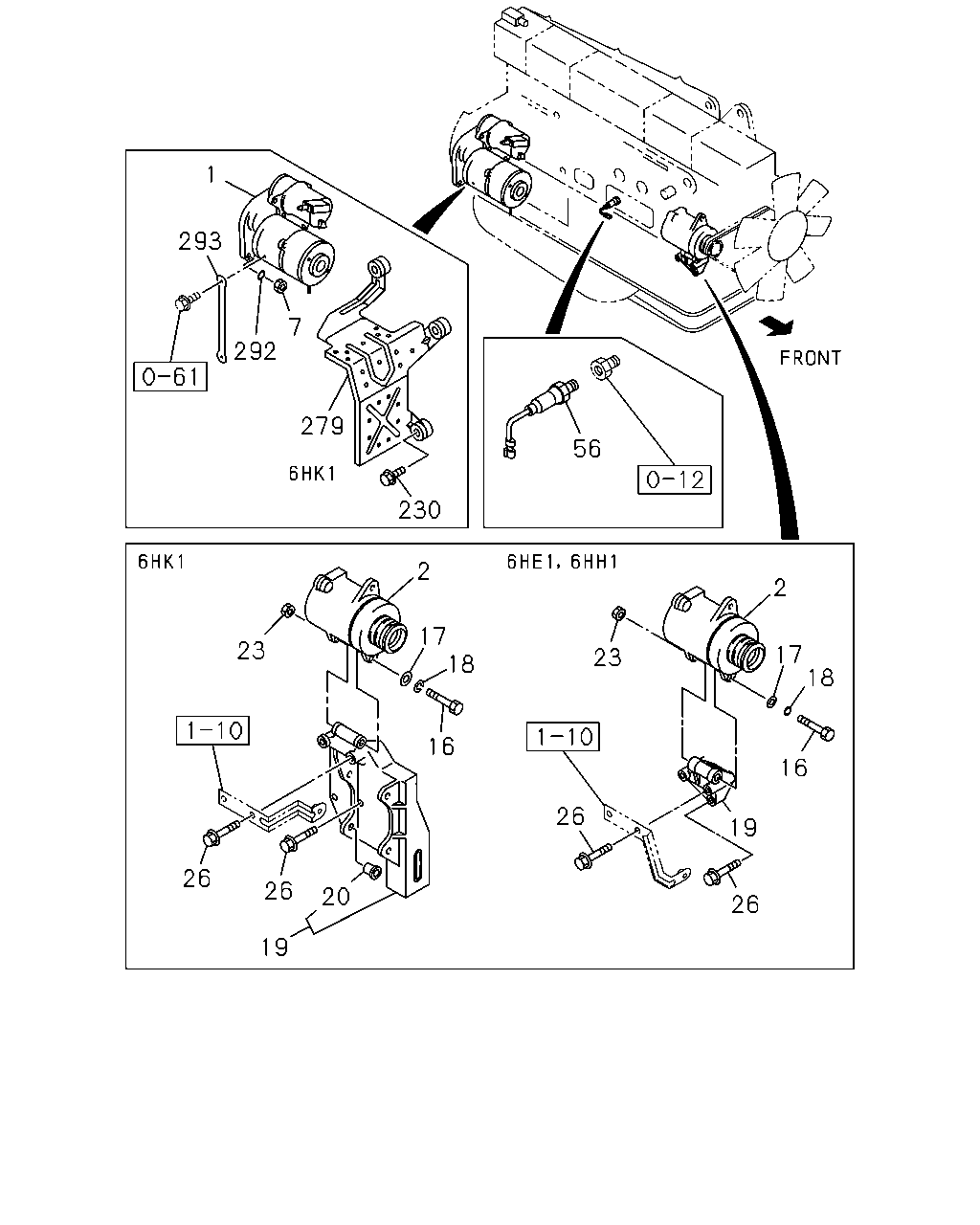

çizim 42990
1 293 7 292 279 56 230 2 2 17 18 23 17 18 23 16 16 26 19 26 26 20 26 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0210 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-167-1 01 1 0211- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 0005-0210 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		1-81200-417-3 01 1 0005-0008 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-576-2 01 1 0005-0008 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-608-3 01 1 0009-0210 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-608-5 01 1 0211- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0210 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0211-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005-0210 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0211- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0005-0210 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0211-0605 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0005-0210 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0211-0603 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ●
19 BRACKET; GEN 8-94396-297-0 01 1 0005-0112 ● ●
19 BRACKET; GEN 8-97602-318-0 01 1 0201-0210 ● ●
19 BRACKET; GEN 8-94395-470-4 01 1 0211- ●
20 COLLAR; BRKT,GEN 8-94201-057-1 02 1 0211-1302 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0210 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0211-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0005-0210 ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 0211-0401 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0005-0210 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0211-0401 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0005-0210 ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0211- ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 0211-0512 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
279 PROTECTOR; STARTER 8-94394-501-0 01 1 0211- ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0005-0210 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0211-0603 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0006-0210 ● ●
293 CABLE; STARTER EARTH
L=300 		1-82650-223-0 01 1 0211- ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 0005-0005 ●

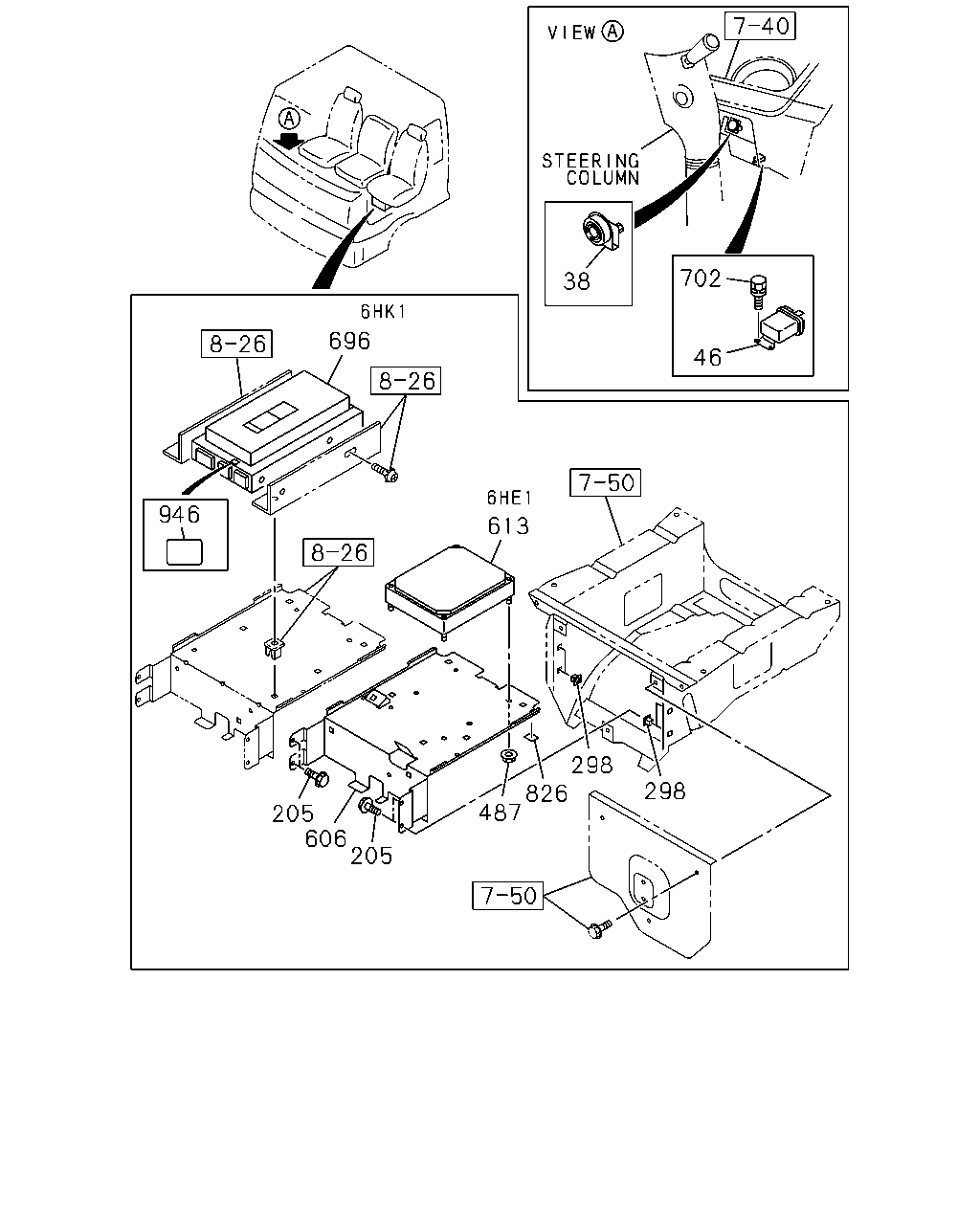

çizim 43430
702 38 696 46 946 613 298 826 487 298 205 606 205
BalonParca AdiParca NoAdetTipApplied Date A B C
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0005-0210 ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0211- ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0005-0210 ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0211- ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0005-0210 ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005-0210 ●
487 NUT
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ●
606 BRACKET; CONT UNIT 1-75558-534-7 01 1 0005-0210 ●
613 CONTROL UNIT; ENG 1-80110-178-0 01 1 0005-0210 ●
696 CONTROL UNIT 8-97602-573-0 01 1 0211-0506 ●
696 CONTROL UNIT 8-98012-976-0 01 1 0507- ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005-0210 ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211- ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 0005-0210 ●
946 SEAL; TAPE 1-80199-006-0 01 1 0211-1212 ●
946 SEAL; TAPE 8-98166-639-0 01 1 1301- ●

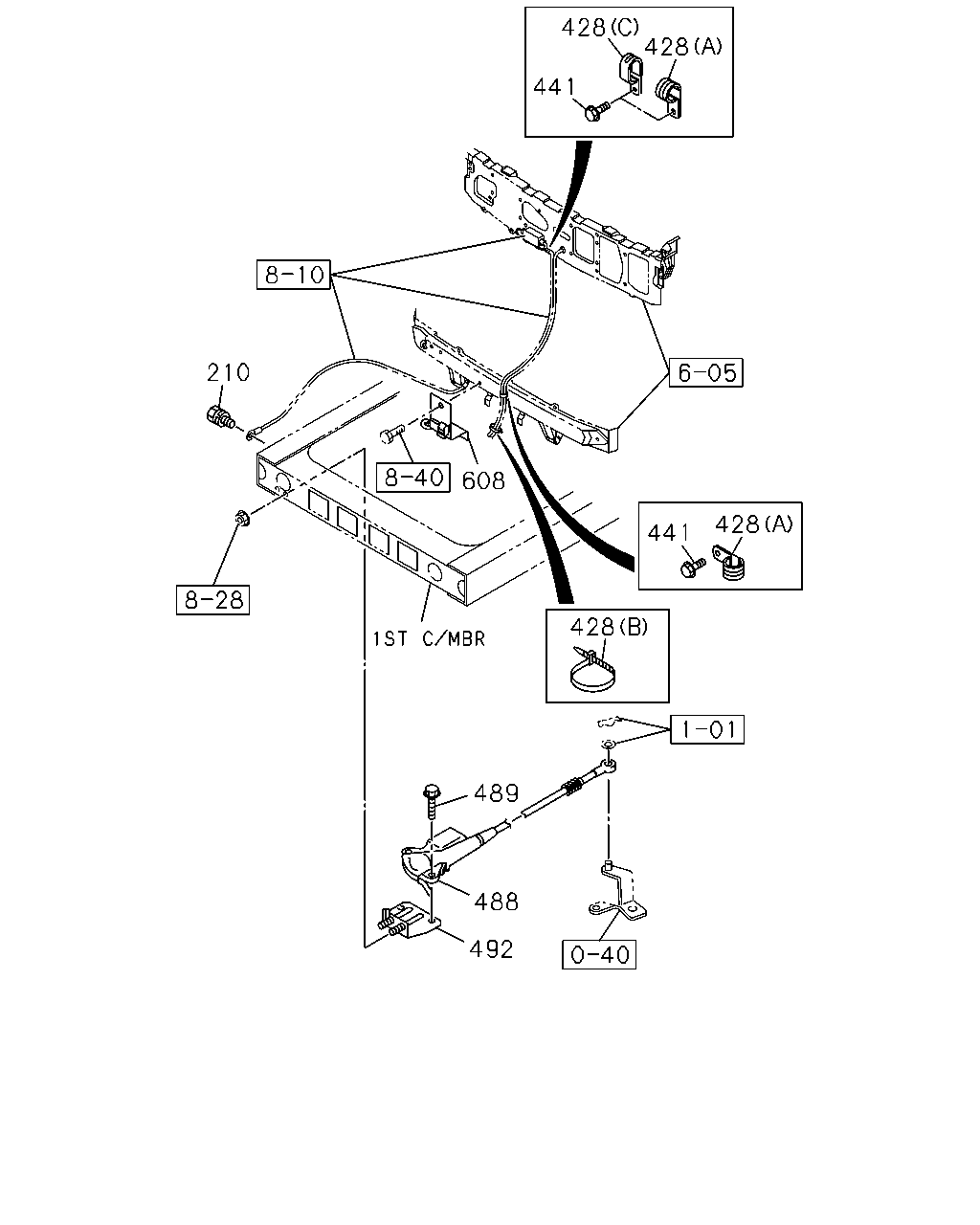

çizim 43457
428 428 441 210 608 428 441 428 489 488 492
BalonParca AdiParca NoAdetTipApplied Date A B C
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-0210 ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0211-1201 ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 03 1 0005-0210 ●
428 CLIP; HARNESS
STD CAB(FT**M*) (B) L=300 		1-09707-001-1 02 1 0211- ●
428 CLIP; HARNESS
(C) ID=30X2 L=28 		1-09701-266-0 01 1 0105-0210 ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0005-0104 ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 01 1 0105-0210 ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0211- ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0105-0210 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
488 STOPPER; ENG 1-82840-153-1 01 1 0005-0210 ●
488 STOPPER; ENG 1-82840-128-2 01 1 0005-0210 ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0005-0210 ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 0005-0210 ● ●
608 SENSOR; AIR TEMP 1-83544-031-0 01 1 0211- ●

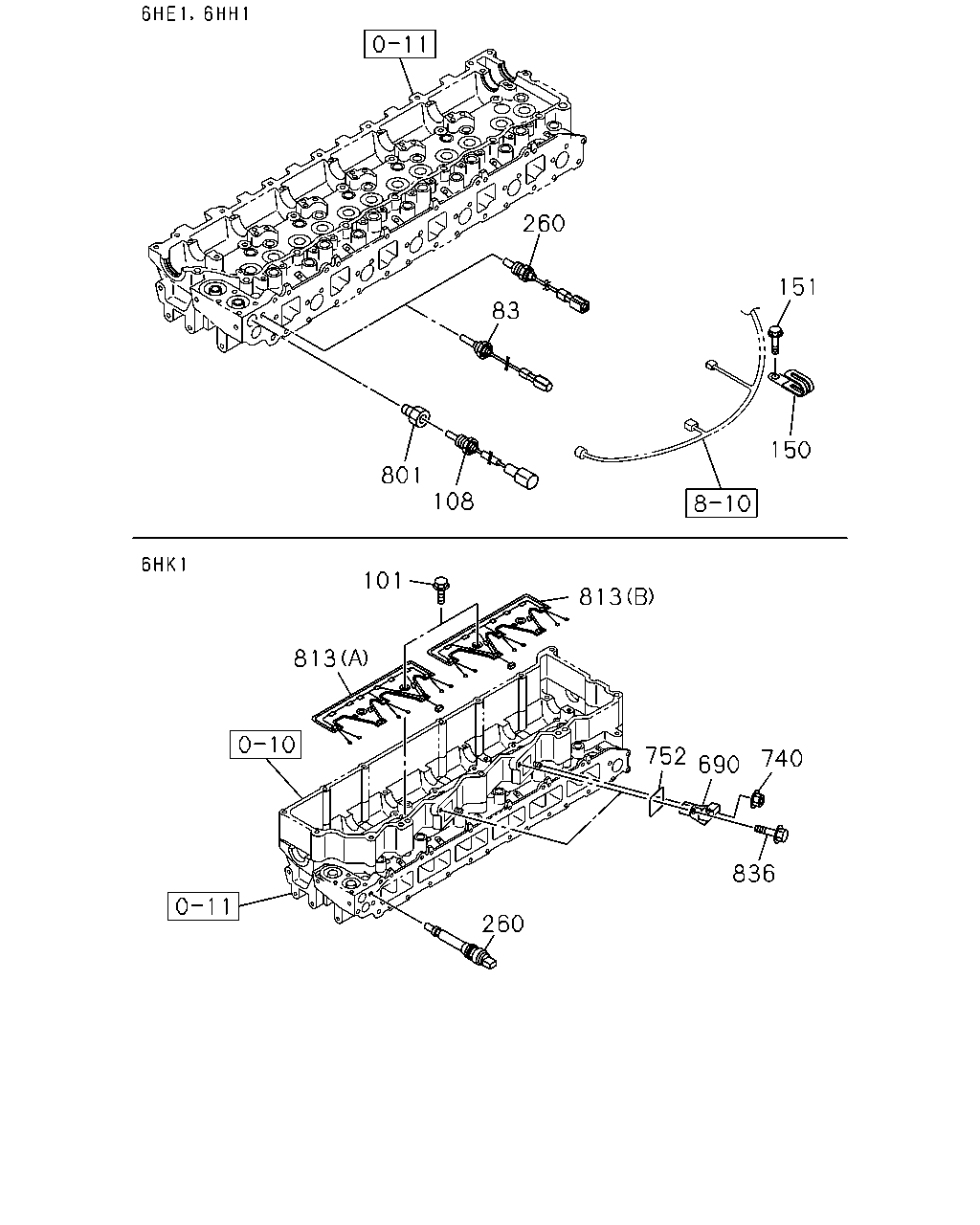

çizim 99745
260 151 83 150 801 108 101 813 813 752 740 690 836 260
BalonParca AdiParca NoAdetTipApplied Date A B C
83 THERMOMETER UNIT 1-83161-031-1 01 1 0005-0210 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28680-840-0 04 1 0211-0512 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0601- ●
108 SWITCH; THERMO 1-83161-030-0 01 1 0005-0210 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-94225-185-0 02 1 0005-0210 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0210 ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 0005-0210 ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0211- ●
690 CONNECTOR 8-94390-858-1 02 1 0211- ●
740 NUT
M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-1011 ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012- ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0211- ●
801 ADAPTER; THERMO SWITCH 8-94395-352-0 01 1 0005-0210 ●
813 HARNESS; INJECTOR
(A) FRONT 		8-94391-302-3 01 1 0211- ●
813 HARNESS; INJECTOR
(B) REAR 		8-94391-303-3 01 1 0211- ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
