3-58 — FIXING PARTS; OIL PIPING (#95089) — 11 parça

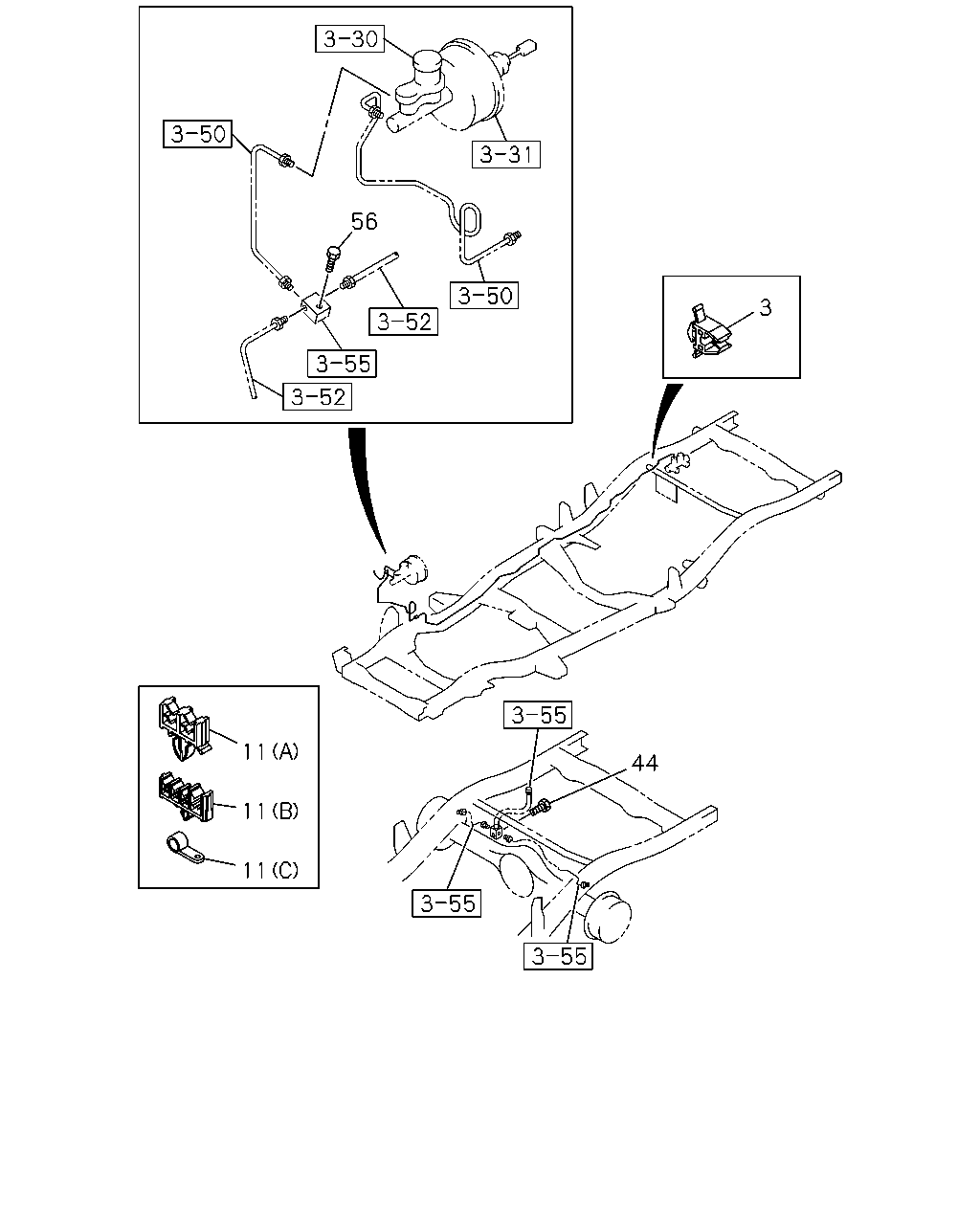

çizim 289800
11 11 11 44 3 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 CLIP; BRK PIPE
H=28.8 		8-94222-877-1 02 1 9009- ● ● ● ●
11 CLIP; OIL PIPE
(A) ID=4.8X2 		8-94113-470-0 03 1 9009- ● ● ● ●
11 CLIP; OIL PIPE
(B) H=10.5 		8-94455-381-0 03 1 9009- ● ● ● ●
11 CLIP; OIL PIPE
(C) 		9-09524-562-0 01 1 9009- ● ● ● ●
44 BOLT; CLIP TO FRAME
M8X30 W/LK&PL WASHER 		9-01960-830-0 01 1 9009-9204 ● ● ● ●
44 BOLT; CLIP TO FRAME
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9205-9412 ● ● ● ●
44 BOLT; CLIP TO FRAME
M8X30 FLANGE 		0-28680-830-0 01 1 9501-0512 ● ● ● ●
44 BOLT; CLIP TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ● ●
56 BOLT; CLIP
M6X30 W/LK&PL WASHER 		9-01960-630-0 01 1 9009-9204 ● ● ● ●
56 BOLT; CLIP
M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 9205-0512 ● ● ● ●
56 BOLT; CLIP
M6X30 W/LK&PL WASHER 		0-50640-630-0 01 1 0601- ● ● ● ●
