3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#95087) — 26 parça
Tümü
A - TBB5SC
B - TBB5SF
C - TBB5VC
D - TBB5VF
◀

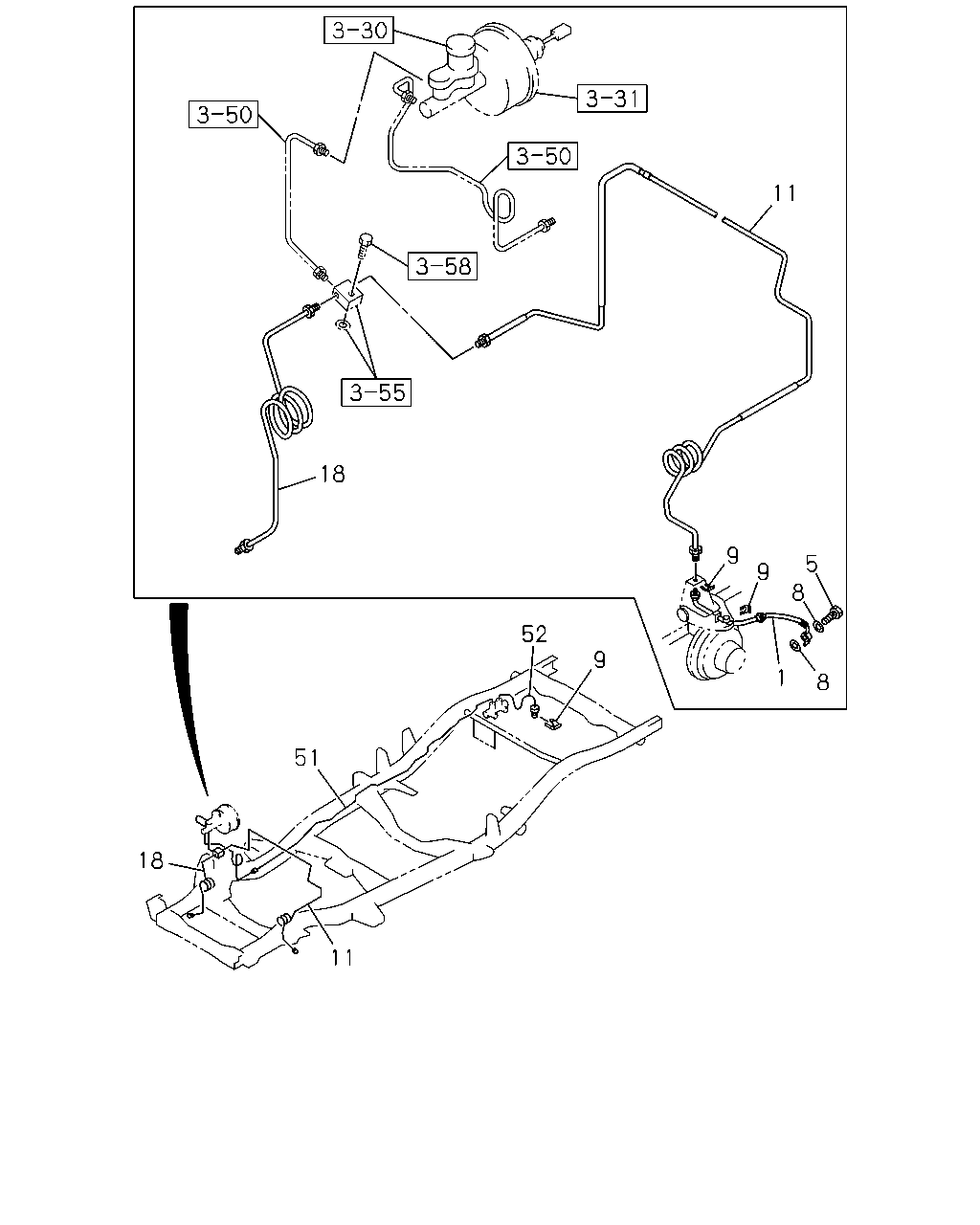

[352A] -'96/1 (13 parça)

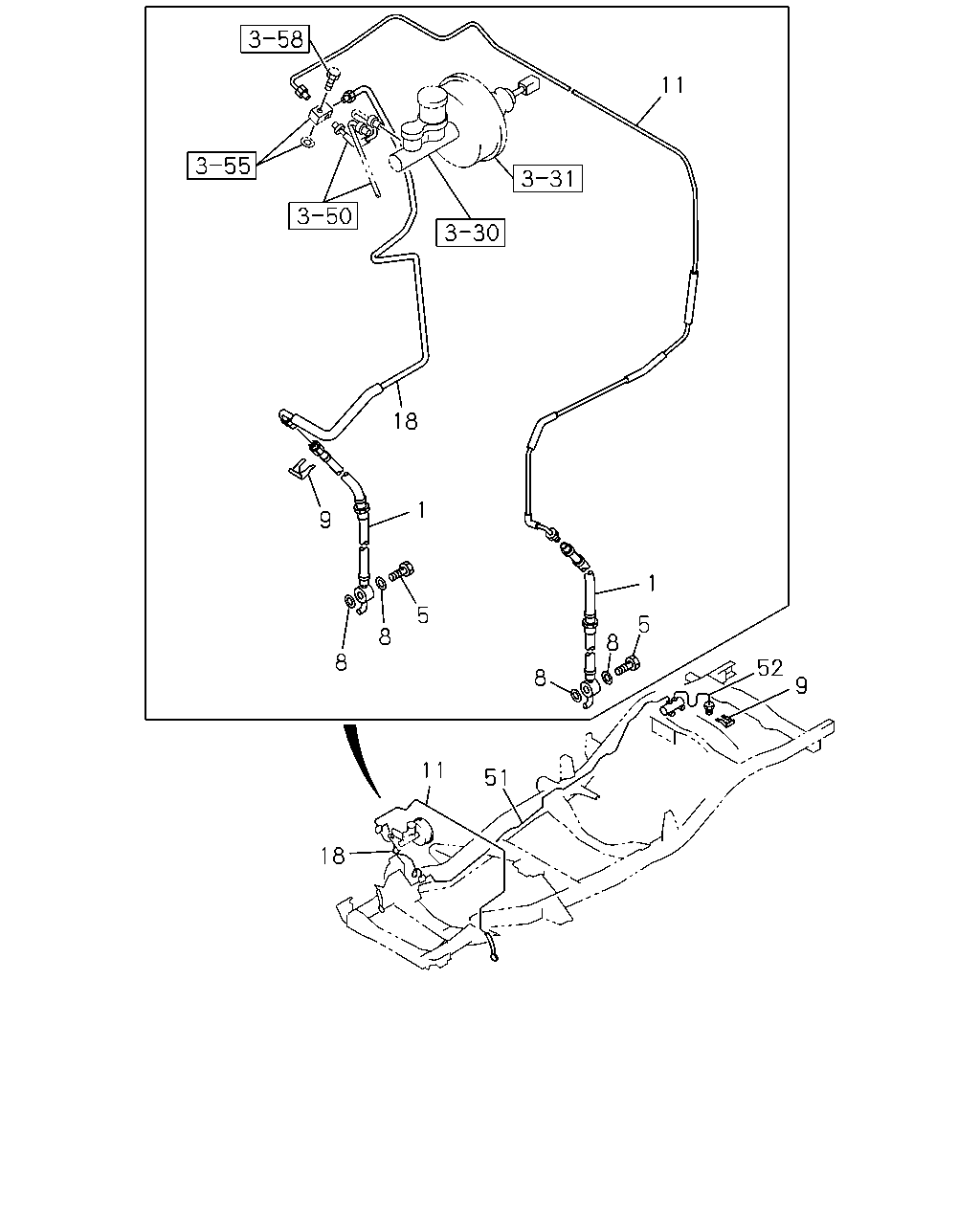

[352A] '96/2- (13 parça)
▶
11
18
1
9
8
8
5
51
11
18
1
8
8
5
52
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
HOSE; FLEX,FRT BRK
8-97032-076-1
02
1
9009-
●
●
●
●
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
5-09675-017-0
02
1
9009-0410
●
●
●
●
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
8-97381-454-0
02
1
0411-0905
●
●
●
●
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
8-98014-005-0
02
1
0906-
●
●
●
●
8
GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0
9-09571-410-0
04
1
9009-
●
●
●
●
9
CLIP; FLEX HOSE,FRT BRK
8-94137-662-0
05
1
9009-
●
●
●
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
DELETION
8-97032-709-0
01
1
9009-9601
●
●
●
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
DELETION IDN
8-97123-559-2
01
1
9602-
●
●
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
DELETION
8-97032-708-0
01
1
9009-9601
●
●
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
DELETION IDN
8-97132-022-0
01
1
9602-
●
●
●
●
51
PIPE; BRK
DELETION IDN
8-94366-545-0
01
1
9009-
●
●
51
PIPE; BRK
DELETION IDN
8-94366-546-0
01
1
9009-
●
●
52
PIPE; BRK
DELETION IDN
8-94372-176-0
01
1
9009-
●
●
●
●
11
18
51
52
9
1
8
5
8
9
9
11
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
HOSE; FLEX,FRT BRK
8-97032-076-1
02
1
9009-
●
●
●
●
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
5-09675-017-0
02
1
9009-0410
●
●
●
●
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
8-97381-454-0
02
1
0411-0905
●
●
●
●
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
8-98014-005-0
02
1
0906-
●
●
●
●
8
GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0
9-09571-410-0
04
1
9009-
●
●
●
●
9
CLIP; FLEX HOSE,FRT BRK
8-94137-662-0
05
1
9009-
●
●
●
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
DELETION
8-97032-709-0
01
1
9009-9601
●
●
●
●
11
PIPE; BRK,UNION TO FLEX HOSE,FRT
DELETION IDN
8-97123-559-2
01
1
9602-
●
●
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
DELETION
8-97032-708-0
01
1
9009-9601
●
●
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
DELETION IDN
8-97132-022-0
01
1
9602-
●
●
●
●
51
PIPE; BRK
DELETION IDN
8-94366-545-0
01
1
9009-
●
●
51
PIPE; BRK
DELETION IDN
8-94366-546-0
01
1
9009-
●
●
52
PIPE; BRK
DELETION IDN
8-94372-176-0
01
1
9009-
●
●
●
●
