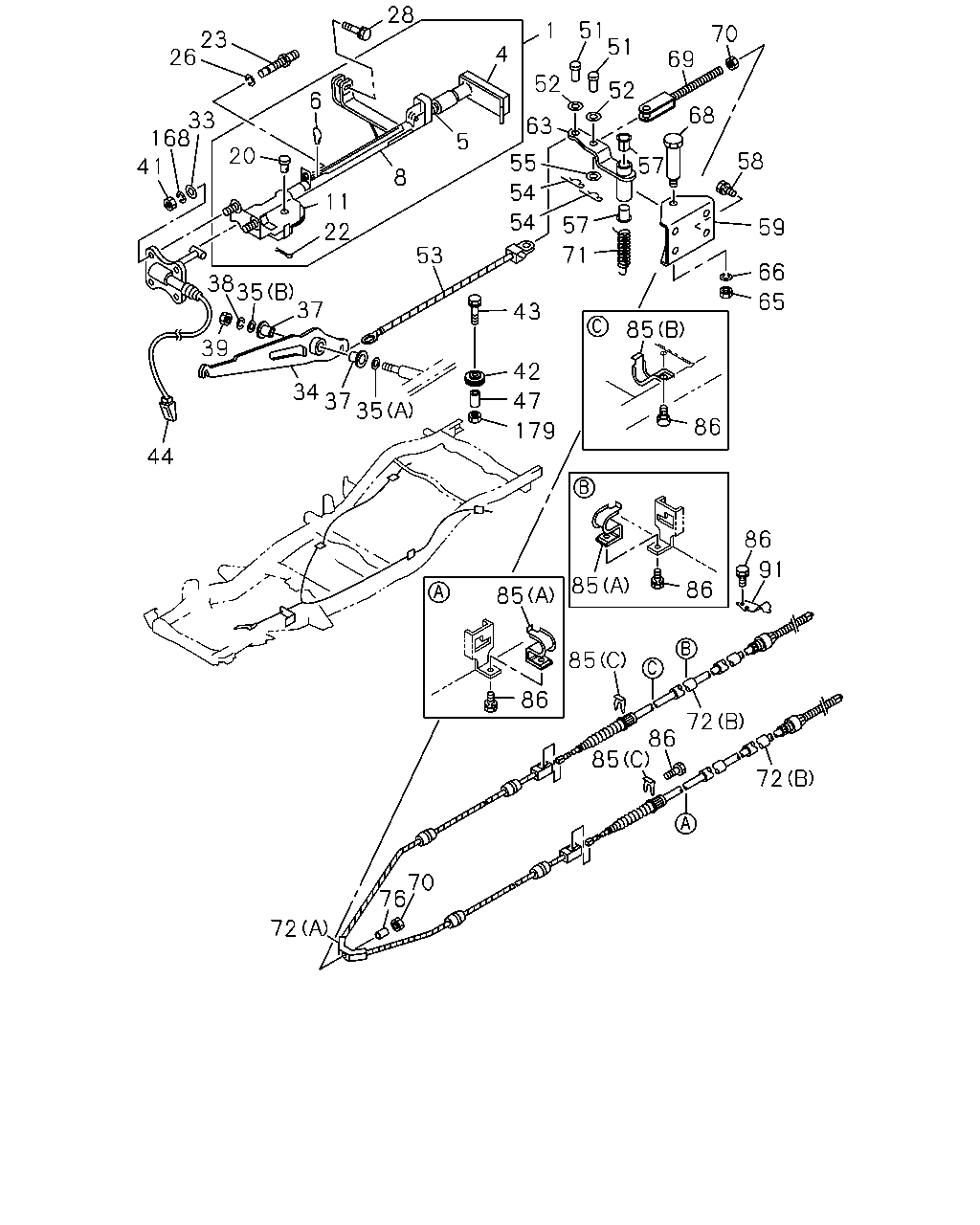

3-11 — PARKING BRAKE CONTROL (#95083) — 134 parça

72 72 86 85 86 85 85 85 86 86 91 86 85 65 66 59 58 68 70 69 52 51 51 1 52 63 55 54 54 57 71 43 42 47 179 35 37 34 44 39 38 35 37 53 22 11 8 5 4 28 23 26 33 20 6 168 41 57 70 76 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEM ASM; PARKING BRK	8-94367-557-3	01	1	9009-9408	●	●
1	STEM ASM; PARKING BRK	8-94367-557-3	01	1	9409-		●
4	STEM; PARKING BRK	8-97031-730-0	01	1	9009-9408	●	●
4	STEM; PARKING BRK	8-97031-730-0	01	1	9409-		●
5	BUSHING; PARKING BRK	9-46129-022-0	01	1	9009-9408	●	●
5	BUSHING; PARKING BRK	9-46129-022-0	01	1	9409-		●
6	PIN; STEM,PARK BRK	5-46129-009-0	01	1	9009-9408	●	●
6	PIN; STEM,PARK BRK	5-46129-009-0	01	1	9409-		●
8	GUIDE; PARKING BRK	8-97031-731-2	01	1	9009-9408	●	●
8	GUIDE; PARKING BRK	8-97031-731-2	01	1	9409-		●
11	ROLLER; PARKING BRK	9-46125-071-0	01	1	9009-9408	●	●
11	ROLLER; PARKING BRK	9-46125-071-0	01	1	9409-		●
20	PIN; PARKING BRK	8-94171-208-1	01	1	9009-9408	●	●
20	PIN; PARKING BRK	8-94171-208-1	01	1	9409-		●
22	PIN; SHAFT,PARKING BRK L=20	9-08112-520-0	01	1	9009-9408	●	●
22	PIN; SHAFT,PARKING BRK L=20	9-08112-520-0	01	1	9409-		●
23	SWITCH; PARKING BRK 12V	9-82750-367-0	01	1	9009-9408	●	●
23	SWITCH; PARKING BRK 12V	9-82750-367-0	01	1	9409-		●
26	WASHER; PARKING BRK SW ID=8.2	9-09150-508-0	01	1	9009-9408	●	●
26	WASHER; PARKING BRK SW ID=8.2	9-09150-508-0	01	1	9409-0603		●
26	WASHER; PARKING BRK SW ID=8.2	0-91510-508-0	01	1	0604-		●
28	BOLT; HAND BRK LEVER M8X45 W/LK&PL WASHER	0-50140-845-0	01	1	9009-9408	●	●
28	BOLT; HAND BRK LEVER M8X45 W/LK&PL WASHER	0-50140-845-0	01	1	9409-9412		●
28	BOLT; HAND BRK LEVER M8X50 FLANGE	0-28080-850-0	01	1	9501-0512		●
28	BOLT; HAND BRK LEVER M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
33	WASHER; PL,HAND BRK LEVER ID=6.4	9-09160-506-0	04	1	9009-9408	●	●
33	WASHER; PL,HAND BRK LEVER ID=6.4	9-09160-506-0	04	1	9409-		●
34	LEVER; PARK BRK CONT	8-94113-338-1	01	1	9009-9408	●	●
34	LEVER; PARK BRK CONT	8-94113-338-1	01	1	9409-		●
35	WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	9009-9408	●	●
35	WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	9409-		●
35	WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	9009-9408	●	●
35	WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	9409-		●
37	BUSHING; RELAY LEVER,PARK BRK	5-46149-012-0	02	1	9009-9408	●	●
37	BUSHING; RELAY LEVER,PARK BRK	5-46149-012-0	02	1	9409-		●
38	WASHER; LK,RELAY LEVER,PARK BRK ID=10.2	9-09150-510-0	01	1	9009-9408	●	●
38	WASHER; LK,RELAY LEVER,PARK BRK ID=10.2	9-09150-510-0	01	1	9409-0603		●
38	WASHER; LK,RELAY LEVER,PARK BRK ID=10.2	0-91510-510-0	01	1	0604-		●
39	NUT; RELAY LEVER,PARK BRK M10	9-09110-410-0	01	1	9009-9408	●	●
39	NUT; RELAY LEVER,PARK BRK M10	9-09110-410-0	01	1	9409-0512		●
39	NUT; RELAY LEVER,PARK BRK M10	0-91110-510-0	01	1	0601-		●
41	NUT; HAND BRK STEM M6	9-09110-406-0	04	1	9009-9408	●	●
41	NUT; HAND BRK STEM M6	9-09110-406-0	04	1	9409-0512		●
41	NUT; HAND BRK STEM M6	0-91110-506-0	04	1	0601-		●
42	ROLLER; PARK BRK CABLE	8-94341-286-0	01	1	9009-9408	●	●
42	ROLLER; PARK BRK CABLE	8-94341-286-0	01	1	9409-		●
43	BOLT; ROLLER,PARK BRK CABLE M8X32 W/LK WASHER	9-01900-832-0	01	1	9009-9204	●	●
43	BOLT; ROLLER,PARK BRK CABLE M8X32 W/LK WASHER	0-50040-832-0	01	1	9205-9408	●	●
43	BOLT; ROLLER,PARK BRK CABLE M8X32 W/LK WASHER	0-50040-832-0	01	1	9409-9412		●
43	BOLT; ROLLER,PARK BRK CABLE M8X40 FLANGE	0-28680-840-0	01	1	9501-0512		●
43	BOLT; ROLLER,PARK BRK CABLE M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
44	CABLE; PARKING BRK,FRT DELETION IDN	8-94367-559-0	01	1	9009-9408	●	●
44	CABLE; PARKING BRK,FRT DELETION IDN	8-94367-559-0	01	1	9409-		●
47	COLLAR; ROLLER,PARK BRK CABLE	9-46129-013-1	01	1	9009-9408	●	●
47	COLLAR; ROLLER,PARK BRK CABLE	9-46129-013-1	01	1	9409-		●
51	PIN; JOINT,RELAY LEVER OD=8 L=20	9-08233-820-0	02	1	9009-9408	●	●
51	PIN; JOINT,RELAY LEVER OD=8 L=20	9-08233-820-0	02	1	9409-0606		●
51	PIN; JOINT,RELAY LEVER OD=8 L=20	0-82353-820-0	02	1	0607-		●
52	WASHER; CURVED RELAY LEVER ID=8.5 T=0.3	5-09509-001-0	02	1	9009-9408	●	●
52	WASHER; CURVED RELAY LEVER ID=8.5 T=0.3	5-09509-001-0	02	1	9409-		●
53	CABLE; PARK BRK,FRT LWR	8-94377-308-0	01	1	9009-9408	●	●
53	CABLE; PARK BRK,FRT LWR	8-94377-308-0	01	1	9409-		●
54	PIN; SNAP,CABLE TO LEVER OD=1.8 L=15	9-08112-015-0	02	1	9009-9408	●	●
54	PIN; SNAP,CABLE TO LEVER OD=1.8 L=15	9-08112-015-0	02	1	9409-0606		●
54	PIN; SNAP,CABLE TO LEVER OD=1.8 L=15	0-81122-015-0	02	1	0607-		●
55	WASHER; PL,PARK BRK CABLE ID=8.4	9-09160-508-0	02	1	9009-9408	●	●
55	WASHER; PL,PARK BRK CABLE ID=8.4	9-09160-508-0	02	1	9409-0605		●
55	WASHER; PL,PARK BRK CABLE ID=8.4 OD=16	0-91610-508-0	02	1	0606-		●
57	BUSHING; RELAY LEVER	5-33659-053-0	02	1	9009-9408	●	●
57	BUSHING; RELAY LEVER	5-33659-053-0	02	1	9409-		●
58	BOLT; RELAY LEVER,PARK BRK M8X20 W/LK WASHER	9-01900-820-0	04	1	9009-9204	●	●
58	BOLT; RELAY LEVER,PARK BRK M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9408	●	●
58	BOLT; RELAY LEVER,PARK BRK M8X20 W/LK WASHER	0-50040-820-0	04	1	9409-9412		●
58	BOLT; RELAY LEVER,PARK BRK M8X20 FLANGE	0-28680-820-0	04	1	9501-0512		●
58	BOLT; RELAY LEVER,PARK BRK M8X20 FLANGE IDN	0-28650-820-0	04	1	0601-		●
59	BRACKET; RELAY LEVER	8-94479-094-0	01	1	9009-9408	●	●
59	BRACKET; RELAY LEVER	8-94479-094-0	01	1	9409-		●
63	LEVER; RELAY,HAND BRK	8-94377-307-0	01	1	9009-9408	●	●
63	LEVER; RELAY,HAND BRK	8-94377-307-0	01	1	9409-		●
65	NUT; RELAY LEVER M10	9-09110-410-0	01	1	9009-9408	●	●
65	NUT; RELAY LEVER M10	9-09110-410-0	01	1	9409-0512		●
65	NUT; RELAY LEVER M10	0-91110-510-0	01	1	0601-		●
66	WASHER; LK,RELAY LEVER ID=10.2	9-09150-510-0	01	1	9009-9408	●	●
66	WASHER; LK,RELAY LEVER ID=10.2	9-09150-510-0	01	1	9409-0603		●
66	WASHER; LK,RELAY LEVER ID=10.2	0-91510-510-0	01	1	0604-		●
68	PIN; FULCRUM,RELAY LEVER,PARK BRK	8-94404-908-0	01	1	9009-9408	●	●
68	PIN; FULCRUM,RELAY LEVER,PARK BRK	8-94404-908-1	01	1	9409-		●
69	ROD; RELAY LEVER	8-94314-430-0	01	1	9009-9408	●	●
69	ROD; RELAY LEVER	8-94314-430-0	01	1	9409-		●
70	NUT; EQUALIZER TO FRT CABLE M8	9-09111-408-0	02	1	9009-9408	●	●
70	NUT; EQUALIZER TO FRT CABLE M8	9-09111-408-0	02	1	9409-0512		●
70	NUT; EQUALIZER TO FRT CABLE M8	0-91111-508-0	02	1	0601-		●
71	SPRING; RETURN,PARKING BRK TO BODY	8-94479-600-1	01	1	9009-9407	●	●
71	SPRING; RETURN,PARKING BRK TO BODY	8-94479-600-2	01	1	9408-		●
72	CABLE; PARKING BRK (A) DELETION IDN	8-94367-560-0	01	1	9009-9408	●	●
72	CABLE; PARKING BRK (A) DELETION IDN	8-94367-560-0	01	1	9409-		●
72	CABLE; PARKING BRK SHORT(TB***C) (B) DELETION IDN	8-94369-494-4	01	1	9009-9408	●	●
72	CABLE; PARKING BRK SHORT(TB***C) (B) DELETION IDN	8-94369-494-4	01	1	9409-		●
72	CABLE; PARKING BRK SHORT(TB***C) (B) DELETION IDN	8-94369-493-3	01	1	9009-9408	●	●
72	CABLE; PARKING BRK SHORT(TB***C) (B) DELETION IDN	8-94369-493-3	01	1	9409-		●
72	CABLE; PARKING BRK LONG(TB***F) (B) DELETION IDN	8-94369-492-4	01	1	9009-9408	●	●
72	CABLE; PARKING BRK LONG(TB***F) (B) DELETION IDN	8-94369-492-4	01	1	9409-		●
72	CABLE; PARKING BRK LONG(TB***F) (B) DELETION IDN	8-94369-491-3	01	1	9009-9408	●	●
72	CABLE; PARKING BRK LONG(TB***F) (B) DELETION IDN	8-94369-491-3	01	1	9409-		●
76	SLEEVE; CABLE GUIDE,PARKING BRK	8-11042-301-3	01	1	9009-9408	●	●
76	SLEEVE; CABLE GUIDE,PARKING BRK	8-11042-301-3	01	1	9409-		●
85	CLIP; BRKT (C)	5-09709-039-0	02	1	9009-9408	●	●
85	CLIP; BRKT (C)	5-09709-039-0	02	1	9409-		●
85	CLIP; BRKT (A)	8-94146-602-0	03	1	9009-9408	●	●
85	CLIP; BRKT (A)	8-94146-602-0	03	1	9409-		●
85	CLIP; BRKT SHORT(TB***C) (B) ID=14 IDN	9-09916-883-0	01	1	9009-9408	●	●
85	CLIP; BRKT SHORT(TB***C) (B) ID=14 IDN	9-09916-883-0	01	1	9409-		●
85	CLIP; BRKT LONG(TB***F) (B) ID=14 IDN	9-09916-883-0	02	1	9009-9408	●	●
85	CLIP; BRKT LONG(TB***F) (B) ID=14 IDN	9-09916-883-0	02	1	9409-		●
86	BOLT SHORT(TB***C) M6X14 W/LK&PL WASHER	9-01960-614-0	04	1	9009-9204	●	●
86	BOLT SHORT(TB***C) M6X14 W/LK&PL WASHER	0-50140-614-0	04	1	9205-9408	●	●
86	BOLT SHORT(TB***C) M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9409-0512		●
86	BOLT SHORT(TB***C) M6X16 W/LK&PL WASHER	0-50640-616-0	04	1	0601-		●
86	BOLT LONG(TB***F) M6X14 W/LK&PL WASHER	9-01960-614-0	05	1	9009-9204	●	●
86	BOLT LONG(TB***F) M6X14 W/LK&PL WASHER	0-50140-614-0	05	1	9205-9408	●	●
86	BOLT LONG(TB***F) M6X16 W/LK&PL WASHER	0-50140-616-0	05	1	9409-0512		●
86	BOLT LONG(TB***F) M6X16 W/LK&PL WASHER	0-50640-616-0	05	1	0601-		●
91	CLIP; PARKING BRK CABLE	8-94126-640-1	01	1	9009-9011	●	●
91	CLIP; PARKING BRK CABLE DELETION IDN	8-97045-075-0	01	1	9012-9408	●	●
91	CLIP; PARKING BRK CABLE DELETION IDN	8-97045-075-0	01	1	9409-		●
91	CLIP; PARKING BRK CABLE	8-94126-639-1	01	1	9009-9011	●	●
91	CLIP; PARKING BRK CABLE DELETION IDN	8-97045-074-0	01	1	9012-9408	●	●
91	CLIP; PARKING BRK CABLE DELETION IDN	8-97045-074-0	01	1	9409-		●
168	WASHER; LK,HAND BRK STEM ID=6.1 IDN	9-09150-506-0	04	1	9009-9408	●	●
168	WASHER; LK,HAND BRK STEM ID=6.1 IDN	9-09150-506-0	04	1	9409-0603		●
168	WASHER; LK,HAND BRK STEM ID=6.1 IDN	0-91510-506-0	04	1	0604-		●
179	NUT; ROLLER,PARK BRK CABLE M8	9-09110-408-0	01	1	9009-9408	●	●
179	NUT; ROLLER,PARK BRK CABLE M8	9-09110-408-0	01	1	9409-0512		●
179	NUT; ROLLER,PARK BRK CABLE M8 IDN	0-91110-508-0	01	1	0601-		●
