Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

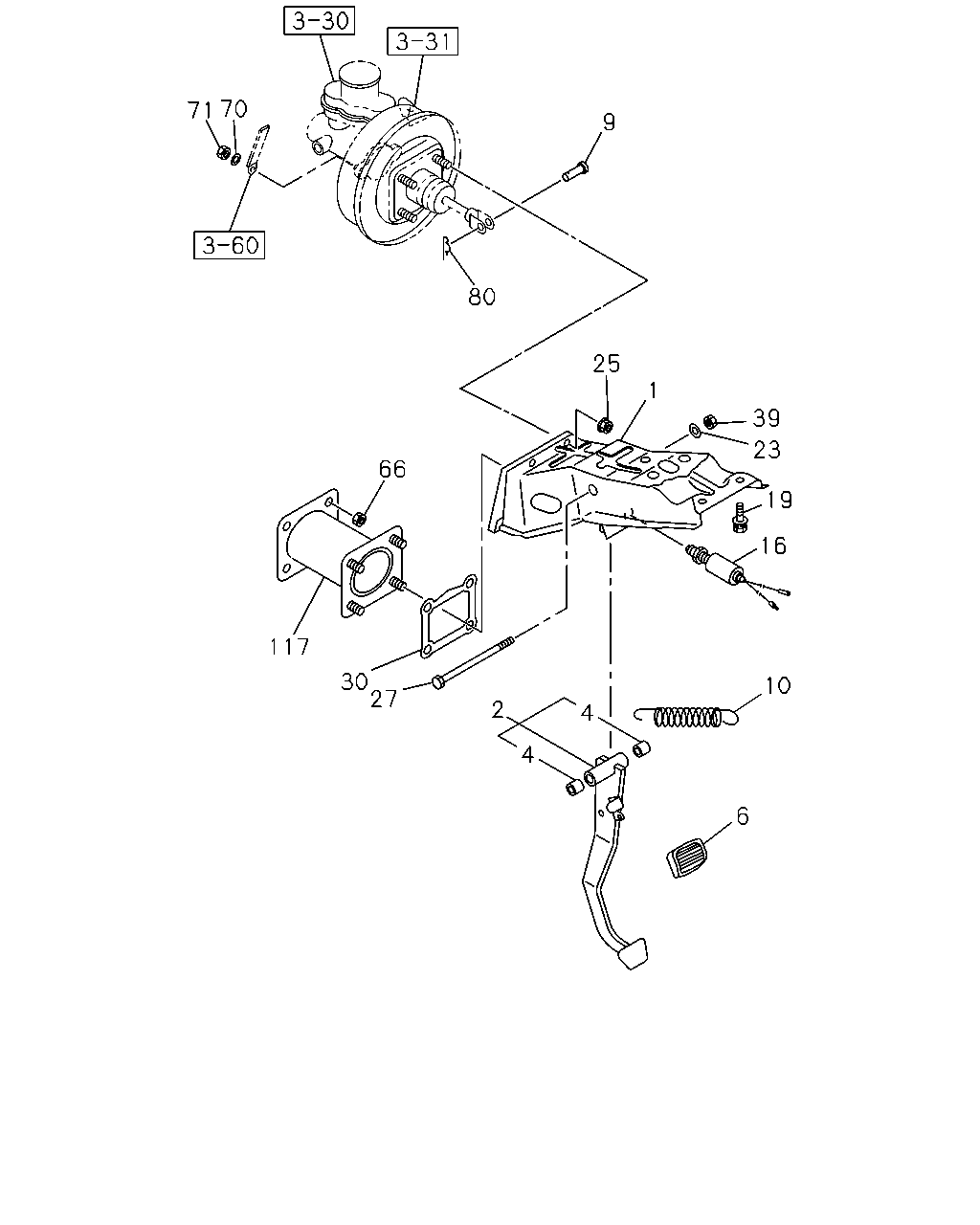

3-10 — BRAKE PEDAL AND CONTROL
(#95082) — 28 parça
Tümü
A - TBB5SC
B - TBB5SF
C - TBB5VC
D - TBB5VF
6
4
4
2
27
30
117
66
25
1
39
23
19
16
10
80
9
71
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
BRACKET ASM; PEDAL
8-97040-569-3
01
1
9009-
●
●
●
●
2
PEDAL; BRK
8-94329-611-1
01
1
9009-
●
●
●
●
4
BUSHING; BRK PEDAL
8-94244-439-0
02
1
9009-
●
●
●
●
6
COVER; BRK PEDAL
8-94222-524-1
01
1
9009-
●
●
●
●
9
PIN; JAW JOINT
8-94250-182-0
01
1
9009-
●
●
●
●
10
SPRING; RETURN,BRK PEDAL
8-94329-696-0
01
1
9009-
●
●
●
●
16
SWITCH; STOP LAMP
8-94118-754-1
01
1
9009-
●
●
●
●
19
BOLT; BRKT
M8X18 W/LK&PL WASHER
9-01960-818-0
05
1
9009-9204
●
●
●
●
19
BOLT; BRKT
M8X18 W/LK&PL WASHER
0-50140-818-0
05
1
9205-9408
●
●
●
●
19
BOLT; BRKT
M8X20 W/LK&PL WASHER
0-50140-820-0
05
1
9409-9505
●
●
●
●
19
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
05
1
9506-0512
●
●
●
●
19
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
05
1
0601-
●
●
●
●
23
WASHER; LK,SHAFT
ID=10.2
9-09150-510-0
01
1
9009-0603
●
●
●
●
23
WASHER; LK,SHAFT
ID=10.2
0-91510-510-0
01
1
0604-
●
●
●
●
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
5-09440-005-0
04
1
9009-0805
●
●
●
●
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
8-97581-233-0
04
1
0806-
●
●
●
●
27
SHAFT; BRK PEDAL
8-94480-803-0
01
1
9009-
●
●
●
●
30
GASKET; M/VAC TO BODY
8-94111-590-0
02
1
9009-
●
●
●
●
39
NUT; STOPPER LK
M10
9-09110-410-0
01
1
9009-0512
●
●
●
●
39
NUT; STOPPER LK
M10
0-91110-510-0
01
1
0601-
●
●
●
●
66
NUT; SERVO TO BRKT
M8 W/LK WASHER
8-94279-050-0
04
1
9009-
●
●
●
●
70
WASHER; LK,BRK M/CYL
ID=8.2
9-09150-508-0
02
1
9009-9411
●
●
●
●
71
NUT; BRK M/CYL
M8
9-09110-408-0
02
1
9009-9411
●
●
●
●
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
9412-
●
●
●
●
80
PIN; SNAP,BRK PEDAL
L=27.7
1-09747-005-0
01
1
9009-9211
●
●
●
●
80
PIN; SNAP,BRK PEDAL
L=27.7
8-94157-841-0
01
1
9212-
●
●
●
●
117
SPACER; M/VAC TO BODY
8-94370-525-0
01
1
9009-9412
●
●
●
●
117
SPACER; M/VAC TO BODY
8-97119-891-0
01
1
9501-
●
●
●
●
