3-05 — REAR WHEEL BRAKE (#95081) — 44 parça

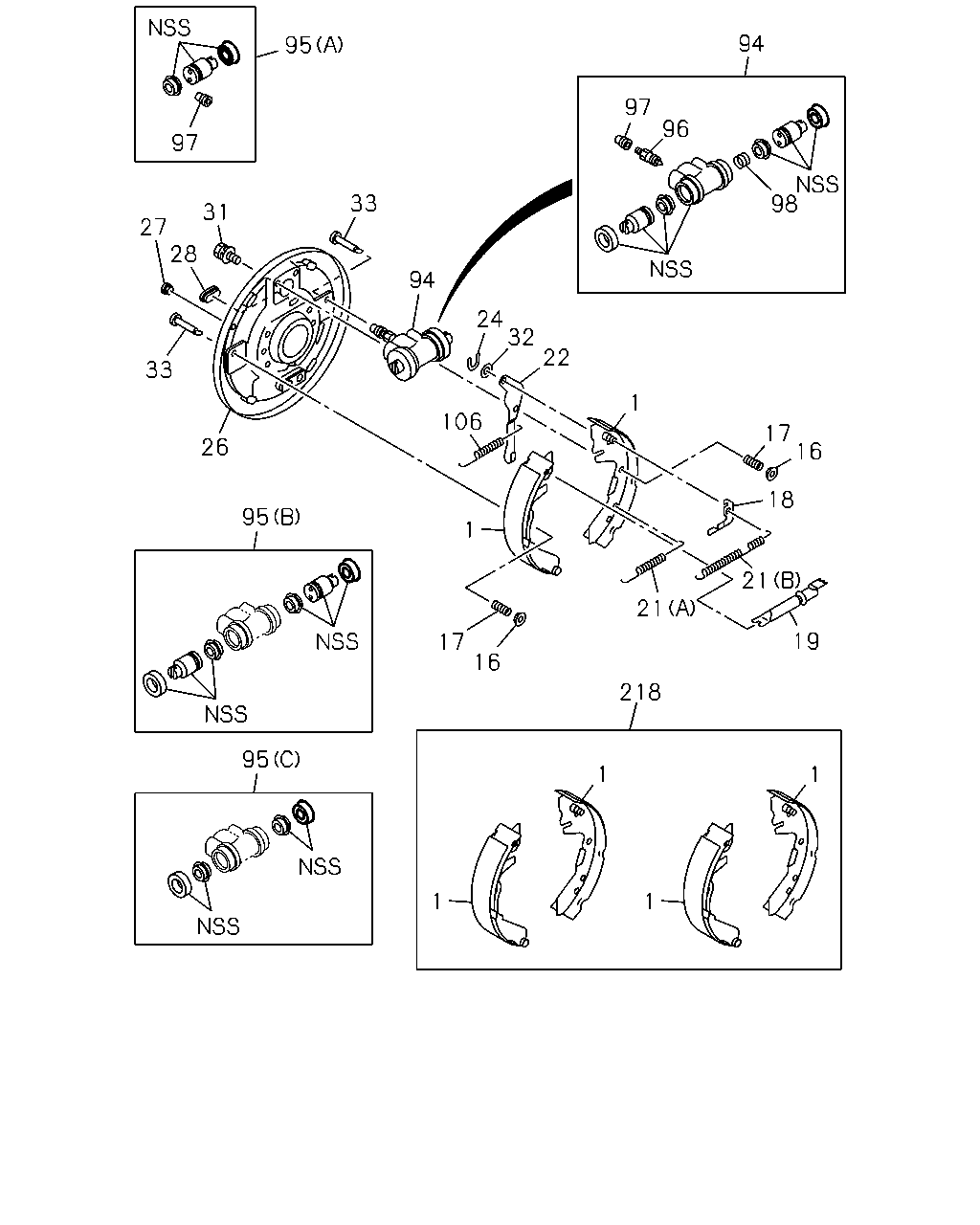

çizim 289795
218 16 17 21 1 1 17 16 18 21 19 1 1 1 1 95 95 26 33 28 27 31 33 94 24 32 22 106 98 96 97 94 97 95
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHOE; BRK,RR
LEADING DELETION IDN 		8-94479-709-1 02 1 9009-9601 ● ● ● ●
1 SHOE; BRK,RR
LEADING IDN 		8-97956-911-0 02 1 0612- ● ● ● ●
1 SHOE; BRK,RR
TRAILING DELETION IDN 		8-94479-711-1 01 1 9009-9601 ● ● ● ●
1 SHOE; BRK,RR
TRAILING IDN 		8-97956-913-0 01 1 0612- ● ● ● ●
1 SHOE; BRK,RR
TRAILING DELETION IDN 		8-94479-710-1 01 1 9009-9601 ● ● ● ●
1 SHOE; BRK,RR
TRAILING IDN 		8-97956-912-0 01 1 0612- ● ● ● ●
16 CUP; SHOE HOLDING
DELETION IDN 		9-47162-033-0 04 1 9009- ● ● ● ●
17 SPRING; SHOE HOLD DOWN
DELETION IDN 		8-94134-106-0 04 1 9009- ● ● ● ●
18 LEVER; AUTO ADJ
DELETION IDN 		8-94124-866-1 01 1 9009- ● ● ● ●
18 LEVER; AUTO ADJ
DELETION IDN 		8-94124-865-1 01 1 9009- ● ● ● ●
19 ADJUSTER; RR BRK
DELETION 		8-94127-078-1 01 1 9009- ● ● ● ●
19 ADJUSTER; RR BRK
DELETION 		8-94127-077-1 01 1 9009- ● ● ● ●
21 SPRING; SHOE,RET
(A) LOWER IDN 		8-94127-066-0 02 1 9009- ● ● ● ●
21 SPRING; SHOE,RET
(B) UPPER IDN 		8-94480-191-0 02 1 9009- ● ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
DELETION IDN 		8-94124-868-2 01 1 9009- ● ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
DELETION IDN 		8-94124-867-2 01 1 9009- ● ● ● ●
24 RETAINER; PARKING BRK
IDN 		9-46349-005-1 02 1 9009- ● ● ● ●
26 PLATE; BACK,RR BRK
DELETION 		8-94124-861-2 01 1 9009-9610 ● ● ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97147-567-0 01 1 9611-0611 ● ● ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97956-909-0 01 1 0612- ● ● ● ●
26 PLATE; BACK,RR BRK
DELETION 		8-94124-860-2 01 1 9009-9610 ● ● ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97147-566-0 01 1 9611-0611 ● ● ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97956-908-0 01 1 0612- ● ● ● ●
27 COVER; CHECK HOLE,DRUM COVER
IDN 		8-97122-854-0 02 1 9612- ● ● ● ●
28 COVER; ADJ HOLE
DELETION IDN 		8-94111-509-0 02 1 9009- ● ● ● ●
31 BOLT; RR WHEEL CYL
DELETION 		9-09602-058-1 04 1 9009-9610 ● ● ● ●
31 BOLT; RR WHEEL CYL
M6X10 FLANGE IDN 		8-94134-103-0 04 1 9611- ● ● ● ●
32 WASHER; LK
ID=9.5 IDN 		9-09850-529-0 02 1 9009- ● ● ● ●
33 PIN; SHOE HOLD DOWN
DELETION 		8-94201-061-0 04 1 9009- ● ● ● ●
94 CYLINDER; WHEEL,RR BRK
DELETION 		8-94233-500-6 02 1 9009-0311 ● ● ● ●
94 CYLINDER; WHEEL,RR BRK
IDN 		8-97230-425-0 02 1 0312- ● ● ● ●
95 CUP SET; RR WHEEL CYL
(C) 		5-87832-248-0 01 1 0312- ● ● ● ●
95 CUP SET; RR WHEEL CYL
(A) DELETION W/PISTON 		5-87830-489-3 01 1 9009-0311 ● ● ● ●
95 CUP SET; RR WHEEL CYL
(B) 		5-87831-828-0 01 1 0312- ● ● ● ●
96 SCREW; BLEEDER,RR BRK
DELETION 		9-47165-027-0 02 1 9009-9009 ● ● ● ●
96 SCREW; BLEEDER,RR BRK
DELETION IDN 		9-47615-027-0 02 1 9010-1108 ● ● ● ●
96 SCREW; BLEEDER,RR BRK
IDN 		8-98050-476-0 02 1 1109- ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
DELETION 		9-47619-038-0 02 1 9009-9412 ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
DELETION IDN 		1-47619-009-0 02 1 9501-1108 ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
IDN 		8-98050-479-0 02 1 1109- ● ● ● ●
98 SPRING; RR WHEEL CYL
DELETION IDN 		8-94230-597-2 02 1 9009- ● ● ● ●
106 SPRING; ADJ LEVER
IDN 		8-94480-190-0 02 1 9009- ● ● ● ●
218 SHOE KIT; BRK,RR 5-87832-093-0 01 1 9602-0611 ● ● ● ●
218 SHOE KIT; BRK,RR
IDN 		5-87832-092-0 01 1 0612- ● ● ● ●
