2-30 — GEAR SHIFTER AND QUADRANT BOX (#95078) — 59 parça

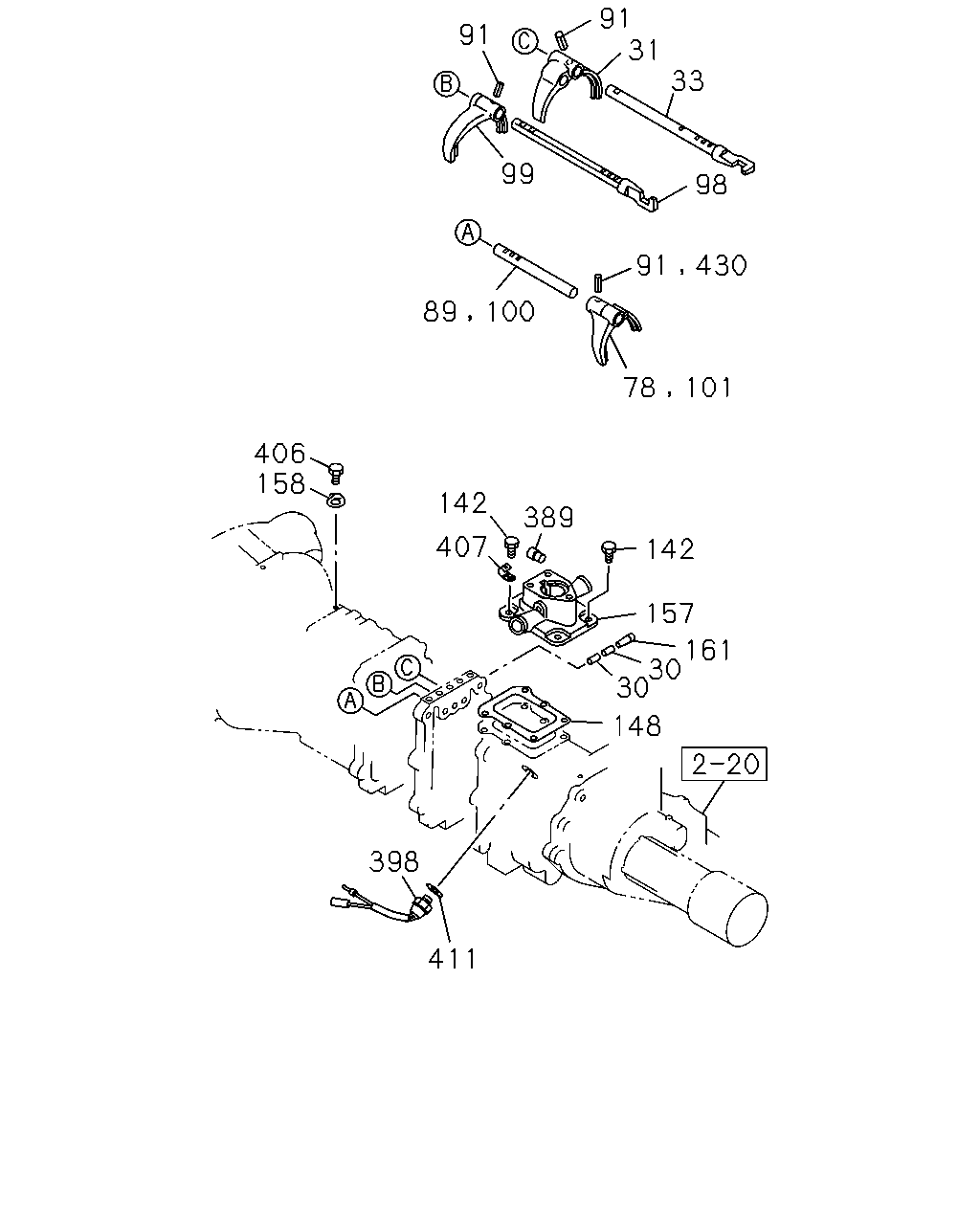

çizim 288918
91 91 31 33 98 99 91 430 101 78 100 89 406 158 142 407 389 142 157 161 30 30 148 398 411
BalonParca AdiParca NoAdetTipApplied Date A B
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 9009-9408 ● ●
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 9409- ●
31 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 9009-9408 ● ●
31 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 9409- ●
33 ROD; SHIFT,LOW & 2ND 8-94435-156-1 01 1 9009-9408 ● ●
33 ROD; SHIFT,LOW & 2ND 8-94435-156-1 01 1 9409-9901 ●
33 ROD; SHIFT,LOW & 2ND
IDN 		8-97211-463-0 01 1 9902-9902 ●
33 ROD; SHIFT,LOW & 2ND
IDN 		8-97213-046-0 01 1 9903-9912 ●
33 ROD; SHIFT,LOW & 2ND
IDN 		8-97248-599-0 01 1 0001- ●
78 ARM; SHIFT,REV 8-94472-377-1 01 1 9009-9408 ●
89 ROD; SHIFT,REV 8-94474-330-2 01 1 9009-9408 ●
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 9009-9408 ● ●
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 9409- ●
98 ROD; SHIFT,TOP & 3RD 8-94372-766-0 01 1 9009-9408 ● ●
98 ROD; SHIFT,TOP & 3RD 8-94372-766-0 01 1 9409-9901 ●
98 ROD; SHIFT,TOP & 3RD
IDN 		8-97211-460-0 01 1 9902-9902 ●
98 ROD; SHIFT,TOP & 3RD
IDN 		8-97213-044-0 01 1 9903-9912 ●
98 ROD; SHIFT,TOP & 3RD
IDN 		8-97248-597-0 01 1 0001- ●
99 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 9009-9408 ● ●
99 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 9409- ●
100 ROD; SHIFT,REV & 5TH 8-94474-329-2 01 1 9009-9610 ●
100 ROD; SHIFT,REV & 5TH 8-97115-185-0 01 1 9611-9912 ●
100 ROD; SHIFT,REV & 5TH
IDN 		8-97248-601-0 01 1 0001- ●
101 ARM; SHIFT,REV & 5TH 8-94440-061-3 01 1 9009- ●
142 BOLT; QUAD BOX
M8X20 		8-97025-121-0 04 1 9009-9104 ● ●
142 BOLT; QUAD BOX
M8X20 W/THREAD LOCKING ADHESIVE 		8-97021-210-0 04 1 9105-9408 ● ●
142 BOLT; QUAD BOX
M8X20 W/THREAD LOCKING ADHESIVE 		8-97021-210-0 04 1 9409-9610 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 9611-0604 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0605- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94462-112-0 01 1 9009-9408 ● ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94462-112-0 01 1 9409-9610 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94462-113-0 01 1 9611-9709 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 9710- ●
157 BOX; QUAD,TRANS 8-94161-107-2 01 1 9009-9308 ●
157 BOX; QUAD,TRANS 8-94161-113-2 01 1 9009-9308 ●
157 BOX; QUAD,TRANS 8-94161-113-3 01 1 9309-9408 ● ●
157 BOX; QUAD,TRANS 8-94161-113-4 01 1 9409-9610 ●
157 BOX; QUAD,TRANS 8-94161-146-4 01 1 9611- ●
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 9009-9408 ● ●
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 9409-9610 ●
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 02 1 9611-0604 ●
158 CLIP; HARNESS
ID=12 IDN 		8-97367-984-1 02 1 0605- ●
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 9009-9408 ● ●
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 9409- ●
389 PLUG; QUAD BOX,NEUTRAL SW 8-94205-805-2 01 1 9009-9408 ● ●
389 PLUG; QUAD BOX,NEUTRAL SW 8-94205-805-2 01 1 9409-9511 ●
398 SWITCH; REV LAMP 8-94411-366-1 01 1 9009-9408 ● ●
398 SWITCH; REV LAMP 8-94411-366-1 01 1 9409-0602 ●
398 SWITCH; REV LAMP 8-98042-851-0 01 1 0603- ●
406 BOLT; HARNESS CLIP
M8X16 W/LK WASHER 		8-94200-833-0 01 1 9009-9406 ● ●
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9407-9408 ● ●
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9409-0512 ●
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
407 CLIP; SWITCH HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 9009-9408 ● ●
407 CLIP; SWITCH HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 9409-0708 ●
407 CLIP; SWITCH HARNESS
ID=12 IDN 		8-97367-984-1 01 1 0709- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9009-9408 ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9409- ●
430 PIN; SPR,SHIFT ROD
D=4.2 L=25 		8-94171-541-0 01 1 9009-9408 ●
