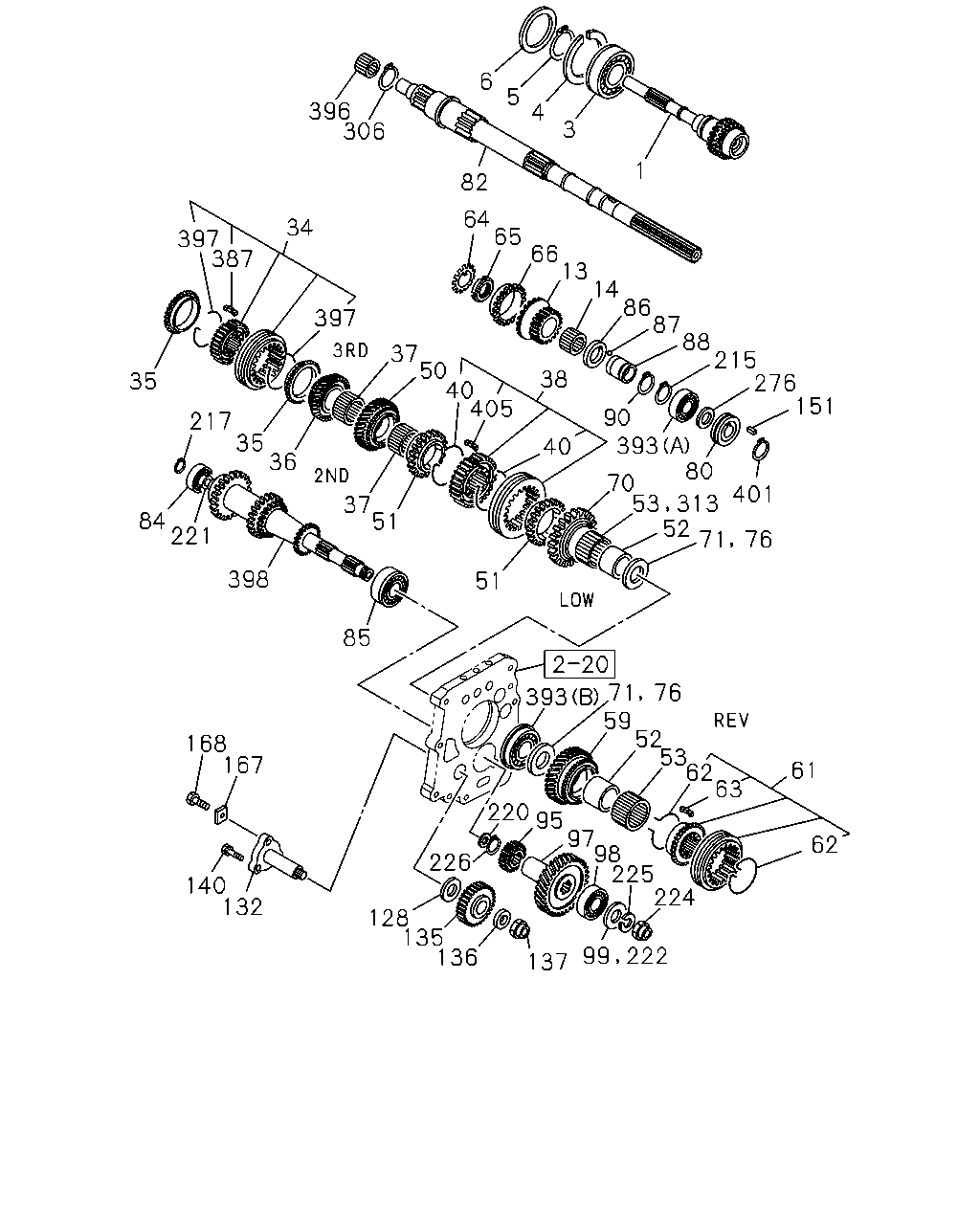

2-26 — MANUAL TRANSMISSION GEAR (#95077) — 164 parça

396 306 34 397 387 397 37 50 40 405 40 70 53 52 71 76 401 313 80 393 90 38 151 276 215 88 87 86 14 13 1 3 4 5 6 82 64 65 66 217 35 36 37 51 51 84 221 398 85 76 71 393 59 52 53 62 63 62 61 220 95 97 98 225 224 222 99 137 136 135 128 226 168 167 140 132 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	9009-9408	●	●
1	SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	9409-9704		●
1	SHAFT; TOP GEAR,TRANS Z=23	8-97149-183-0	01	1	9705-9812		●
1	SHAFT; TOP GEAR,TRANS Z=23	8-94435-160-2	01	1	9901-		●
3	BEARING; TOP GEAR SHAFT NSK	8-94167-637-0	01	1	9009-9408	●	●
3	BEARING; TOP GEAR SHAFT NSK	8-94167-637-0	01	1	9409-0901		●
3	BEARING; TOP GEAR SHAFT NSK	8-97943-882-0	01	1	0902-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94206-485-0	01	1	9009-9408	●	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94206-485-0	01	1	9409-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9009-9408	●	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9409-		●
6	SPRING; BEVEL,TOP GEAR SHAFT	9-09655-044-0	01	1	9009-9408	●	●
6	SPRING; BEVEL,TOP GEAR SHAFT	9-09655-044-0	01	1	9409-9610		●
13	GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-2	01	1	9009-9704		●
13	GEAR; 5TH,MAINSHAFT Z=25	8-97149-191-0	01	1	9705-9812		●
13	GEAR; 5TH,MAINSHAFT Z=25	8-94161-912-3	01	1	9901-		●
14	BEARING; NEEDLE,5TH NSK	8-94161-994-0	01	1	9009-		●
34	SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	9009-9408	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	9409-9704		●
34	SYNCHRONIZER; 4TH & 3RD	8-97149-173-0	01	1	9705-9812		●
34	SYNCHRONIZER; 4TH & 3RD	8-94161-860-0	01	1	9901-		●
35	RING; BLOCK,4TH & 3RD Z=30	8-94463-830-0	02	1	9009-9408	●	●
35	RING; BLOCK,4TH & 3RD Z=30	8-94463-830-1	02	1	9409-		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	9009-9408	●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	9409-9704		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97149-042-0	01	1	9705-9812		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-94161-137-1	01	1	9901-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	9009-9408	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	8-94161-989-0	02	1	9409-		●
38	SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	9009-9408	●	●
38	SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	9409-9704		●
38	SYNCHRONIZER; LOW & 2ND	8-97149-170-0	01	1	9705-9812		●
38	SYNCHRONIZER; LOW & 2ND	8-94435-140-0	01	1	9901-		●
40	SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	9009-9408	●	●
40	SPRING; INSERT,LOW & 2ND	8-94152-558-1	02	1	9409-		●
50	GEAR; 2ND,MAINSHAFT Z=31	8-94435-164-1	01	1	9009-9408	●	●
50	GEAR; 2ND,MAINSHAFT Z=31	8-94435-164-1	01	1	9409-9601		●
50	GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	9602-9704		●
50	GEAR; 2ND,MAINSHAFT Z=31	8-97149-039-0	01	1	9705-9812		●
50	GEAR; 2ND,MAINSHAFT Z=31	8-94311-564-1	01	1	9901-		●
51	RING; BLOCK,LOW & 2ND Z=45	8-94151-510-2	02	1	9009-9408	●	●
51	RING; BLOCK,LOW & 2ND Z=45	8-94151-510-3	02	1	9409-		●
52	COLLAR; NEEDLE BRG,LOW	8-94248-620-1	01	1	9009-9408	●
52	COLLAR; NEEDLE BRG,LOW	8-94248-620-1	02	1	9009-0901		●
52	COLLAR; NEEDLE BRG,LOW	8-97238-834-0	02	1	0902-		●
53	BEARING; NEEDLE,LOW & REV NSK	8-94161-991-0	02	1	9009-		●
59	GEAR; REV MAINSHAFT Z=38	5-33257-013-2	01	1	9009-9408	●
59	GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	9009-9704		●
59	GEAR; REV MAINSHAFT Z=41	8-97149-053-0	01	1	9705-9812		●
59	GEAR; REV MAINSHAFT Z=37	8-94310-158-1	01	1	9901-		●
61	SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	9009-9704		●
61	SYNCHRONIZER; REV & 5TH	8-97149-176-0	01	1	9705-9812		●
61	SYNCHRONIZER; REV & 5TH	5-33260-010-0	01	1	9901-		●
62	SPRING; INSERT,REV & 5TH	5-33264-010-0	02	1	9009-		●
63	INSERT; SYN,REV & 5TH	5-33263-002-3	03	1	9009-		●
64	WASHER; LK,LOW	5-09533-003-0	01	1	9009-9408	●
64	WASHER; LK,LOW	8-94238-095-0	01	1	9009-		●
65	NUT; MAINSHAFT	5-09442-003-0	01	1	9009-9408	●
65	NUT; MAINSHAFT M32	8-94238-094-1	01	1	9009-		●
66	RING; BLOCK,SYN Z=30	8-94463-830-1	01	1	9009-		●
70	GEAR; 1ST,MAINSHAFT Z=41	8-94310-152-1	01	1	9009-9408	●	●
70	GEAR; 1ST,MAINSHAFT Z=41	8-94310-152-1	01	1	9409-9601		●
70	GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	9602-9704		●
70	GEAR; 1ST,MAINSHAFT Z=41	8-97149-038-0	01	1	9705-9812		●
70	GEAR; 1ST,MAINSHAFT Z=41	8-94310-154-1	01	1	9901-		●
71	WASHER; THRUST,LOW ID=32.0	5-33239-043-3	02	1	9009-		●
76	WASHER; THRUST,MAIN LOW ID=32.0	5-33239-043-1	02	1	9009-9408	●
80	GEAR; SPD DRIVE Z=5	8-94223-037-1	01	1	9009-9408	●
80	GEAR; SPD DRIVE Z=5	8-94322-519-0	01	1	9009-9601		●
80	GEAR; SPD DRIVE Z=6	8-94322-520-0	01	1	9602-9812		●
80	GEAR; SPD DRIVE Z=6	8-94161-085-1	01	1	9901-		●
82	SHAFT; MAIN,TRANS Z=26-26-8-18	8-94472-838-1	01	1	9009-9408	●
82	SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-2	01	1	9009-9704		●
82	SHAFT; MAIN,TRANS Z=26-24-27	8-97149-167-2	01	1	9705-9812		●
82	SHAFT; MAIN,TRANS Z=26-24-27	8-94435-162-3	01	1	9901-		●
84	BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-94124-765-0	01	1	9009-9111	●	●
84	BEARING; COUNTER SHAFT,FRT NSK ID=20 OD=47	8-97063-365-0	01	1	9112-		●
85	BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-94124-766-0	01	1	9009-9408	●	●
85	BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-94124-766-0	01	1	9409-0305		●
85	BEARING; ANGULAR BALL,CLUSTER NSK ID=25 OD=52	8-97365-931-0	01	1	0306-		●
86	WASHER; THRUST,5TH T=7.80	8-94238-099-4	01	1	9009-		●
86	WASHER; THRUST,5TH T=7.90	8-94238-100-4	01	1	9009-		●
86	WASHER; THRUST,5TH T=8.00	8-94238-101-4	01	1	9009-		●
86	WASHER; THRUST,5TH T=8.10	8-94238-102-4	01	1	9009-		●
86	WASHER; THRUST,5TH T=8.20	8-94238-103-4	01	1	9009-		●
86	WASHER; THRUST,5TH T=8.30	8-94238-104-4	01	1	9009-		●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	9009-		●
88	RING; THRUST,THRUST WASHER	8-94473-936-2	02	1	9009-		●
90	RING; SNAP,THRUST RING ID=37.0	9-09180-040-0	01	1	9009-		●
95	GEAR; REV,COUNTER Z=16	5-33336-002-4	01	1	9009-9408	●
95	GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	9009-9704		●
95	GEAR; REV,COUNTER Z=16	8-97149-054-0	01	1	9705-9812		●
95	GEAR; REV,COUNTER Z=16	8-94161-120-1	01	1	9901-		●
97	GEAR; 5TH,COUNTER Z=47	8-94161-098-1	01	1	9009-9704		●
97	GEAR; 5TH,COUNTER Z=47	8-97149-052-0	01	1	9705-9812		●
97	GEAR; 5TH,COUNTER Z=47	8-94161-098-2	01	1	9901-		●
98	BEARING; BALL,COUNTER END NSK ID=20 OD=47	8-94167-631-0	01	1	9009-9111		●
98	BEARING; BALL,COUNTER END NSK	8-97063-366-0	01	1	9112-0211		●
98	BEARING; BALL,COUNTER END NSK	8-97359-571-0	01	1	0212-0601		●
98	BEARING; BALL,COUNTER END NSK	8-98019-664-0	01	1	0602-		●
99	WASHER; PL,COUNTER 5TH GEAR ID=17	9-09160-516-0	01	1	9009-0605		●
99	WASHER; PL,COUNTER 5TH GEAR ID=17 OD=30	0-91610-516-0	01	1	0606-		●
128	WASHER; THRUST,REV SHAFT ID=22.0	5-33363-004-0	01	1	9009-		●
132	SHAFT; REV	5-33351-006-0	01	1	9009-9408	●
132	SHAFT; REV	8-94435-146-0	01	1	9009-		●
135	GEAR; REV IDLER Z=25	5-33361-019-1	01	1	9009-9408	●
135	GEAR; REV IDLER Z=23	8-94161-118-1	01	1	9009-9704		●
135	GEAR; REV IDLER Z=23	8-97149-048-0	01	1	9705-9812		●
135	GEAR; REV IDLER Z=23	8-94161-118-1	01	1	9901-0705		●
135	GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0706-0708		●
135	GEAR; REV IDLER Z=23	8-98082-807-0	01	1	0709-0809		●
135	GEAR; REV IDLER Z=23	8-98080-126-0	01	1	0810-1003		●
135	GEAR; REV IDLER Z=33 IDN	8-98146-724-0	01	1	1004-		●
136	WASHER; THRUST,REV IDLE,RR ID=16.2	5-33363-003-3	01	1	9009-		●
137	NUT; REV GEAR M16	9-09844-195-0	01	1	9009-0604		●
137	NUT; REV GEAR M16	8-98035-678-0	01	1	0605-		●
140	BOLT; LK PIECE M8X20 FLANGE	0-28010-820-0	01	1	9009-9204		●
140	BOLT; LK PIECE M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	9205-9406		●
140	BOLT; LK PIECE M8X20 FLANGE	0-28080-820-0	01	1	9407-9610		●
140	BOLT; LK PIECE M8X16 FLANGE	0-28080-816-0	01	1	9611-0512		●
140	BOLT; LK PIECE M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
151	KEY; FEATHER,SPD DRIVE GEAR	9-08020-510-0	01	1	9009-		●
167	PLATE; LK,COUNTER SHAFT,TRANSFER	5-33119-003-0	01	1	9009-9408	●
168	BOLT; LOCK PLATE,COUNTER SHAFT,TRANSFE M8X16	9-02040-816-0	01	1	9009-9204	●
168	BOLT; LOCK PLATE,COUNTER SHAFT,TRANSFE M8X16	0-20800-816-0	01	1	9205-9408	●
215	RING; SNAP,BALL BRG ID=27.9	9-09180-030-0	01	1	9009-		●
217	RING; SNAP,COUNTER FRT BRG ID=18.5	9-09180-020-0	01	1	9009-9408	●	●
217	RING; SNAP,COUNTER FRT BRG ID=18.5	9-09180-020-0	01	1	9409-		●
220	SPACER; REV GEAR,COUNTER	8-94223-043-0	01	1	9009-9408	●
221	WASHER; REV GEAR,COUNTER	5-09500-009-0	01	1	9009-9408	●
222	WASHER; LK,REV GEAR,COUNTER ID=20.2	9-09150-520-0	01	1	9009-9408	●
224	NUT; SELF LK,COUNTER M20	5-09400-030-0	01	1	9009-9307	●
224	NUT; SELF LK,COUNTER M20	9-99111-520-0	01	1	9308-9408	●
224	NUT; SELF LK,COUNTER M16	9-09844-195-0	01	1	9009-0604		●
224	NUT; SELF LK,COUNTER M16	8-98035-678-0	01	1	0605-		●
225	WASHER; LK,LOCK PLATE,COUNTER SHAFT ID=8.2	9-09150-508-0	01	1	9009-9408	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=22.0	5-33363-004-0	02	1	9009-9408	●
276	SPACER; BRG TO DRIVE GEAR	8-94161-087-0	01	1	9009-		●
306	RING; SNAP,MAINSHAFT T=1.50	5-09588-020-1	01	1	9009-9408	●	●
306	RING; SNAP,MAINSHAFT T=1.50	5-09588-020-1	01	1	9409-		●
306	RING; SNAP,MAINSHAFT T=1.55	5-09588-021-1	01	1	9009-9408	●	●
306	RING; SNAP,MAINSHAFT T=1.55	5-09588-021-1	01	1	9409-		●
306	RING; SNAP,MAINSHAFT T=1.60	5-09588-022-1	01	1	9009-9408	●	●
306	RING; SNAP,MAINSHAFT T=1.60	5-09588-022-1	01	1	9409-		●
306	RING; SNAP,MAINSHAFT T=1.65	5-09588-023-1	01	1	9009-9408	●	●
306	RING; SNAP,MAINSHAFT T=1.65	5-09588-023-1	01	1	9409-		●
313	BEARING; NEEDLE,LOW GEAR NSK	8-94161-991-0	01	1	9009-9408	●
387	INSERT; SYN,4TH & 3RD	9-33263-048-1	03	1	9009-9408	●	●
387	INSERT; SYN,4TH & 3RD	9-33263-048-2	03	1	9409-		●
393	BEARING; MAINSHAFT END (B) NSK	8-94173-866-0	01	1	9009-		●
393	BEARING; MAINSHAFT END (A) NSK	8-94173-863-0	01	1	9009-		●
396	BEARING; NEEDLE,MAINSHAFT KOYO	9-00096-100-1	01	1	9009-9408	●	●
396	BEARING; NEEDLE,MAINSHAFT KOYO	9-00096-100-1	01	1	9409-		●
397	SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	9009-9408	●	●
397	SPRING; INSERT,4TH & 3RD	5-33264-010-0	02	1	9409-		●
398	GEAR; COUNTER Z=37-31-20-16	8-94469-514-1	01	1	9009-9408	●
398	GEAR; COUNTER Z=37-31 -20-16	8-94435-144-1	01	1	9009-9601		●
398	GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	9602-9704		●
398	GEAR; COUNTER Z=37-31-20-16	8-97149-189-0	01	1	9705-9812		●
398	GEAR; COUNTER Z=37-31-20-16	8-94469-524-1	01	1	9901-		●
401	RING; SNAP,SPD DRIVE GEAR	9-09952-149-1	02	1	9009-9408	●
401	RING; SNAP,SPD DRIVE GEAR ID=27.9	9-09180-030-0	01	1	9009-		●
405	INSERT; SYN,LOW & 2ND	8-94152-557-0	03	1	9009-9408	●	●
405	INSERT; SYN,LOW & 2ND	8-94152-557-1	03	1	9409-		●
