◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#95076) — 50 parça

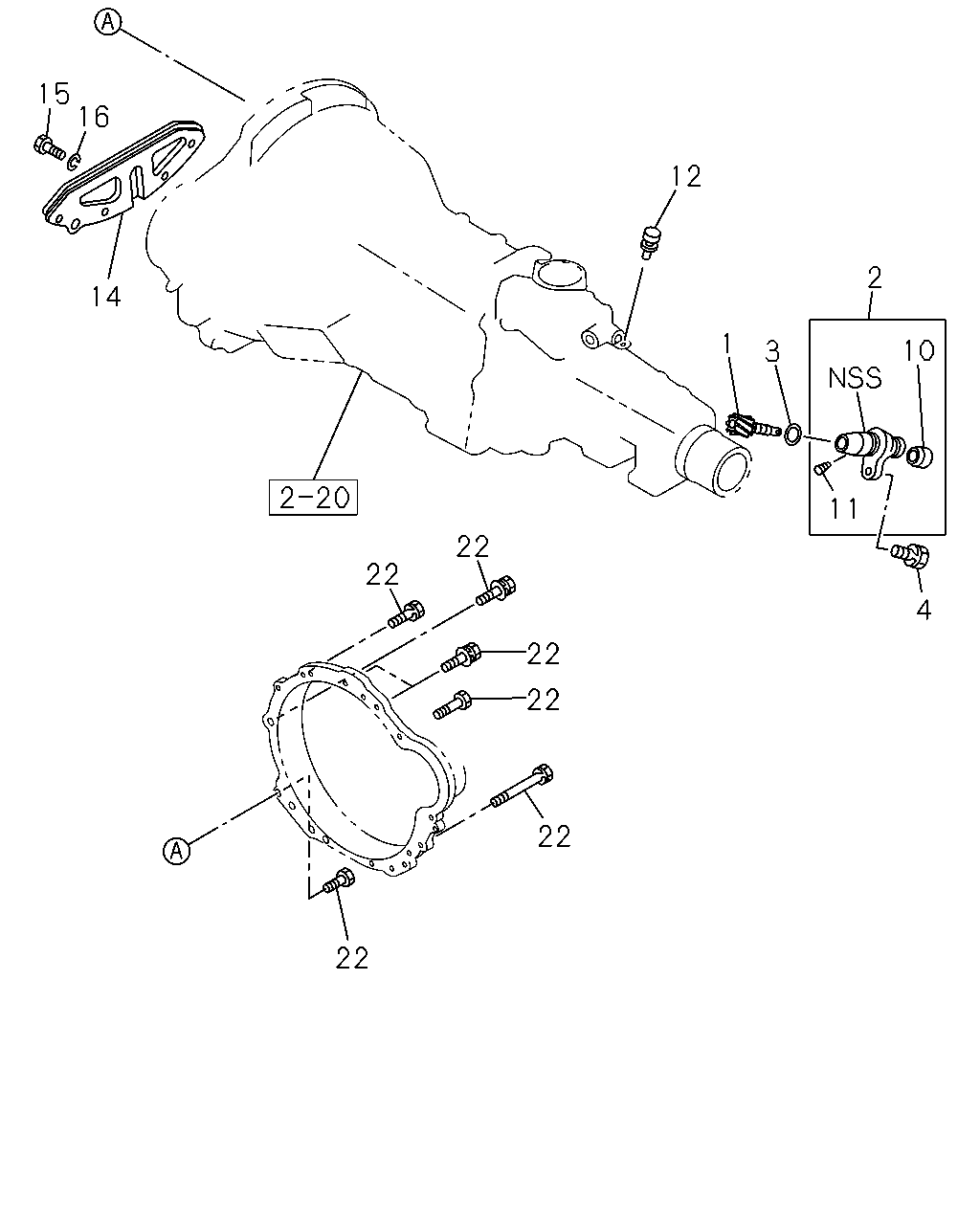

çizim 289375
15 16 12 2 3 1 11 4 10 22 22 22 22 22 22 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
Z=17 		8-94473-307-1 01 1 9009-9408 ● ●
1 GEAR; DRIVEN,SPD
Z=17 		8-94473-307-1 01 1 9409-9601 ●
1 GEAR; DRIVEN,SPD
Z=18 		8-94473-304-2 01 1 9602- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-1 01 1 9009-9408 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 9409- ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 		9-09921-100-0 01 1 9009-9408 ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 		9-09921-100-0 01 1 9409- ●
4 BOLT; RET,DRIVEN GEAR
M8X18 		0-28010-818-0 01 1 9009-9204 ● ●
4 BOLT; RET,DRIVEN GEAR
M8X18 FLANGE 		0-28080-818-0 01 1 9205-9408 ● ●
4 BOLT; RET,DRIVEN GEAR
M8X18 FLANGE 		0-28080-818-0 01 1 9409-9503 ●
4 BOLT; RET,DRIVEN GEAR
M8X16 FLANGE 		0-28080-816-0 01 1 9504-0512 ●
4 BOLT; RET,DRIVEN GEAR
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
10 SEAL; OIL,DRIVE GEAR
NOK 		1-09625-113-0 01 1 9009-9408 ● ●
10 SEAL; OIL,DRIVE GEAR
NOK 		1-09625-113-0 01 1 9409-9505 ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 9506- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 9009- ●
12 BREATHER; AIR,TRANS
L=39 		8-94440-556-0 01 1 9009-9408 ● ●
12 BREATHER; AIR,TRANS
L=39 		8-94440-556-0 01 1 9409-9410 ●
14 COVER; UNDER,TRANS 5-31131-013-1 01 1 9009-9408 ● ●
14 COVER; UNDER,TRANS 5-31131-013-1 01 1 9409-9601 ●
15 BOLT; UNDER COVER TO TRANS
M10X35 W/LK&PL WASHER 		0-50141-035-0 01 1 9009-9408 ● ●
15 BOLT; UNDER COVER TO TRANS
M10X35 W/LK&PL WASHER 		0-50141-035-0 01 1 9409-9601 ●
15 BOLT; UNDER COVER TO TRANS
M10X35 FLANGE 		0-28081-035-0 01 1 9602-0512 ●
15 BOLT; UNDER COVER TO TRANS
M10X35 FLANGE 		0-28051-035-0 01 1 0601- ●
15 BOLT; UNDER COVER TO TRANS
M6X10 		9-02040-610-0 04 1 9009-9204 ● ●
15 BOLT; UNDER COVER TO TRANS
M6X10 		0-20800-610-0 04 1 9205-9408 ● ●
15 BOLT; UNDER COVER TO TRANS
M6X10 		0-20800-610-0 04 1 9409-9601 ●
15 BOLT; UNDER COVER TO TRANS
M10X30 FLANGE 		0-28081-030-0 01 1 9602-0512 ●
15 BOLT; UNDER COVER TO TRANS
M10X30 FLANGE 		0-28051-030-0 01 1 0601- ●
16 WASHER; LK,UNDER COVER
ID=6.1 IDN 		9-09150-506-0 04 1 9009-9408 ● ●
16 WASHER; LK,UNDER COVER
ID=6.1 IDN 		9-09150-506-0 04 1 9409-9601 ●
22 BOLT; TRANS CASE TO ENG
M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9009-9408 ● ●
22 BOLT; TRANS CASE TO ENG
M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9409-9601 ●
22 BOLT; TRANS CASE TO ENG
M10X40 FLANGE 		0-28081-040-0 02 1 9602-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X40 FLANGE 		0-28051-040-0 02 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9009-9408 ● ●
22 BOLT; TRANS CASE TO ENG
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9409-9601 ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 9602-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28051-035-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M12X85 		0-10806-285-0 01 1 9009-9408 ● ●
22 BOLT; TRANS CASE TO ENG
M12X85 		0-10806-285-0 01 1 9409-9601 ●
22 BOLT; TRANS CASE TO ENG
M10X55 FLANGE 		8-94473-959-1 01 1 9602-0708 ●
22 BOLT; TRANS CASE TO ENG
M10X55 FLANGE 		8-98035-672-0 01 1 0709- ●
22 BOLT; TRANS CASE TO ENG
M12X40 		0-20801-240-0 01 1 9009-9408 ● ●
22 BOLT; TRANS CASE TO ENG
M12X40 		0-20801-240-0 01 1 9409-9601 ●
22 BOLT; TRANS CASE TO ENG
M12X35 FLANGE 		0-28081-235-0 01 1 9602-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X35 FLANGE 		0-28051-235-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M12X90 		8-94475-060-1 01 1 9602-9703 ●
22 BOLT; TRANS CASE TO ENG
M12X90 		0-28081-290-0 01 1 9704-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X90 FLANGE 		0-28051-290-0 01 1 0601- ●
