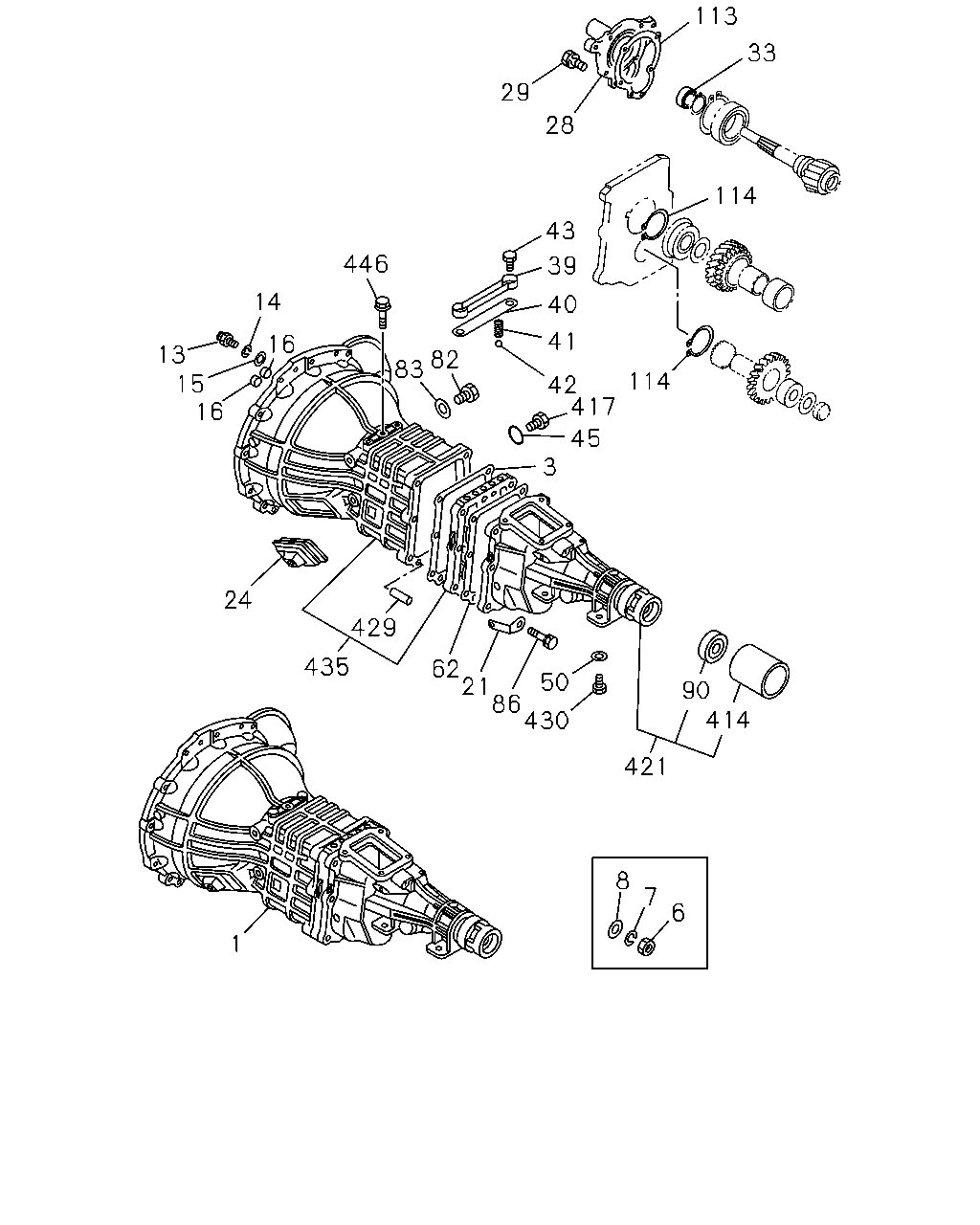

2-20 — MANUAL TRANSMISSION ASM AND CASE (#95075) — 115 parça

113 33 28 29 114 43 39 40 41 42 417 114 45 3 82 83 446 14 16 13 15 16 24 429 435 62 21 86 430 50 90 414 421 8 7 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-94473-039-0	01	1	9009-9205	●
1	TRANSMISSION ASM; MANUAL	8-97077-067-0	01	1	9206-9308	●
1	TRANSMISSION ASM; MANUAL	8-97077-044-0	01	1	9309-9408	●
1	TRANSMISSION ASM; MANUAL	8-94472-993-0	01	1	9009-9205		●
1	TRANSMISSION ASM; MANUAL	8-97077-113-0	01	1	9206-9601		●
1	TRANSMISSION ASM; MANUAL	8-97119-248-0	01	1	9602-9610		●
1	TRANSMISSION ASM; MANUAL IDN	8-97112-187-0	01	1	9611-9704		●
1	TRANSMISSION ASM; MANUAL IDN	8-97149-221-0	01	1	9705-9812		●
1	TRANSMISSION ASM; MANUAL IDN	8-97221-451-0	01	1	9901-		●
3	GASKET; CASE TO RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-94482-496-0	01	1	9009-9408	●	●
3	GASKET; CASE TO RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-94482-496-0	01	1	9409-		●
6	NUT; CASE,TRANS M10	9-09110-410-0	03	1	9009-9408	●	●
6	NUT; CASE,TRANS M10	9-09110-410-0	03	1	9409-9601		●
6	NUT; CASE,TRANS M10 FLANGE	0-91150-110-0	02	1	9602-0602		●
6	NUT; CASE,TRANS M10 FLANGE	0-91180-110-0	02	1	0603-		●
7	WASHER; LK,STIFFENER ID=10.2	9-09150-510-0	01	1	9009-9408	●	●
7	WASHER; LK,STIFFENER ID=10.2	9-09150-510-0	01	1	9409-9601		●
7	WASHER; LK,STIFFENER ID=12.2	9-09150-512-0	02	1	9009-9408	●	●
7	WASHER; LK,STIFFENER ID=12.2	9-09150-512-0	02	1	9409-9601		●
8	WASHER; PL,STIFFENER ID=10.5 OD=18	9-09160-510-0	01	1	9009-9408	●	●
8	WASHER; PL,STIFFENER ID=10.5 OD=18	9-09160-510-0	01	1	9409-9601		●
8	WASHER; PL,STIFFENER ID=12.5	9-09160-512-0	02	1	9009-9408	●	●
8	WASHER; PL,STIFFENER ID=12.5	9-09160-512-0	02	1	9409-9601		●
13	SUPPORT; SHIFT FORK L=47.5	5-31345-002-1	01	1	9009-9408	●	●
13	SUPPORT; SHIFT FORK L=47.5	5-31345-002-1	01	1	9409-9610		●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	9611-		●
14	WASHER; LK,SUPPORT ID=12.2	9-09150-512-0	01	1	9009-9408	●	●
14	WASHER; LK,SUPPORT ID=12.2	9-09150-512-0	01	1	9409-9610		●
15	WASHER; PL ID=12.5	9-09160-512-0	01	1	9009-9408	●	●
15	WASHER; PL ID=12.5	9-09160-512-0	01	1	9409-9610		●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	9009-9408	●	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	9409-0604		●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0605-		●
21	BRACKET; RETURN SPR	8-94206-583-0	01	1	9009-9408	●	●
21	BRACKET; RETURN SPR	8-94206-583-0	01	1	9409-9601		●
24	COVER; CHECK HOLE,DUST	5-31131-005-0	01	1	9009-9408	●	●
24	COVER; CHECK HOLE,DUST	5-31131-005-0	01	1	9409-9601		●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	9602-		●
28	COVER; FRT,TRANS CASE	8-94423-141-1	01	1	9009-9408	●	●
28	COVER; FRT,TRANS CASE	8-94423-141-1	01	1	9409-9601		●
28	COVER; FRT,TRANS CASE	8-94421-781-1	01	1	9602-9610		●
28	COVER; FRT,TRANS CASE	8-97116-796-0	01	1	9611-		●
29	BOLT; FRT COVER M8X22 W/LK WASHER	8-94174-346-1	06	1	9009-9408	●	●
29	BOLT; FRT COVER M8X22 W/LK WASHER	8-94174-346-1	06	1	9409-9409		●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9410-0604		●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94326-441-0	01	1	9009-9408	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94326-441-0	01	1	9409-		●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	9009-9408	●	●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	9409-0604		●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	0605-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9009-9408	●	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9409-		●
41	SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9009-9408	●	●
41	SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	9409-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9009-9408	●	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9409-		●
43	BOLT; PLATE TO PLATE M8X20 FLANGE	0-28080-820-0	02	1	9009-9408	●	●
43	BOLT; PLATE TO PLATE M8X20 FLANGE	0-28080-820-0	02	1	9409-9409		●
43	BOLT; PLATE TO PLATE M8X16 FLANGE	0-28080-816-0	02	1	9410-0106		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	0107-0604		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	0605-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9009-9407	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-9408	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9409-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9009-9407	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-9408	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9409-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-94482-496-0	01	1	9009-9408	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-94482-496-0	01	1	9409-		●
82	PLUG; SCREW,CASE M14X9	9-99202-314-0	01	1	9009-9312	●	●
82	PLUG; SCREW,CASE M14X11	8-94252-142-0	01	1	9401-9408	●	●
82	PLUG; SCREW,CASE M14X11	8-94252-142-0	01	1	9409-9610		●
83	GASKET; PLUG ID=14.2	8-94462-114-0	01	1	9009-9408	●	●
83	GASKET; PLUG ID=14.2	8-94462-114-0	01	1	9409-9902		●
86	BOLT; RR COVER M10X55 FLANGE	8-94473-959-1	08	1	9009-9408	●	●
86	BOLT; RR COVER M10X55 FLANGE	8-94473-959-1	08	1	9409-0604		●
86	BOLT; RR COVER M10X55 FLANGE	8-98035-672-0	08	1	0605-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-94223-026-0	01	1	9009-9408	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94422-387-0	01	1	9009-0403		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-3	01	1	0404-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-94482-495-0	01	1	9009-9408	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-94482-495-0	01	1	9409-9610		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	9611-		●
114	RING; SNAP,BALL BRG ID=49.6	5-09589-004-0	01	1	9009-9408	●	●
114	RING; SNAP,BALL BRG ID=49.6	5-09589-004-0	01	1	9409-		●
114	RING; SNAP,BALL BRG ID=71.7	5-09589-005-0	01	1	9009-9408	●	●
114	RING; SNAP,BALL BRG ID=71.7	5-09589-005-0	01	1	9409-		●
414	COVER; DUST,RR COVER	8-94310-493-0	01	1	9009-9408	●	●
414	COVER; DUST,RR COVER	8-94310-493-0	01	1	9409-0604		●
414	COVER; DUST,RR COVER	8-98027-802-0	01	1	0605-		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9009-9408	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9409-0604		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-		●
421	COVER; RR,TRANS	8-94164-013-1	01	1	9009-9408	●
421	COVER; RR,TRANS W/BUSH	8-94328-389-1	01	1	9009-9510		●
421	COVER; RR,TRANS	8-97113-615-1	01	1	9511-9610		●
421	COVER; RR,TRANS	8-97112-207-3	01	1	9611-0504		●
421	COVER; RR,TRANS	8-98014-389-0	01	1	0505-0604		●
421	COVER; RR,TRANS	8-98036-019-0	01	1	0605-1105		●
421	COVER; RR,TRANS	8-98193-595-0	01	1	1106-		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-0	02	1	9009-9408	●	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9409-		●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9009-9408	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9409-0604		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-		●
435	CASE; TRANS	8-94473-935-2	01	1	9009-9408	●	●
435	CASE; TRANS	8-94473-935-2	01	1	9409-9601		●
435	CASE; TRANS	8-94435-127-3	01	1	9602-9707		●
435	CASE; TRANS	8-97170-229-0	01	1	9708-9901		●
435	CASE; TRANS IDN	8-97211-483-0	01	1	9902-9902		●
435	CASE; TRANS IDN	8-97211-484-0	01	1	9903-0210		●
435	CASE; TRANS	8-97330-878-0	01	1	0211-0604		●
435	CASE; TRANS IDN	8-98035-893-0	01	1	0605-		●
446	PLUG; CASE,TRANS M14X11	8-94252-142-0	01	1	9611-9902		●
