◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#95073) — 33 parça

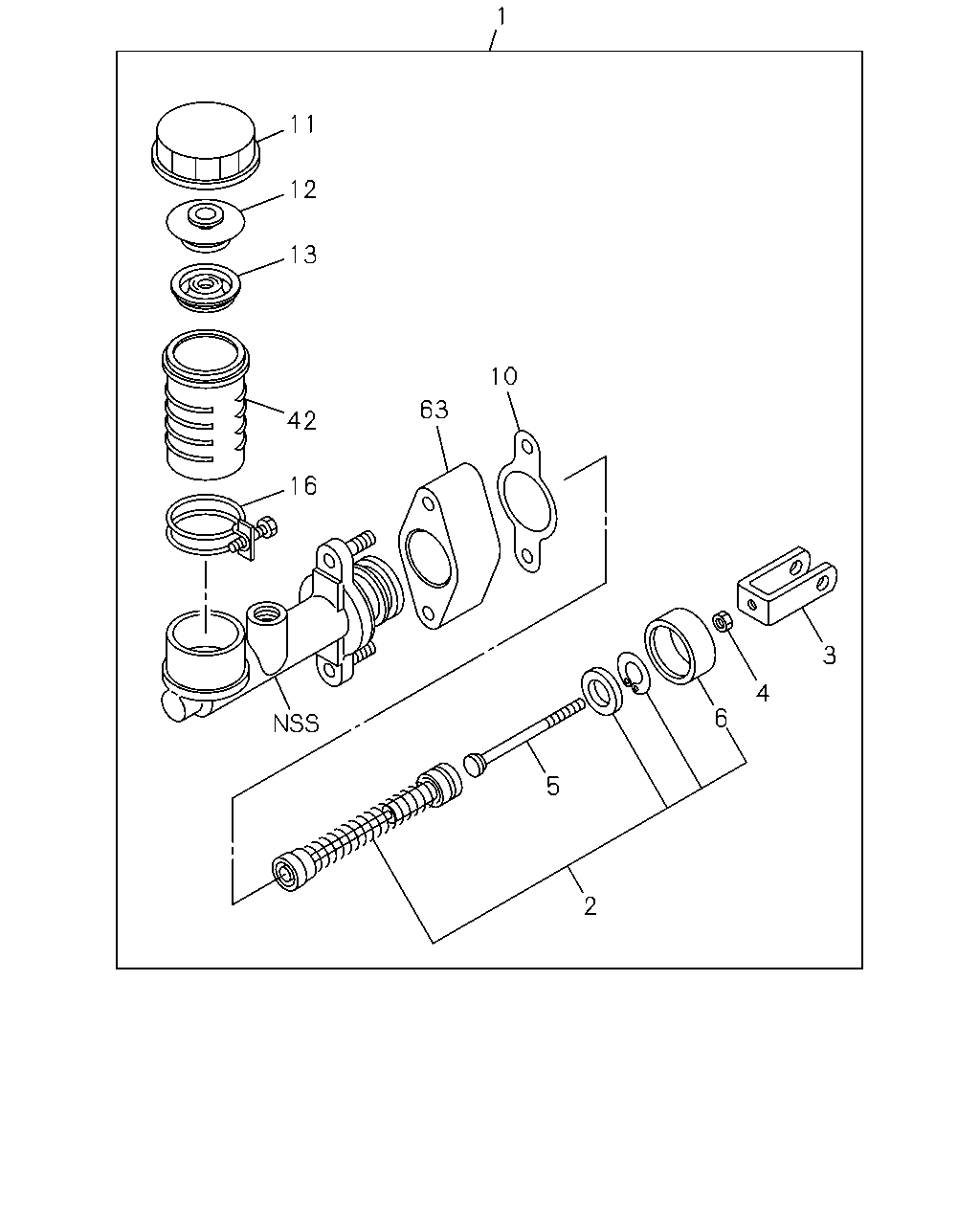

çizim 289269
1 11 12 13 10 63 42 16 5 6 3 4 2
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER 8-97138-483-0 01 1 9602-9708
1 CYLINDER ASM; CLUTCH MASTER 8-97185-019-0 01 1 9709-9802
1 CYLINDER ASM; CLUTCH MASTER 8-97201-006-0 01 1 9803-
2 REPAIR KIT; CLU M/CYL 5-87831-486-1 01 1 9602-9708
2 REPAIR KIT; CLU M/CYL 5-87831-659-0 01 1 9709-9802
3 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9602-
4 NUT; JAW JOINT
M8 		9-09111-408-0 01 1 9602-0511
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0512-
5 ROD; PUSH,CLU M/CYL 8-97138-487-0 01 1 9602-9802
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 9602-9802
10 GASKET; CLU M/CYL 8-94427-298-0 01 1 9602-9802
10 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803-
11 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9602-
12 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9602-
13 GASKET; OIL TANK 8-94412-205-0 01 1 9602-
16 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9602-
42 TANK; OIL,CLU 8-97037-335-0 01 1 9602-
63 ADAPTER 8-97138-488-0 01 1 9602-
çizim 289305
1 11 12 13 42 16 83 63 10 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER 8-97138-483-0 01 1 9602-9708
1 CYLINDER ASM; CLUTCH MASTER 8-97185-019-0 01 1 9709-9802
1 CYLINDER ASM; CLUTCH MASTER 8-97201-006-0 01 1 9803-
3 JOINT; JAW,CLU M/CYL 8-94412-201-0 01 1 9602-
4 NUT; JAW JOINT
M8 		9-09111-408-0 01 1 9602-0511
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0512-
10 GASKET; CLU M/CYL 8-94427-298-0 01 1 9602-9802
10 GASKET; CLU M/CYL 8-97184-654-0 01 1 9803-
11 CAP; OUTER,CLU M/CYL 8-94412-207-0 01 1 9602-
12 CAP; INNER,OIL TANK,CLU M/CYL 8-94412-206-0 01 1 9602-
13 GASKET; OIL TANK 8-94412-205-0 01 1 9602-
16 CLIP; OIL TANK,CLU M/CYL 8-94412-202-0 01 1 9602-
42 TANK; OIL,CLU 8-97037-335-0 01 1 9602-
63 ADAPTER 8-97138-488-0 01 1 9602-
83 CYLINDER SUB ASM; CLUTCH MASTER 8-97213-042-0 01 1 9803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
