2-03 — CLUTCH PEDAL AND CONTROL (#95070) — 55 parça

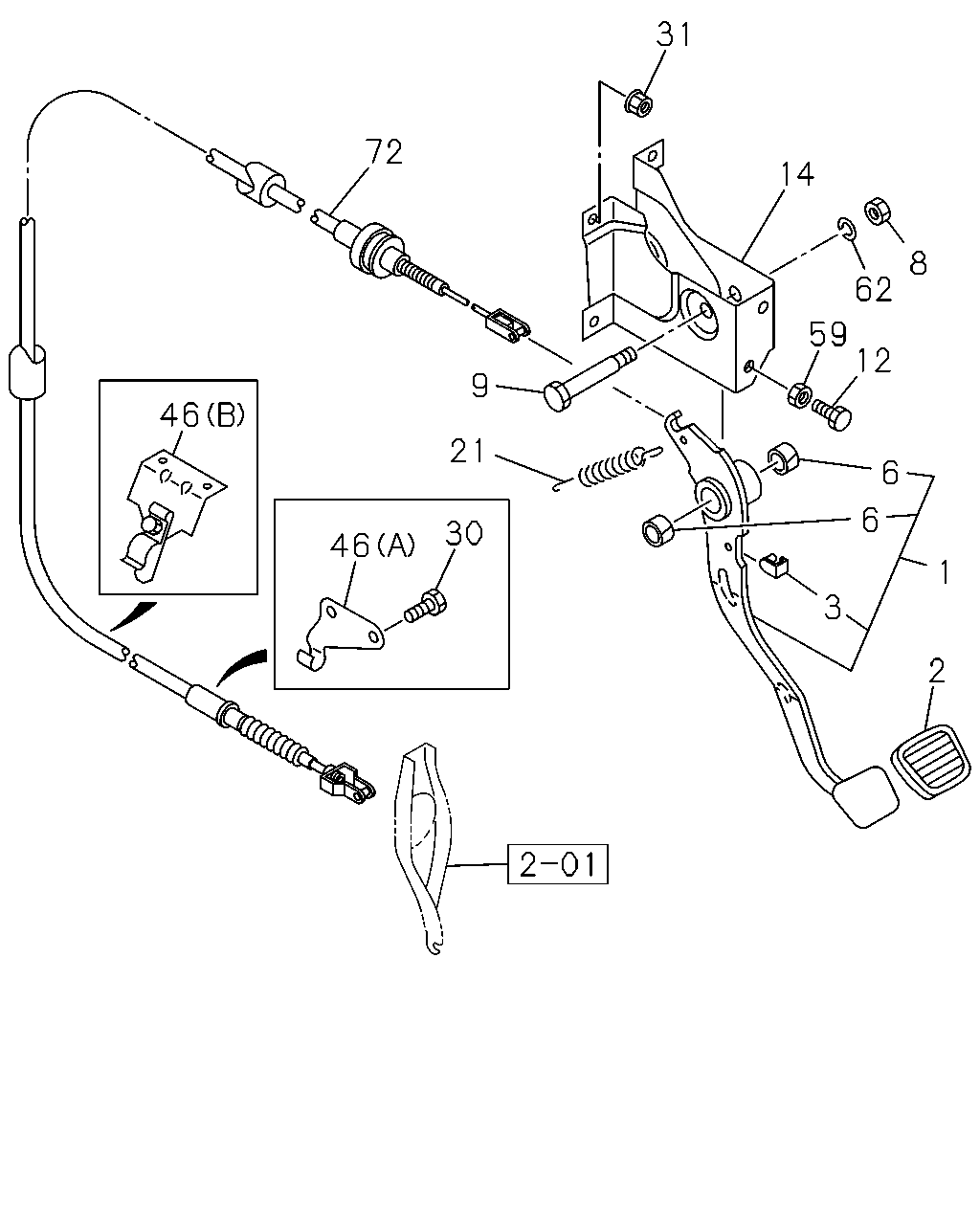

46 46 30 72 31 14 8 62 59 6 6 3 2 1 21 9 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PEDAL; CLU	8-94454-760-0	01	1	9009-9601	●	●	●	●
1	PEDAL; CLU	8-97135-073-0	01	1	9602-	●	●	●	●
2	COVER; CLU PEDAL	8-94222-524-1	01	1	9009-	●	●	●	●
3	RUBBER; STOPPER,CLU PEDAL	8-94463-258-0	01	1	9009-	●	●	●	●
6	BUSHING; CLU PEDAL	8-94244-439-0	02	1	9009-	●	●	●	●
8	NUT; PIN TO PEDAL M10	9-09110-410-0	01	1	9009-9601	●	●	●	●
8	NUT; PIN TO PEDAL M10 FLANGE	0-91150-110-0	01	1	9602-0602	●	●	●	●
8	NUT; PIN TO PEDAL M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●
9	PIN; CLU PEDAL	8-94478-011-0	01	1	9009-9601	●	●	●	●
9	PIN; CLU PEDAL	8-94455-308-0	01	1	9602-	●	●	●	●
12	BOLT; CLU PEDAL ADJ M10X35	9-02041-035-0	01	1	9009-9204	●	●	●	●
12	BOLT; CLU PEDAL ADJ M10X35	0-20801-035-0	01	1	9205-0512	●	●	●	●
12	BOLT; CLU PEDAL ADJ M10X35	0-20851-035-0	01	1	0601-	●	●	●	●
14	BRACKET ASM; CLU PEDAL MTG	8-94454-758-3	01	1	9009-9601	●	●	●	●
14	BRACKET ASM; CLU PEDAL MTG	8-94329-888-1	01	1	9602-	●	●	●	●
21	SPRING; RETURN,CLU PEDAL	8-94222-475-0	01	1	9009-9601	●	●	●	●
30	BOLT; CLU MTG BRKT M8X16 W/LK WASHER	9-01900-816-0	02	1	9009-9204	●	●	●	●
30	BOLT; CLU MTG BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9601	●	●	●	●
31	NUT; MTG BRKT TO BODY M8 FLANGE	0-91150-108-0	04	1	9009-9601	●	●	●	●
31	NUT; MTG BRKT TO BODY M8 FLANGE	5-09440-005-0	04	1	9602-0805	●	●	●	●
31	NUT; MTG BRKT TO BODY M8 FLANGE	8-97581-233-0	04	1	0806-	●	●	●	●
46	BRACKET; CLU CABLE (A) DELETION	8-94323-206-0	01	1	9009-9601	●	●	●	●
46	BRACKET; CLU CABLE (B)	8-94462-836-0	01	1	9009-9601	●	●	●	●
59	NUT; CLU PEDAL ADJ M10	9-09110-410-0	01	1	9009-0512	●	●	●	●
59	NUT; CLU PEDAL ADJ M10	0-91110-510-0	01	1	0601-	●	●	●	●
62	WASHER; LK,PIN TO PEDAL ID=10.2	9-09150-510-0	01	1	9009-9601	●	●	●	●
72	CABLE; CLU CONT DELETION	8-94367-750-1	01	1	9009-9601	●	●	●	●

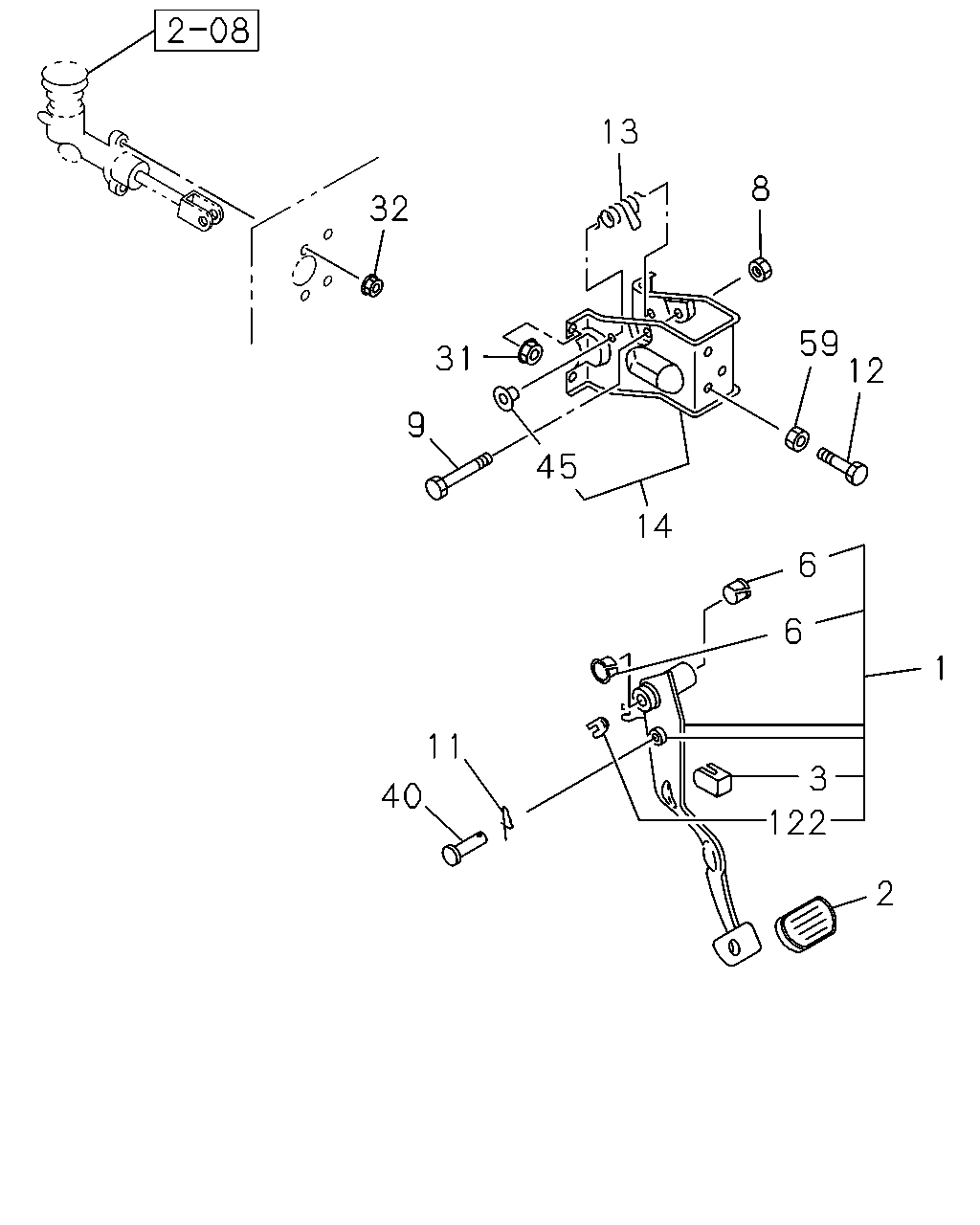

32 13 8 59 12 1 6 6 3 122 2 11 40 14 45 31 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PEDAL; CLU	8-94454-760-0	01	1	9009-9601	●	●	●	●
1	PEDAL; CLU	8-97135-073-0	01	1	9602-	●	●	●	●
2	COVER; CLU PEDAL	8-94222-524-1	01	1	9009-	●	●	●	●
3	RUBBER; STOPPER,CLU PEDAL	8-94463-258-0	01	1	9009-	●	●	●	●
6	BUSHING; CLU PEDAL	8-94244-439-0	02	1	9009-	●	●	●	●
8	NUT; PIN TO PEDAL M10	9-09110-410-0	01	1	9009-9601	●	●	●	●
8	NUT; PIN TO PEDAL M10 FLANGE	0-91150-110-0	01	1	9602-0602	●	●	●	●
8	NUT; PIN TO PEDAL M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●
9	PIN; CLU PEDAL	8-94478-011-0	01	1	9009-9601	●	●	●	●
9	PIN; CLU PEDAL	8-94455-308-0	01	1	9602-	●	●	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL L=27.7	1-09747-005-0	01	1	9602-	●	●	●	●
12	BOLT; CLU PEDAL ADJ M10X35	9-02041-035-0	01	1	9009-9204	●	●	●	●
12	BOLT; CLU PEDAL ADJ M10X35	0-20801-035-0	01	1	9205-0512	●	●	●	●
12	BOLT; CLU PEDAL ADJ M10X35	0-20851-035-0	01	1	0601-	●	●	●	●
13	SPRING; ASSIST,CLU PEDAL	8-97036-041-0	01	1	9602-0109	●	●	●	●
13	SPRING; ASSIST,CLU PEDAL	8-97312-882-0	01	1	0110-	●	●	●	●
14	BRACKET ASM; CLU PEDAL MTG	8-94454-758-3	01	1	9009-9601	●	●	●	●
14	BRACKET ASM; CLU PEDAL MTG	8-94329-888-1	01	1	9602-	●	●	●	●
31	NUT; MTG BRKT TO BODY M8 FLANGE	0-91150-108-0	04	1	9009-9601	●	●	●	●
31	NUT; MTG BRKT TO BODY M8 FLANGE	5-09440-005-0	04	1	9602-0805	●	●	●	●
31	NUT; MTG BRKT TO BODY M8 FLANGE	8-97581-233-0	04	1	0806-	●	●	●	●
32	NUT; BRKT TO CLU M/CYL M8 FLANGE	0-91150-108-0	02	1	9602-0602	●	●	●	●
32	NUT; BRKT TO CLU M/CYL M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
40	PIN; JOINT,CLU DAMPER	8-94432-133-1	01	1	9602-	●	●	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL	8-94175-433-0	02	1	9602-	●	●	●	●
59	NUT; CLU PEDAL ADJ M10	9-09110-410-0	01	1	9009-0512	●	●	●	●
59	NUT; CLU PEDAL ADJ M10	0-91110-510-0	01	1	0601-	●	●	●	●
122	BUSHING; ASSIST PEDAL,CLU	8-94175-434-0	01	1	9602-	●	●	●	●
