Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#95067) — 46 parça
◀

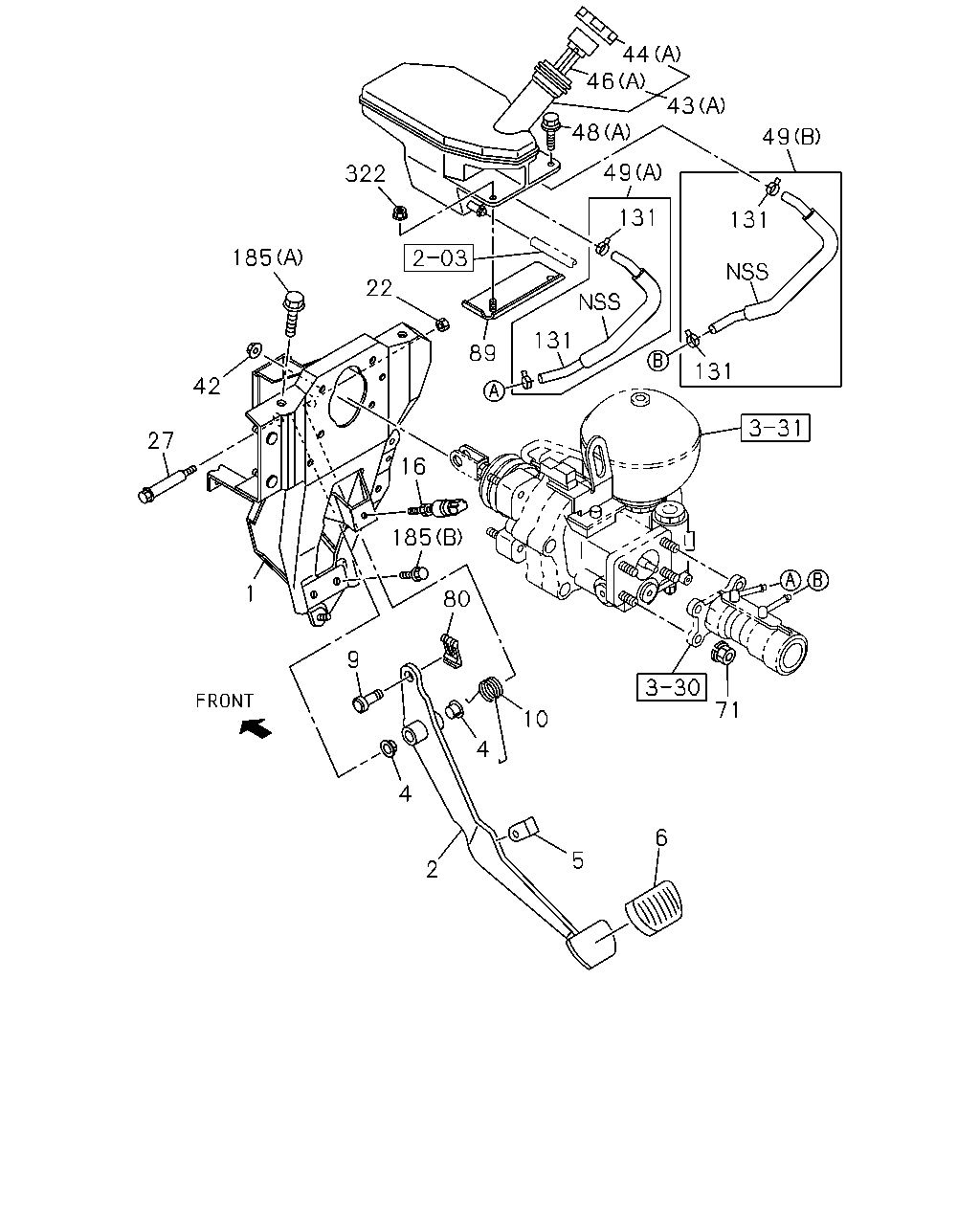

[310A] BRAKE PEDAL (29 parça)

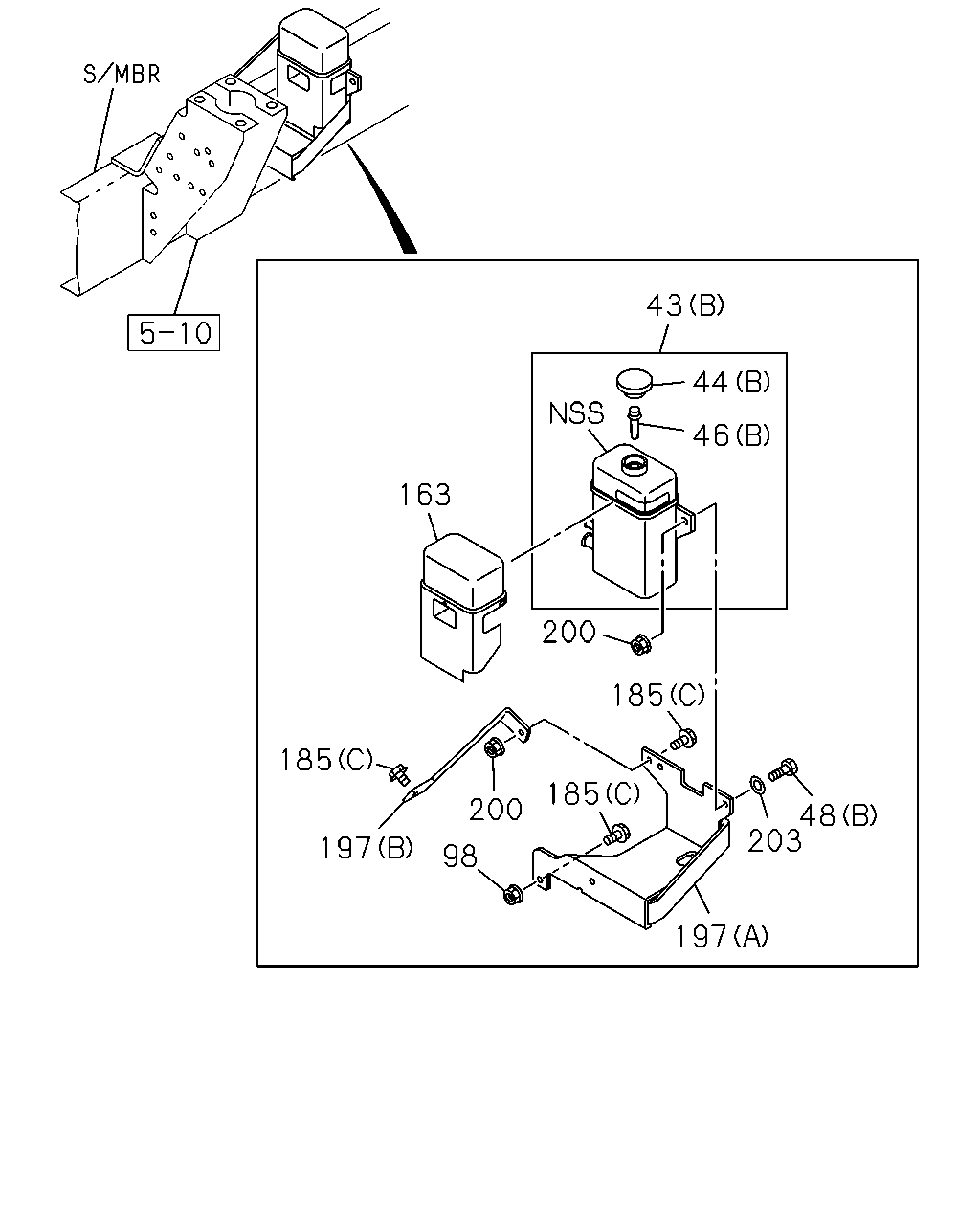

[310A] HYDRO BRAKE BOOSTER (17 parça)
▶
44
46
48
43
49
49
131
131
131
131
71
10
5
6
4
2
4
9
80
1
16
185
27
42
22
89
185
322
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.634 BRACKET ASM; PEDAL
8-98091-563-0
01
1
1208-
2
04.625 PEDAL; BRK
8-98011-432-0
01
1
1208-
4
04.634 BUSHING; BRK PEDAL
04.792
8-94238-596-0
02
1
1208-
5
04.634 STOPPER; BRK PEDAL
8-98029-187-0
01
1
1208-
6
04.630 COVER; BRK PEDAL
00.829
8-97853-413-2
01
1
1208-
9
04.634 PIN; JAW JOINT
8-98147-657-0
01
1
1208-
10
04.639 SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
1208-
16
02.447 SWITCH; STOP LAMP
8-98000-028-0
01
1
1208-
22
04.634 NUT; SHAFT
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1208-
27
04.634 SHAFT; BRK PEDAL
8-97866-667-0
01
1
1208-
42
04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
1208-
43
04.651 TANK ASM; OIL
(B)
8-97306-217-0
01
1
1208-
43
04.651 TANK ASM; OIL
(A)
8-97387-217-3
01
1
1208-
44
04.651 CAP; OIL TANK
06.635 (B)
8-94146-153-2
01
1
1208-
44
04.651 CAP; OIL TANK
(A)
8-98022-268-0
01
1
1208-
46
04.651 FILTER; RESERVOIR,BRK
06.600 (B)
8-97094-732-0
01
1
1208-
46
04.651 FILTER; RESERVOIR,BRK
(A)
8-98022-269-0
01
1
1208-
48
04.651 BOLT; OIL TANK TO BRKT
06.216 (B) M8X25 FLANGE IDN
0-28650-825-0
02
1
1208-
48
04.651 BOLT; OIL TANK TO BRKT
08.077 (A) M6X20 W/PL WASHER
8-97370-668-0
01
1
1208-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
(A)
8-97387-666-1
01
1
1208-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
(B)
8-97387-667-1
01
1
1208-
71
04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
1208-
80
04.634 PIN; SNAP,BRK PEDAL
00.833
8-98007-161-0
01
1
1208-
89
04.901 BRACKET; M/CYL
8-98014-337-1
01
1
1208-
131
04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
8-98031-178-0
04
1
1208-
185
04.634 BOLT; BRKT
06.216 (C) M8X25 FLANGE IDN
0-28650-825-0
04
1
1208-
185
04.634 BOLT; BRKT
07.833 (A) M10X25 FLANGE IDN
0-28661-025-0
02
1
1208-
185
04.634 BOLT; BRKT
00.833 (B) M10X22 W/PL WASHER
8-97313-188-0
02
1
1208-
322
04.651 NUT; OIL TANK
01.062 M6 FLANGE IDN
0-91180-106-0
01
1
1208-
43
44
46
163
200
185
203
48
197
98
197
185
200
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
04.651 TANK ASM; OIL
(B)
8-97306-217-0
01
1
1208-
43
04.651 TANK ASM; OIL
(A)
8-97387-217-3
01
1
1208-
44
04.651 CAP; OIL TANK
06.635 (B)
8-94146-153-2
01
1
1208-
44
04.651 CAP; OIL TANK
(A)
8-98022-268-0
01
1
1208-
46
04.651 FILTER; RESERVOIR,BRK
06.600 (B)
8-97094-732-0
01
1
1208-
46
04.651 FILTER; RESERVOIR,BRK
(A)
8-98022-269-0
01
1
1208-
48
04.651 BOLT; OIL TANK TO BRKT
06.216 (B) M8X25 FLANGE IDN
0-28650-825-0
02
1
1208-
48
04.651 BOLT; OIL TANK TO BRKT
08.077 (A) M6X20 W/PL WASHER
8-97370-668-0
01
1
1208-
98
04.634 NUT; BRKT
01.062 M8 FLANGE IDN
0-91180-108-0
03
1
1208-
163
04.651 COVER; OIL TANK
8-97164-749-1
01
1
1208-
185
04.634 BOLT; BRKT
06.216 (C) M8X25 FLANGE IDN
0-28650-825-0
04
1
1208-
185
04.634 BOLT; BRKT
07.833 (A) M10X25 FLANGE IDN
0-28661-025-0
02
1
1208-
185
04.634 BOLT; BRKT
00.833 (B) M10X22 W/PL WASHER
8-97313-188-0
02
1
1208-
197
04.634 BRACKET; OIL TANK
(A)
8-97173-342-2
01
1
1208-
197
04.634 BRACKET; OIL TANK
(B)
8-97333-555-2
01
1
1208-
200
04.634 NUT; BRKT
01.062 M8 FLANGE IDN
0-91180-108-0
02
1
1208-
203
04.634 WASHER; PL,OIL TANK
04.595 ID=8.4 OD=22
0-91610-708-0
02
1
1208-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
