Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

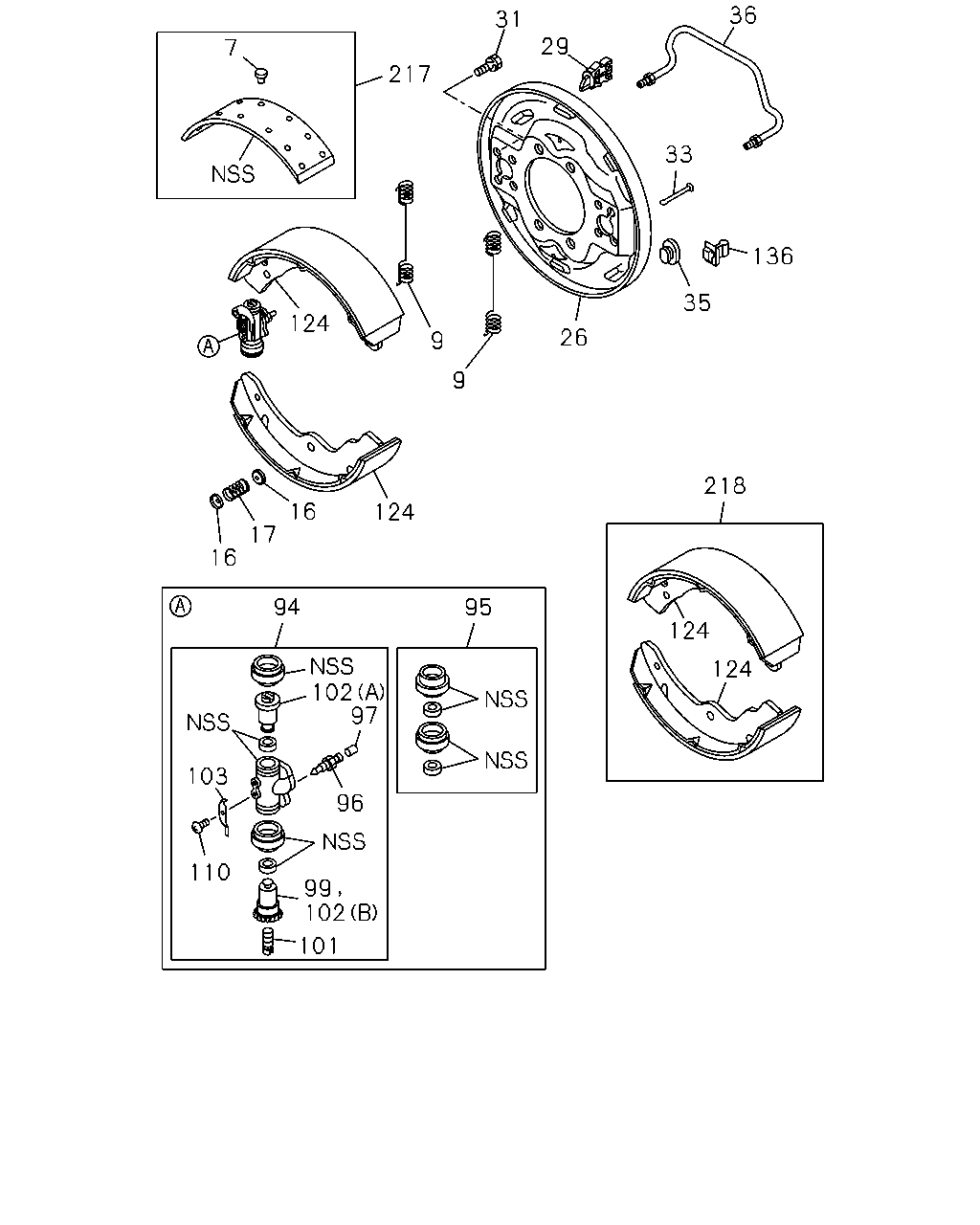

3-05 — REAR WHEEL BRAKE
(#95065) — 28 parça
7
217
31
29
36
33
136
35
26
9
9
218
124
124
95
102
97
96
99
102
101
110
103
94
16
17
16
124
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
05.019 RIVET; LINING,RR BRK
1-09732-029-0
64
1
1208-
9
05.026 SPRING; RETURN,BRK SHOE
8-97122-869-0
04
1
1208-
16
05.043 CUP; SHOE HOLDING
9-47165-096-0
08
1
1208-
17
04.043 SPRING; SHOE HOLD DOWN
05.043
5-09580-101-1
04
1
1208-
26
05.001 PLATE; BACK,RR BRK
8-97134-731-0
01
1
1208-
26
05.001 PLATE; BACK,RR BRK
8-97134-732-0
01
1
1208-
29
04.685 CLIP; PIPE,BRK
8-97022-086-0
02
1
1208-
31
04.665 BOLT; RR WHEEL CYL
8-97081-305-0
16
1
1208-
33
05.043 PIN; SHOE HOLD DOWN
8-97122-870-0
04
1
1208-
35
05.002 GROMMET; CHECK HOLE
8-97017-507-0
02
1
1208-
36
04.685 PIPE; OIL,RR BRK
8-97079-847-0
02
1
1208-
94
04.665 CYLINDER; WHEEL,RR BRK
8-97353-570-0
02
1
1208-
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97353-571-0
01
1
1208-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97353-572-0
01
1
1208-
95
04.665 CUP SET; RR WHEEL CYL
5-87832-080-0
02
1
1208-
96
04.666 SCREW; BLEEDER,RR BRK
8-98050-477-0
01
1
1208-
97
04.666 CAP; BLEEDER,RR WHEEL CYL
IDN
8-98050-479-0
01
1
1208-
99
04.668 PISTON; RR WHEEL CYL
8-97353-579-0
03
1
1208-
101
04.666 SCREW; ADJ,RR WHEEL CYL
8-94414-702-0
04
1
1208-
102
04.668 PISTON; REAR WHEEL CYL
(A)
8-97353-578-0
04
1
1208-
102
04.668 PISTON; REAR WHEEL CYL
(B)
8-97353-579-0
01
1
1208-
103
05.107 SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
1208-
110
05.107 SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
1208-
124
05.017 SHOE ASM; BRK,RR
8-97188-455-0
04
1
1208-
136
05.002 GROMMET
8-97044-742-1
04
1
1208-
217
05.018 LINING KIT; RR BRK
5-87831-692-0
01
1
1208-
217
05.018 LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-119-0
01
1
1208-
218
05.017 SHOE KIT; BRK,RR
5-87831-693-0
01
1
1208-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
