2-25 — SPEEDOMETER DRIVEN GEAR (#95059) — 16 parça

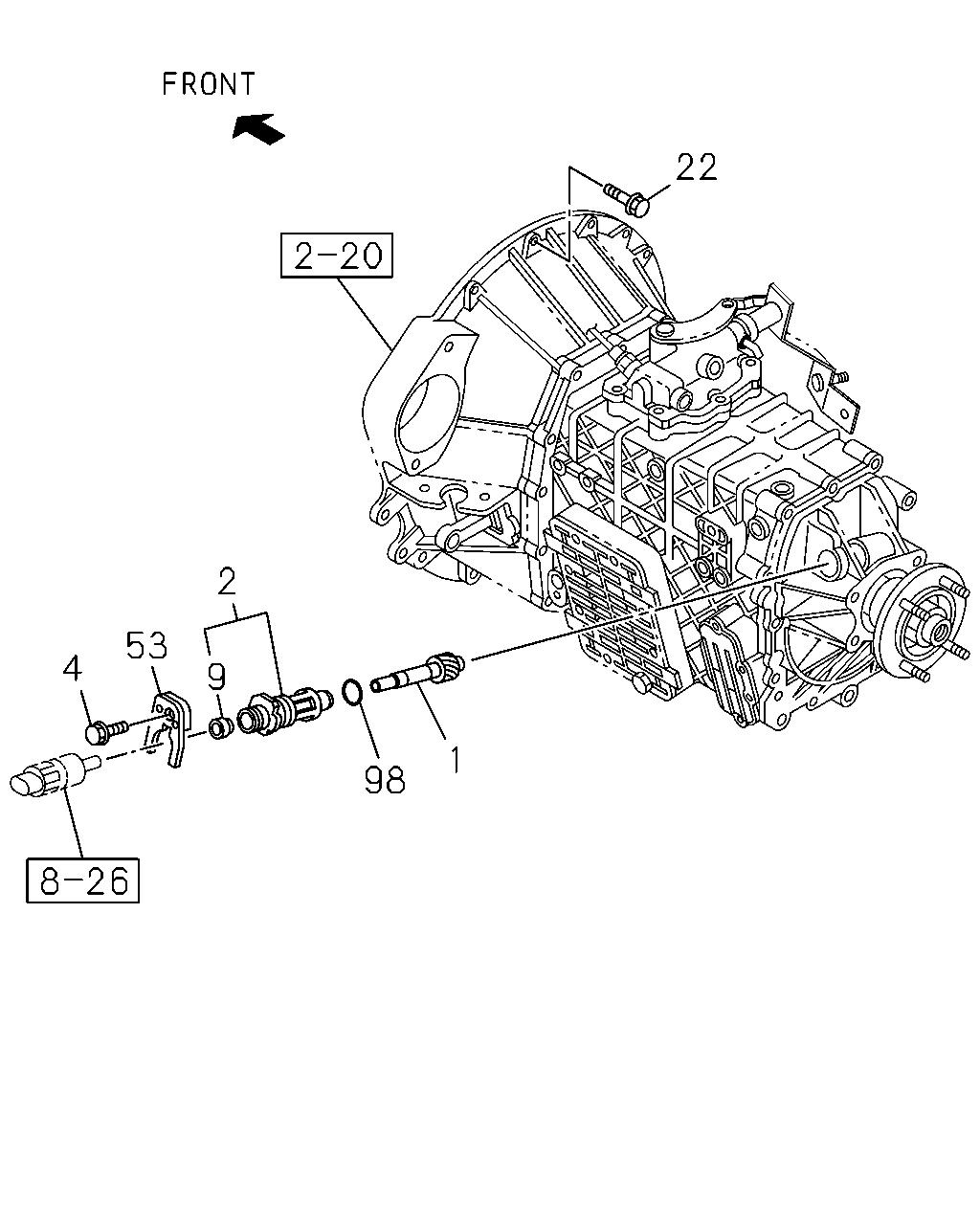

çizim 288326
4 53 9 2 98 1 22
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=15 		8-97253-560-1 01 1 1208-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) Z=15 		8-97253-560-1 01 1 1208-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) Z=14 		8-97253-561-1 01 1 1208-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=16 		8-97253-558-1 01 1 1208-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) MARK "12,13,14,15" 		8-97253-125-0 01 1 1208-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) MARK "12,13,14,15" 		8-97253-125-0 01 1 1208-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 1208-
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 1208-
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 1208-
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 04 1 1302-
22 00.685 BOLT; TRANS CASE TO ENG
03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1208-
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X55 FLANGE 		8-97365-449-0 02 1 1208-
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 1208-1301
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 1208-1301
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 1208-
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 1208-
