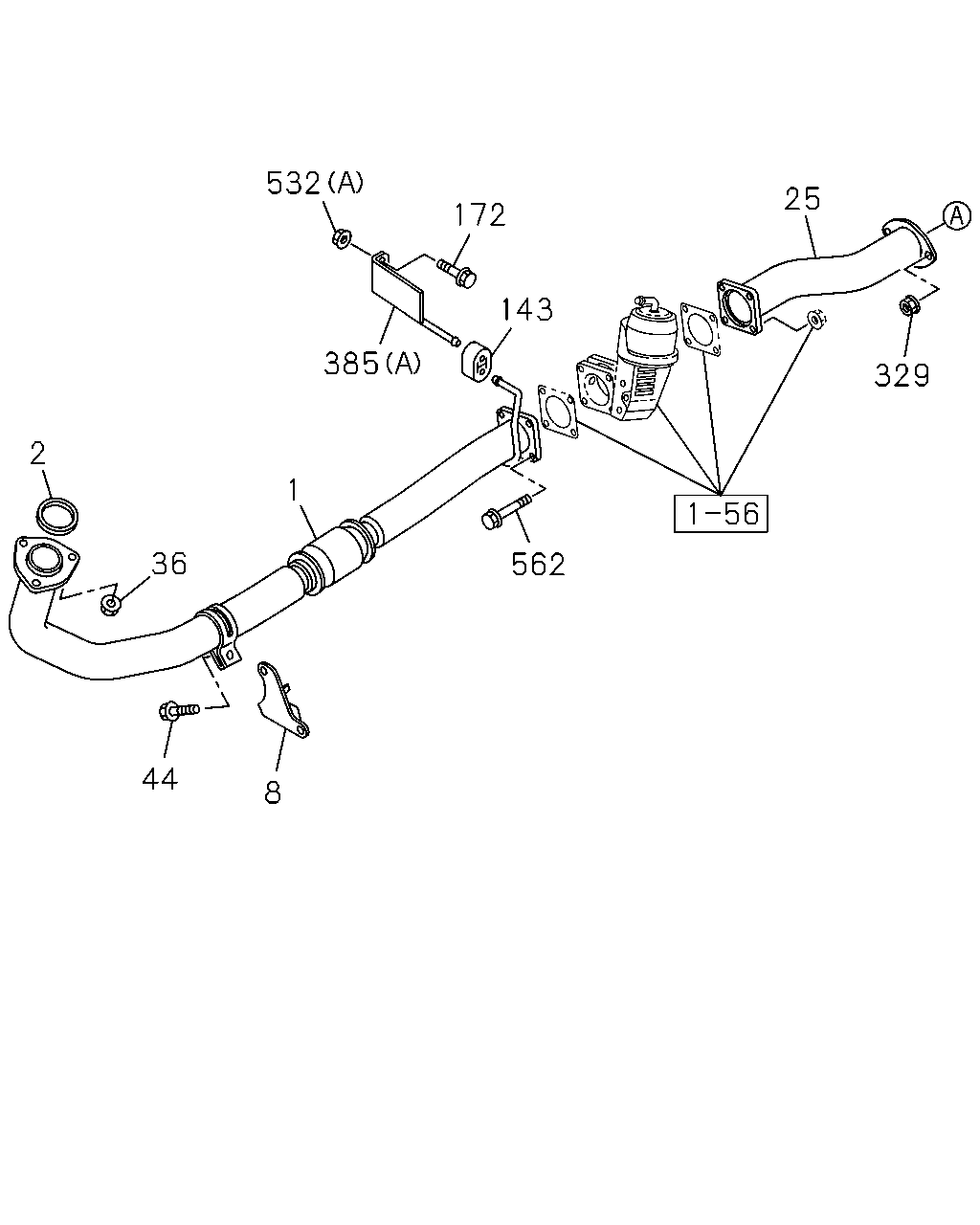

1-50 — EXHAUST PIPE AND SILENCER (#95048) — 45 parça

532 172 143 385 562 1 2 36 44 8 25 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH	8-97187-143-1	01	1	1208-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1208-
8	03.704 BRACKET; EXH PIPE 03.613	8-97238-728-0	01	1	1208-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER IDN	8-97361-724-0	01	1	1208-
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1208-
44	03.613 BOLT; BRKT 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1208-
143	03.704 RUBBER; SUPPORT 03.613 IDN	8-97166-498-1	01	1	1208-
172	03.708 BOLT 02.277 M10X35 FLANGE IDN	0-28651-035-0	02	1	1208-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1208-
385	03.704 BRACKET; SILENCER MTG (C)	8-97041-227-0	01	1	1208-
385	03.704 BRACKET; SILENCER MTG 03.706 (B)	8-97076-020-0	01	1	1208-
385	03.704 BRACKET; SILENCER MTG (A)	8-98173-128-0	01	1	1208-
532	03.704 NUT 01.062 (B) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
532	03.704 NUT 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1208-
532	03.704 NUT 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1208-
562	03.690 PLATE; STUD,BOLT 03.632 M8X70	0-10855-870-0	04	1	1208-

532 584 46 118 117 115 385 113 115 385 532 200 124 12 84 104 95 124 166 162 164 165 137 105 357 88 94 46 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH IDN	8-98173-127-0	01	1	1208-
46	03.704 BOLT; BRKT,EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1208-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7 IDN	8-94328-352-0	01	1	1208-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1208-
94	03.704 BOLT; CLAMP 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1208-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1208-
104	03.704 NUT; BRKT 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1208-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1208-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5 IDN	9-22151-217-0	01	1	1208-
115	03.704 RUBBER; MTG,SILENCER (A) IDN	8-94457-277-1	01	1	1208-
115	03.704 RUBBER; MTG,SILENCER (B) IDN	8-94457-278-1	01	1	1208-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	1208-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE IDN	5-09440-006-0	01	1	1208-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8 IDN	0-91110-508-0	01	1	1208-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	1208-
137	03.706 BRACKET; TAIL PIPE IDN	8-98173-203-0	01	1	1208-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1208-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5 IDN	9-22151-217-0	01	1	1208-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE IDN	0-28051-070-0	01	1	1208-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1208-
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1208-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1208-
385	03.704 BRACKET; SILENCER MTG (C)	8-97041-227-0	01	1	1208-
385	03.704 BRACKET; SILENCER MTG 03.706 (B)	8-97076-020-0	01	1	1208-
385	03.704 BRACKET; SILENCER MTG (A)	8-98173-128-0	01	1	1208-
532	03.704 NUT 01.062 (B) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
532	03.704 NUT 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1208-
532	03.704 NUT 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1208-
584	03.706 SPACER; EXH SILENCER	8-98173-132-0	01	1	1208-
