◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51294 - NQR INDONESIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#95047) — 25 parça

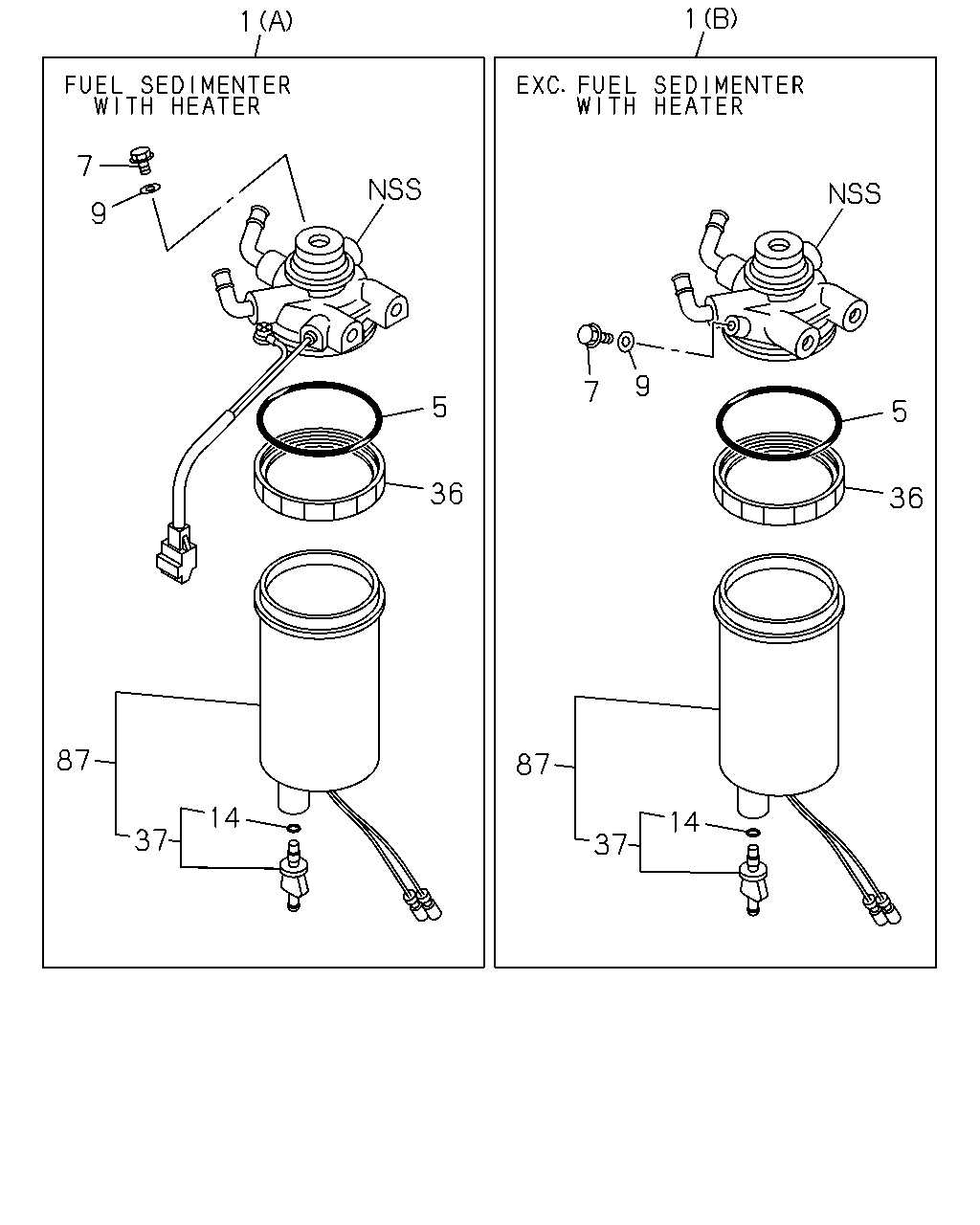

çizim 288270
1 1 7 9 5 36 7 9 5 36 87 37 14 14 87 37
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 SEDIMENTER; FUEL
VIN MODEL YEAR 2014<VZE> (C) IDN 		8-98269-584-0 01 1 1407-
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-98181-253-0 01 1 1208-1406
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98181-253-0 01 1 1407-
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 1208-1406
1 03.890 SEDIMENTER; FUEL
EXC. VIN MODEL YEAR 2014<VZE>,FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 1407-
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 1208-1406
5 03.890 GASKET; UPR COVER,SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE> 		5-09623-075-0 01 1 1407-
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 1208-1406
7 03.890 PLUG; DRAIN,SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE> 		8-94132-674-0 01 1 1407-
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 1208-1406
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. VIN MODEL YEAR 2014<VZE> 		8-94132-675-0 01 1 1407-
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 1208-1406
14 03.890 GASKET; SENSOR TO CENTER BOLT
EXC. VIN MODEL YEAR 2014<VZE> 		8-94447-156-0 01 1 1407-
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 1208-1406
36 03.890 RING; BODY TO CASE
EXC. VIN MODEL YEAR 2014<VZE> 		5-13234-001-0 01 1 1407-
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 1208-1406
37 03.890 PLUG; SENSOR
EXC. VIN MODEL YEAR 2014<VZE> 		8-94453-746-0 01 1 1407-
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 1208-1406
87 03.890 CASE ASM; SEDIMENTER
EXC. VIN MODEL YEAR 2014<VZE> 		8-97219-363-1 01 1 1407-
çizim 449161
1 1 57
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 SEDIMENTER; FUEL
VIN MODEL YEAR 2014<VZE> (C) IDN 		8-98269-584-0 01 1 1407-
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-98181-253-0 01 1 1208-1406
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98181-253-0 01 1 1407-
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 1208-1406
1 03.890 SEDIMENTER; FUEL
EXC. VIN MODEL YEAR 2014<VZE>,FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 1407-
57 03.890 CARTRIDGE KIT; FUEL FILTER
VIN MODEL YEAR 2014<VZE> IDN 		8-98270-184-0 01 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
