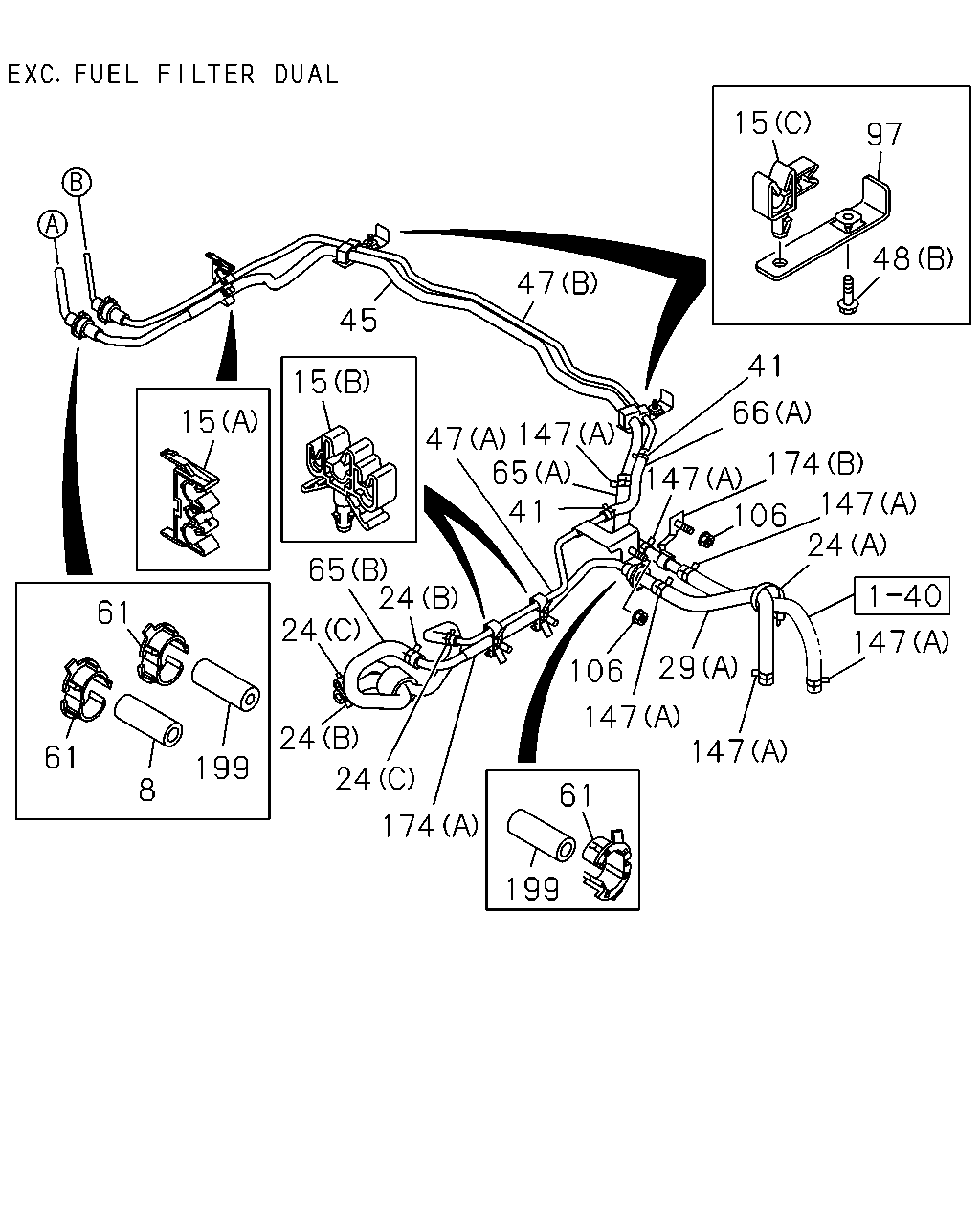

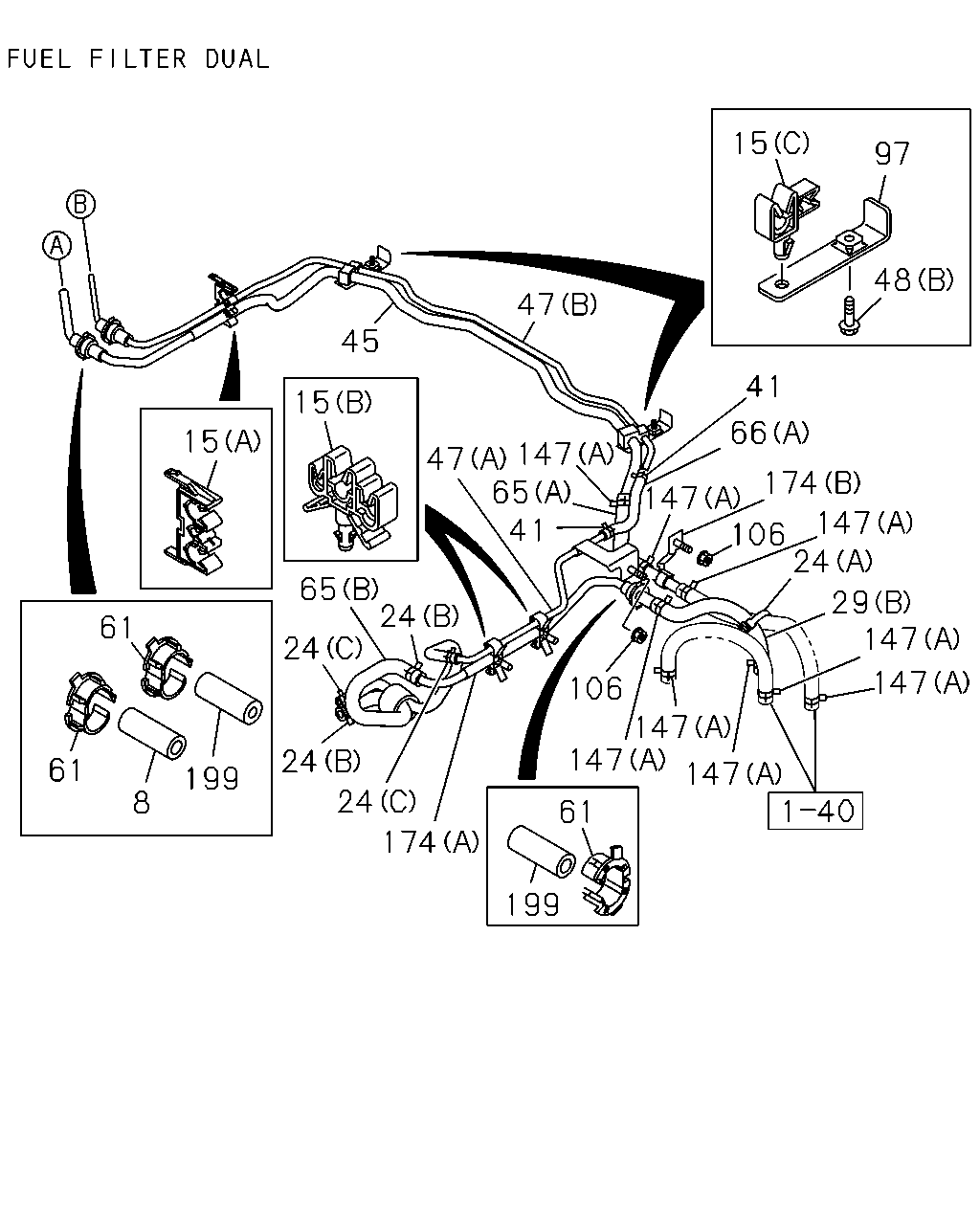

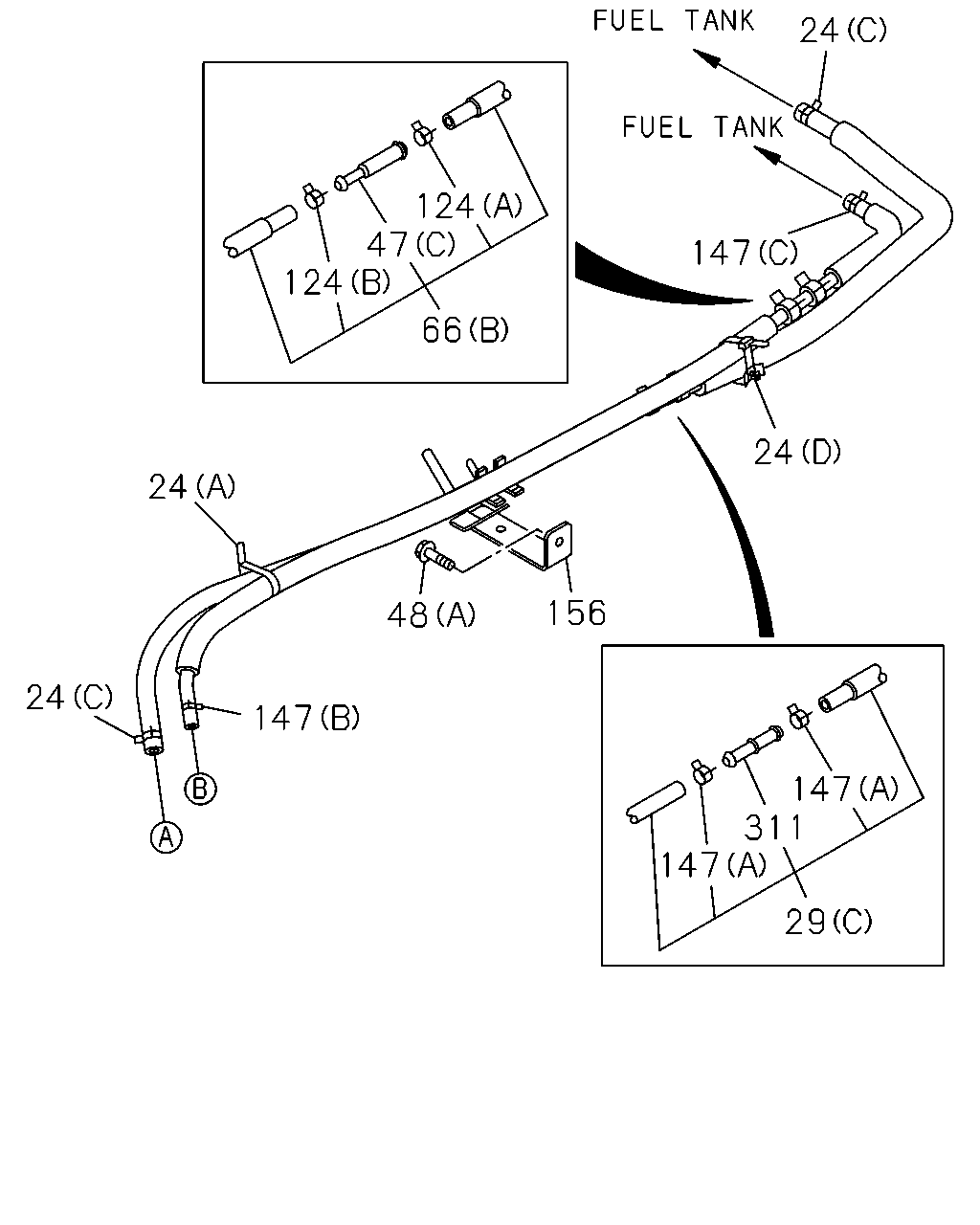

1-41 — FUEL PIPING; CHASSIS (#95046) — 133 parça

24 24 147 156 48 124 47 124 24 24 147 29 311 147 147 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (A) L=140 IDN	5-09707-031-1	01	1	1208-
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 IDN	5-09707-031-1	01	1	1208-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	1208-
24	03.162 CLIP; FUEL HOSE (A) L=140 IDN	5-09707-031-1	02	1	1208-
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	04	1	1208-
24	03.162 CLIP; FUEL HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1208-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) BIO DIESEL FUEL B10<8NV> (B)	8-98299-331-0	01	1	1503-
29	03.163 HOSE; FUEL BIO DIESEL FUEL B10<8NV> (C)	8-98212-167-0	01	1	1411-
29	03.163 HOSE; FUEL BIO DIESEL FUEL B10<8NV> EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1411-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) (B)	8-98130-342-0	01	1	1208-1502
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98130-342-0	01	1	1503-
29	03.163 HOSE; FUEL (C) IDN	8-98149-363-1	01	1	1208-1410
29	03.163 HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (C) IDN	8-98149-363-1	01	1	1411-
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1208-1410
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),BIO DIESEL FUELB10<8NV> 03.003 (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1411-
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1208-
47	03.163 PIPE; FUEL,RETURN (A)	8-98041-618-1	01	1	1208-
47	03.163 PIPE; FUEL,RETURN (B)	8-98113-911-1	01	1	1208-
48	03.162 BOLT; BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	1208-
48	03.162 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1208-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1208-
66	03.163 HOSE; FUEL,RETURN PIPE (B) IDN	8-98149-364-1	01	1	1208-
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	1208-
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1208-
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	1208-
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	1208-

97 15 48 41 66 147 106 147 174 24 147 147 147 106 29 41 65 47 147 61 199 174 24 24 199 8 61 61 24 24 65 15 45 15 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG OD=17 L=50 IDN	8-94157-054-1	01	1	1208-
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1208-
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	1208-
15	03.162 CLIP; FUEL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1208-
24	03.162 CLIP; FUEL HOSE (A) L=140 IDN	5-09707-031-1	01	1	1208-
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 IDN	5-09707-031-1	01	1	1208-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	1208-
24	03.162 CLIP; FUEL HOSE (A) L=140 IDN	5-09707-031-1	02	1	1208-
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	04	1	1208-
24	03.162 CLIP; FUEL HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1208-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) BIO DIESEL FUEL B10<8NV> (B)	8-98299-331-0	01	1	1503-
29	03.163 HOSE; FUEL BIO DIESEL FUEL B10<8NV> (C)	8-98212-167-0	01	1	1411-
29	03.163 HOSE; FUEL BIO DIESEL FUEL B10<8NV> EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1411-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) (B)	8-98130-342-0	01	1	1208-1502
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98130-342-0	01	1	1503-
29	03.163 HOSE; FUEL (C) IDN	8-98149-363-1	01	1	1208-1410
29	03.163 HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (C) IDN	8-98149-363-1	01	1	1411-
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1208-1410
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),BIO DIESEL FUELB10<8NV> 03.003 (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1411-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	1208-
45	03.163 PIPE; FUEL,DELIVERY	8-98113-910-0	01	1	1208-
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1208-
47	03.163 PIPE; FUEL,RETURN (A)	8-98041-618-1	01	1	1208-
47	03.163 PIPE; FUEL,RETURN (B)	8-98113-911-1	01	1	1208-
48	03.162 BOLT; BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	1208-
48	03.162 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1208-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17 IDN	8-94128-319-2	01	1	1208-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17 IDN	8-94128-319-2	02	1	1208-
65	03.163 HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (B)	8-98289-253-0	01	1	1411-
65	03.163 HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1411-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1208-1410
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98179-936-0	01	1	1208-1410
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98179-936-0	01	1	1411-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1208-
66	03.163 HOSE; FUEL,RETURN PIPE (B) IDN	8-98149-364-1	01	1	1208-
97	03.162 BRACKET; CLIP	8-98057-653-0	02	1	1208-
106	03.162 NUT; FUEL PIPE M10 FLANGE IDN	0-91180-110-0	01	1	1208-
106	03.162 NUT; FUEL PIPE M10 FLANGE IDN	0-91180-110-0	01	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1208-
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	1208-
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	1208-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50 IDN	8-97077-629-0	01	1	1208-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50 IDN	8-97077-629-0	01	1	1208-

48 97 15 47 66 41 174 24 106 147 29 147 147 147 41 65 147 47 15 45 15 24 24 65 24 24 174 61 199 147 147 147 106 199 8 61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG OD=17 L=50 IDN	8-94157-054-1	01	1	1208-
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1208-
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	1208-
15	03.162 CLIP; FUEL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1208-
24	03.162 CLIP; FUEL HOSE (A) L=140 IDN	5-09707-031-1	01	1	1208-
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 IDN	5-09707-031-1	01	1	1208-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	1208-
24	03.162 CLIP; FUEL HOSE (A) L=140 IDN	5-09707-031-1	02	1	1208-
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	04	1	1208-
24	03.162 CLIP; FUEL HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1208-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) BIO DIESEL FUEL B10<8NV> (B)	8-98299-331-0	01	1	1503-
29	03.163 HOSE; FUEL BIO DIESEL FUEL B10<8NV> (C)	8-98212-167-0	01	1	1411-
29	03.163 HOSE; FUEL BIO DIESEL FUEL B10<8NV> EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1411-
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) (B)	8-98130-342-0	01	1	1208-1502
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98130-342-0	01	1	1503-
29	03.163 HOSE; FUEL (C) IDN	8-98149-363-1	01	1	1208-1410
29	03.163 HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (C) IDN	8-98149-363-1	01	1	1411-
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1208-1410
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),BIO DIESEL FUELB10<8NV> 03.003 (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1411-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	1208-
45	03.163 PIPE; FUEL,DELIVERY	8-98113-910-0	01	1	1208-
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1208-
47	03.163 PIPE; FUEL,RETURN (A)	8-98041-618-1	01	1	1208-
47	03.163 PIPE; FUEL,RETURN (B)	8-98113-911-1	01	1	1208-
48	03.162 BOLT; BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	1208-
48	03.162 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1208-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17 IDN	8-94128-319-2	01	1	1208-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17 IDN	8-94128-319-2	02	1	1208-
65	03.163 HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (B)	8-98289-253-0	01	1	1411-
65	03.163 HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1411-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1208-1410
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1411-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98179-936-0	01	1	1208-1410
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98179-936-0	01	1	1411-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1208-
66	03.163 HOSE; FUEL,RETURN PIPE (B) IDN	8-98149-364-1	01	1	1208-
97	03.162 BRACKET; CLIP	8-98057-653-0	02	1	1208-
106	03.162 NUT; FUEL PIPE M10 FLANGE IDN	0-91180-110-0	01	1	1208-
106	03.162 NUT; FUEL PIPE M10 FLANGE IDN	0-91180-110-0	01	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1208-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1208-
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	1208-
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	1208-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50 IDN	8-97077-629-0	01	1	1208-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50 IDN	8-97077-629-0	01	1	1208-
