0-41 — FUEL FILTER AND BRACKET (#9504) — 25 parça

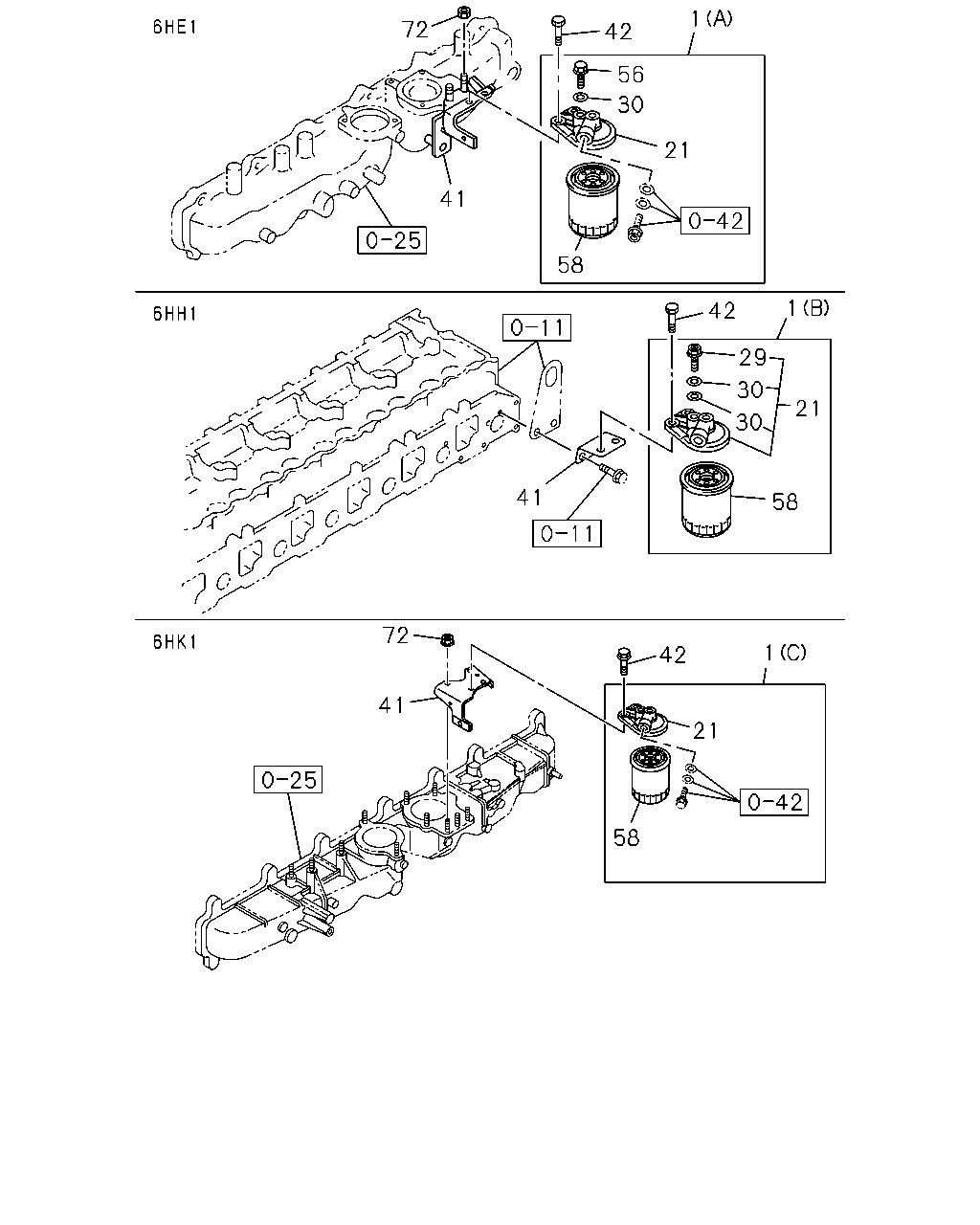

çizim 43371
1 72 42 56 30 21 41 58 1 42 29 30 21 30 41 58 72 1 42 41 21 58
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL
(A) 		1-13200-890-2 01 1 0005-0210 ●
1 FILTER ASM; FUEL
(C) 		8-94392-472-5 01 1 0211- ●
1 FILTER ASM; FUEL
(B) 		8-94393-449-2 01 1 0005-0210 ●
21 COVER; UPR,FUEL FILTER 1-13212-108-1 01 1 0005-0210 ●
21 COVER; UPR,FUEL FILTER 1-13212-108-1 01 1 0211-0710 ●
21 COVER; UPR,FUEL FILTER 1-13212-159-2 01 1 0711- ●
21 COVER; UPR,FUEL FILTER 8-94396-669-0 01 1 0005-0210 ●
29 VALVE; OVERFLOW 8-94399-170-0 01 1 0005-0210 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0005-0206 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0005-0210 ●
41 BRACKET; FUEL FILTER 8-94395-066-1 01 1 0005-0108 ●
41 BRACKET; FUEL FILTER 8-94391-451-0 01 1 0109-0210 ●
41 BRACKET; FUEL FILTER 8-94390-938-0 01 1 0211- ●
41 BRACKET; FUEL FILTER 8-94399-441-0 01 1 0005-0210 ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 0005-0210 ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 0211-0512 ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 0005-0206 ●
58 ELEMENT; FUEL FILTER 1-13240-079-1 01 1 0005-0210 ●
58 ELEMENT; FUEL FILTER 8-94392-474-0 01 1 0211-0711 ●
58 ELEMENT; FUEL FILTER 8-98036-654-0 01 1 0712- ●
58 ELEMENT; FUEL FILTER 8-94394-079-2 01 1 0005-0210 ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-110-0 02 1 0211-0602 ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-110-0 02 1 0603- ●
