1 |

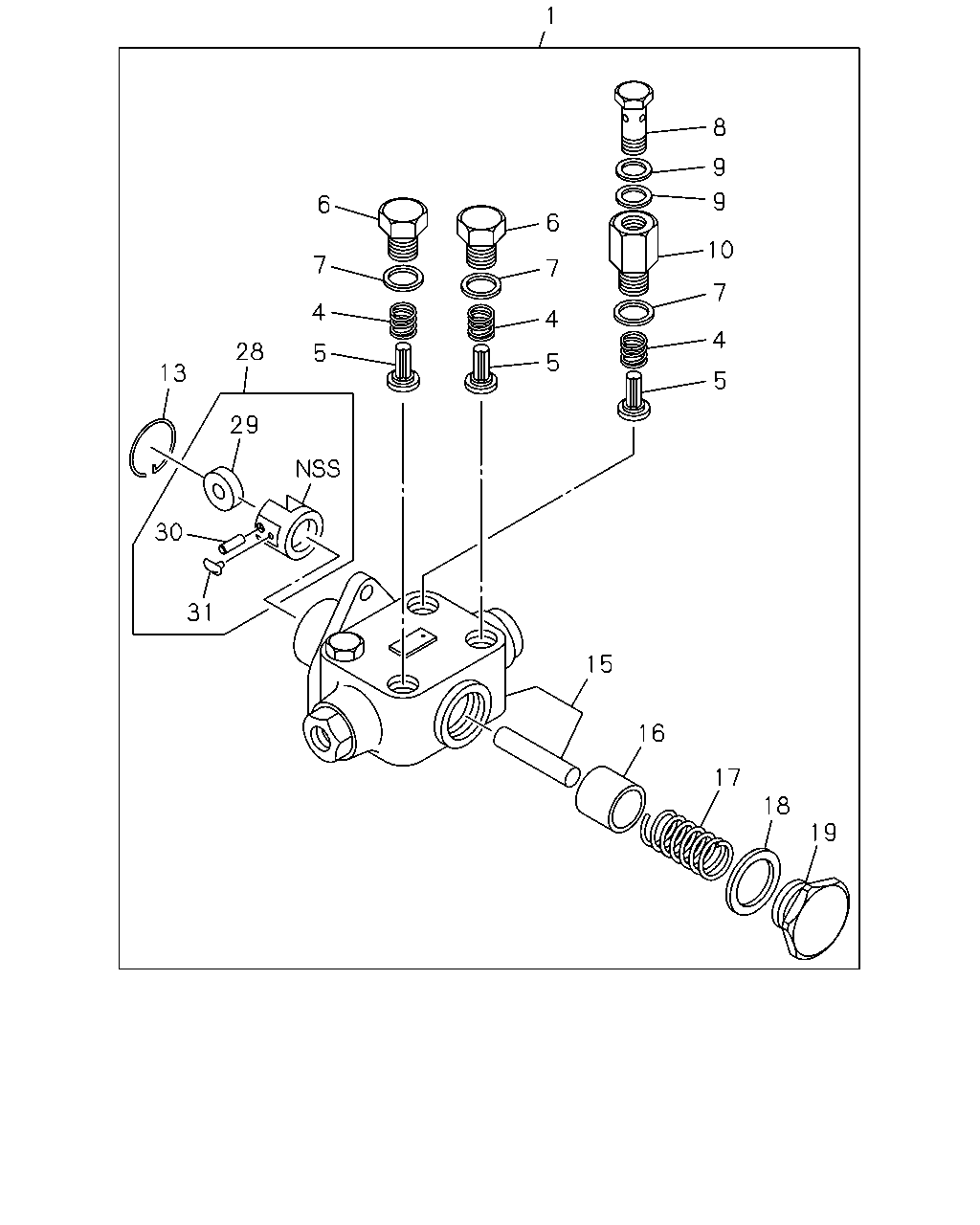

03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
8-97214-533-1 |
01 |
1 |
- |
| |
4 |
03.901 SPRING; VLV,FUEL FEED PUMP
03.927
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
9-81351-702-0 |
04 |
1 |
- |
| |
5 |
03.927 VALVE; FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-15755-002-0 |
04 |
1 |
- |
| |
6 |
03.901 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-15759-066-0 |
03 |
1 |
- |
| |
7 |
03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-19623-016-0 |
04 |
1 |
- |
| |
8 |
03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-15759-011-0 |
01 |
1 |
- |
| |
9 |
03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
03.163, ID=14.2 OD=19.2
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-09630-085-0 |
02 |
1 |
- |
| |
10 |
03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-15759-067-0 |
01 |
1 |
- |
| |
13 |
03.901 RING; SNAP,TAPPET,FUEL FEED PUMP
03.904
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
9-81355-025-0 |
01 |
1 |
- |
| |
15 |
03.900 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-15751-043-0 |
01 |
1 |
- |
| |
16 |
03.925 PISTON; FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
9-81351-205-0 |
01 |
1 |
- |
| |
17 |
03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
8-97214-466-0 |
01 |
1 |
- |
| |
18 |
03.904 GASKET; PISTON PLUG,FUEL FEED PU
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
9-81355-035-0 |
01 |
1 |
- |
| |
19 |
03.901 PLUG; PISTON SPRING,FUEL FEED PU
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
8-94171-185-0 |
01 |
1 |
- |
| |
28 |
03.935 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-15754-002-0 |
01 |
1 |
- |
| |
29 |
03.901 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
1-15759-043-0 |
01 |
1 |
- |
| |
30 |
03.901 PIN; TAPPET ROLLER,FUEL FEED PUM
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
9-81351-406-0 |
01 |
1 |
- |
| |
31 |
03.901 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, 97178485, B = 8-97215-704-2, 97215704,
C = 8-98268-832-0, 98268832, D = 8-98285-612-0, 98285612
|
9-81351-416-0 |
02 |
1 |
- |
