Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

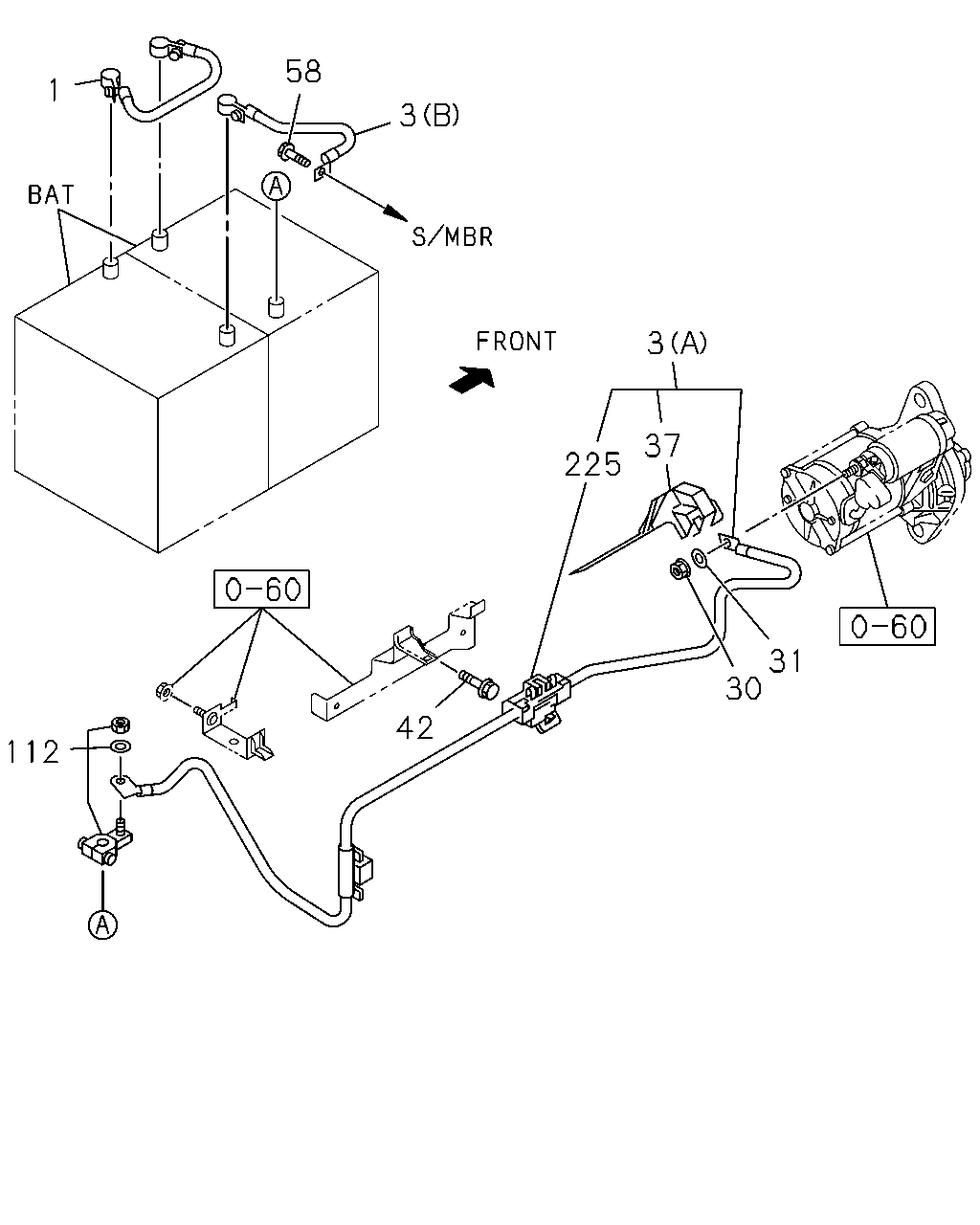

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#95031) — 12 parça
30
31
37
225
3
3
58
1
112
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.341 CABLE; BATTERY
L=280 IDN
8-98025-412-3
01
1
1208-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 IDN
8-98056-337-1
01
1
1208-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) IDN
8-98067-966-4
01
1
1208-1409
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) IDN
8-98294-718-0
01
1
1410-
30
02.334 NUT; CABLE,STARTER TO BATTERY
M8 IDN
0-91110-508-0
01
1
1208-
31
02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2
0-91510-808-0
01
1
1208-
37
02.343 CAP; TERMINAL,BATTERY CABLE
8-98042-507-0
01
1
1208-
42
02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X16 FLANGE
8-97329-599-0
01
1
1208-
58
02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1208-
112
02.343 TERMINAL; BATTERY
<+> IDN
8-97365-771-0
01
1
1208-
225
02.343 BLOCK; TERMINAL
8-98029-689-0
01
1
1208-1409
225
02.343 BLOCK; TERMINAL
IDN
8-98294-524-0
01
1
1410-
