0-60 — ENGINE ELECTRICAL CONTROL PARTS (#95030) — 62 parça

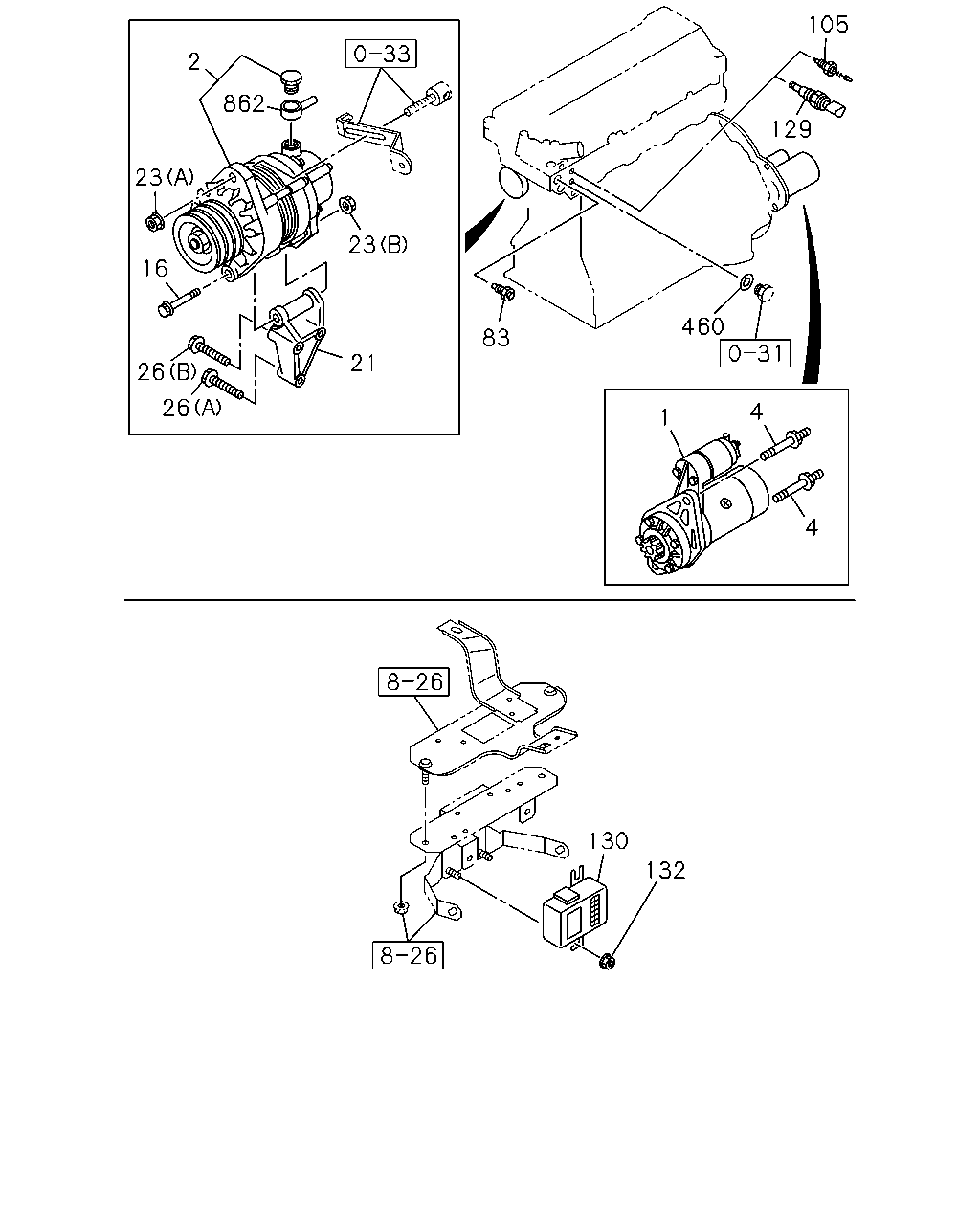

çizim 288160
2 862 23 16 23 21 26 26 83 460 129 105 1 4 4 130 132
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1208-1208
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311-
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-98055-279-1 01 1 1208-1208
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-98222-018-2 01 1 1208-
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 1208-
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1208-
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1208-
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 1208-
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 1208-
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE IDN 		0-91180-108-0 01 1 1208-
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 1208-
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1208-
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1208-
83 01.150 THERMOMETER UNIT
VIN MODEL YEAR 2015<VZF> DENSO 		8-94235-691-0 01 1 1407-1410
83 01.150 THERMOMETER UNIT
VIN MODEL YEAR 2015<VZF> DENSO 		8-94235-691-0 01 1 1411-
83 01.150 THERMOMETER UNIT
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> DENSO 		8-94235-691-0 01 1 1411-
83 01.150 THERMOMETER UNIT
VIN MODEL YEAR 2015<VZF> YAZAKI 		8-94237-861-0 01 1 1407-1410
83 01.150 THERMOMETER UNIT
VIN MODEL YEAR 2015<VZF> YAZAKI 		8-94237-861-0 01 1 1411-
83 01.150 THERMOMETER UNIT
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> YAZAKI 		8-94237-861-0 01 1 1411-
105 01.150 SWITCH; THERMO,QOS
VIN MODEL YEAR 2015<VZF> 		8-94121-152-1 01 1 1407-1409
105 01.150 SWITCH; THERMO,QOS
VIN MODEL YEAR 2015<VZF> FAST GLOW SYSTEM<KM6> 		8-94121-152-1 01 1 1410-
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 1208-1406
129 01.150 SENSOR; GLOW PLUG,THERMO
EXC. VIN MODEL YEAR 2015<VZF> HITACHI 		8-97167-008-0 01 1 1407-1410
129 01.150 SENSOR; GLOW PLUG,THERMO
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> HITACHI 		8-97167-008-0 01 1 1411-
129 01.150 SENSOR; GLOW PLUG,THERMO
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> HITACHI 		8-97167-008-0 01 1 1411-
129 01.150 SENSOR; GLOW PLUG,THERMO
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> HITACHI 		8-97167-008-0 01 1 1411-
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1208-1406
129 01.150 SENSOR; GLOW PLUG,THERMO
EXC. VIN MODEL YEAR 2015<VZF> NIPPON THERMOSTAT 		8-98023-717-0 01 1 1407-1410
129 01.150 SENSOR; GLOW PLUG,THERMO
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> NIPPON THERMOSTAT 		8-98023-717-0 01 1 1411-
129 01.150 SENSOR; GLOW PLUG,THERMO
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> NIPPON THERMOSTAT 		8-98023-717-0 01 1 1411-
129 01.150 SENSOR; GLOW PLUG,THERMO
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> NIPPON THERMOSTAT 		8-98023-717-0 01 1 1411-
130 02.510 CONTROLLER; EGR 8-98170-223-2 01 1 1208-1406
130 02.510 CONTROLLER; EGR
EXC. VIN MODEL YEAR 2015<VZF> 		8-98170-223-2 01 1 1407-
132 03.675 NUT; CONTROLLER
01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 1208-1406
132 03.675 NUT; CONTROLLER
EXC. VIN MODEL YEAR 2015<VZF> 01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 1407-
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1208-
862 02.313 CONNECTOR; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(6QN) 		8-97351-626-0 01 1 1208-

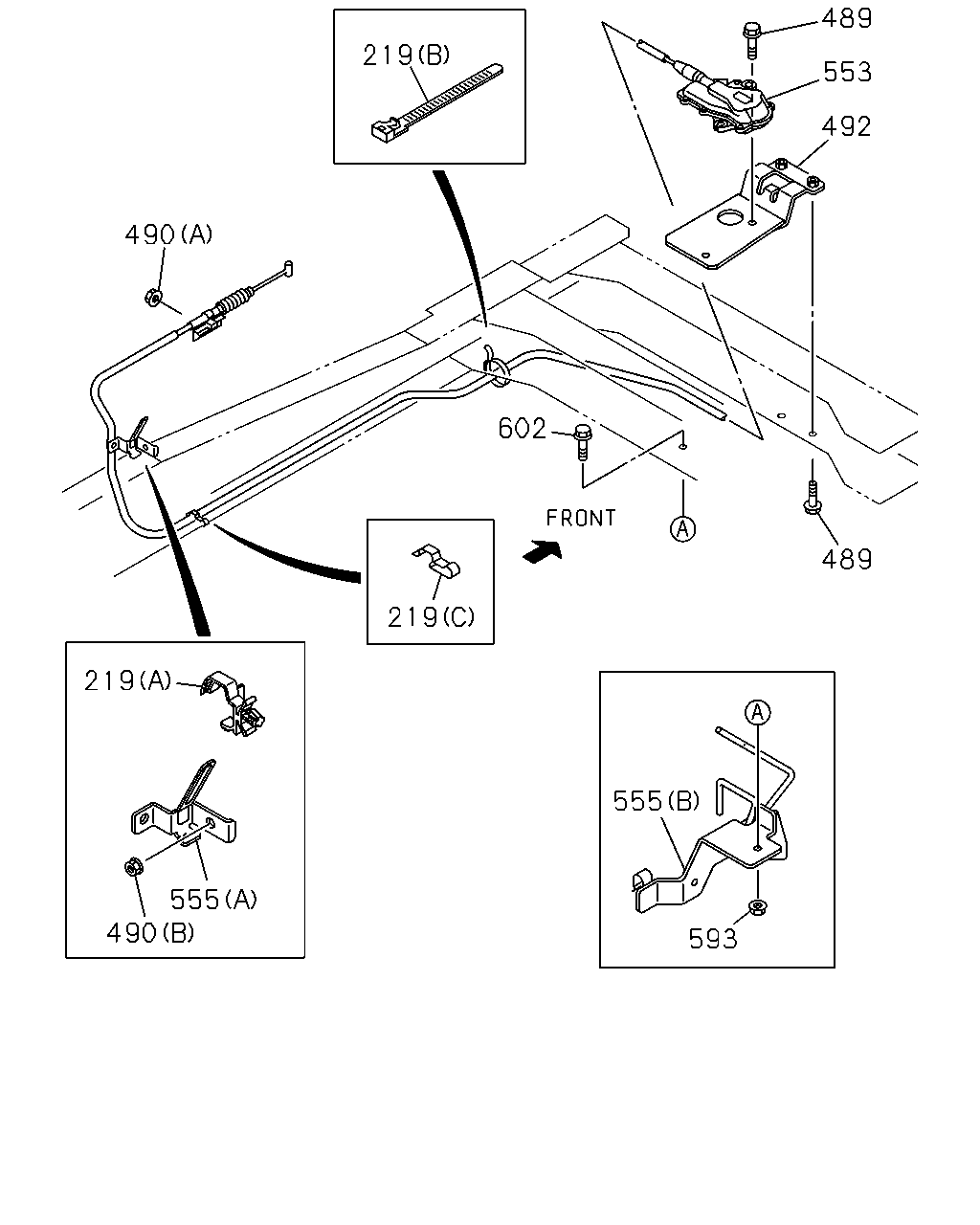

çizim 288163
219 489 553 492 489 602 490 219 219 555 593 555 490
BalonParca AdiParca NoAdetTipApplied Date
219 03.483 CLIP; ENG STOP CABLE
02.559 (B) L=250 IDN 		5-09707-030-1 01 1 1208-
219 03.483 CLIP; ENG STOP CABLE
02.559 (A) ID=16 		8-97040-812-0 01 1 1208-
219 03.483 CLIP; ENG STOP CABLE
02.559 (C) T=4.5 & 9 		8-97371-947-0 01 1 1208-
489 03.483 BOLT; ENG STOPPER
06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 1208-
490 03.485 NUT; ENG STOP
01.062 (A) M6 FLANGE IDN 		0-91180-106-0 01 1 1208-
490 03.485 NUT; ENG STOP
01.062 (B) M8 FLANGE IDN 		0-91180-108-0 01 1 1208-
492 03.483 BRACKET; ENG STOPPER 8-98100-401-2 01 1 1208-
553 03.485 MOTOR ASM; ENG STOP 8-98100-510-4 01 1 1208-
555 03.485 BRACKET; ENG STOP
(A) 		8-98100-404-3 01 1 1208-
555 03.485 BRACKET; ENG STOP
(B) 		8-98146-418-0 01 1 1208-
593 02.483 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1208-
602 02.510 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 1208-
çizim 288166
46 10 718
BalonParca AdiParca NoAdetTipApplied Date
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1208-
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A IDN 		8-97173-947-0 01 1 1208-1307
46 02.510 RELAY; GLOW PLUG
24V 50A IDN 		8-97173-947-0 01 1 1308-
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1208-

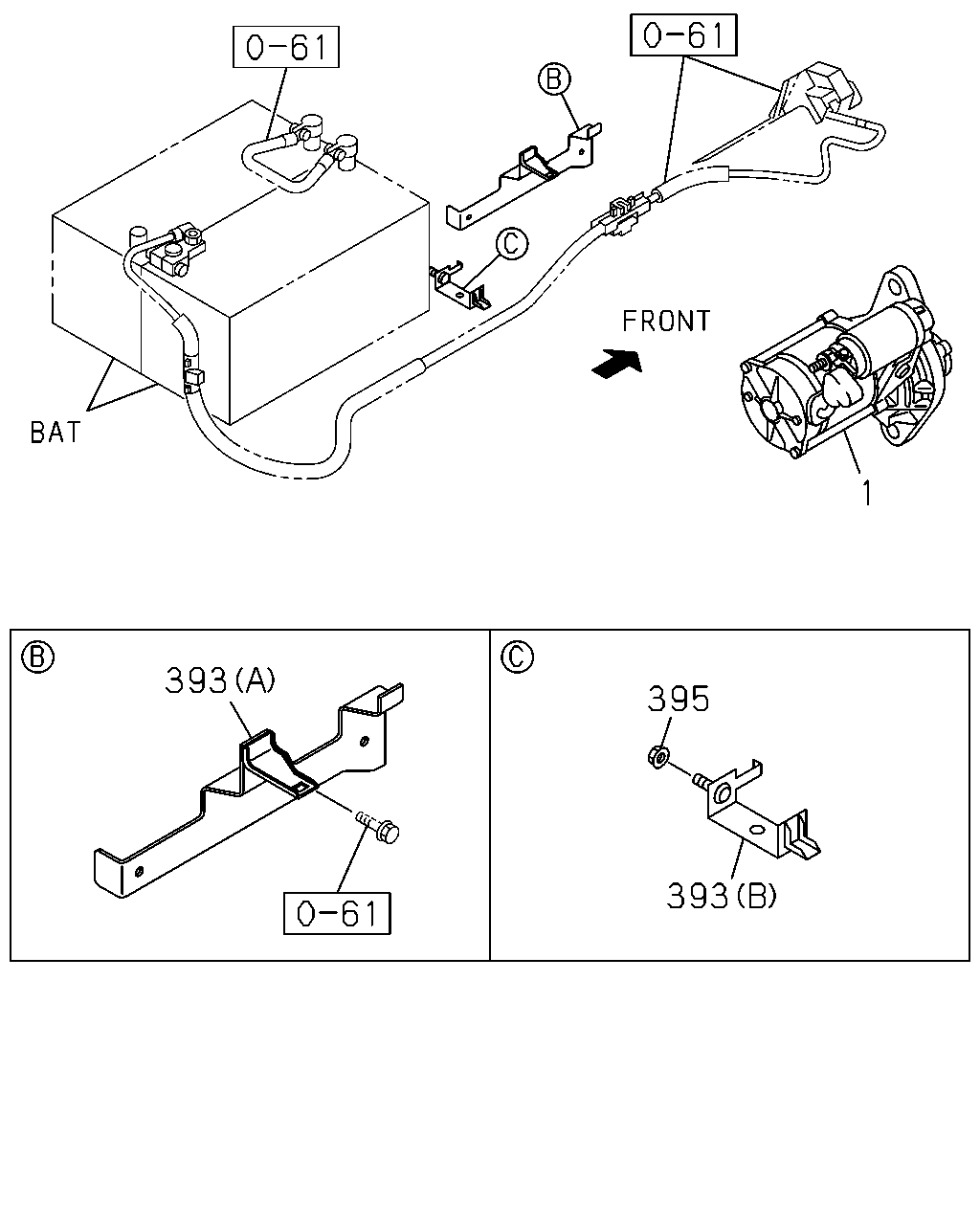

çizim 289698
1 393 395 393
BalonParca AdiParca NoAdetTipApplied Date
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1208-1208
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311-
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-98055-279-1 01 1 1208-1208
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI IDN 		8-98222-018-2 01 1 1208-
393 02.343 BRACKET; HARNESS TO BODY
02.483 (B) 		8-98018-251-1 01 1 1208-
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98041-946-1 01 1 1208-
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1208-
