0-57 — EMISSION PIPING (#95029) — 105 parça

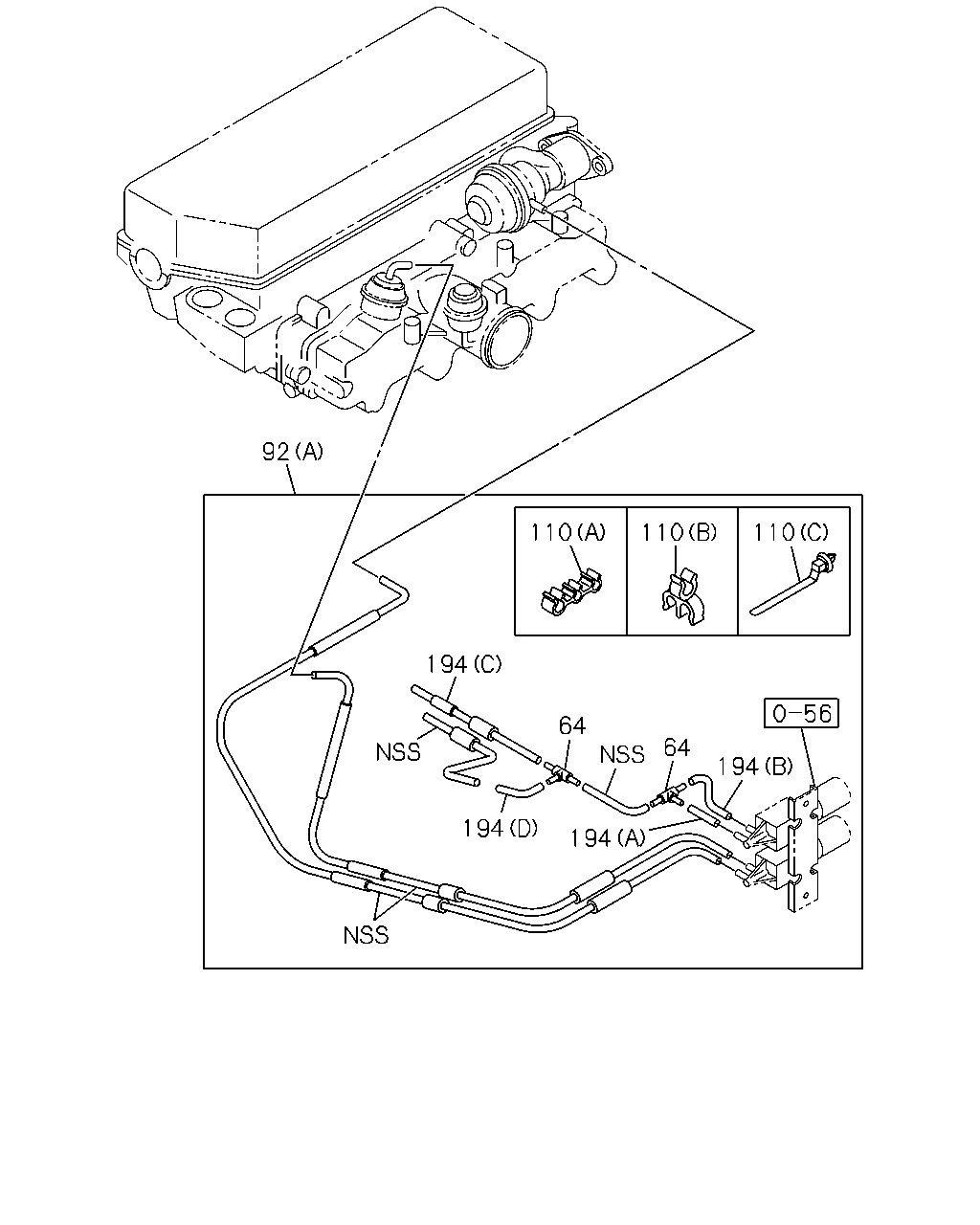

110 110 110 194 64 64 194 92 194 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> 3WAY IDN	8-94208-695-0	01	1	1506-
64	03.680 JOINT; 3 WAY,VAC 3WAY IDN	8-94208-695-0	02	1	1208-1406
64	03.680 JOINT; 3 WAY,VAC EXC. VIN MODEL YEAR 2015<VZF> 3WAY IDN	8-94208-695-0	02	1	1407-
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (B)	8-98269-803-0	01	1	1407-
92	03.675 HOSE; VAC,THROTTLE BODY VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-98269-804-0	01	1	1407-
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-777-1	01	1	1208-1406
92	03.675 HOSE; VAC,THROTTLE BODY EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98169-777-1	01	1	1407-
110	03.671 CLIP; VAC HOSE VIN MODEL YEAR 2015<VZF> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1506-
110	03.671 CLIP; VAC HOSE (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1208-1406
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1407-1505
110	03.671 CLIP; VAC HOSE (B) ID=6.8 & 6.8	8-94208-733-0	01	1	1506-
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1208-1406
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1407-
110	03.671 CLIP; VAC HOSE 02.559 (C) L=109.5	8-97807-385-0	03	1	1208-1406
110	03.671 CLIP; VAC HOSE EXC. VIN MODEL YEAR 2015<VZF> 02.559 (C) L=109.5	8-97807-385-0	03	1	1407-1505
110	03.671 CLIP; VAC HOSE 02.559 (C) L=109.5	8-97807-385-0	03	1	1506-
194	03.675 HOSE; VAC 08.962 (A) L=30 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1208-1406
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (A) L=30 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1407-
194	03.675 HOSE; VAC 08.962 (B) L=50 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1208-1406
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (B) L=50 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1407-
194	03.675 HOSE; VAC 08.962 (D) L=90 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1208-1406
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (D) L=90 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1407-1505
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (D) L=90 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1506-
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> 08.962 (D) L=90 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1506-
194	03.675 HOSE; VAC 08.962 (C) L=290 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1208-1406
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (C) L=290 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1407-1505
194	03.675 HOSE; VAC EXC. VIN MODEL YEAR 2015<VZF> 08.962 (C) L=290 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1506-
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> 08.962 (C) L=290 SERVICED BY L=3000 IDN	0-04730-300-0	01	1	1506-

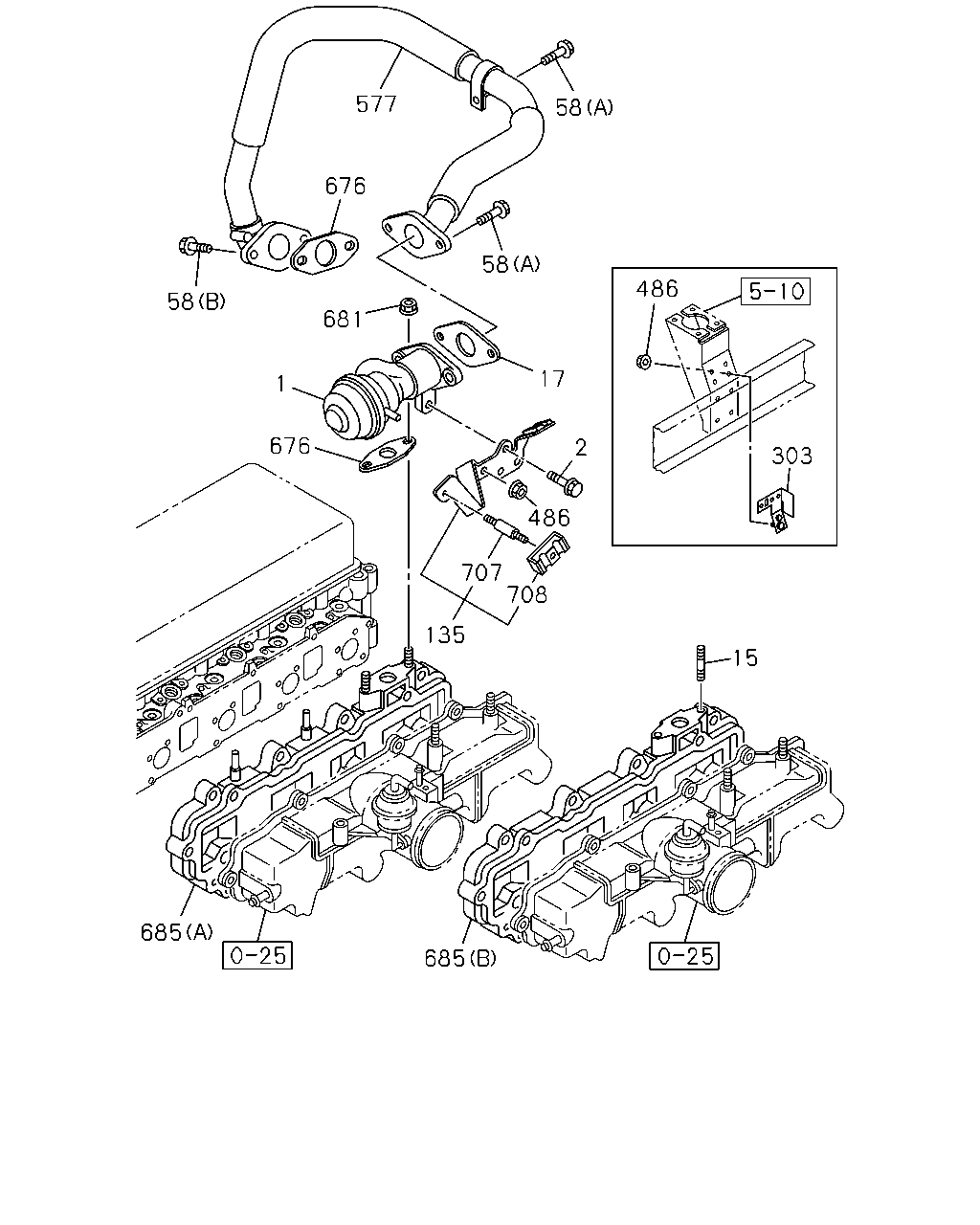

577 58 58 676 58 681 17 2 486 708 707 135 15 486 303 676 685 685 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.670 VALVE; EGR	8-97115-533-3	01	1	1208-1406
1	03.670 VALVE; EGR EXC. VIN MODEL YEAR 2015<VZF>	8-97115-533-3	01	1	1407-1410
1	03.670 VALVE; EGR FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>	8-97115-533-3	01	1	1411-
1	03.670 VALVE; EGR GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>	8-97115-533-3	01	1	1411-
1	03.670 VALVE; EGR HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV>	8-97115-533-3	01	1	1411-
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	1208-1406
2	03.670 BOLT; EGR VLV EXC. VIN MODEL YEAR 2015<VZF> 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	1407-1410
2	03.670 BOLT; EGR VLV FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	1411-
2	03.670 BOLT; EGR VLV GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	1411-
2	03.670 BOLT; EGR VLV HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 01.531 M8X20 FLANGE IDN	0-28650-820-0	01	1	1411-
15	03.670 STUD; EGR PIPE GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1303-1406
15	03.670 STUD; EGR PIPE MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1407-1410
15	03.670 STUD; EGR PIPE VIN MODEL YEAR 2015<VZF> 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1407-1410
15	03.670 STUD; EGR PIPE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1411-
15	03.670 STUD; EGR PIPE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1411-
15	03.670 STUD; EGR PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1411-
15	03.670 STUD; EGR PIPE VIN MODEL YEAR 2015<VZF> 01.073 M8X22 L=34 IDN	0-41010-822-0	02	1	1411-
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98210-153-0	01	1	1303-1406
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-153-0	01	1	1407-
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97113-023-0	01	1	1208-1302
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97113-023-0	01	1	1303-1406
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97113-023-0	01	1	1303-1406
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97113-023-0	01	1	1407-1410
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>	8-97113-023-0	01	1	1411-
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97113-023-0	01	1	1411-
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV>	8-97113-023-0	01	1	1411-
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1208-1406
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1407-1410
58	03.417 BOLT; PIPE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1411-
58	03.417 BOLT; PIPE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1411-
58	03.417 BOLT; PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1411-
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	1208-1406
58	03.417 BOLT; PIPE EXC. VIN MODEL YEAR 2015<VZF> (B) M8X23 FLANGE	8-97378-077-0	02	1	1407-1410
58	03.417 BOLT; PIPE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (B) M8X23 FLANGE	8-97378-077-0	02	1	1411-
58	03.417 BOLT; PIPE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (B) M8X23 FLANGE	8-97378-077-0	02	1	1411-
58	03.417 BOLT; PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (B) M8X23 FLANGE	8-97378-077-0	02	1	1411-
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	1208-
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1208-
486	03.671 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1208-
486	03.671 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1208-
577	03.675 PIPE; AIR,EGR	8-97200-643-2	01	1	1208-1406
577	03.675 PIPE; AIR,EGR EXC. VIN MODEL YEAR 2015<VZF>	8-97200-643-2	01	1	1407-1410
577	03.675 PIPE; AIR,EGR FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>	8-97200-643-2	01	1	1411-
577	03.675 PIPE; AIR,EGR GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>	8-97200-643-2	01	1	1411-
577	03.675 PIPE; AIR,EGR HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV>	8-97200-643-2	01	1	1411-
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98210-154-0	02	1	1303-1406
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-154-0	02	1	1407-
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-683-0	02	1	1208-1302
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97146-683-0	02	1	1303-1406
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97146-683-0	02	1	1303-1406
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97146-683-0	02	1	1407-1410
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>	8-97146-683-0	02	1	1411-
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97146-683-0	02	1	1411-
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE). HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV>	8-97146-683-0	02	1	1411-
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1208-1406
681	03.671 NUT; EGR PIPE EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1407-1410
681	03.671 NUT; EGR PIPE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1411-
681	03.671 NUT; EGR PIPE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1411-
681	03.671 NUT; EGR PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1411-
685	03.680 CASE; INLET,EGR VIN MODEL YEAR 2015<VZF> (B)	8-97146-873-1	01	1	1407-1410
685	03.680 CASE; INLET,EGR VIN MODEL YEAR 2015<VZF> (B)	8-97146-873-1	01	1	1411-
685	03.680 CASE; INLET,EGR HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97146-873-1	01	1	1411-
685	03.680 CASE; INLET,EGR GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98210-151-0	01	1	1303-1406
685	03.680 CASE; INLET,EGR MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98210-151-0	01	1	1407-
685	03.680 CASE; INLET,EGR (A)	8-97146-872-1	01	1	1208-1302
685	03.680 CASE; INLET,EGR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97146-872-1	01	1	1303-1406
685	03.680 CASE; INLET,EGR FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97146-872-1	01	1	1303-1406
685	03.680 CASE; INLET,EGR EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A)	8-97146-872-1	01	1	1407-1410
685	03.680 CASE; INLET,EGR FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97146-872-1	01	1	1411-
685	03.680 CASE; INLET,EGR GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A)	8-97146-872-1	01	1	1411-
685	03.680 CASE; INLET,EGR HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> (A)	8-97146-872-1	01	1	1411-
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	1208-
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	1208-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (B)	8-98269-803-0	01	1	1407-
92	03.675 HOSE; VAC,THROTTLE BODY VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-98269-804-0	01	1	1407-
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-777-1	01	1	1208-1406
92	03.675 HOSE; VAC,THROTTLE BODY EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98169-777-1	01	1	1407-
