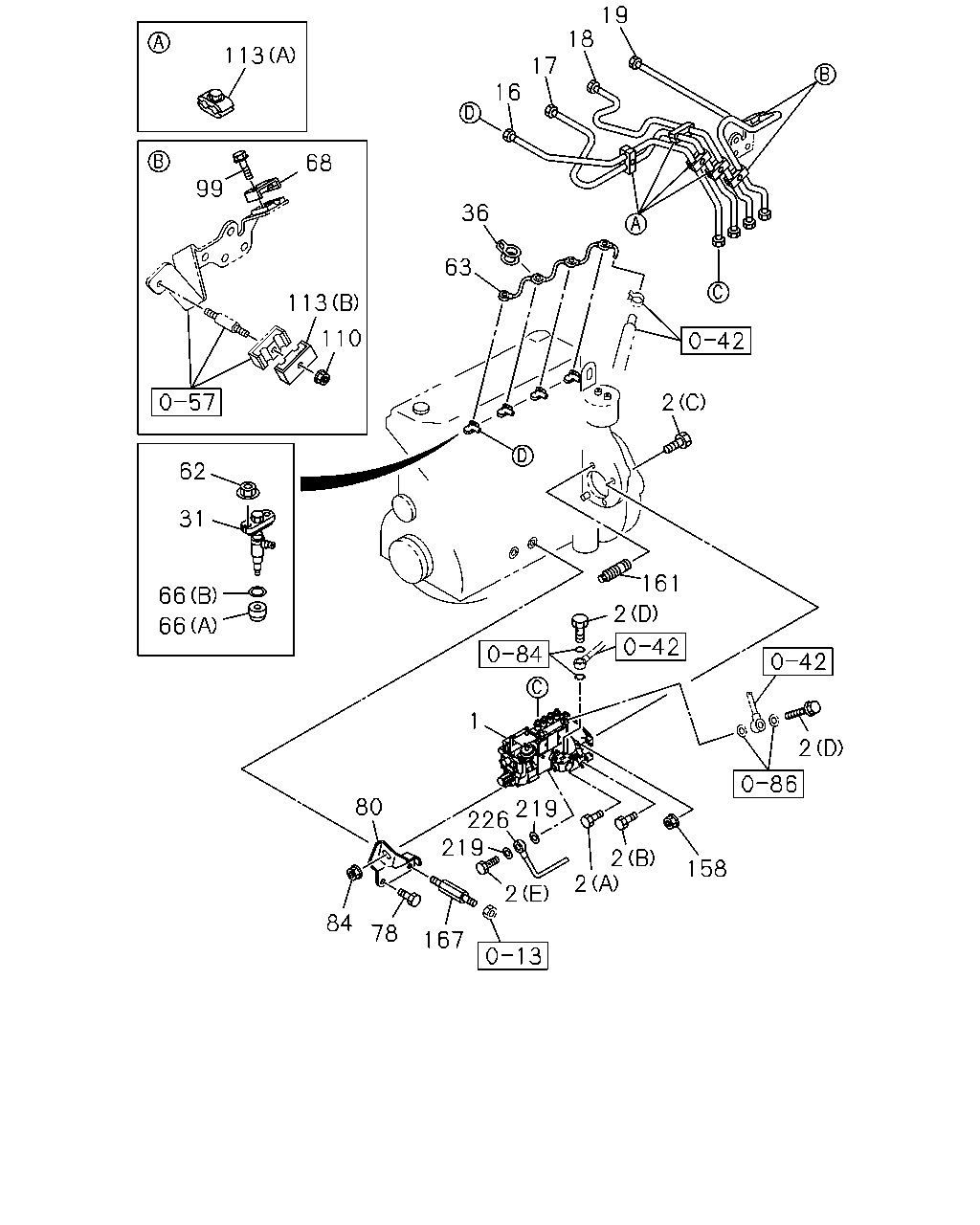

0-40 — FUEL INJECTION SYSTEM (#95022) — 98 parça

113 68 99 113 110 62 31 66 66 1 80 84 78 167 219 226 219 2 2 2 158 2 2 161 2 63 36 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2015<VZF> EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-98285-612-0	01	1	1407-1506
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015<VZF> HIGH ALTITUDE COMPENSATOR(EE2)	8-98285-613-0	01	1	1407-1506
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF>	8-98317-243-0	01	1	1507-
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015<VZF> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), HIGH ALTITUDE COMPENSATOR(EE2)	8-98268-832-0	01	1	1407-1506
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATO R(EE2)	8-98268-832-0	01	1	1407-1506
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015<VZF>	8-98268-832-0	01	1	1507-
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97215-704-2	01	1	1406-1406
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. VIN MODEL YEAR 2015<VZF>	8-97215-704-2	01	1	1407-
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	1208-1405
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	1406-1406
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>	8-97178-485-5	01	1	1407-
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>	8-97178-485-5	01	1	1407-
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATO R(EE2),VIN MODEL YEAR 2015<VZF>	8-97178-485-5	01	1	1407-
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	1208-
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	1208-
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	1208-
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	1208-
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	1208-
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	1208-
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	1208-
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	1208-
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	1208-
31	03.332 NOZZLE ASM; INJ	8-97200-570-3	04	1	1208-
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	04	1	1208-1312
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-98246-930-0	04	1	1401-
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE IDN	0-91180-108-0	08	1	1208-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98209-783-0	01	1	1303-1406
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98209-783-0	01	1	1407-1410
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF VIN MODEL YEAR 2015<VZF>	8-98209-783-0	01	1	1407-1410
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>	8-98209-783-0	01	1	1411-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-98209-783-0	01	1	1411-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV>	8-98209-783-0	01	1	1411-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF VIN MODEL YEAR 2015<VZF>	8-98209-783-0	01	1	1411-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	1208-1302
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97148-969-2	01	1	1303-1406
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97148-969-2	01	1	1303-1406
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97148-969-2	01	1	1407-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94326-439-0	04	1	1208-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 07.003 (A)	8-97171-332-0	04	1	1208-
68	03.162 CLIP; INJ PIPE	1-09701-091-0	01	1	1208-
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	1208-
80	03.306 BRACKET; PUMP GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98209-944-0	01	1	1303-1406
80	03.306 BRACKET; PUMP MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98209-944-0	01	1	1407-1410
80	03.306 BRACKET; PUMP VIN MODEL YEAR 2015<VZF>	8-98209-944-0	01	1	1407-1410
80	03.306 BRACKET; PUMP FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>	8-98209-944-0	01	1	1411-
80	03.306 BRACKET; PUMP GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-98209-944-0	01	1	1411-
80	03.306 BRACKET; PUMP HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV>	8-98209-944-0	01	1	1411-
80	03.306 BRACKET; PUMP VIN MODEL YEAR 2015<VZF>	8-98209-944-0	01	1	1411-
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	1208-1302
80	03.306 BRACKET; PUMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97136-677-0	01	1	1303-1406
80	03.306 BRACKET; PUMP FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97136-677-0	01	1	1303-1406
80	03.306 BRACKET; PUMP EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97136-677-0	01	1	1407-
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	1208-
99	03.330 BOLT; CLIP,INJ,PIPE 00.685 M6X25 FLANGE IDN	0-28650-625-0	01	1	1208-
110	03.330 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1208-
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	1208-
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	1208-
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1208-
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1208-
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	1208-
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1208-1312
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	1208-

31 32 34 58 140 43 47 44 45 138 43 140 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	03.332 NOZZLE ASM; INJ	8-97200-570-3	04	1	1208-
32	03.332 HOLDER ASM; NOZZLE	8-97078-783-1	04	1	1208-
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	1208-
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1208-
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97223-339-0	04	1	1208-
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97349-452-0	04	1	1208-
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1208-
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	1208-
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	1208-
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	1208-
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	1-15349-042-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	1-15349-043-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	1-15349-044-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	1-15349-045-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	1-15349-046-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	1-15349-047-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.60	1-15349-048-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.70	1-15349-049-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	1208-
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	1208-
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	1208-
