0-37 — TURBOCHARGER (#95021) — 9 parça

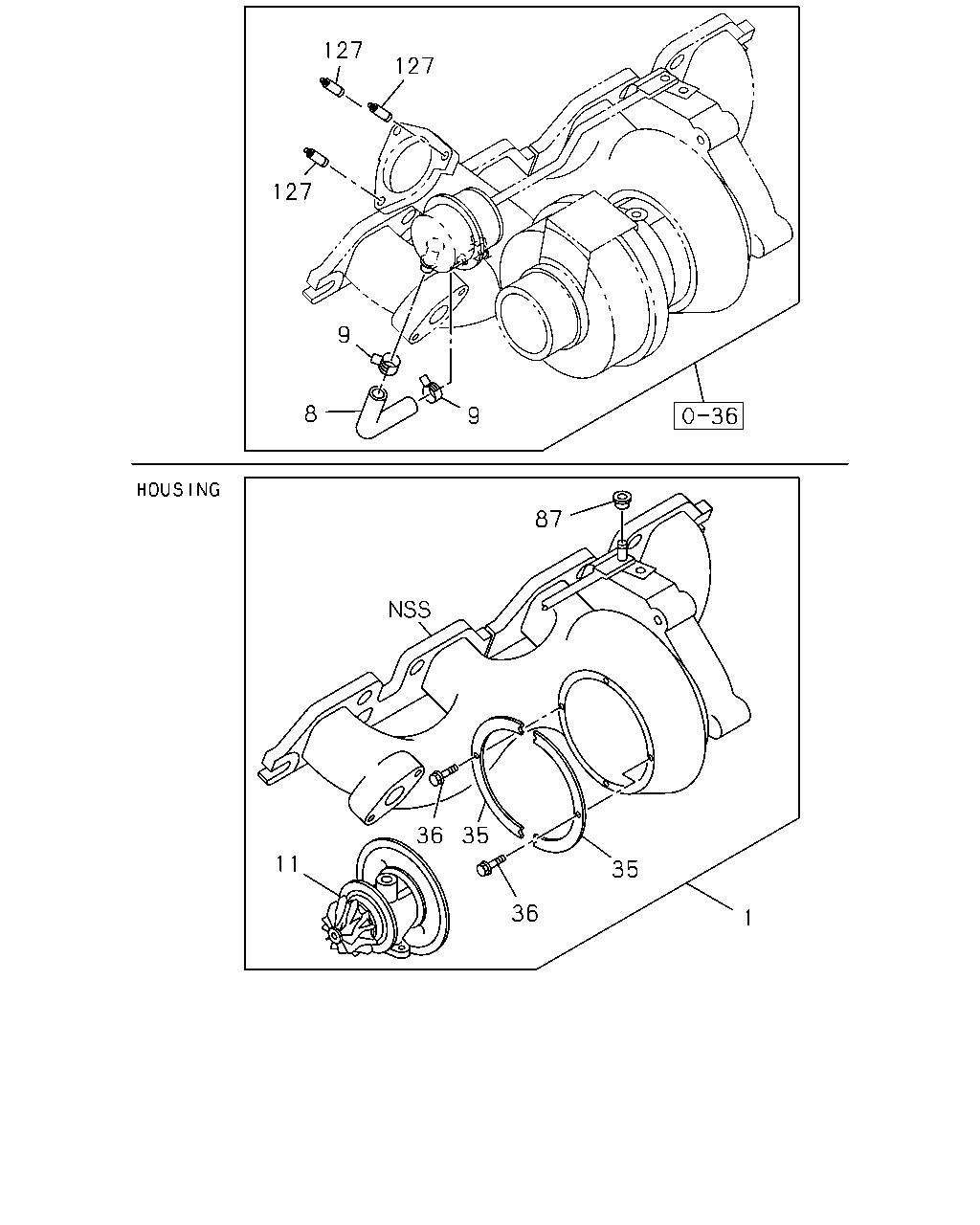

çizim 288089
127 127 127 9 8 9 87 11 36 35 35 36 1
BalonParca AdiParca NoAdetTipApplied Date
1 03.346 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 8-97326-752-1, 97326752 		8-97223-905-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97326-752-1, 97326752 		8-97213-591-0 01 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97326-752-1, 97326752 		8-97213-592-0 02 1 -
11 03.346 HOUSING ASM; TURBOCHARGER
ASM PART: A = 8-97326-752-1, 97326752 		8-97326-280-0 01 1 -
35 03.346 CLAMP; TURBINE HSG,TURBOCHARGER
ASM PART: A = 8-97326-752-1, 97326752 		8-97213-590-0 02 1 -
36 03.348 BOLT; LK PLATE,TURBINE HSG,TURBO
ASM PART: A = 8-97326-752-1, 97326752 		8-97213-579-0 04 1 -
87 03.346 RING; ACTUATOR,TURBOCHARGER
ASM PART: A = 8-97326-752-1, 97326752 		8-97213-588-0 01 1 -
127 03.348 STUD; TURBOCHARGER
ASM PART: A = 8-97326-752-1, 97326752 		8-97213-578-0 03 1 -

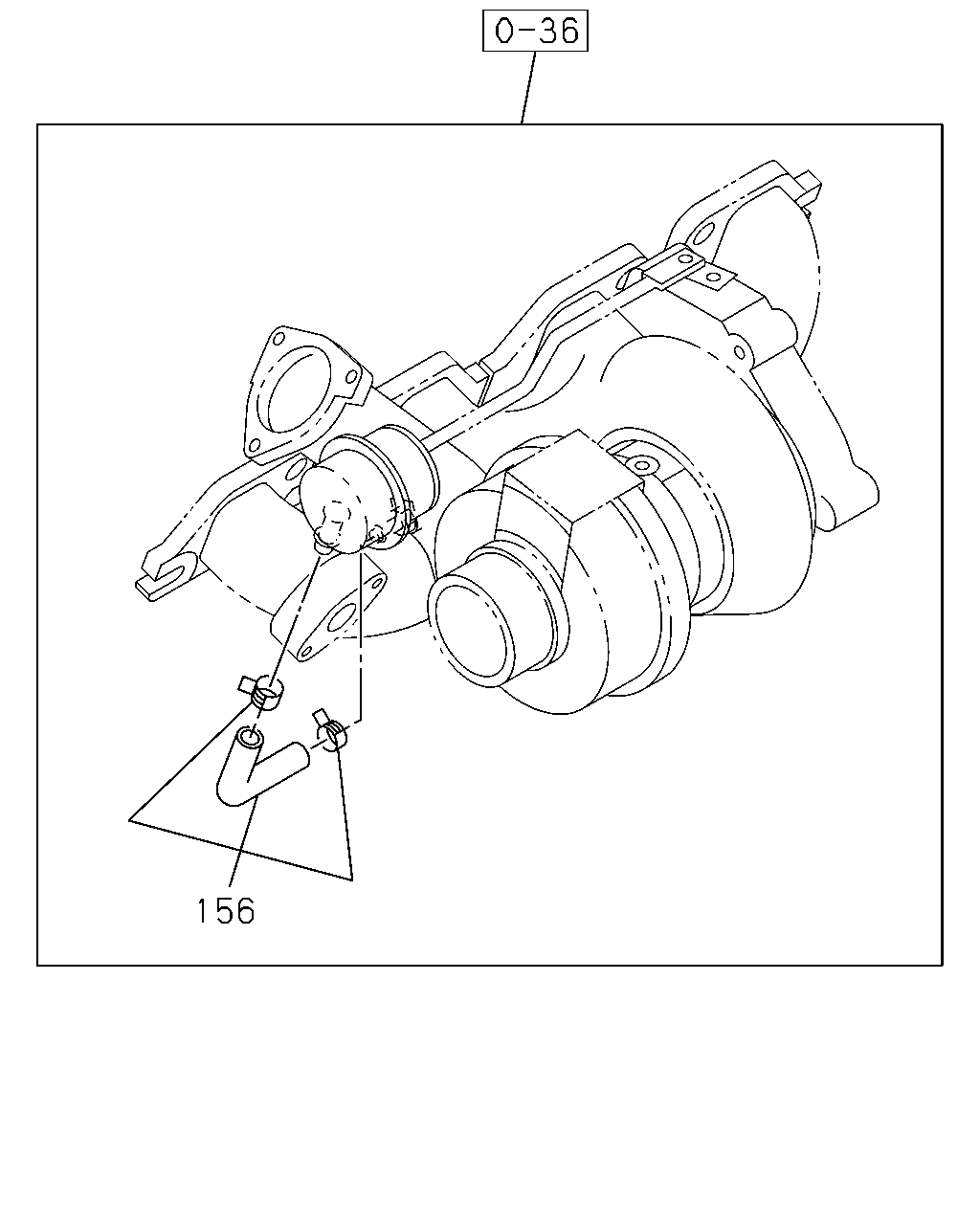

çizim 512181
156
BalonParca AdiParca NoAdetTipApplied Date
156 03.342 HOSE KIT; TURBOCHARGER
ASM PART: B = 8-98254-714-0, 98254714 		8-98334-586-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
