◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#9502) — 189 parça

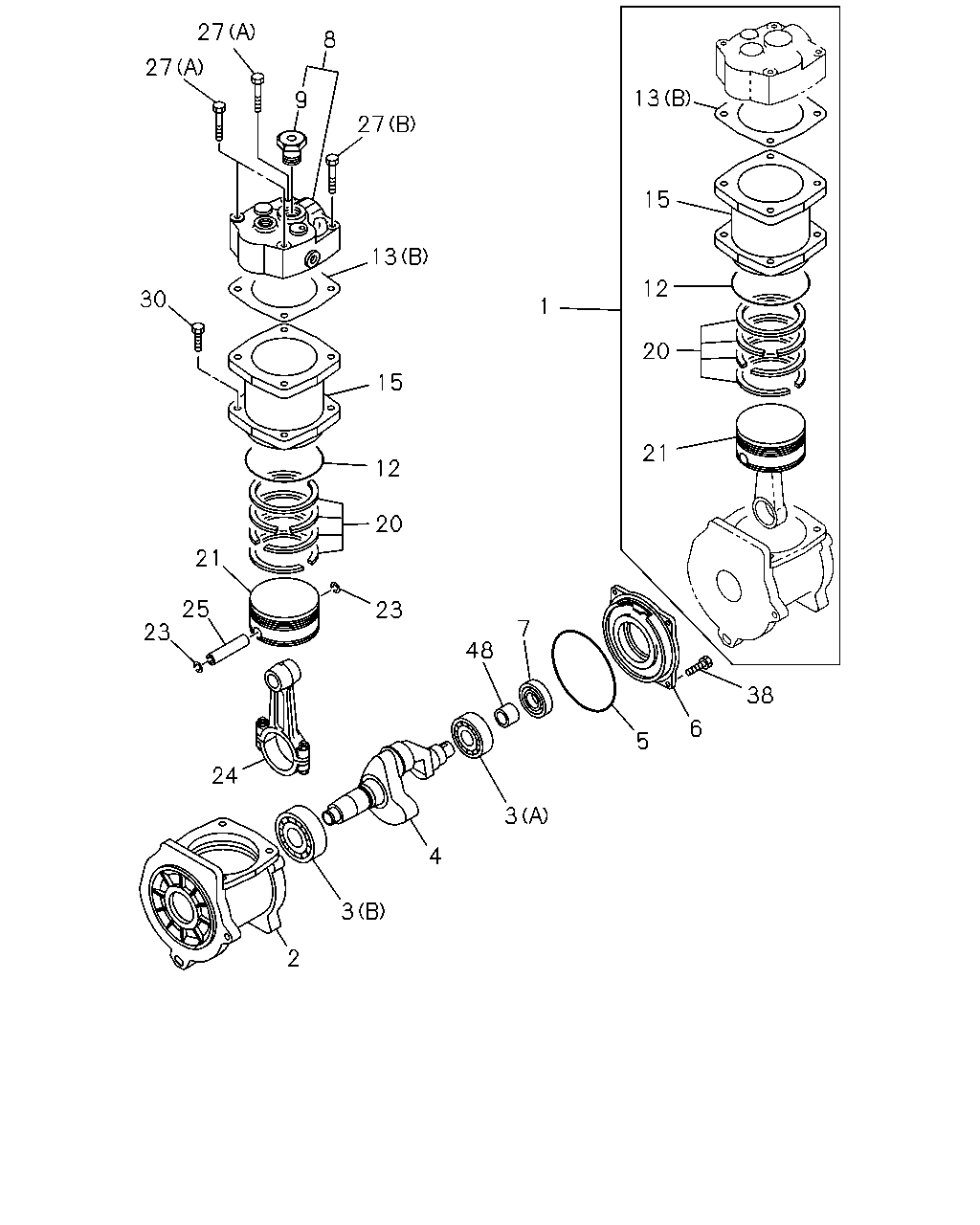

çizim 41935
27 8 27 13 9 27 15 13 12 30 1 20 15 21 12 20 21 25 23 7 23 48 38 6 5 24 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0211-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-076-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211- ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(B) 		1-19177-009-0 01 1 0211- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(A) 		1-19177-010-0 01 1 0211- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-1 01 1 0211- ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0005-0210 ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0005-0210 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0211- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-055-0 01 1 0211-0812 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0211- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211- ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0211- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) 		1-09623-626-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0211- ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0211-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0211-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0812 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0211- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0211-0812 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0211- ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0211- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211- ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0005-0210 ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0211- ●

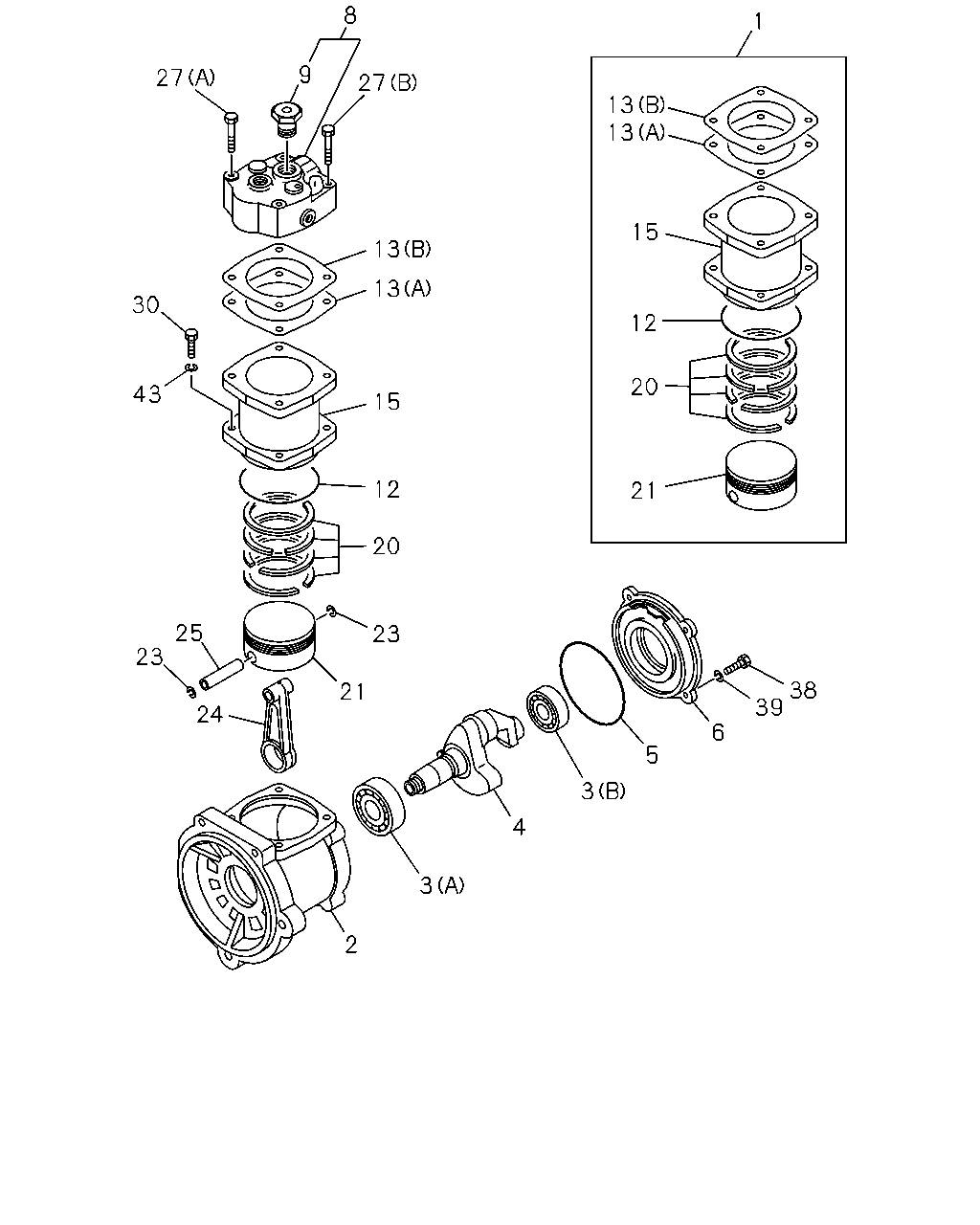

çizim 43368
8 1 9 27 27 13 13 15 13 13 30 12 20 43 15 12 21 20 25 23 23 38 39 21 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0211-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-076-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211- ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(B) 		1-19177-009-0 01 1 0211- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(A) 		1-19177-010-0 01 1 0211- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-1 01 1 0211- ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0005-0210 ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-055-0 01 1 0211-0812 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0211- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211- ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0211- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) 		1-09623-626-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0211- ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0211-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0211-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0812 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0211- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0211-0812 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0211- ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0211- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211- ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0005-0210 ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0005-0210 ●

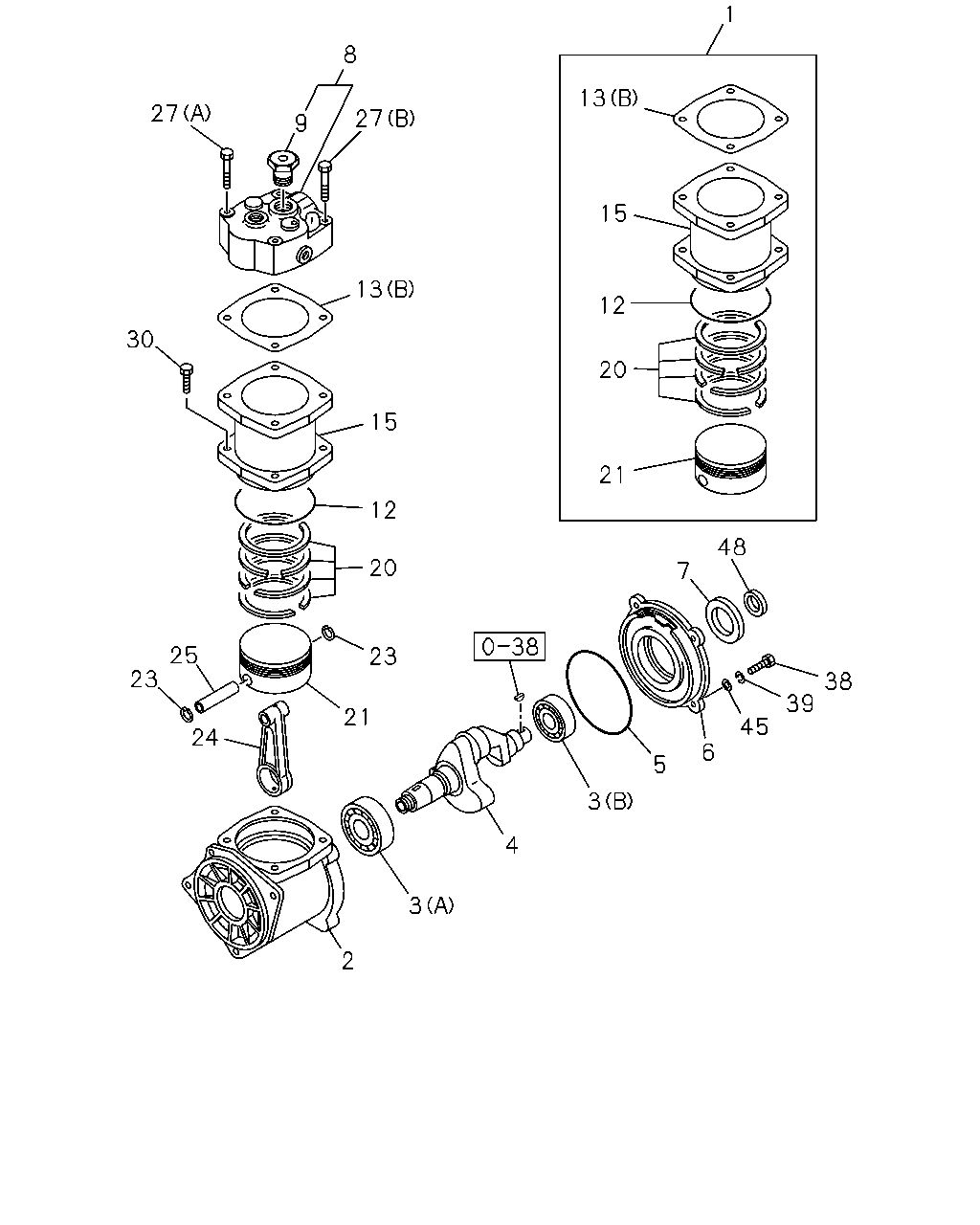

çizim 43370
1 8 13 27 27 9 15 13 12 30 20 15 21 12 48 20 7 25 23 23 38 39 21 45 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0211-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-076-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211- ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(B) 		1-19177-009-0 01 1 0211- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(A) 		1-19177-010-0 01 1 0211- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-1 01 1 0211- ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0005-0210 ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0005-0210 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0211- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-055-0 01 1 0211-0812 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0211- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211- ●
13 GASKET; AIR CMPR
(B) 		8-98112-947-0 01 1 0211- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) 		1-09623-626-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0211- ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0211-0812 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0211-0812 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0812 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0211- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0211-0812 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0211- ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0211- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211- ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0005-0210 ● ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 0005-0210 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0005-0210 ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
