0-33 — FAN AND FAN BELT (#95019) — 49 parça

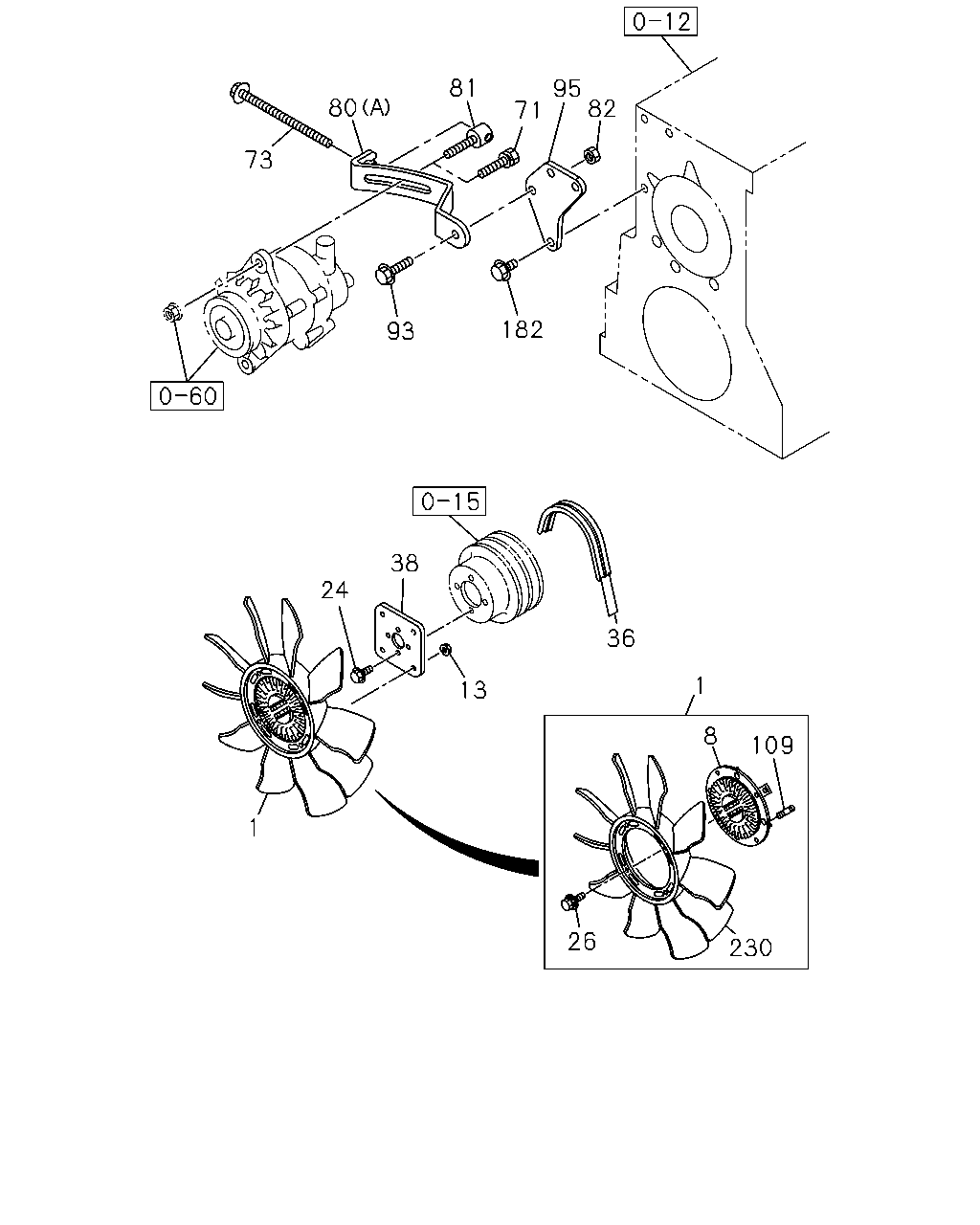

çizim 288075
81 80 73 93 182 95 71 82 38 24 13 36 1 8 109 230 26 1
BalonParca AdiParca NoAdetTipApplied Date
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 1208-
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 1208-
13 01.062 NUT; COOLING FAN
M8 FLANGE IDN 		0-91180-108-0 04 1 1208-
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 1208-
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 1208-
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) IDN 		8-97180-199-1 01 1 1208-
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS IDN 		5-87610-098-0 01 1 1208-
38 01.062 SPACER; FAN
GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98209-524-0 01 1 1303-1406
38 01.062 SPACER; FAN
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-524-0 01 1 1407-1410
38 01.062 SPACER; FAN
VIN MODEL YEAR 2015<VZF> 		8-98209-524-0 01 1 1407-1410
38 01.062 SPACER; FAN
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-524-0 01 1 1411-
38 01.062 SPACER; FAN
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-98209-524-0 01 1 1411-
38 01.062 SPACER; FAN
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> 		8-98209-524-0 01 1 1411-
38 01.062 SPACER; FAN
VIN MODEL YEAR 2015<VZF> 		8-98209-524-0 01 1 1411-
38 01.062 SPACER; FAN 8-97108-643-0 01 1 1208-1302
38 01.062 SPACER; FAN
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97108-643-0 01 1 1303-1406
38 01.062 SPACER; FAN
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97108-643-0 01 1 1303-1406
38 01.062 SPACER; FAN
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97108-643-0 01 1 1407-
71 02.317 BOLT; ADJ PLATE,GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) M8X40 W/WASHER 		8-97011-792-4 01 1 1208-1307
71 02.317 BOLT; ADJ PLATE,GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M8X40 W/WASHER 		8-97011-792-4 01 1 1308-
73 02.277 BOLT; GEN TO ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X130 FLANGE 		8-97172-720-1 01 1 1208-1307
73 02.277 BOLT; GEN TO ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.317 M8X130 FLANGE 		8-97172-720-1 01 1 1308-
80 02.317 PLATE; ADJ
(A) IDN 		8-97172-415-0 01 1 1208-
80 02.317 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97164-089-2 01 1 1208-
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 1208-1307
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97257-223-0 01 1 1308-
82 02.317 NUT; ADJ PLATE
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 		8-97695-684-0 01 1 1506-
82 02.317 NUT; ADJ PLATE
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97695-684-0 01 1 1506-
82 02.317 NUT; ADJ PLATE
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> 		8-97695-684-0 01 1 1506-
82 02.317 NUT; ADJ PLATE
VIN MODEL YEAR 2015<VZF> 		8-97695-684-0 01 1 1506-
93 02.317 BOLT; ADJ PLATE BRKT
00.029 M10X25 FLANGE IDN 		0-28651-025-0 01 1 1208-
95 02.317 BRACKET; ADJ PLATE
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 		8-97520-907-0 01 1 1506-
95 02.317 BRACKET; ADJ PLATE
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97520-907-0 01 1 1506-
95 02.317 BRACKET; ADJ PLATE
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> 		8-97520-907-0 01 1 1506-
95 02.317 BRACKET; ADJ PLATE
VIN MODEL YEAR 2015<VZF> 		8-97520-907-0 01 1 1506-
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 1208-1505
95 02.317 BRACKET; ADJ PLATE
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97037-510-0 01 1 1506-
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 1208-
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1208-
230 01.055 FAN; COOLING 8-97140-854-1 01 1 1208-

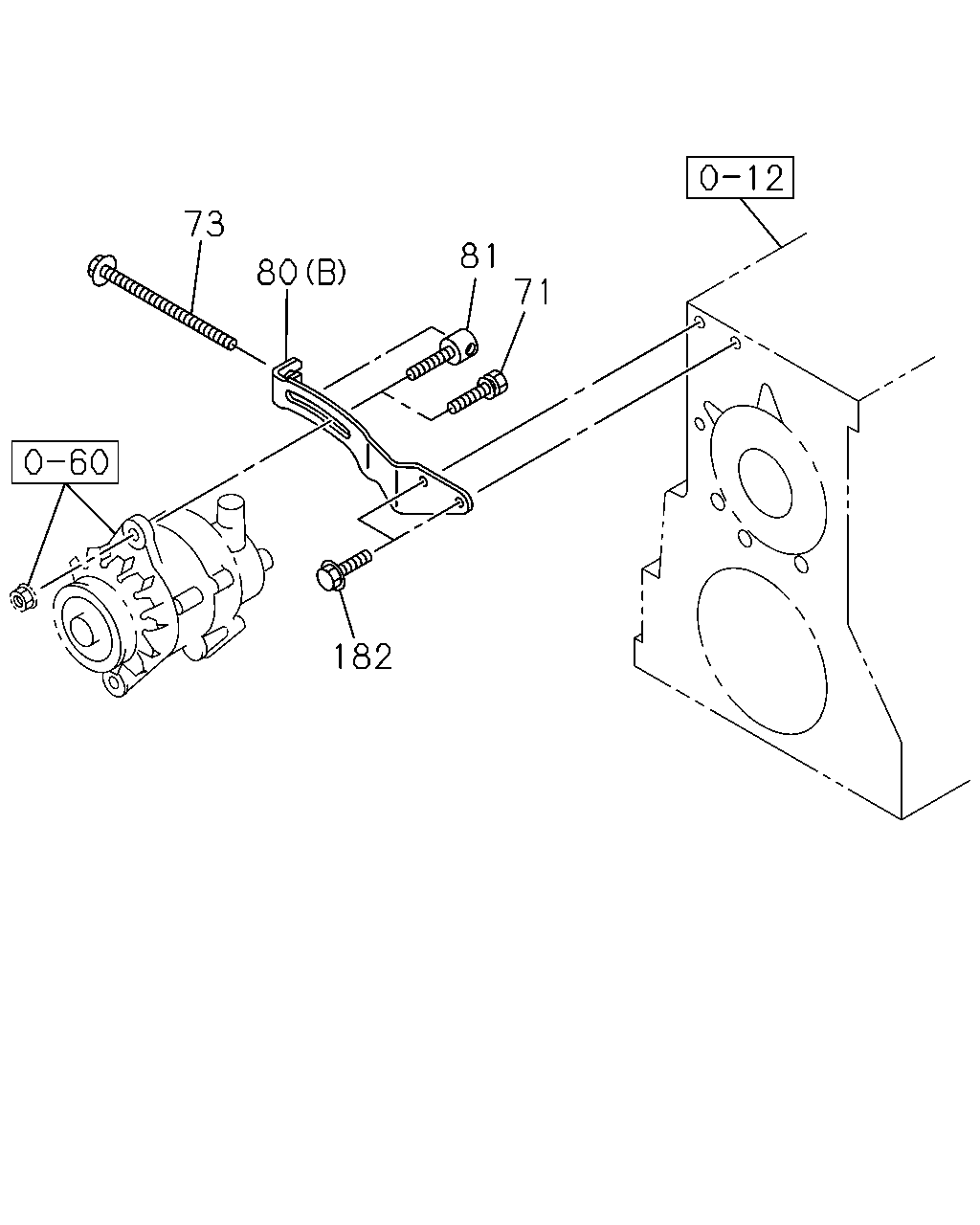

çizim 385133
73 81 80 71 182
BalonParca AdiParca NoAdetTipApplied Date
71 02.317 BOLT; ADJ PLATE,GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) M8X40 W/WASHER 		8-97011-792-4 01 1 1208-1307
71 02.317 BOLT; ADJ PLATE,GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M8X40 W/WASHER 		8-97011-792-4 01 1 1308-
73 02.277 BOLT; GEN TO ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X130 FLANGE 		8-97172-720-1 01 1 1208-1307
73 02.277 BOLT; GEN TO ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.317 M8X130 FLANGE 		8-97172-720-1 01 1 1308-
80 02.317 PLATE; ADJ
(A) IDN 		8-97172-415-0 01 1 1208-
80 02.317 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97164-089-2 01 1 1208-
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 1208-1307
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97257-223-0 01 1 1308-
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 03 1 1208-
