Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#95013) — 202 parça

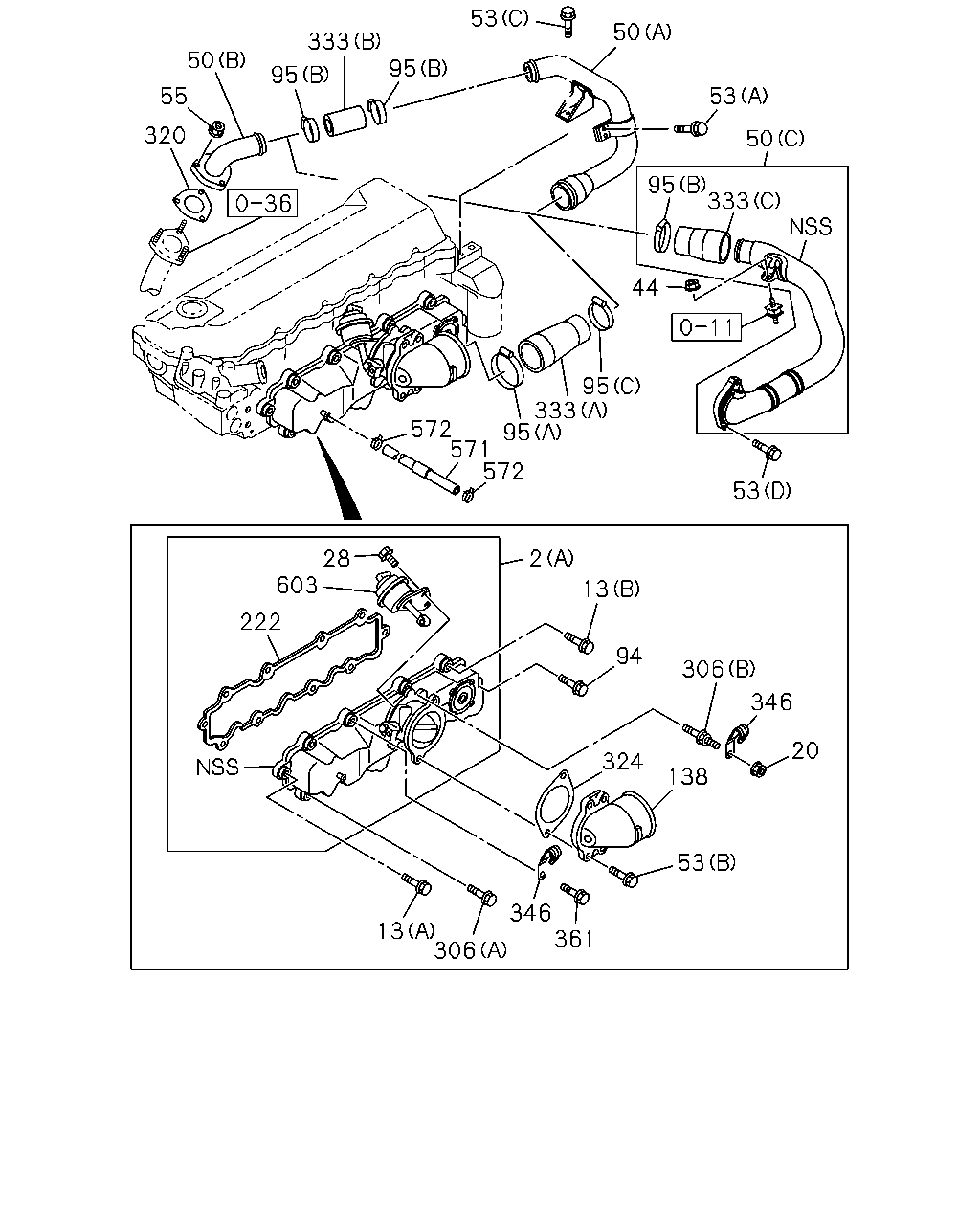

50 55 320 95 333 95 53 50 53 50 95 333 44 53 95 333 95 572 571 572 2 13 94 306 346 20 53 138 324 361 346 306 13 222 603 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.407 COVER; INL VIN MODEL YEAR 2015<VZF> (B)	8-98245-383-0	01	1	1407-1409
2	03.407 COVER; INL (A)	8-97212-454-2	01	1	1208-1406
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97212-454-2	01	1	1407-1409
2	03.407 COVER; INL (A)	8-97212-454-3	01	1	1410-
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1208-
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1208-
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1208-
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1208-
44	03.407 NUT; PIPE BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1406-1406
44	03.407 NUT; PIPE BRKT EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1407-1410
44	03.407 NUT; PIPE BRKT FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1411-
44	03.407 NUT; PIPE BRKT GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1411-
44	03.407 NUT; PIPE BRKT HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1411-
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1407-1410
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1411-
50	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1411-
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1407-1410
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1411-
50	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1411-
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1208-1405
50	03.265 PIPE; INL (C)	8-98254-369-0	01	1	1406-1406
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1407-1410
50	03.265 PIPE; INL FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1411-
50	03.265 PIPE; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1411-
50	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (C)	8-98254-369-0	01	1	1411-
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	1208-1406
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1407-1410
50	03.265 PIPE; INL FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1411-
50	03.265 PIPE; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1411-
50	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (B)	8-97202-327-2	01	1	1411-
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1407-1410
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1411-
53	03.602 BOLT; INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1411-
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-1410
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1407-1410
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1411-
53	03.602 BOLT; INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1411-
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1208-1405
53	03.602 BOLT; INL PIPE 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-1406
53	03.602 BOLT; INL PIPE EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1407-1410
53	03.602 BOLT; INL PIPE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1208-1405
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1208-1405
55	03.407 NUT; INL PIPE 01.540 M6 FLANGE	0-91180-206-0	03	1	1208-
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	1208-
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-1410
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1411-
95	03.278 CLIP; RUBBER HOSE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1411-
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-1410
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1411-
95	03.278 CLIP; RUBBER HOSE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1411-
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1208-1405
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1208-1209
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	1210-
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1208-1405
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-
138	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1407-1410
138	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1411-
138	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1411-
138	03.265 PIPE; INL	8-97180-566-2	01	1	1208-1405
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1208-
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	1208-
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1208-
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98211-431-0	01	1	1303-1406
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98211-431-0	01	1	1407-1410
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015<VZF>	8-98211-431-0	01	1	1407-1410
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>	8-98211-431-0	01	1	1411-
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-98211-431-0	01	1	1411-
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV>	8-98211-431-0	01	1	1411-
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015<VZF>	8-98211-431-0	01	1	1411-
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=47	8-97202-328-1	01	1	1208-1302
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=47	8-97202-328-1	01	1	1303-1406
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=47	8-97202-328-1	01	1	1303-1406
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=47	8-97202-328-1	01	1	1407-
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1407-1410
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1411-
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1411-
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	1208-1405
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (A)	8-97201-103-2	01	1	1407-1410
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (A)	8-97201-103-2	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97201-103-2	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1407-1410
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	1208-1405
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98219-796-0	01	1	1406-1406
333	03.278 HOSE; RUBBER,INL PIPE EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98219-796-0	01	1	1407-1410
333	03.278 HOSE; RUBBER,INL PIPE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98219-796-0	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (C)	8-98219-796-0	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (C)	8-98219-796-0	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1208-1405
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE IDN	8-97367-984-1	03	1	1208-
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1208-
571	03.265 HOSE; AIR BOOST GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=210	8-98210-164-0	01	1	1303-1406
571	03.265 HOSE; AIR BOOST MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> L=210	8-98210-164-0	01	1	1407-
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1208-1302
571	03.265 HOSE; AIR BOOST HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1303-1406
571	03.265 HOSE; AIR BOOST FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1303-1406
571	03.265 HOSE; AIR BOOST EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1407-1410
571	03.265 HOSE; AIR BOOST FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1411-
571	03.265 HOSE; AIR BOOST GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1411-
571	03.265 HOSE; AIR BOOST HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1411-
572	03.407 CLIP; BOOST HOSE VIN MODEL YEAR 2015<VZF> 03.145 ID=8	8-94107-762-0	01	1	1410-1410
572	03.407 CLIP; BOOST HOSE VIN MODEL YEAR 2015<VZF> 03.145 ID=8	8-94107-762-0	01	1	1411-
572	03.407 CLIP; BOOST HOSE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 03.145 ID=8	8-94107-762-0	01	1	1411-
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	1208-1406
572	03.407 CLIP; BOOST HOSE EXC. VIN MODEL YEAR 2015<VZF> 03.145 ID=8	8-94107-762-0	02	1	1407-1410
572	03.407 CLIP; BOOST HOSE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 03.145 ID=8	8-94107-762-0	02	1	1411-
572	03.407 CLIP; BOOST HOSE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 03.145 ID=8	8-94107-762-0	02	1	1411-
572	03.407 CLIP; BOOST HOSE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 03.145 ID=8	8-94107-762-0	02	1	1411-
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1208-

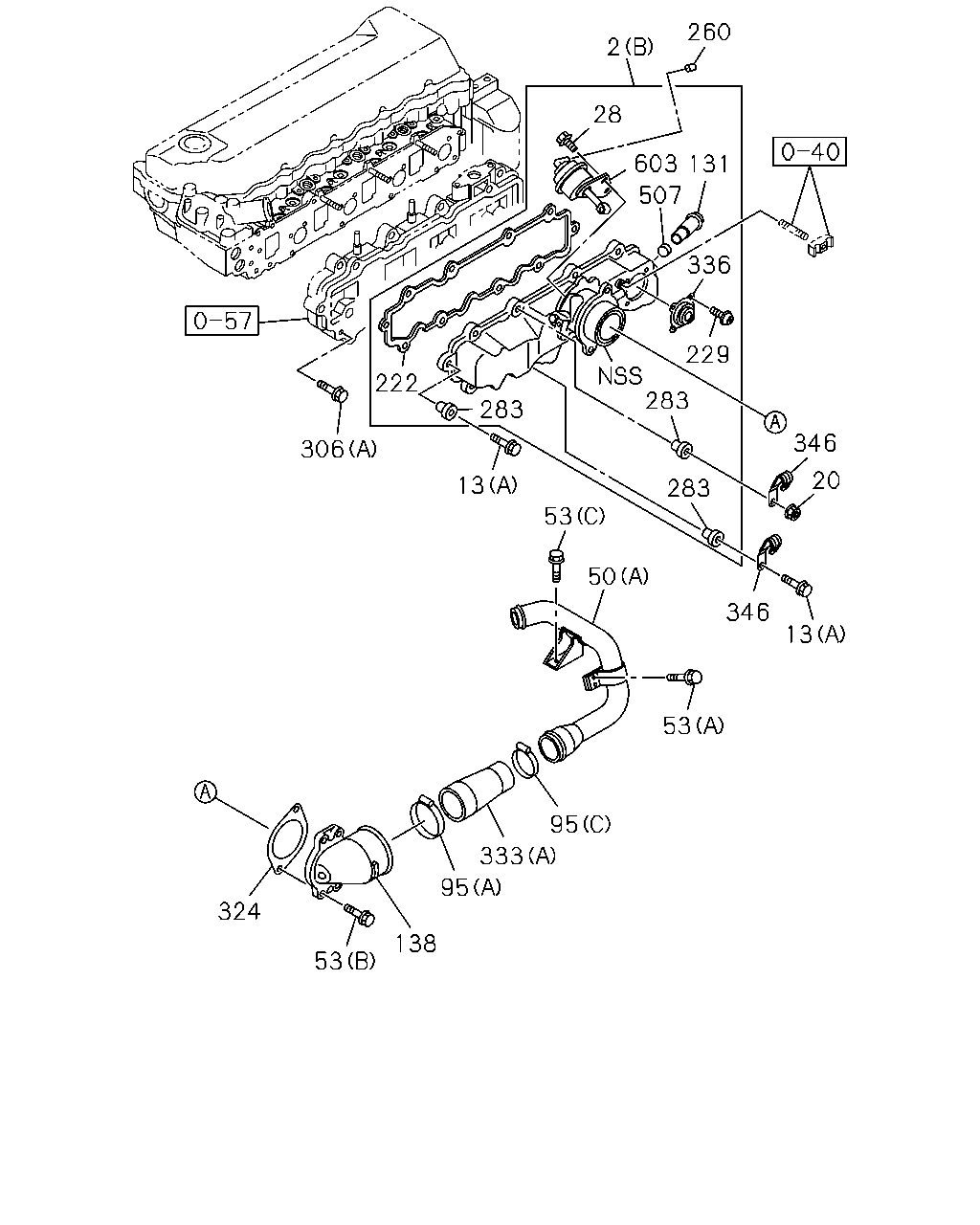

260 2 28 131 603 336 507 229 283 346 283 20 346 13 53 53 50 13 283 222 95 333 95 138 53 324 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.407 COVER; INL VIN MODEL YEAR 2015<VZF> (B)	8-98245-383-0	01	1	1407-1409
2	03.407 COVER; INL (A)	8-97212-454-2	01	1	1208-1406
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97212-454-2	01	1	1407-1409
2	03.407 COVER; INL (A)	8-97212-454-3	01	1	1410-
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1208-
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1208-
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1208-
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1208-
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1407-1410
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1411-
50	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1411-
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1407-1410
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1411-
50	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1411-
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1208-1405
50	03.265 PIPE; INL (C)	8-98254-369-0	01	1	1406-1406
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1407-1410
50	03.265 PIPE; INL FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1411-
50	03.265 PIPE; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1411-
50	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (C)	8-98254-369-0	01	1	1411-
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	1208-1406
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1407-1410
50	03.265 PIPE; INL FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1411-
50	03.265 PIPE; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1411-
50	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (B)	8-97202-327-2	01	1	1411-
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1407-1410
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1411-
53	03.602 BOLT; INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1411-
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-1410
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1407-1410
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1411-
53	03.602 BOLT; INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1411-
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1208-1405
53	03.602 BOLT; INL PIPE 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-1406
53	03.602 BOLT; INL PIPE EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1407-1410
53	03.602 BOLT; INL PIPE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1411-
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1208-1405
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE IDN	0-28651-025-0	02	1	1208-1405
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-1410
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1411-
95	03.278 CLIP; RUBBER HOSE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1411-
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-1410
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1411-
95	03.278 CLIP; RUBBER HOSE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1411-
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1208-1405
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1208-1209
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	1210-
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1208-1405
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-
131	03.278 PIPE; PCV,INL VIN MODEL YEAR 2015<VZF>	8-97102-601-0	01	1	1407-1409
138	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1407-1410
138	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1411-
138	03.265 PIPE; INL HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1411-
138	03.265 PIPE; INL	8-97180-566-2	01	1	1208-1405
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1208-
229	03.278 SCREW; VENTILATION VLV VIN MODEL YEAR 2015<VZF> 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1407-1409
260	03.278 CAP; RUBBER VIN MODEL YEAR 2015<VZF> 01.780 ID=4	8-94217-809-0	01	1	1410-1410
260	03.278 CAP; RUBBER VIN MODEL YEAR 2015<VZF> 01.780 ID=4	8-94217-809-0	01	1	1411-
260	03.278 CAP; RUBBER HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> 01.780 ID=4	8-94217-809-0	01	1	1411-
283	03.265 RUBBER VIN MODEL YEAR 2015<VZF> OD=23	8-97105-689-6	10	1	1407-1409
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	1208-
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1208-
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1407-1410
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1411-
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1411-
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	1208-1405
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (A)	8-97201-103-2	01	1	1407-1410
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (A)	8-97201-103-2	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97201-103-2	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1407-1410
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	1208-1405
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98219-796-0	01	1	1406-1406
333	03.278 HOSE; RUBBER,INL PIPE EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98219-796-0	01	1	1407-1410
333	03.278 HOSE; RUBBER,INL PIPE FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98219-796-0	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (C)	8-98219-796-0	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (C)	8-98219-796-0	01	1	1411-
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1208-1405
336	03.415 VALVE; VENTILATION VIN MODEL YEAR 2015<VZF>	8-98245-399-0	01	1	1407-1409
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE IDN	8-97367-984-1	03	1	1208-
507	03.415 ORIFICE VIN MODEL YEAR 2015<VZF>	8-97088-649-0	01	1	1407-1409
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1208-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
