0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#95011) — 64 parça

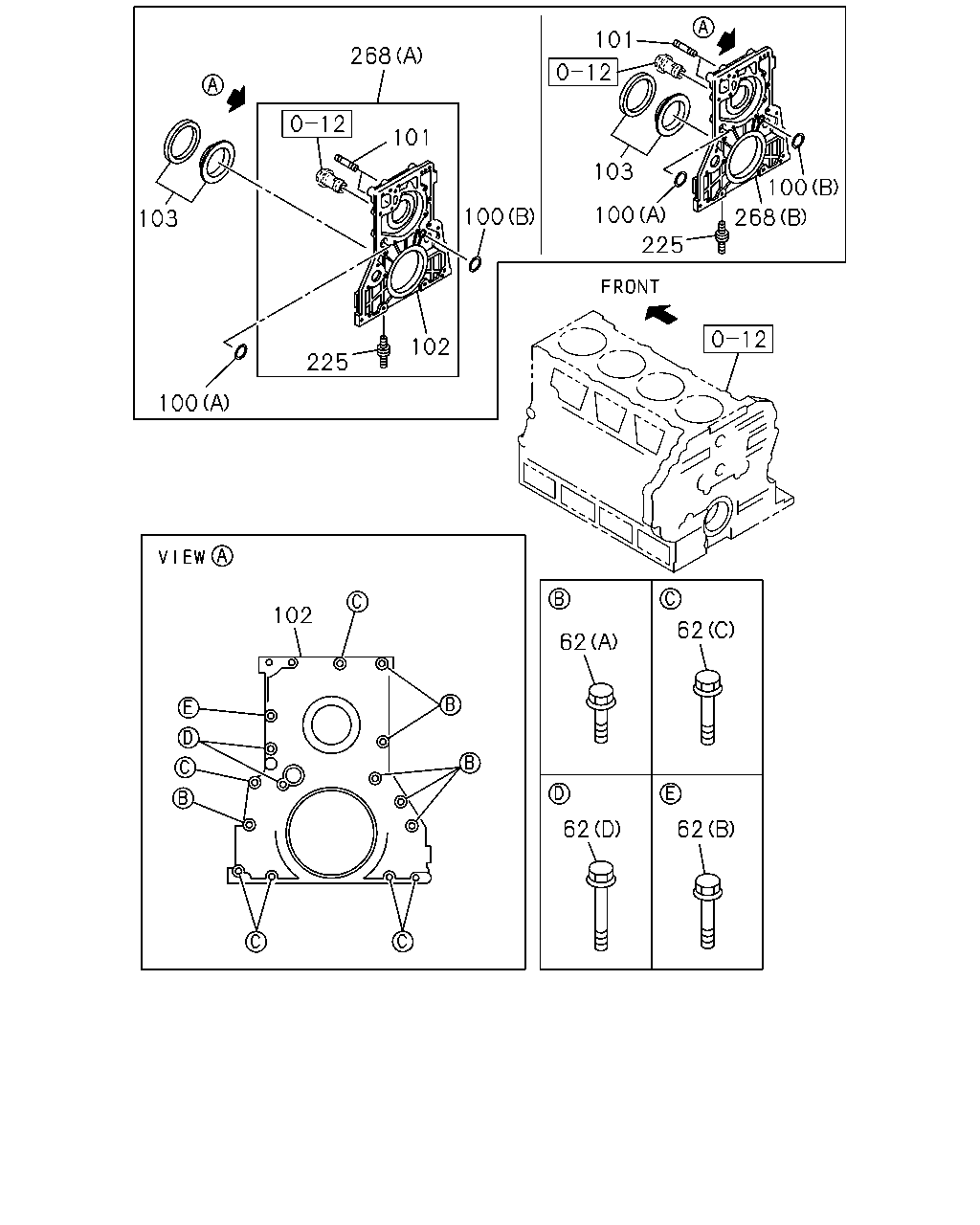

çizim 288041
100 268 225 100 103 101 268 101 100 225 102 100 103 102 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE IDN 		0-28650-825-0 06 1 1208-
62 00.206 BOLT; COVER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1208-1406
62 00.206 BOLT; COVER
EXC. VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1208-
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1208-
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 1208-
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 1208-
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1208-1410
101 01.073 STUD; WATER PUMP
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 01.428 M8X18 L=30 		0-41010-818-0 01 1 1411-
101 01.073 STUD; WATER PUMP
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 01.428 M8X18 L=30 		0-41010-818-0 01 1 1411-
101 01.073 STUD; WATER PUMP
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 01.428 M8X18 L=30 		0-41010-818-0 01 1 1411-
101 01.073 STUD; WATER PUMP
VIN MODEL YEAR 2015<VZF> 01.428 M8X18 L=30 		0-41010-818-0 01 1 1411-
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1208-1410
101 01.073 STUD; WATER PUMP
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 00.206 M8X18 L=29 		8-97028-541-0 01 1 1411-
101 01.073 STUD; WATER PUMP
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 00.206 M8X18 L=29 		8-97028-541-0 01 1 1411-
101 01.073 STUD; WATER PUMP
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 00.206 M8X18 L=29 		8-97028-541-0 01 1 1411-
101 01.073 STUD; WATER PUMP
VIN MODEL YEAR 2015<VZF> 00.206 M8X18 L=29 		8-97028-541-0 01 1 1411-
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1208-1302
102 00.137 RETAINER; FRT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98039-932-2 01 1 1303-1406
102 00.137 RETAINER; FRT
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98039-932-2 01 1 1303-1406
102 00.137 RETAINER; FRT
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-98039-932-2 01 1 1407-
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98209-640-0 01 1 1303-1406
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-640-0 01 1 1407-1410
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> 		8-98209-640-0 01 1 1407-1410
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> 		8-98209-640-0 01 1 1411-
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-98209-640-0 01 1 1411-
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B),BIO DIESEL FUEL B10<8NV> 		8-98209-640-0 01 1 1411-
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> 		8-98209-640-0 01 1 1411-
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1208-1302
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=109 OD=137 		8-97329-780-0 01 1 1303-1406
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=109 OD=137 		8-97329-780-0 01 1 1303-1406
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=109 OD=137 		8-97329-780-0 01 1 1407-
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1208-1410
225 01.428 STUD; OIL PAN
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1411-
225 01.428 STUD; OIL PAN
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1411-
225 01.428 STUD; OIL PAN
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1411-
225 01.428 STUD; OIL PAN
VIN MODEL YEAR 2015<VZF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1411-
268 00.206 COVER; FRT
GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98209-520-0 01 1 1303-1406
268 00.206 COVER; FRT
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98209-520-0 01 1 1407-1410
268 00.206 COVER; FRT
VIN MODEL YEAR 2015<VZF> (B) 		8-98209-520-0 01 1 1407-1410
268 00.206 COVER; FRT
FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98209-520-0 01 1 1411-
268 00.206 COVER; FRT
GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> (B) 		8-98209-520-0 01 1 1411-
268 00.206 COVER; FRT
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> (B) 		8-98209-520-0 01 1 1411-
268 00.206 COVER; FRT
VIN MODEL YEAR 2015<VZF> (B) 		8-98209-520-0 01 1 1411-
268 00.206 COVER; FRT
(A) 		8-98039-931-2 01 1 1208-1302
268 00.206 COVER; FRT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98039-931-2 01 1 1303-1406
268 00.206 COVER; FRT
FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98039-931-2 01 1 1303-1406
268 00.206 COVER; FRT
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A) 		8-98039-931-2 01 1 1407-

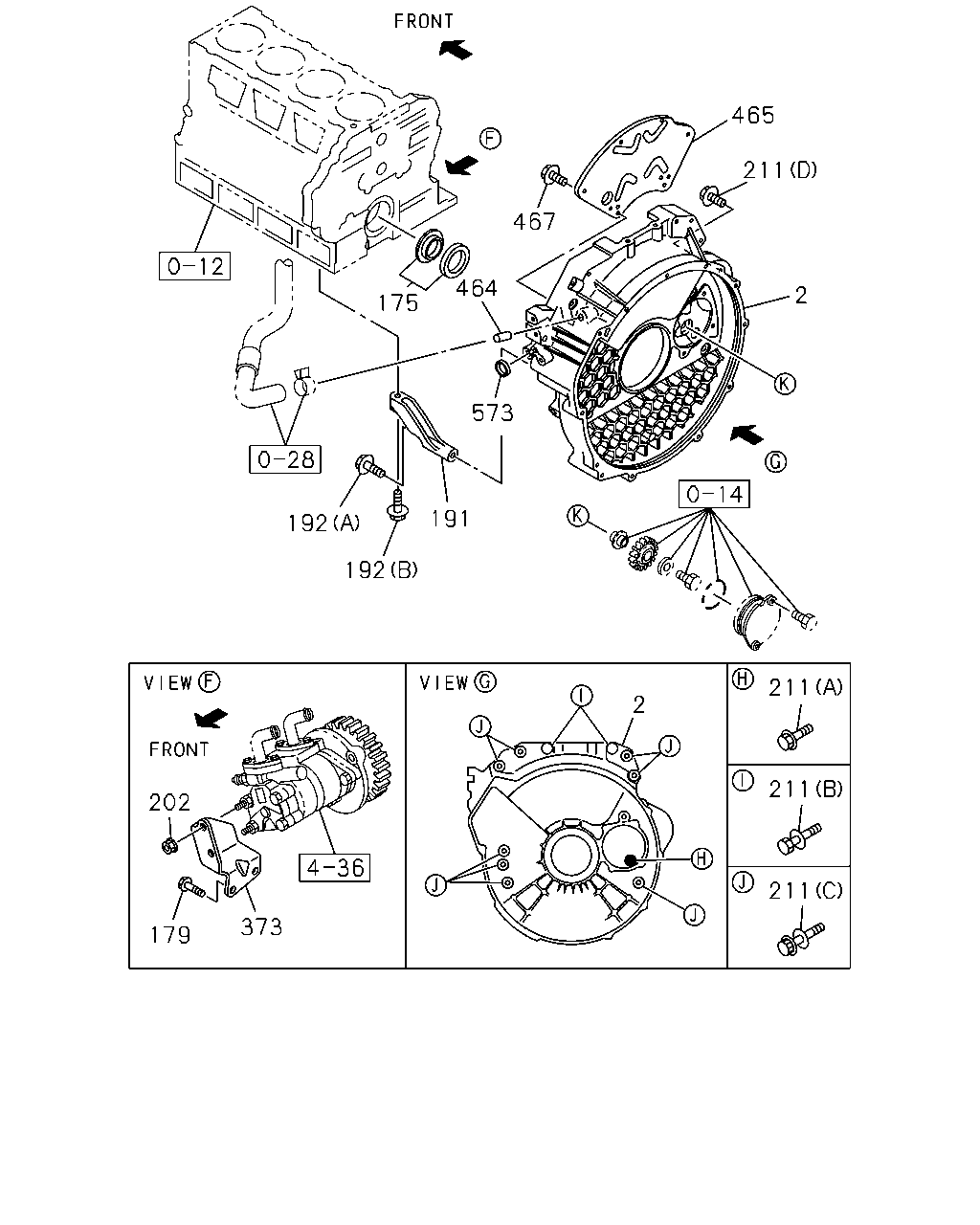

çizim 289691
175 464 467 573 191 192 192 211 465 2 211 211 211 2 373 179 202
BalonParca AdiParca NoAdetTipApplied Date
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1208-
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1208-
179 00.206 BOLT; BRKT
00.004 M10X18 FLANGE 		0-28181-018-0 02 1 1208-
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1208-
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1208-
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 01 1 1208-
202 00.206 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1208-
211 00.669 BOLT; HSG
00.029 (D) M10X40 FLANGE 		0-28751-040-0 01 1 1208-
211 00.669 BOLT; HSG
(A) M12X30 FLANGE 		8-97135-419-0 01 1 1208-
211 00.669 BOLT; HSG
(B) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1208-
211 00.669 BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1208-
373 00.206 BRACKET; PUMP 8-97149-333-0 01 1 1208-
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 1208-
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1208-
467 00.686 BOLT; PLATE
06.321 M6X10 		8-98030-649-0 06 1 1208-
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 1208-
