Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#9501) — 212 parça

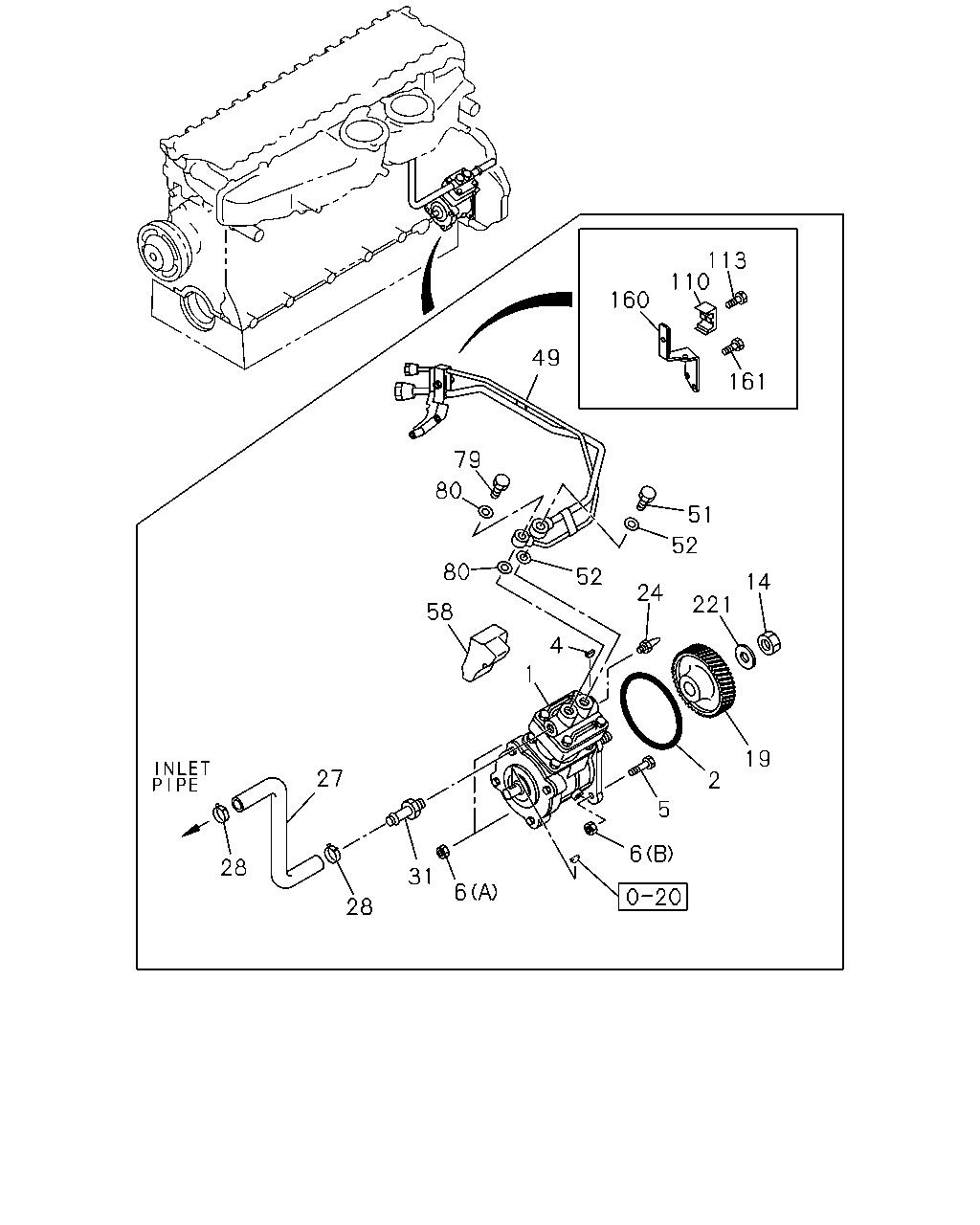

28 27 30 28 68 51 52 80 52 80 24 1 14 221 6 4 233 19 5 6 2 6 110 160 113 161 49 79 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0211-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0210			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0211-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0210			●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0211-0512		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210	●		●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210			●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0211-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0211-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-		●
27	HOSE; AIR CMPR,SUCTION	8-94395-085-0	01	1	0005-0210			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0211-0512		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-859-1	01	1	0211-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE	8-97600-184-1	01	1	0211-		●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	0005-0210			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0211-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-		●
68	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0211-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0005-0210	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0211-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0211-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE	8-97602-561-0	01	1	0211-		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210	●		●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-		●
233	RING; FRICTION	8-94390-562-0	01	1	0211-0311		●
233	RING; FRICTION	8-97603-297-0	01	1	0312-		●

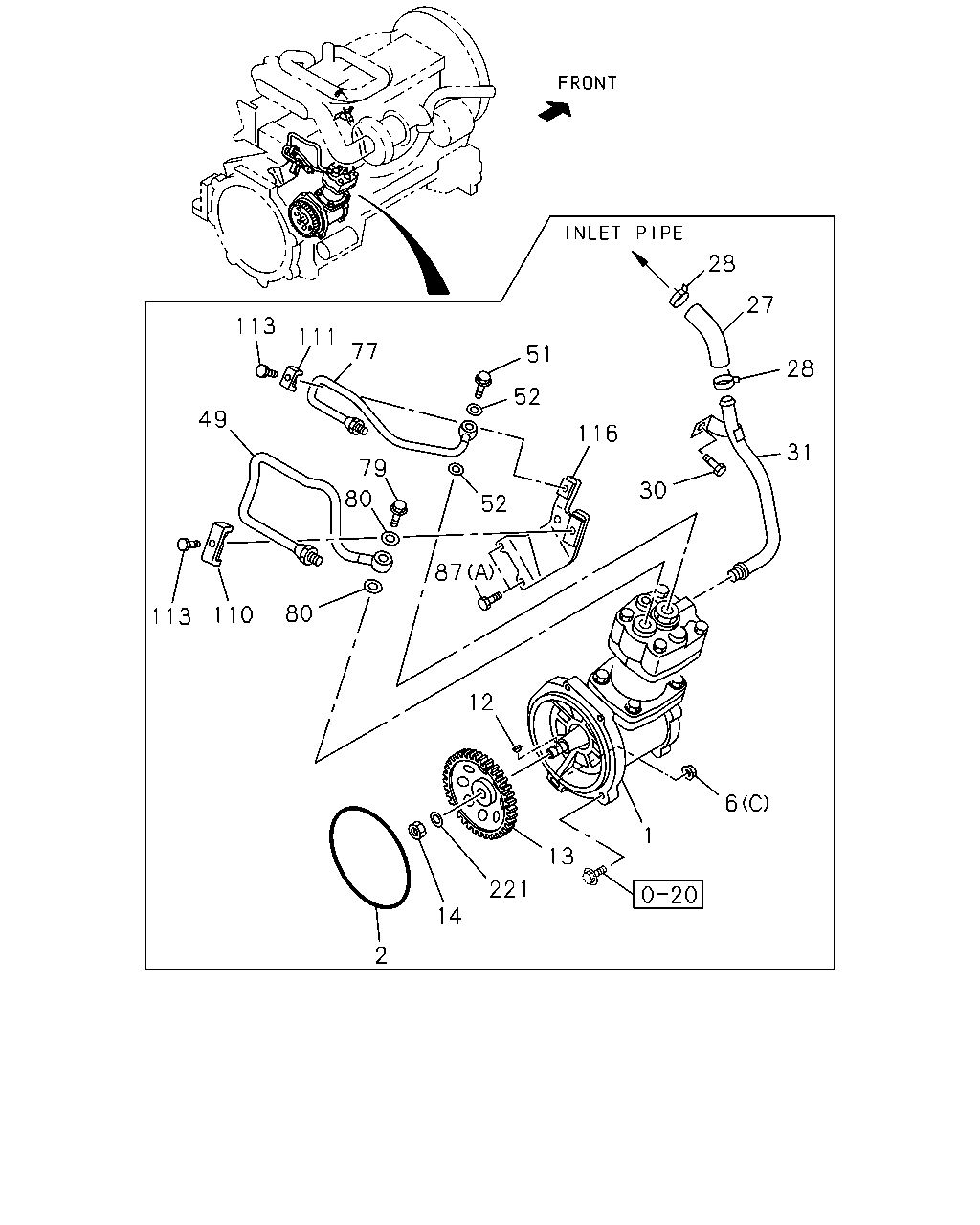

28 27 113 111 77 51 28 52 49 116 31 79 30 80 52 87 80 110 113 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0211-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-		●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0005-0210	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0005-0210	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210	●		●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-		●
27	HOSE; AIR CMPR,SUCTION	8-94395-085-0	01	1	0005-0210			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0211-0512		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-859-1	01	1	0211-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE	8-97600-184-1	01	1	0211-		●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	0005-0210			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0211-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-		●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
87	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●		●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0005-0210	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0211-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0210			●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0211-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0210			●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	0005-0210	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210	●		●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-		●

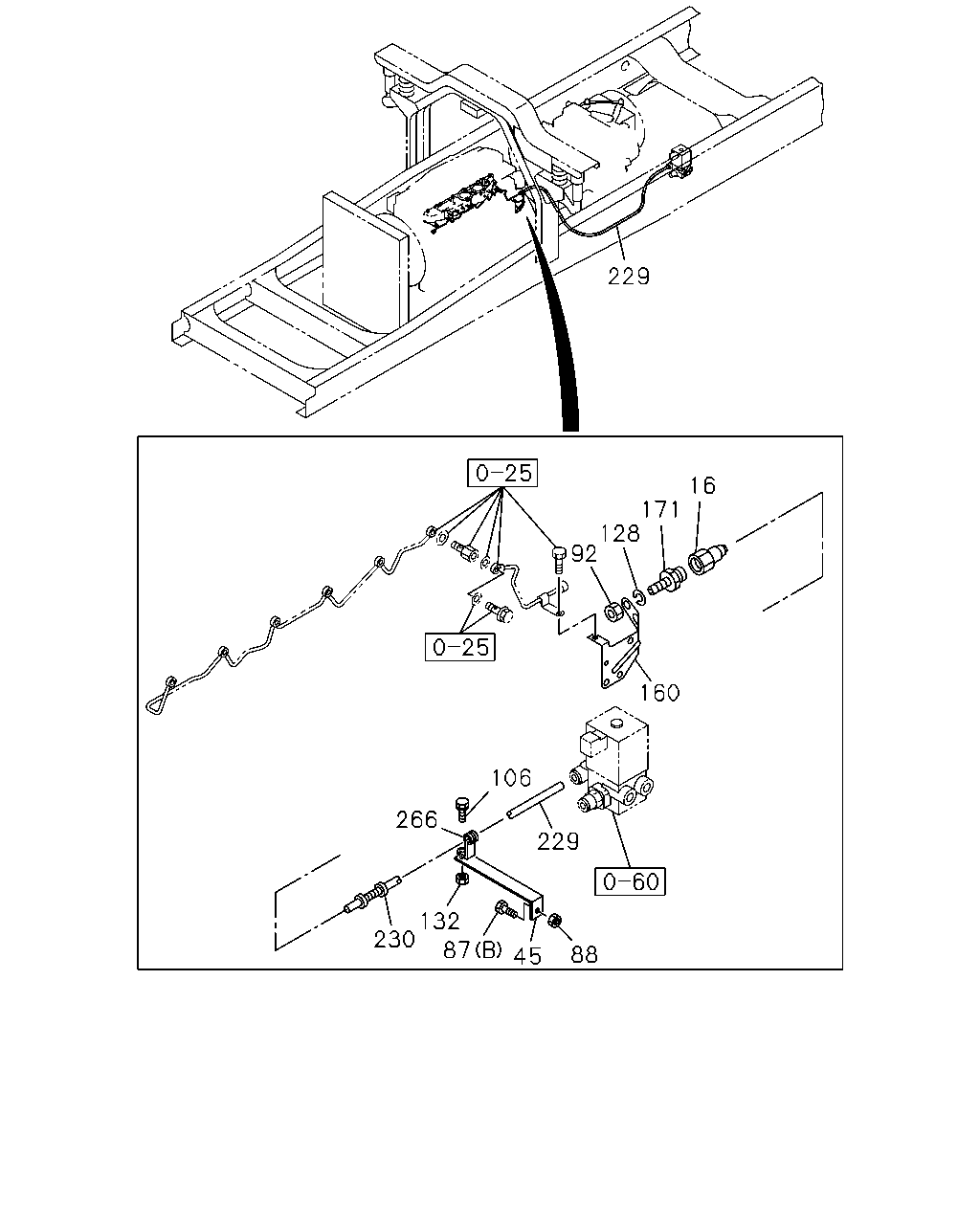

229 16 171 128 92 160 106 266 229 132 230 87 88 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	ADAPTER DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0007	●		●
16	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0210	●		●
45	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	0005-0210	●		●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
87	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●		●
88	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0005-0210	●		●
92	NUT; UNION M12	9-09840-280-0	01	1	0005-0210	●		●
106	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●		●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0005-0210	●		●
132	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●		●
160	BRACKET; AIR PIPE	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE	8-97602-561-0	01	1	0211-		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0005-0210			●
171	UNION M12 L=56.5	9-09223-106-1	01	1	0005-0210	●		●
229	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210	●		●
230	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0210	●		●
266	CLIP; NYLON TUBE D=9 T=45	5-09700-021-0	01	1	0005-0210	●		●

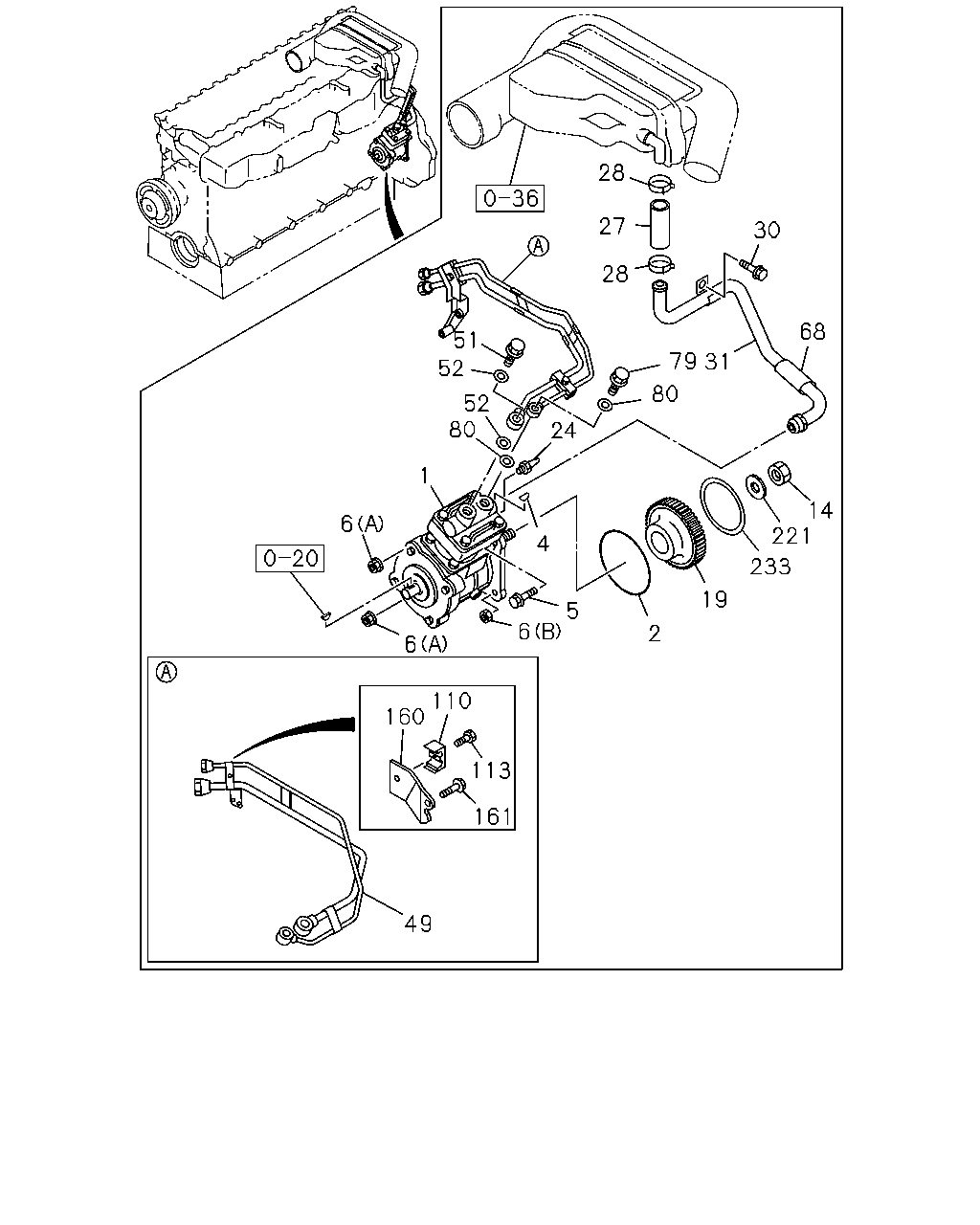

113 110 160 49 161 79 80 51 52 80 52 14 24 221 58 4 1 19 27 2 5 6 31 28 6 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0211-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0210			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0211-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0210			●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0211-0512		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210	●		●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210			●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0211-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0211-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-		●
27	HOSE; AIR CMPR,SUCTION	8-94395-085-0	01	1	0005-0210			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-859-1	01	1	0211-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE	8-97600-184-1	01	1	0211-		●
49	PIPE; AIR,CHARGE	8-94395-087-2	01	1	0005-0210			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0211-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-		●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	0005-0210			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
110	CLIP; AIR PIPE	8-94393-037-0	02	1	0005-0210	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0211-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0211-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE	8-97602-561-0	01	1	0211-		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210	●		●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-		●

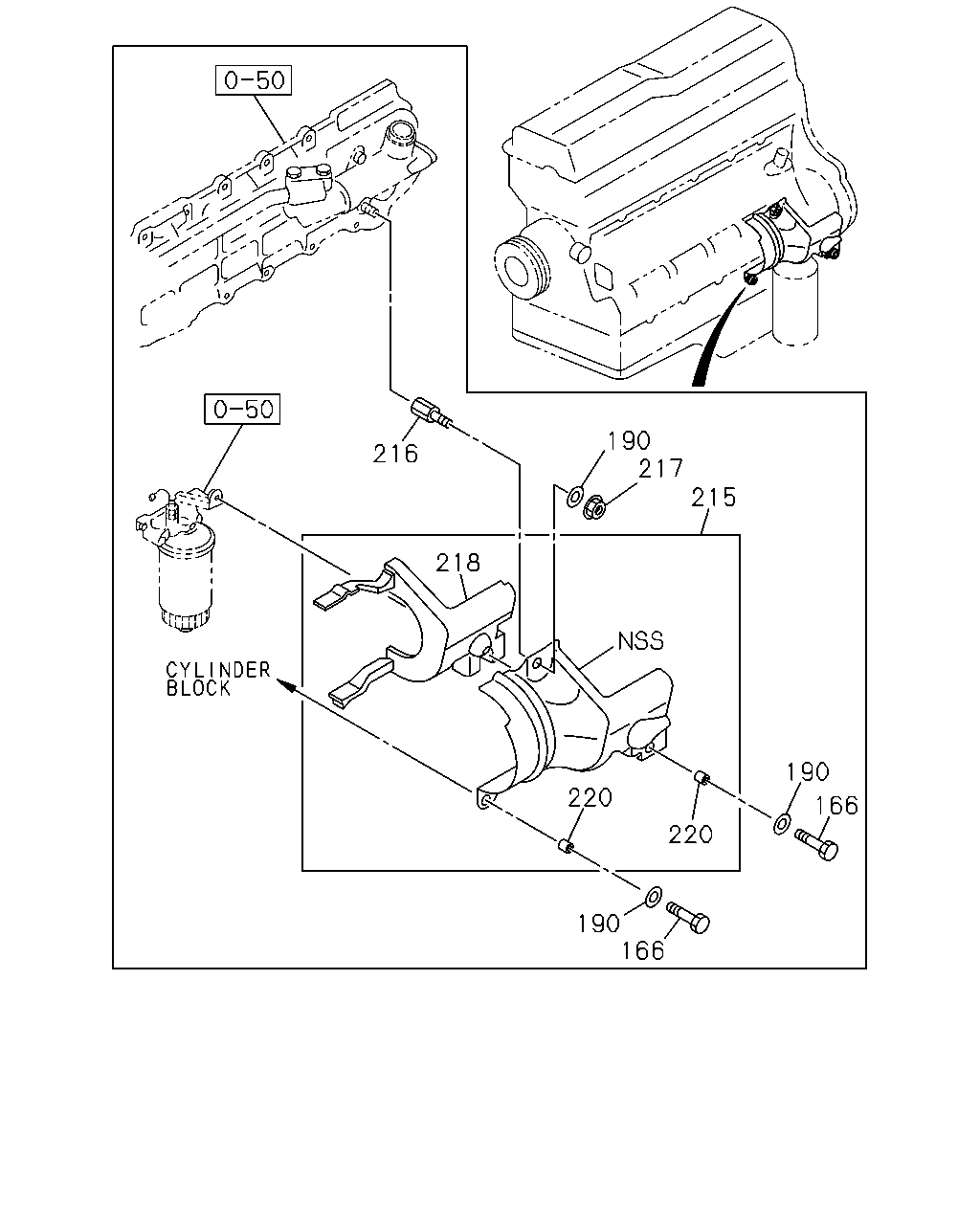

190 217 215 216 218 190 220 166 220 190 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	0005-0210	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	0005-0210	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	0005-0210	●
216	SPACER; COVER	8-94394-990-1	01	1	0005-0210	●
217	NUT; COVER M10	9-09110-410-0	01	1	0005-0210	●
218	INSULATOR; COVER	8-94394-995-2	01	1	0005-0210	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	0005-0210	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
